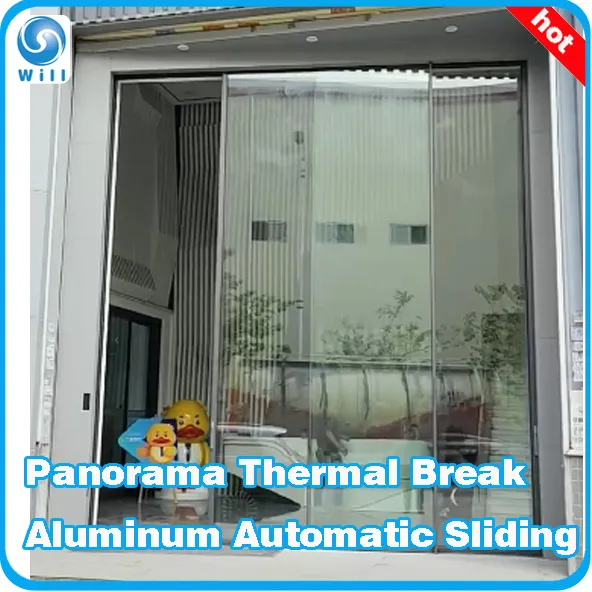

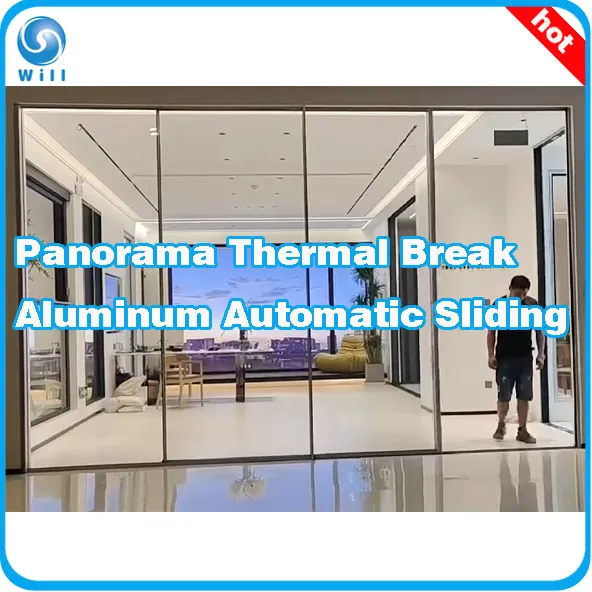

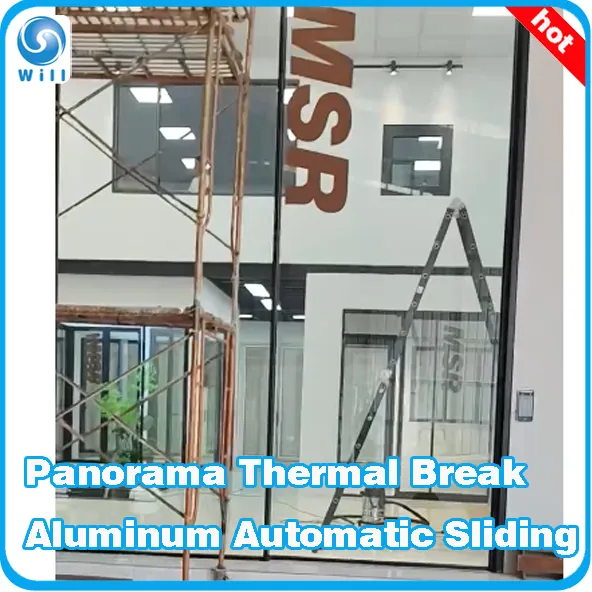

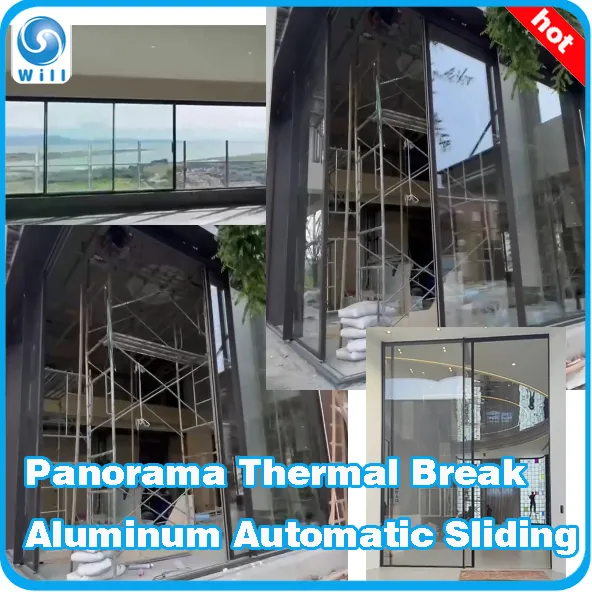

Automatic Panorama Thermal Break Aluminum Door

1 / 5

Automatic Panorama Thermal Break Aluminum Door

Customization:	Available
Warranty:	36monthes
Material:	Aluminum Alloy

Send Inquiry

Product Description

📋

Basic Information

Model NO.	Automatic Panorama Thermal Break Aluminum Door
Type / Open Style	Sliding / Induced Opening
Special Function	Soundproof
Motor	Dunkermotoren Germany
Color	White

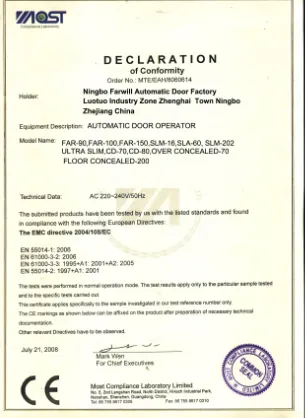

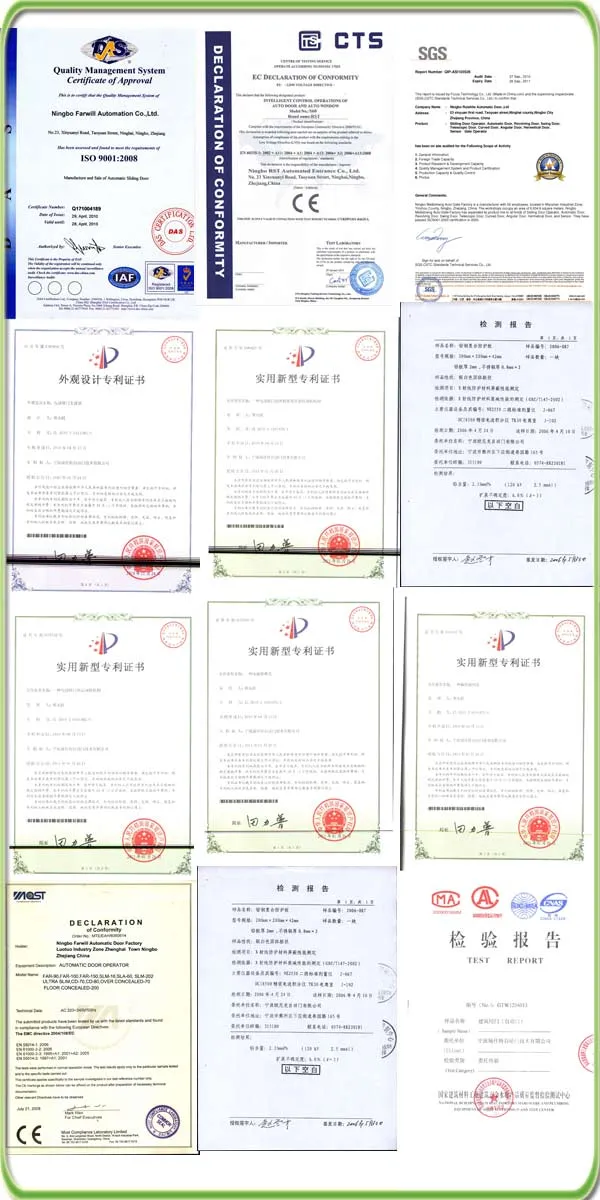

Certification	CCC, ISO9001, CE
Power Supply	220V or 110V
Length Range	2000mm to 6000mm
Model	SLA60
Production Capacity	2000 sets Every Month
HS Code	8537101990

🏗️

Product Description

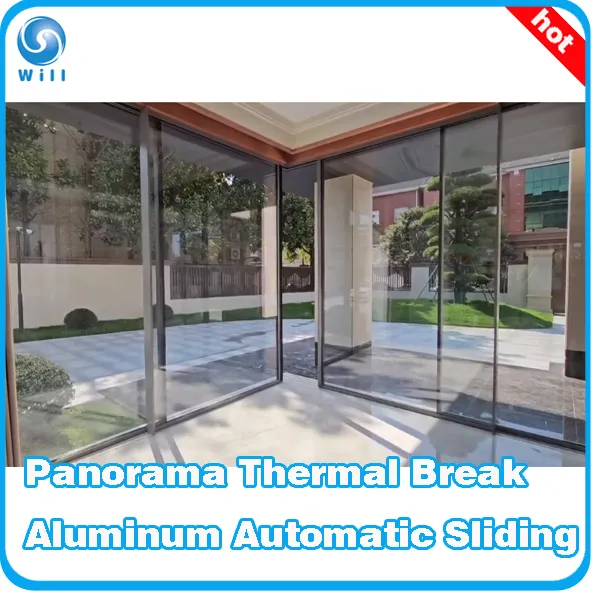

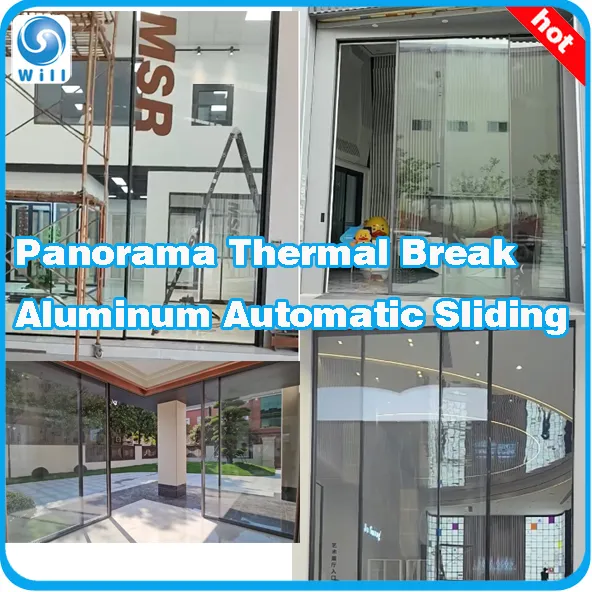

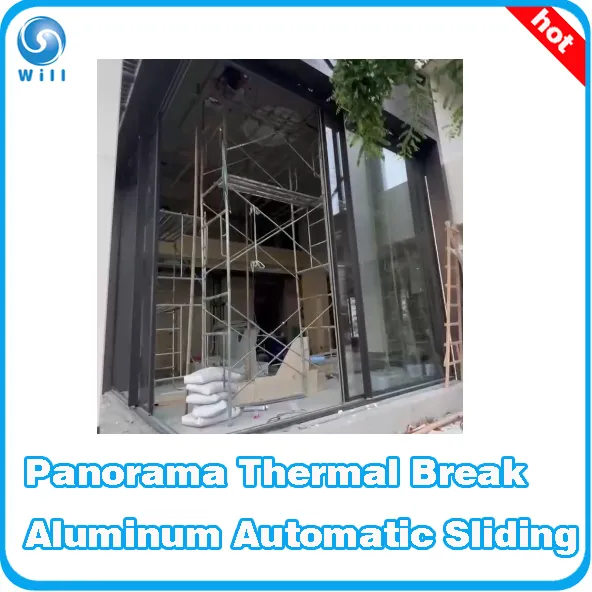

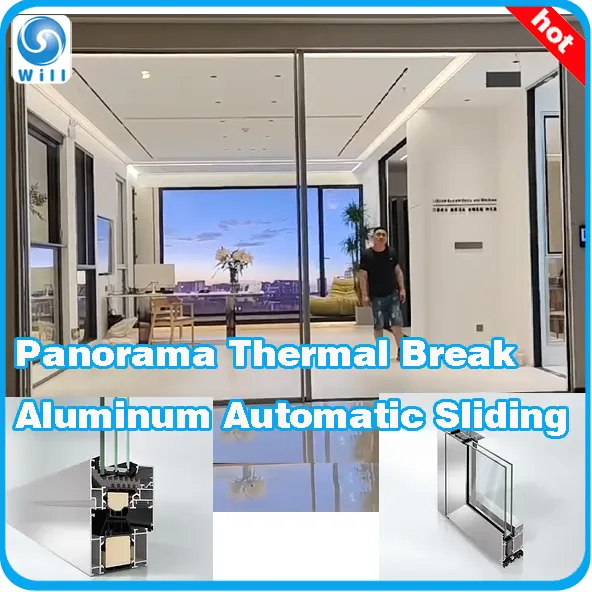

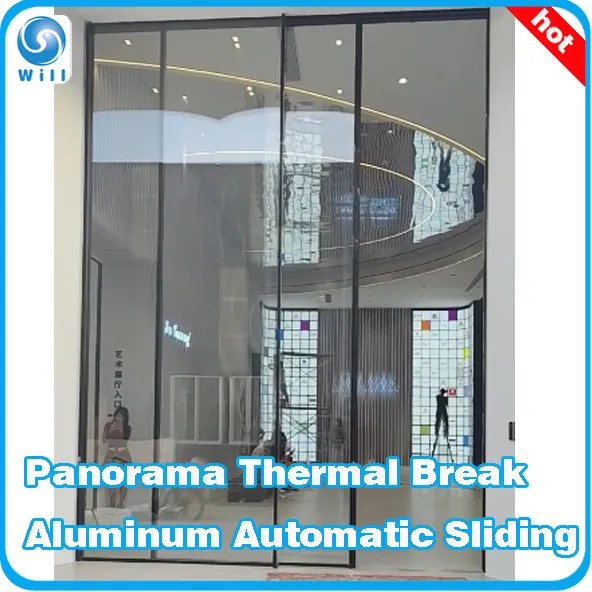

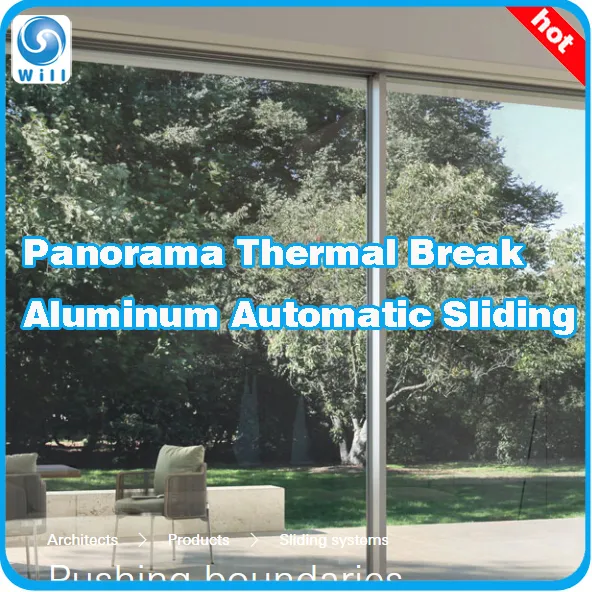

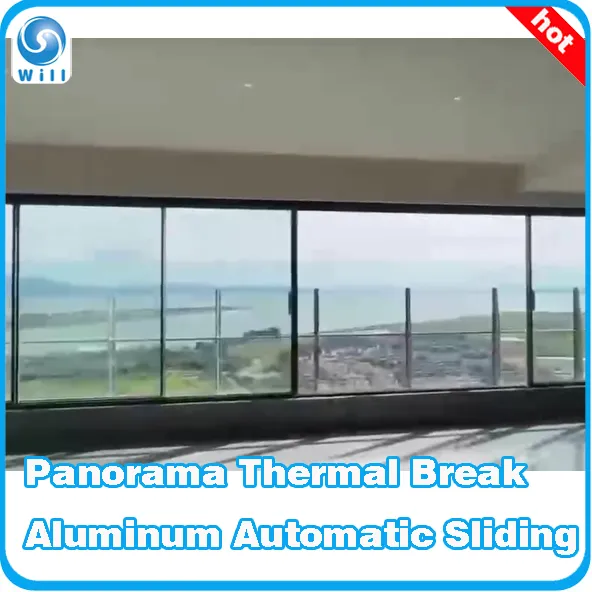

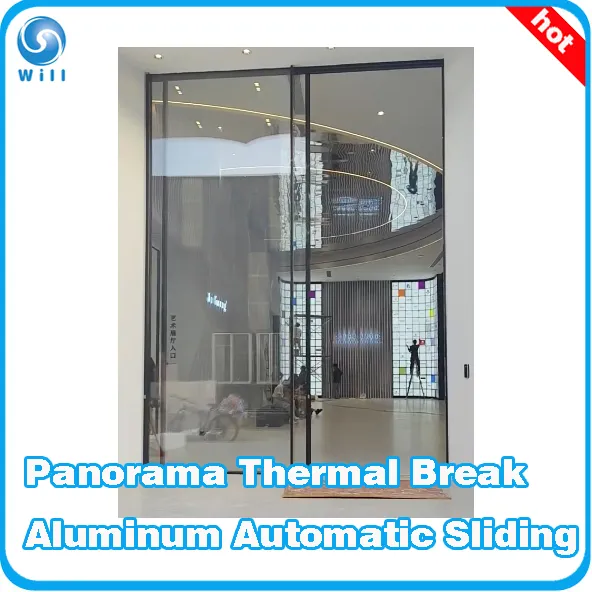

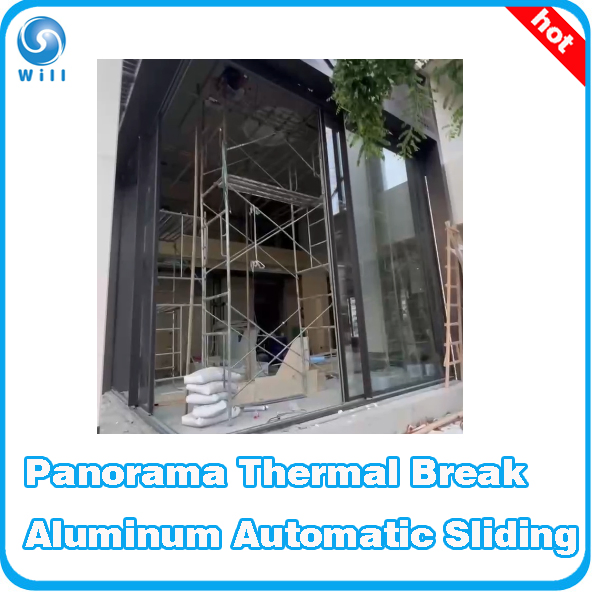

Panorama thermal break aluminum door air tight hermetical Wind Load Resistance sliding door

Key Features

Function 95% similar as KABA; works with original KABA parts.
Equipped with Brush Motor or Dunker Motor 99.5W.
Powerful capacity: supports 2 x 160KG gates.
Easy installation: Drive system pre-installed before delivery.
Germany Dunkermotor, CE approved.

Standard Configuration

Minidrive Unit & Transformer
Dunkermotor / Brush Motor
Decoder & Basic control module
Track & Carrier system
Belt tensioning device & End stop

⚙️

Technical Specifications

Model: SLA60

Gate Weight: Single 1x200KG / Bi-part 2x120KG

Gate Width: 900-6100MM

Controller: 32 digital microprocessor

Motor Specs: 99.5W 60VDC 2A IP50

Opening Speed: 300-700mm/s

Closing Speed: 300-650mm/s

Power Supply: AC110V-250V 50/60Hz

Operating Temp: -15°C to +70°C

Noise Level: Low noise design (<40dB)

🛡️

Emergency & Smart Functions

Program Modes

Automatic / Permanent Open
Partial Open / Exit Only
Off Mode

Safety Features

Emergency opening in case of power failure
Obstacle detection with automatic return
Self-monitoring light barriers
Slow speed search for obstruction
One million times test passed

📦

Packaging & Delivery

Package Size	220.00cm * 125.00cm * 10.00cm
Package Gross Weight	45.000kg
Transport Package	Carton with Film

Frequently Asked Questions

Q: What type of motor is used in the SLA60 automatic door? A: The system uses high-performance Germany Dunkermotoren or specialized Brush motors (99.5W), ensuring enough power to handle heavy gates up to 2X160KG.

Q: Is the door soundproof? A: Yes, this panorama thermal break aluminum door is specifically designed with soundproof functions and a low-noise design (<40dB).

Q: What happens if there is a power failure? A: The door includes an emergency opening function for power failure situations to ensure safety and accessibility.

Q: How durable is the SLA60 system? A: The system has passed one million testing cycles, ensuring long-term reliability and performance. It also comes with an 18-month warranty.

Q: Is the installation process complicated? A: Installation is simplified because the drive system is pre-installed before leaving the factory, reducing setup time on-site.

Q: Does the door have safety sensors? A: Yes, it features obstacle detection with an automatic return mechanism and can be equipped with optional beam safety photocells.
