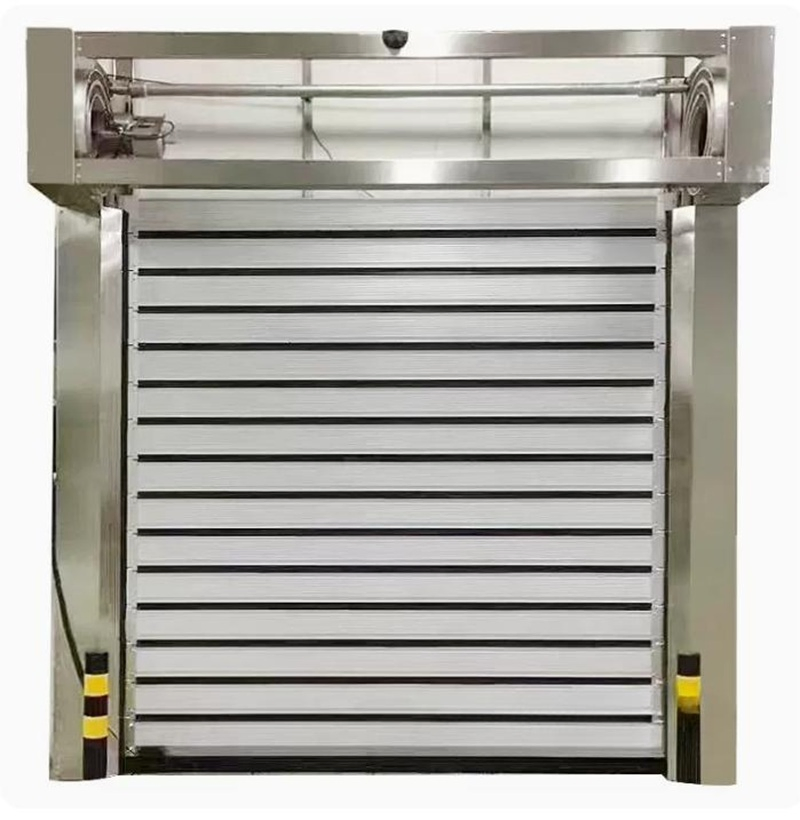

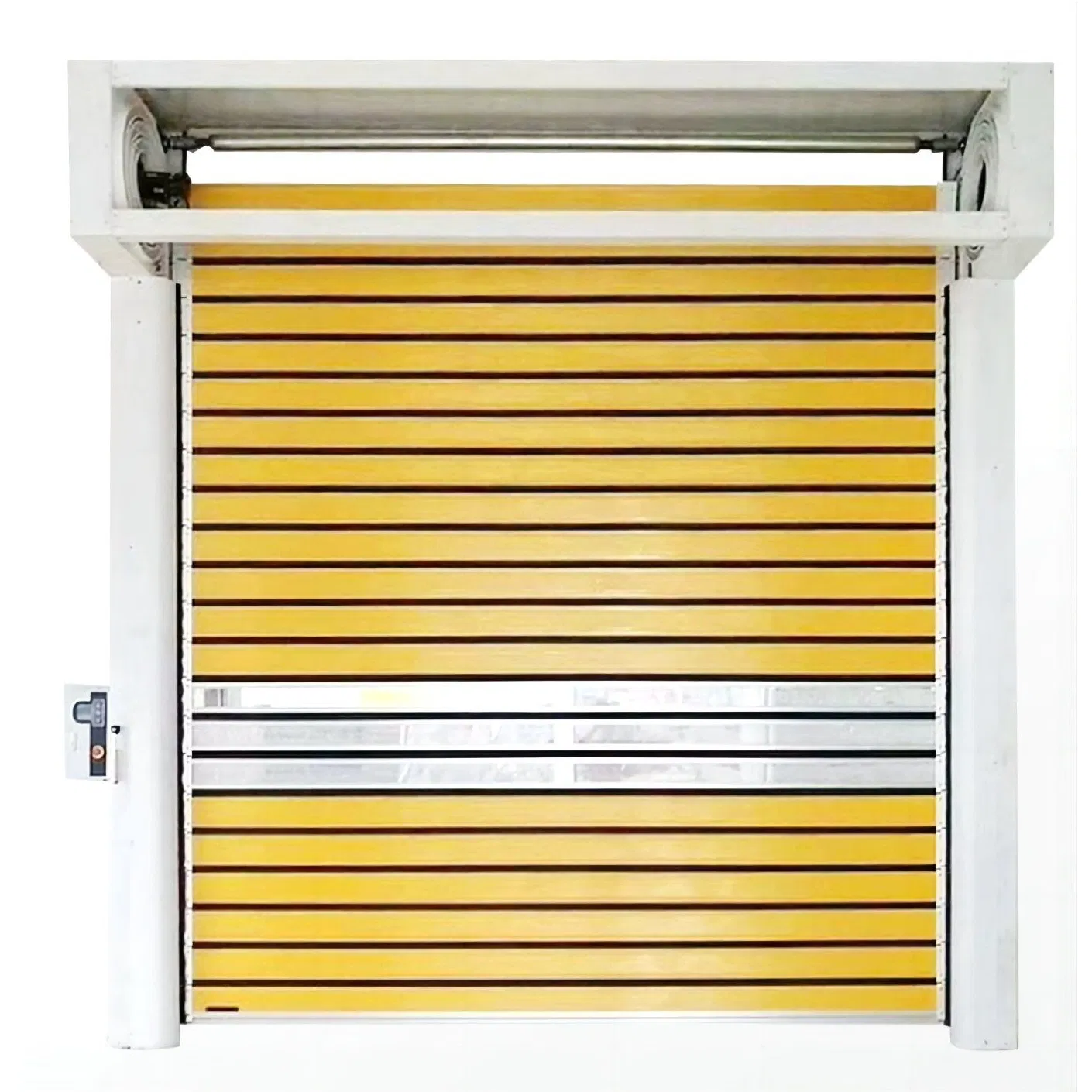

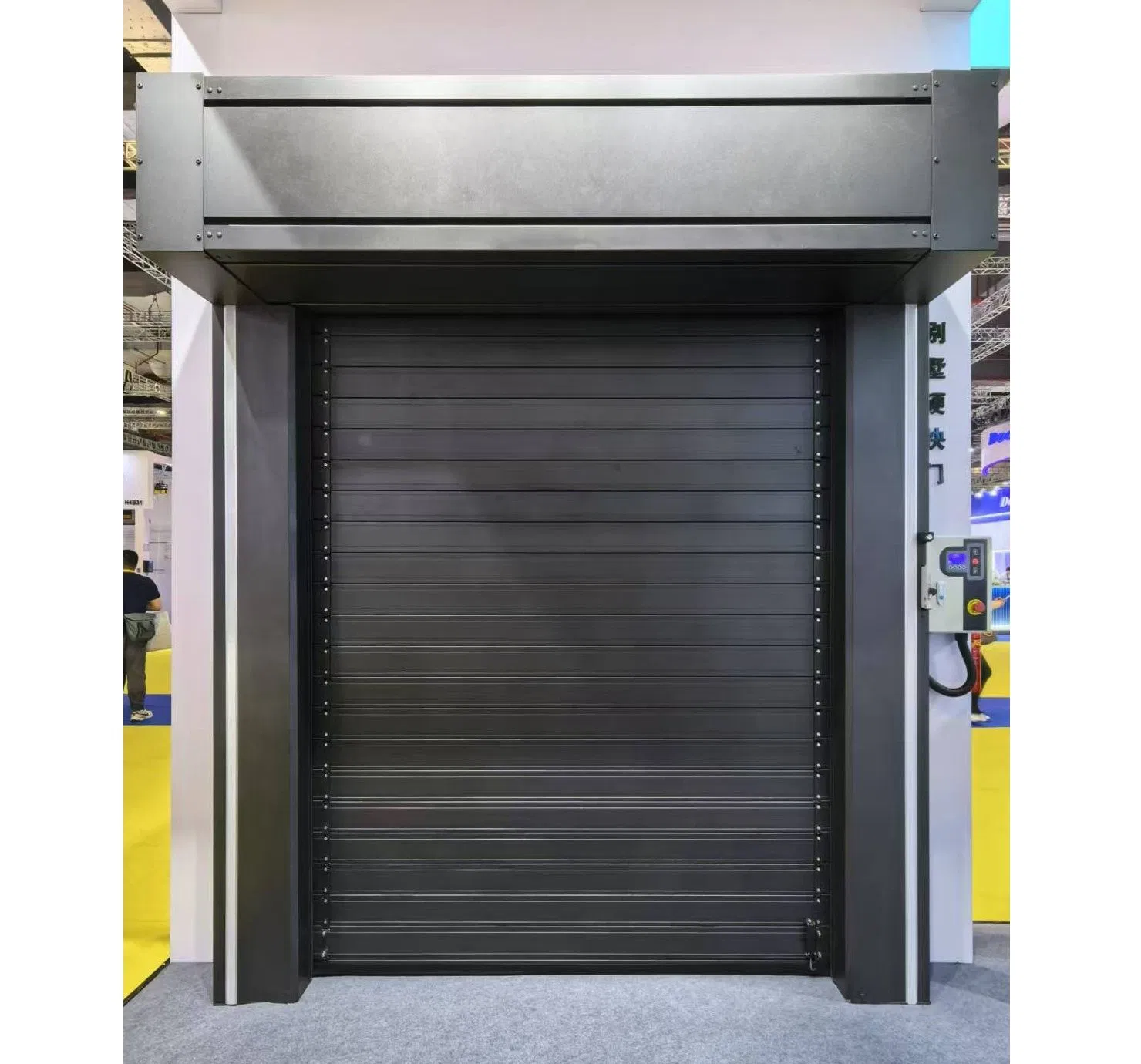

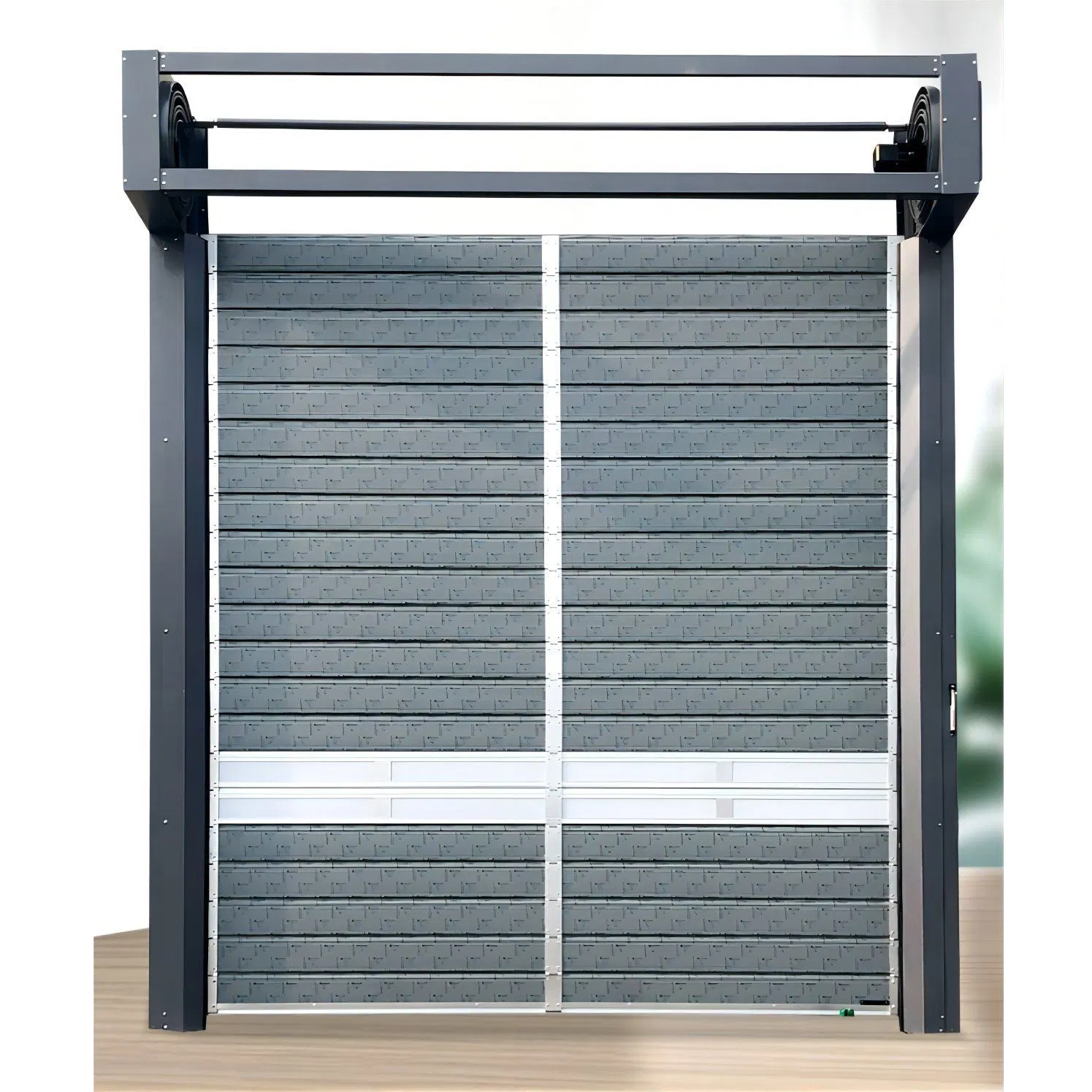

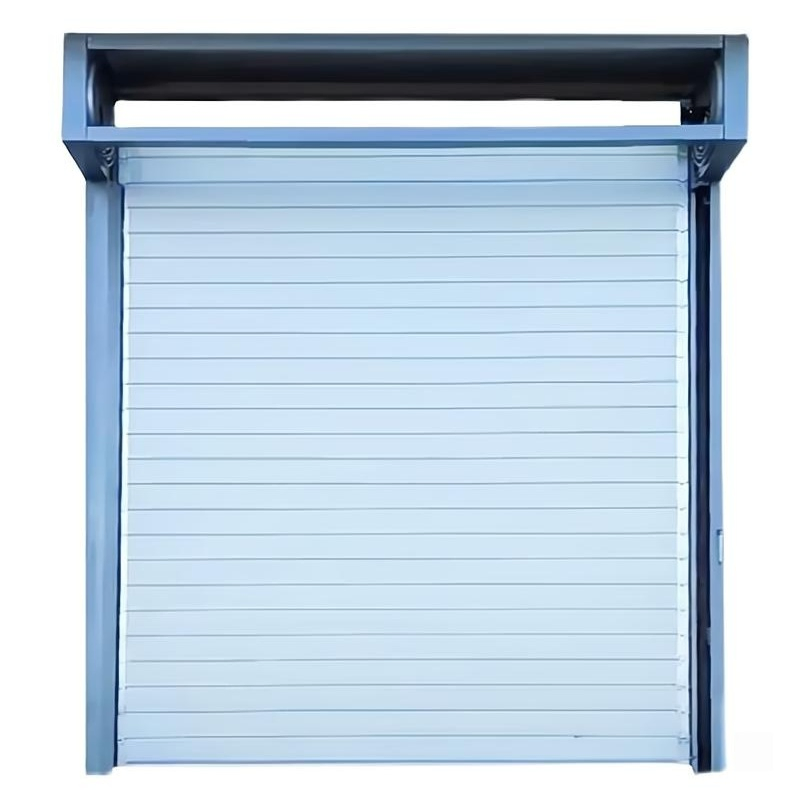

Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
1 / 5
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door

Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
XF-H-3000
Material
Aluminum Alloy
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Special Function
Security
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Thermal Insulation
PU Sandwich
Speed
1.5 ~ 2.5 M / S
Safety
Infrared Security Protection
Vision Window
Customized
Max Dimension
5000*6000 mm
HS Code
7610100000
📦

Packaging & Delivery

Package Size
300.00cm * 100.00cm * 60.00cm
Gross Weight
300.000kg
Transport Package
Wooden Case
🛡️

Product Description

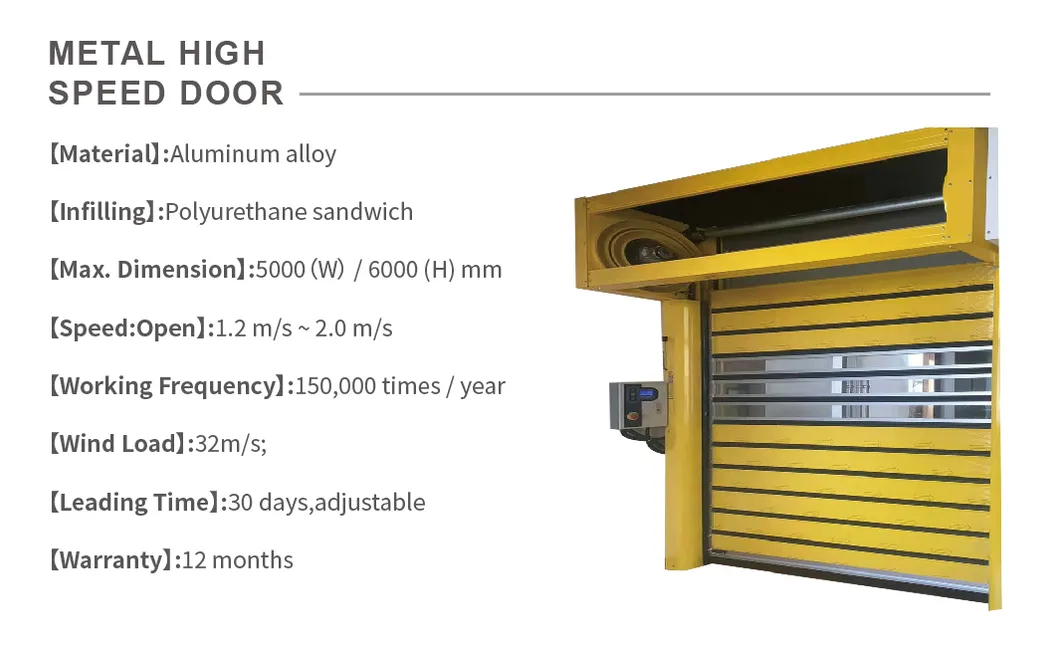

High Speed Rolling Door

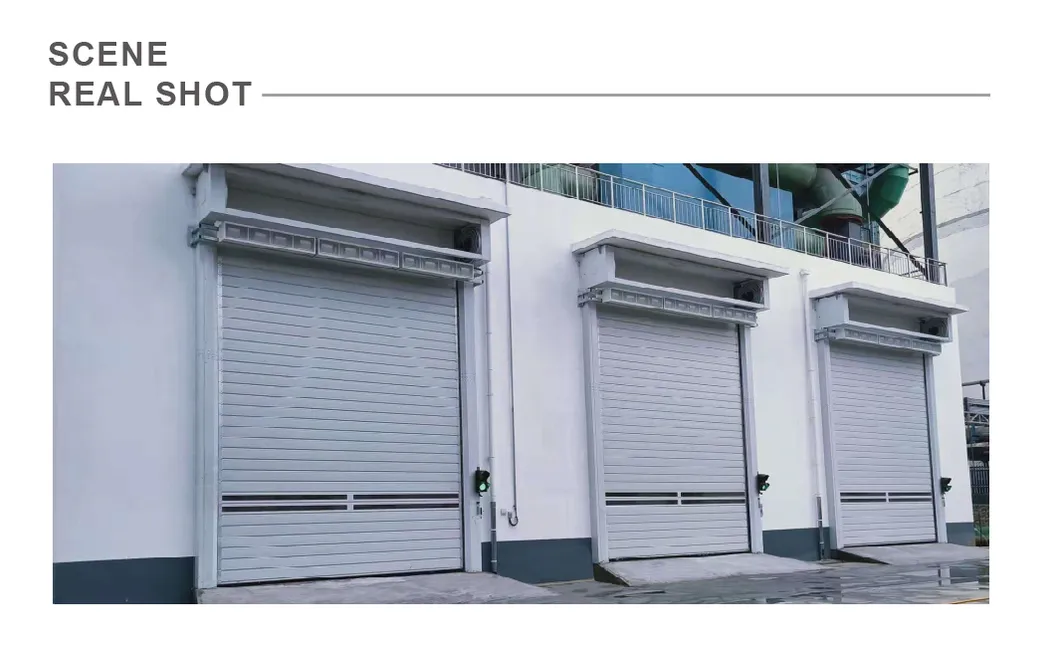

Fast Aluminum Hard Metal Door

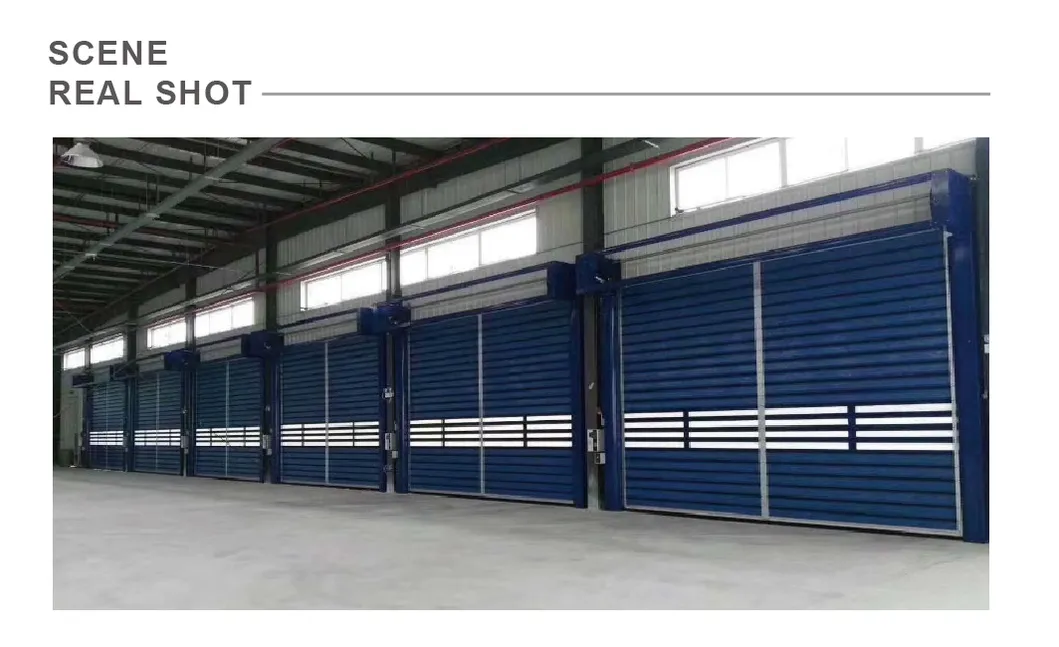

Insulated Dust Proof Door
DETAILED PARAMETERS
MaterialAluminum Alloy Profile (with or without PU Sandwich) / Transparent PVC Strip
Material ThicknessDouble-layer Aluminum with PU Sandwich (0.8 mm) / without PU (1.2mm)
Thickness of Panel40mm, anodized and organic coloring surface
Foam Density50kg / m3
Operating Speed1 ~ 2.5 m / s
Wind ResistanceBeaufort scale 12 (35 m / s)
Available ColorsWhite / Grey / Sliver / Blue / Red / Customized
Noise Level< 60dB
Lifting Way90° Vertical Lift / Turbo Type / Ellipse Type
Drive SystemServo Motor (220V 50HZ / 380V 50HZ, 0.75Kw - 2.2Kw)
Control SystemFrequency Converter + PLC or Servo Type
Heat PreservationBroken bridge thermal insulation structure K<0.6W/(m2•K)
SealingFull sealing (Rail, Middle, Top, and Bottom)
Safety Systems1) Photocell Sensor; 2) Airbag Installed at Door Edge Bottom

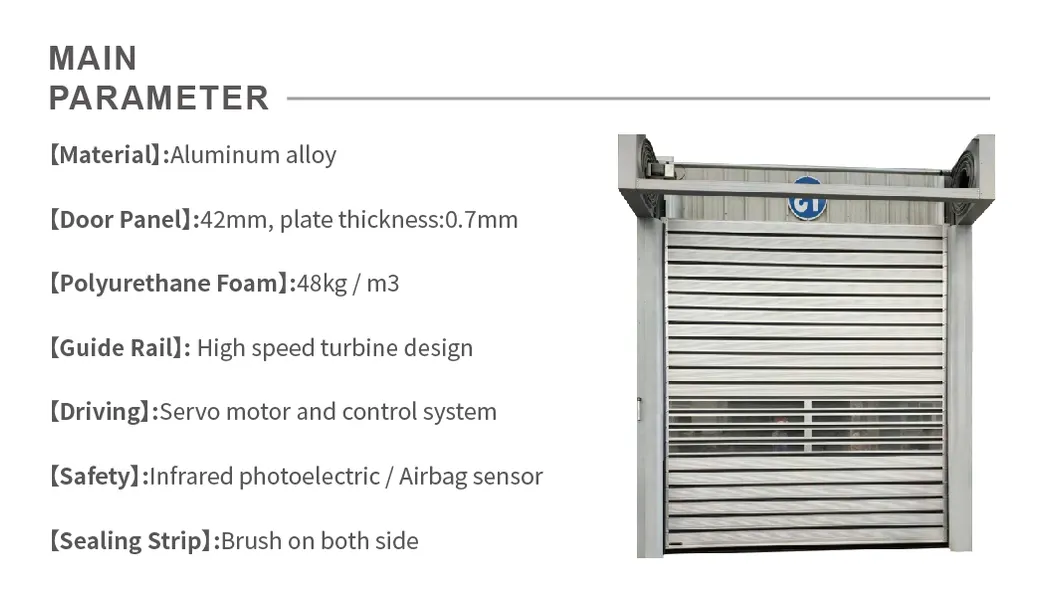

Industrial Door Mechanics

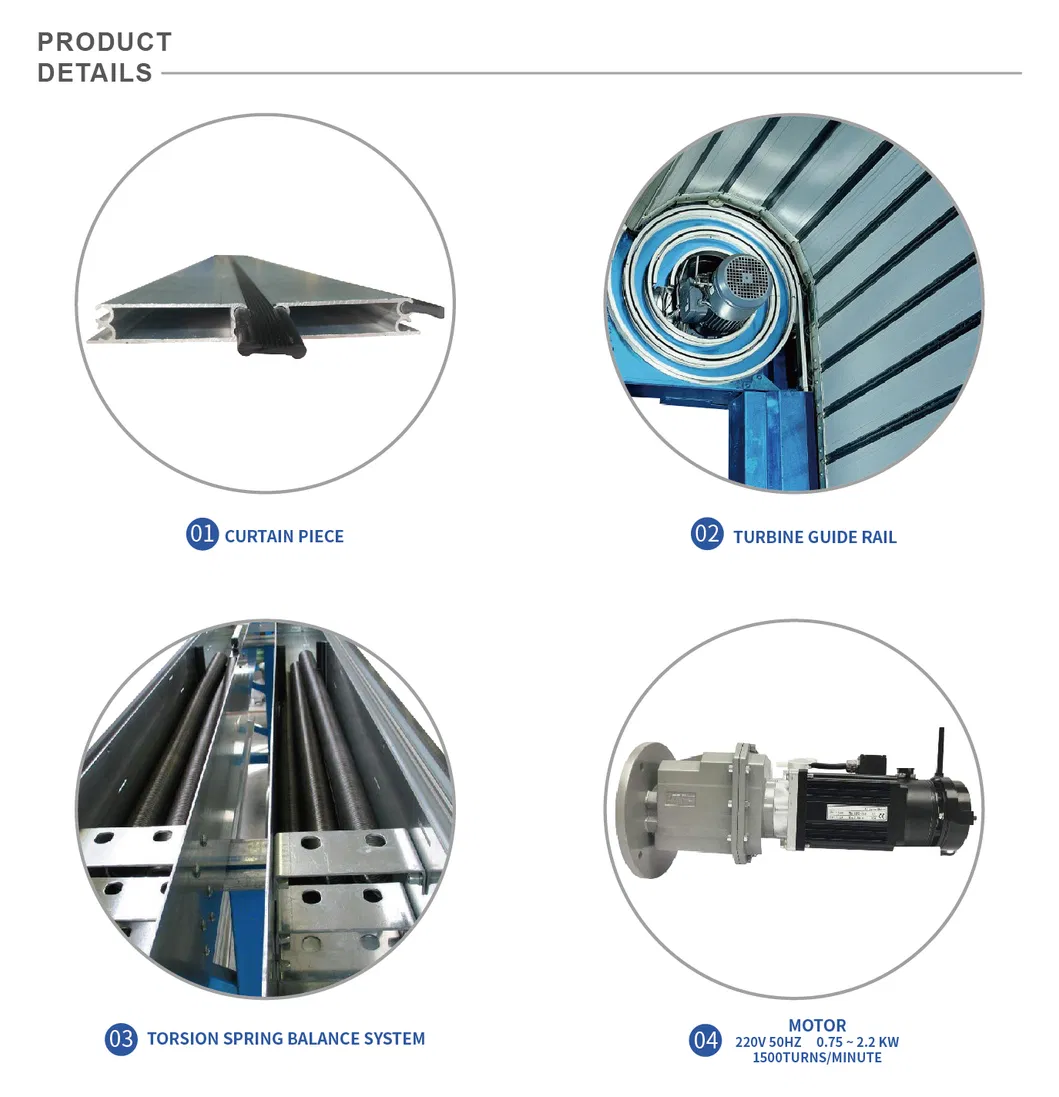

Security Garage Door
Structure Detail
Lifting Systems
Key Features & Notes:
• Specialized in industrial door design, manufacturing, and installation.
• Advanced equipment and technology for customized professional solutions.
• Product range includes steel doors, fire doors, high-speed doors, and logistic docking systems.
• Certified quality: ISO9001 and CE Certification.
❓

Frequently Asked Questions

What is the maximum speed of this high-speed door?
The door operates at a speed of 1.5 to 2.5 meters per second, ensuring efficient traffic flow and temperature control.
Is the door suitable for high-wind environments?
Yes, it features a wind resistance rating of Beaufort scale 12 (up to 35 m/s), making it suitable for demanding industrial locations.
What safety features are included as standard?
The system includes infrared photocell sensors and an airbag safety edge at the bottom of the door to prevent accidents during closing.
Can the door be operated manually during a power failure?
Yes, the door is equipped with a manual opening system that allows for operation in the event of a power outage.
What are the thermal insulation properties?
The door panels utilize a PU sandwich structure with a "broken bridge" thermal insulation design, achieving a heat preservation coefficient of K<0.6W/(m2•K).
What certifications do these doors hold?
Our high-speed doors are fully compliant with ISO9001 management standards and hold CE certification for safety and quality.
