📋 Basic Specifications
Model NO.
Automatic Revolving Door
Surface Finishing
Finished
🔍 Product Overview
Two-wing Revolving Door is the perfect solution for keeping dust, noise, rain, sleet and snow from entering buildings, which ensures energy efficiency and environmental protection. Under sliding door status, a more capacious and comfortable passage is available for large crowds traffic flow.
This automatic solution is the best option for the main entrance of grand commercial buildings such as hotels, office buildings, shopping malls, and exhibition centers, offering stable operation, exquisite technology, and safety in use.

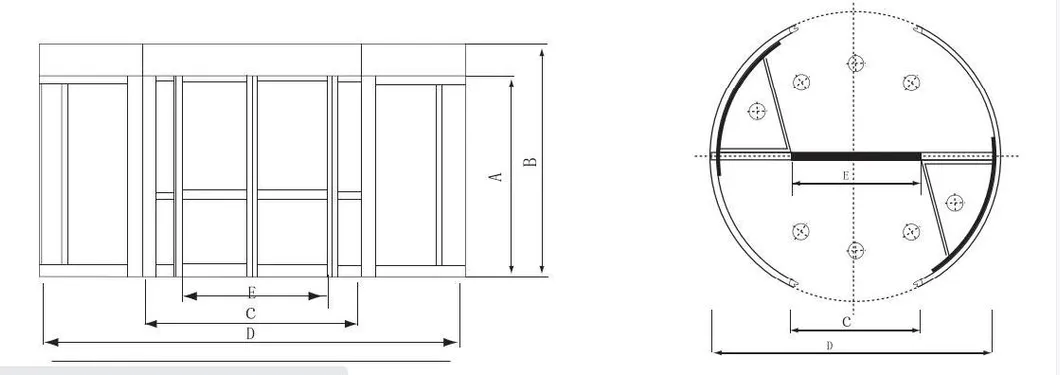

| Outer Diameter (mm) |
Inner Diameter (mm) |
Passage Height (mm) |
Canopy Height (mm) |
Entrance Width (mm) |
| 3000 | 2810 | 2300-3300 | 300-600 | 1328 |
| 3400 | 3210 | 1528 |
| 3800 | 3610 | 1728 |
| 4200 | 4010 | 1928 |
| 4800 | 4610 | 2228 |
⭐ Key Features & Advantages
- Aluminum alloy die-casting molding frame for high strength.
- Multiple finishes: Stainless steel, fluorocarbon spraying, anodic oxidation.
- Energy-saving, quiet, and stable operation with long service life.
- Anti-squeeze, anti-strike, and comprehensive safety detection.
- Disabled access mode: Slows speed for elderly or disabled users.
- Digital program control system for easy operation.
- Automatic speed adjustment based on weather and visitor flow.
- Windbreak, dust-proof, and superior noise insulation.
⚙️ Technical Data
Motor Power
370W*2 (Drive: 550W)
Control System
Panasonic (Japan) Digital LCD
Glass
6-8mm Tempered Glass
❓ Frequently Asked Questions
What are the main operation modes of this door?
The door offers two main working models: revolving door mode for standard traffic and sliding door mode for high-volume crowds or large item passage.
How does the door ensure user safety?
It features an advanced digital control system with anti-bump, anti-squeeze, and anti-strike functions, plus emergency stop and disabled buttons.
Is the door energy efficient?
Yes. The revolving design acts as a permanent airlock, providing excellent windbreak and noise insulation, which significantly reduces HVAC energy loss.
Can the appearance be customized?
Absolutely. We offer various surface finishes including hair-line or mirror stainless steel, copper decoration, and various powder coating colors.
What happens during a fire alarm?
The system is equipped with a fire alarm interface that integrates with the building's safety system to respond appropriately during emergencies.
What is the standard delivery packaging?
Products are secured in export-grade wooden cartons to ensure safety during sea or air transport.
