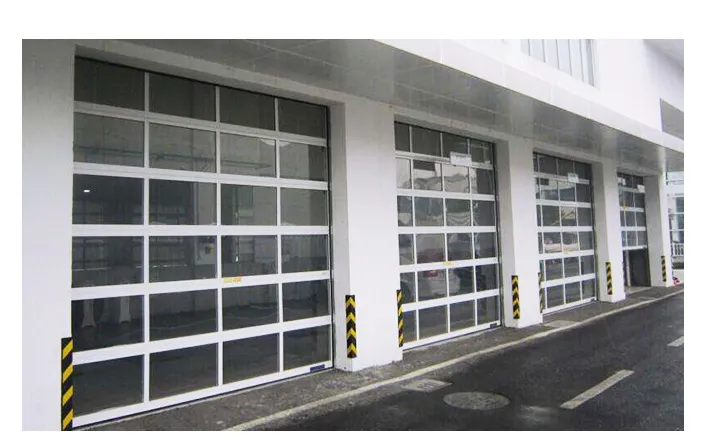

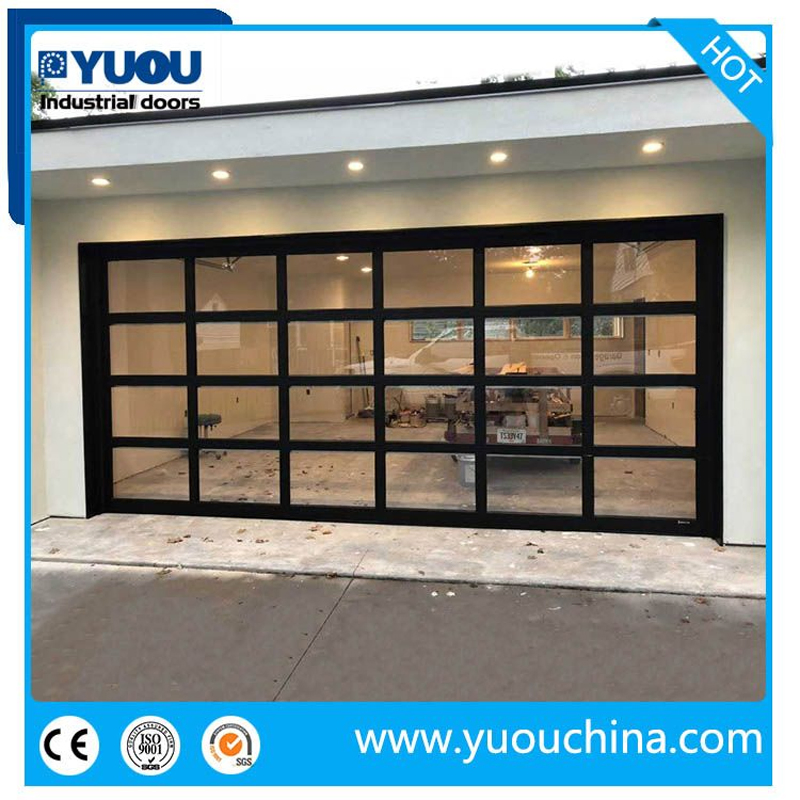

Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

1 / 5

Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

YO-Sectional

Material

Aluminum Alloy

Type

Revolving

Open Style

Revolving

Opening Type

Induced

Special Function

Thermal Insulated

Color

Various Color

Certification

ISO9001, CE

Position

Commercial

Surface Finishing

Finished

Application

Cold Room, Warehouse, Workshop

Panel Thickness

40mm

Shipment

7 Days After Deposit

Power Supply

1-Phase 220V, or 3-Phase 380V

Package

Export Wooden Case

Specification

Max size 8m*8m

Origin

China

HS Code

85308000

Packaging & Delivery

Package Size

3000.00cm * 600.00cm * 600.00cm

Gross Weight

300.000kg

Product Description

Sectional door has a beautiful appearance, high strength, low noise and insulation properties, making it widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, printing, supermarkets, etc.

Technical Data

Motorized Transparent Sectional Door Polycarbonate Garage door
Max dimension	width * height 12000mm*8000mm
Power supply	220±10%V, or 380V, 50/60Hz, IP55
Opening and closing speed	20-40cm/s
Door panel thickness	40mm/50mm/75mm/100mm/Back rib door
PU Density	48±2kg/m³
Wind resistance	28-35m/s (Class 10-12)
Sound insulation level	24DB
Insulation level	0.38W/M°C
Water tightness	30Pa
K Value	1.5W/M2.K
Thermal Conductivity	<= 0.033W/M.K

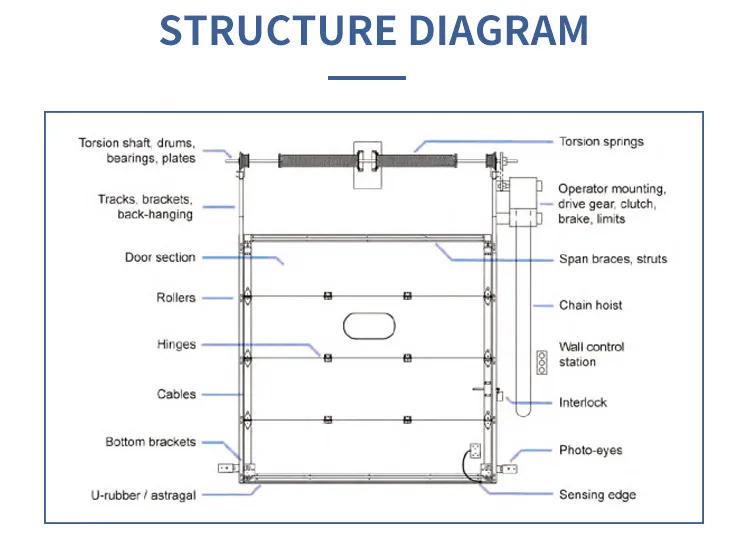

Structure Diagram

Product Details

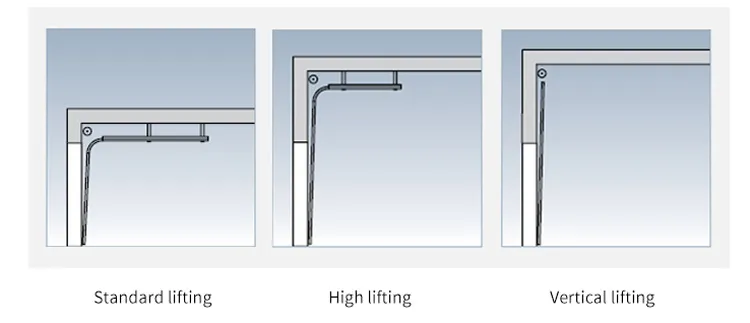

1. Lifting Way

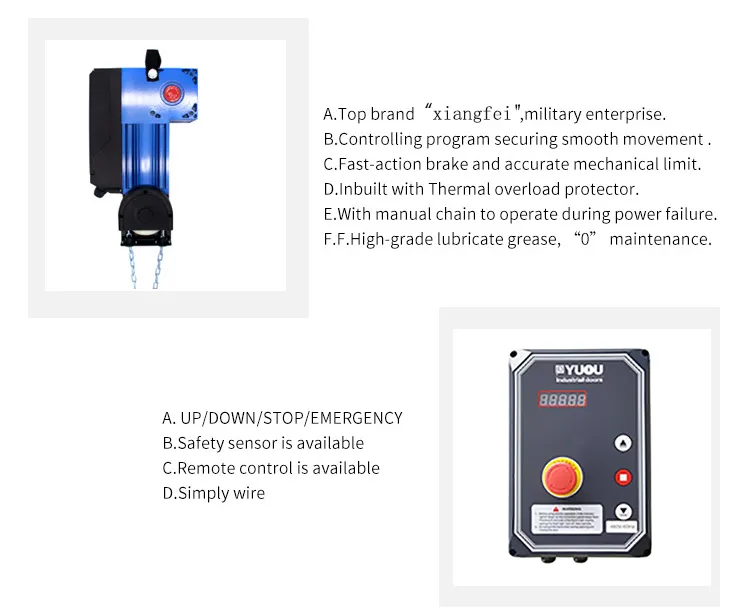

2. Motor and Controller

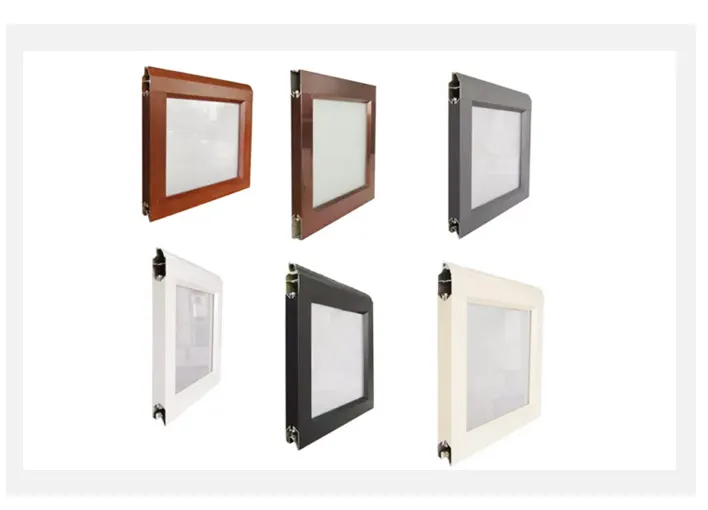

3. Panel (Finger Safe Style)

A. Two layer 1.2mm aluminum alloy, surface: Electrostatic coating. Total thickness: 40mm

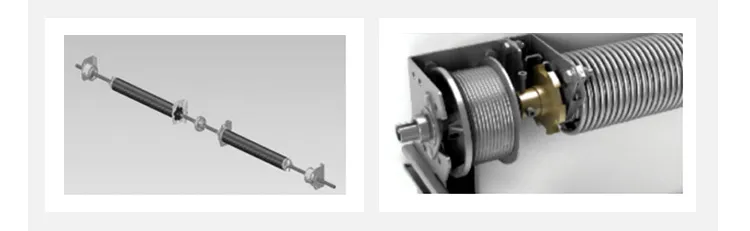

4. Safety Devices

1. Spring brake device: anti-broken
2. Service life: 100 thousand opening and closing
3. Driving force: 140N
4. Chosen according to door size, weight and lifting pattern

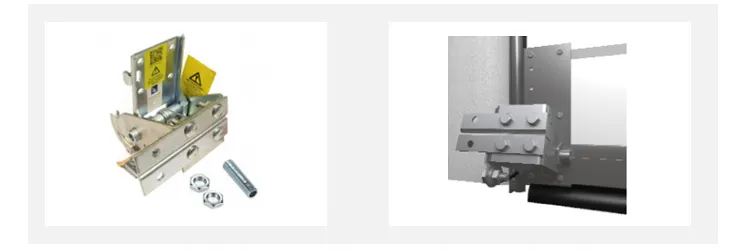

5. Accident Dropping Safety Device

Door bottom is equipped with dropping avoid steel cord, securing the accident dropping within 5cm.

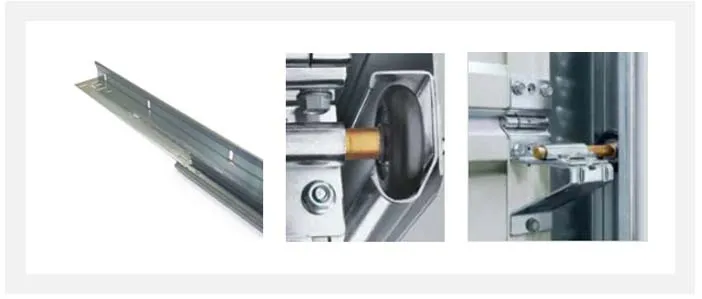

6. Guide Rail

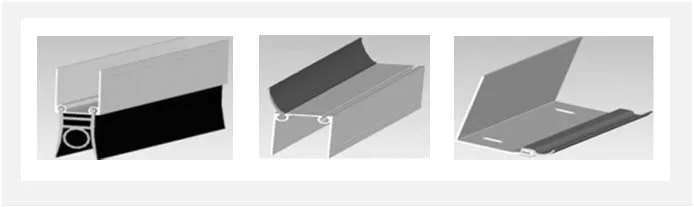

7. Seals

EPDM Sealing rubber is installed onto top, bottom and periphery, cold resistant and anti-broken.

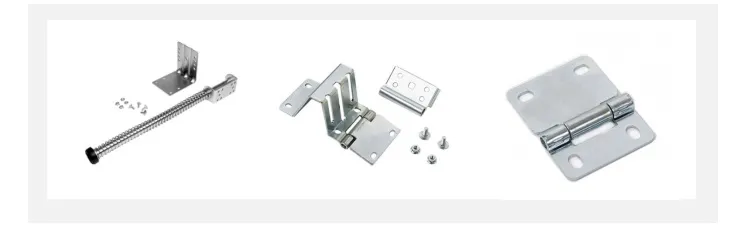

8. Buffer and Hinges

2.5mm steel plate construction.

9. Manual Device & Safety Airbag

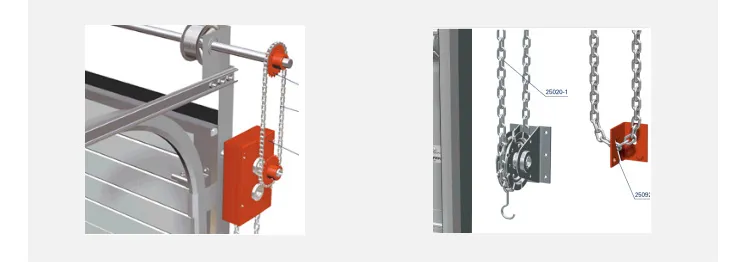

Manual Device (For manual operation)

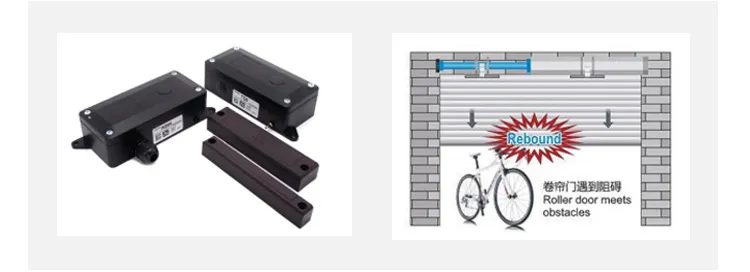

Bottom Wireless Safety Airbag

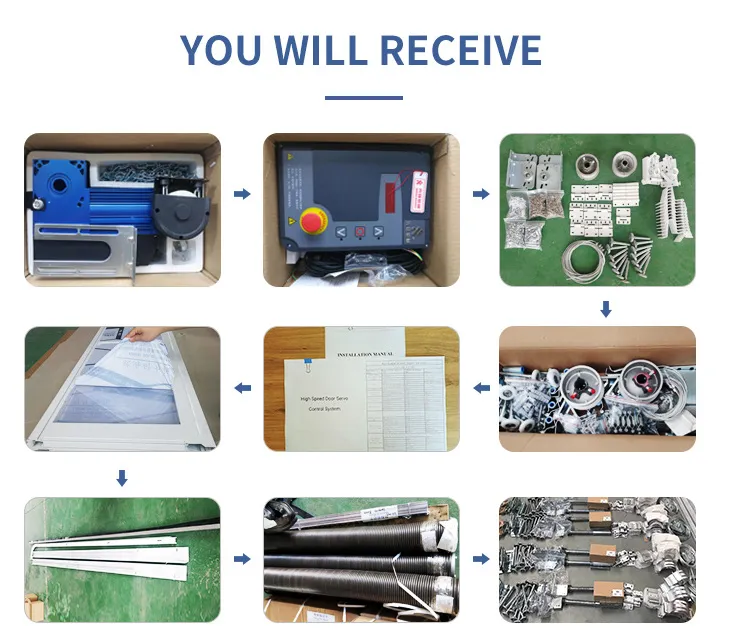

What You Will Receive

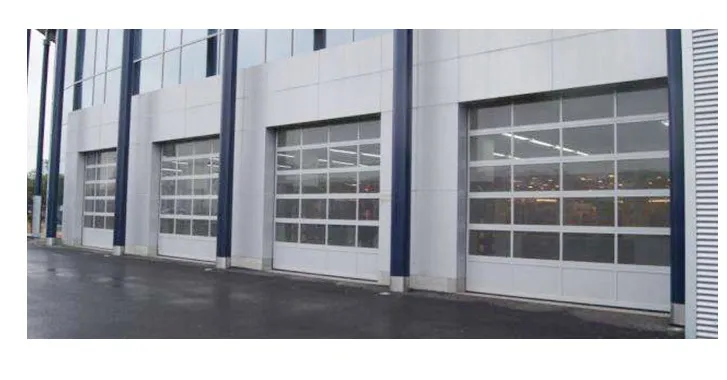

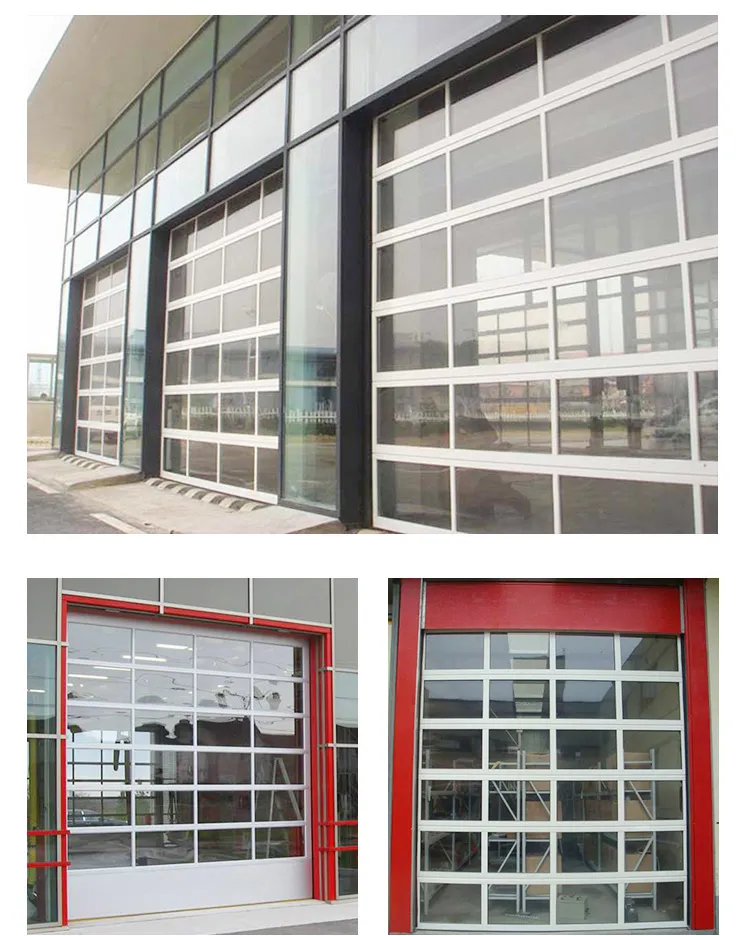

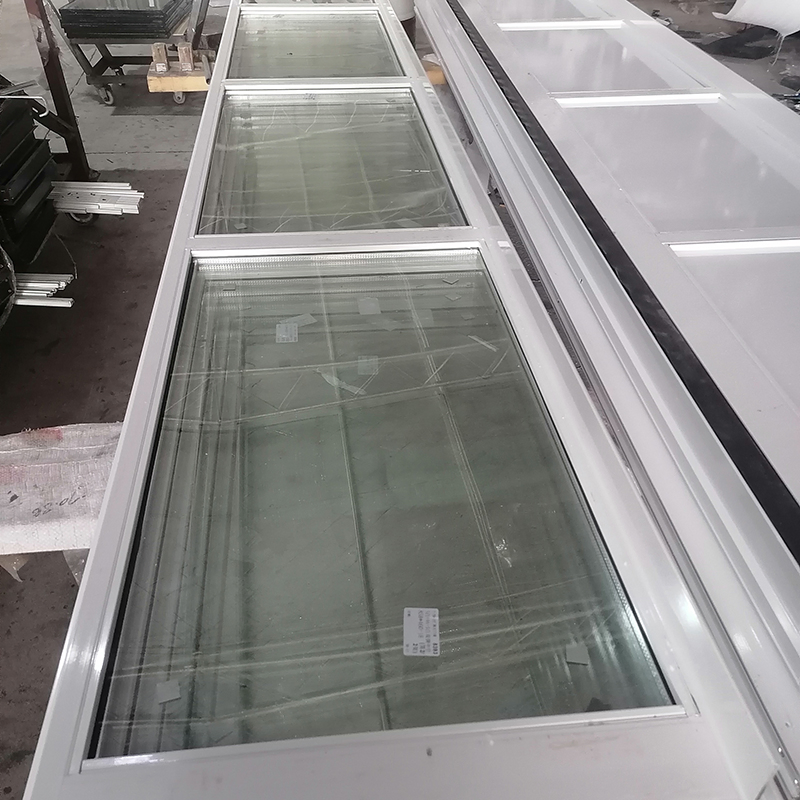

Products Real Shot

Frequently Asked Questions

What are the primary applications for these sectional doors?

These doors are ideal for environments requiring high cleanliness and insulation, such as pharmaceutical factories, food processing plants, electronics workshops, printing facilities, and large supermarkets.

What is the maximum size available for the sectional door?

The standard maximum size is 8m x 8m, but technical specifications allow for dimensions up to 12000mm in width and 8000mm in height.

How does the door ensure safety during operation?

The door is equipped with multiple safety features including a spring brake device to prevent snapping, an accident dropping safety device (steel cord) that limits falls to within 5cm, and a wireless safety airbag at the bottom.

What kind of insulation does the door provide?

The door offers thermal insulation with a K value of 1.5W/M2.K and thermal conductivity <= 0.033W/M.K. It also provides sound insulation up to 24DB.

Is the door resistant to extreme weather conditions?

Yes, it features high wind resistance (Class 10-12, 28-35m/s) and uses EPDM sealing rubber on all sides, which is cold-resistant and anti-broken, ensuring water tightness up to 30Pa.

What power supply is required for the motorized version?

The system supports either a 1-phase 220V or a 3-phase 380V power supply, compatible with 50/60Hz frequencies.
