Magella Door
1 / 5

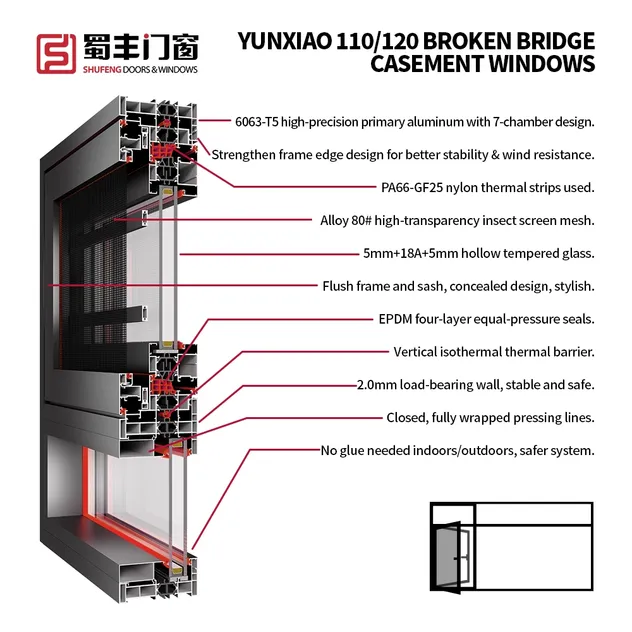

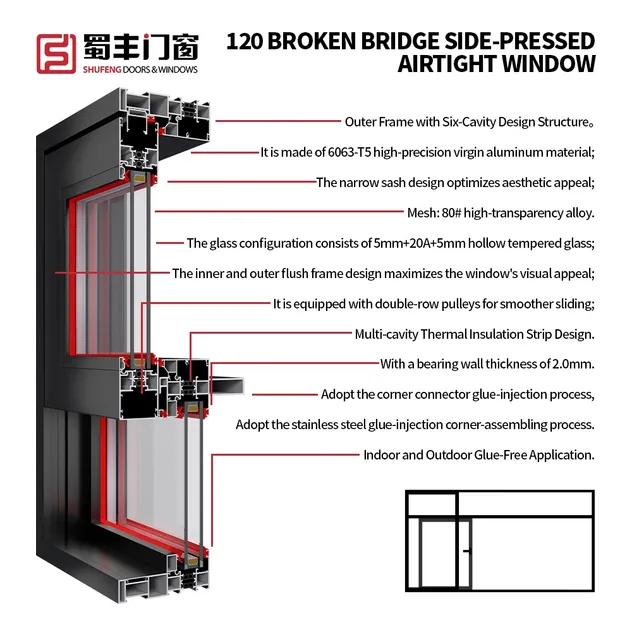

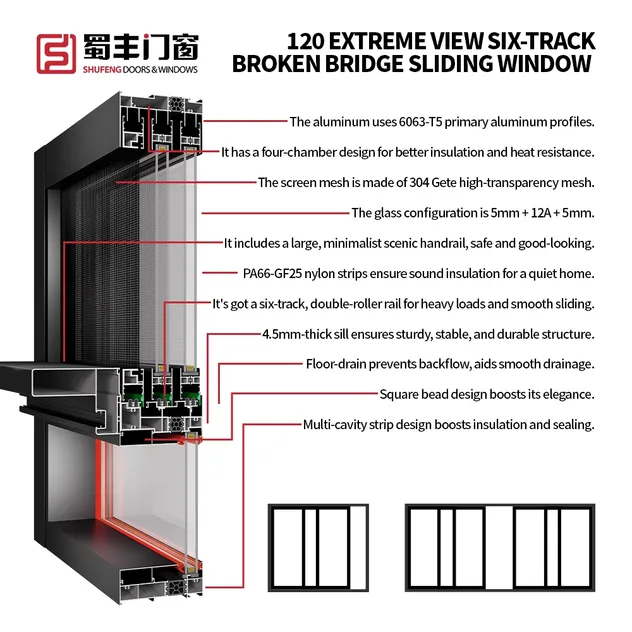

Aluminum profile: High precision 6063-T5 aluminum, wall thickness 2.0-3.0mm.
Imported hardware: Tested for 100,000 cycles, featuring super load-bearing capacity, durability, and smooth operation with excellent anti-theft performance.
Frame fan flush design: The structure utilizes a flush design for a more beautiful visual effect, hiding the sealing strip inside the profile to improve service life.
Pin gluing process: High-strength corner code components combined with a full system pin gluing process ensure stability and tightness at corner connections.
Surface treatment: Powder spraying process providing anti-corrosion and anti-aging properties, ensuring color stability for up to 20 years.
Modern Design: Minimalist aesthetic providing a simple, comfortable, and high-end home experience.
| Project Name | Aluminum alloy door |
|---|---|
| Contour thickness | Window: 1.4-3.0 mm | Door: 1.4-5.0 mm |
| Size | Customized |
| Type of glass | Double-glazed (5mm+12A+5mm etc.), Lowe glass, Laminated glass (5+0.76PVB+5 etc.) |
| Surface treatment | Powder coating |
| Hardware brand | German brand VBH or top Chinese brand RLS |
| Color | Grey, coffee, white, black (Customizable for large batches) |
| Test Item | Unit | Test Results | Level |
|---|---|---|---|
| Air tightness (Positive pressure) | m³/(m·h) | 1.4 | Level 6 |
| Air tightness (Negative pressure) | m³/(m·h) | 1.3 | Level 6 |
| Water tightness performance | Pa | 350 | Level 4 |
| Wind resistance performance | kPa | 2.69 | Level 4 |
| Thermal insulation (Heat transfer) | W/(m²·K) | 2.2 | Level 6 |
| Sound Insulation | - | - | Level 7 |

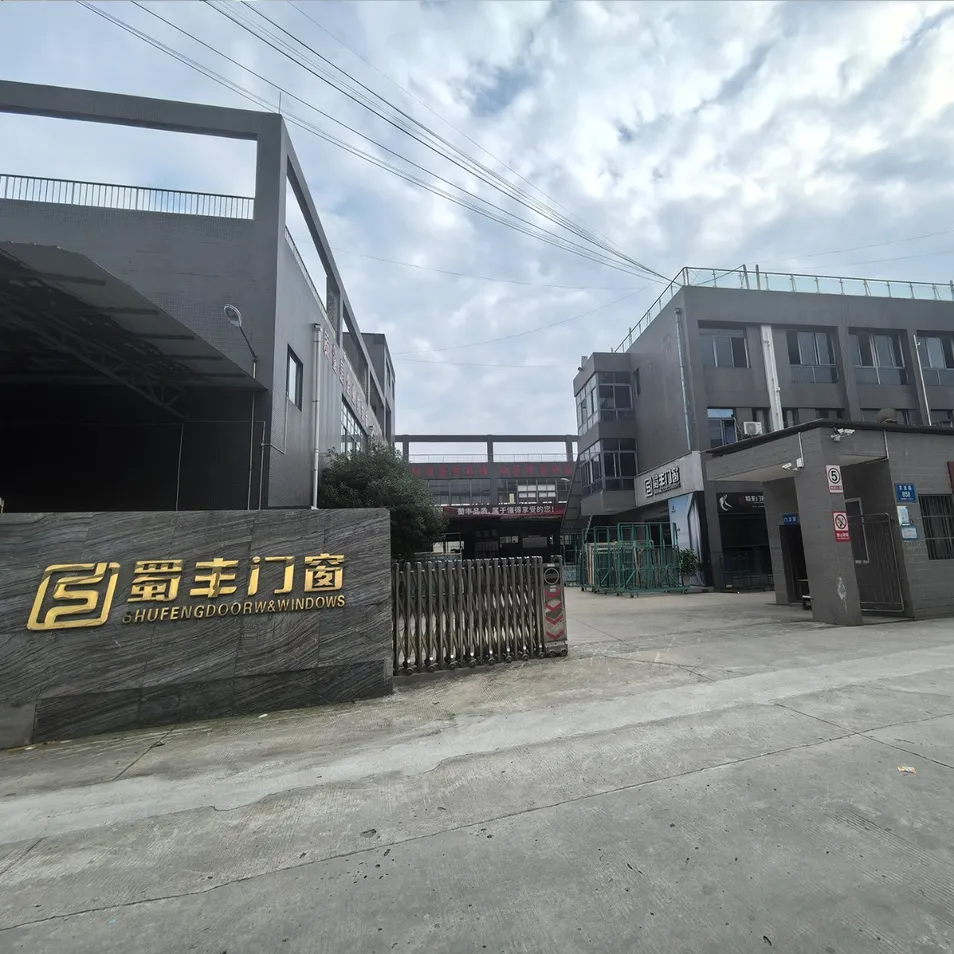

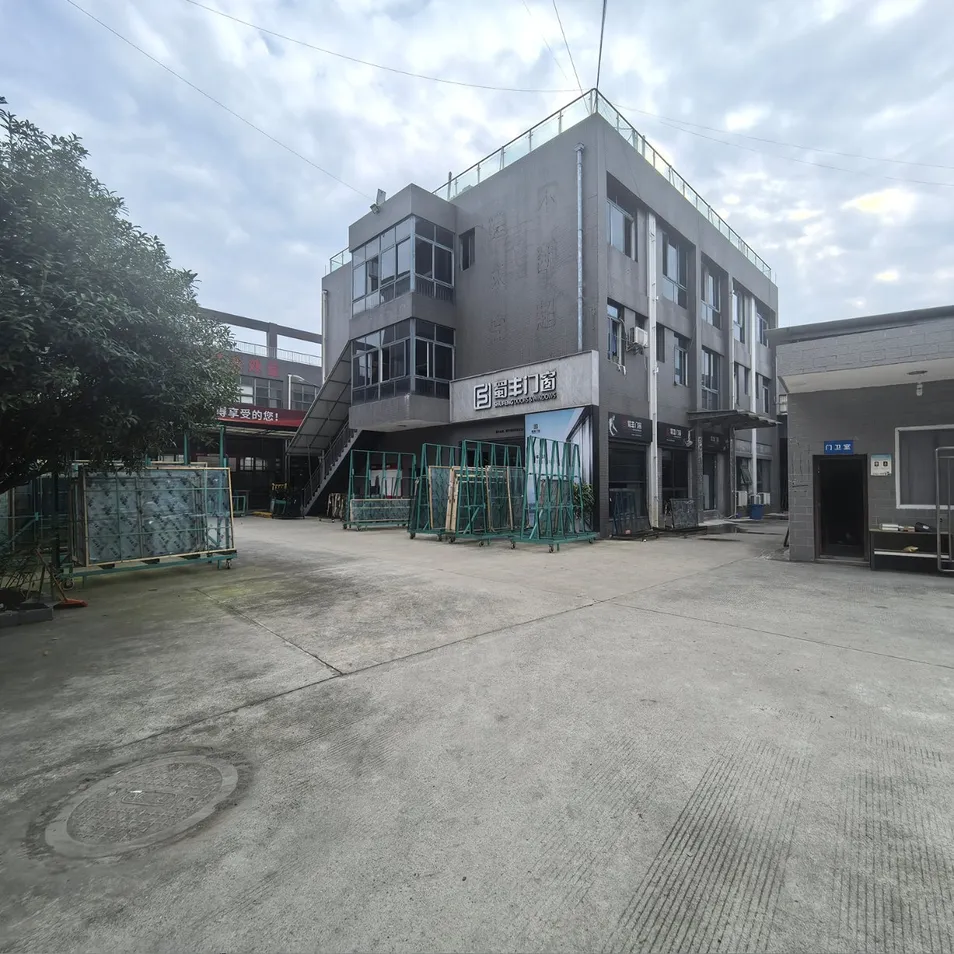

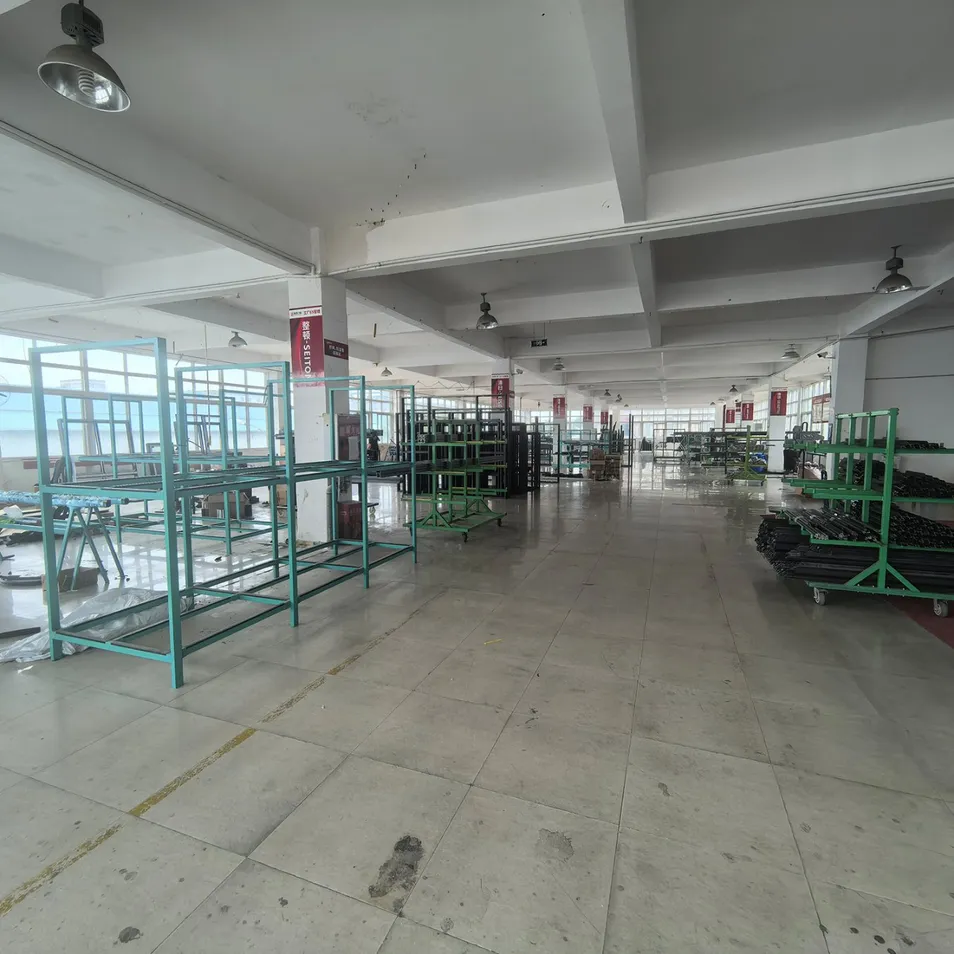

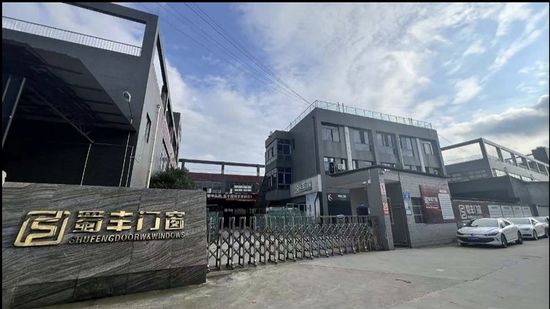

The company is a comprehensive doors and windows enterprise integrating design, research and development, deep processing, manufacturing, sales, and service. With a factory covering 7,000 square meters, we have spent over a decade providing high-quality products and excellent technical support. Adhering to innovation, we are committed to building a benchmark brand in the aluminum door and window industry.
We strive for excellence in construction, quality, and efficiency, enabling a wide range of users to access high-end system products that help build beautiful homes and promote environmental protection in the construction field.
