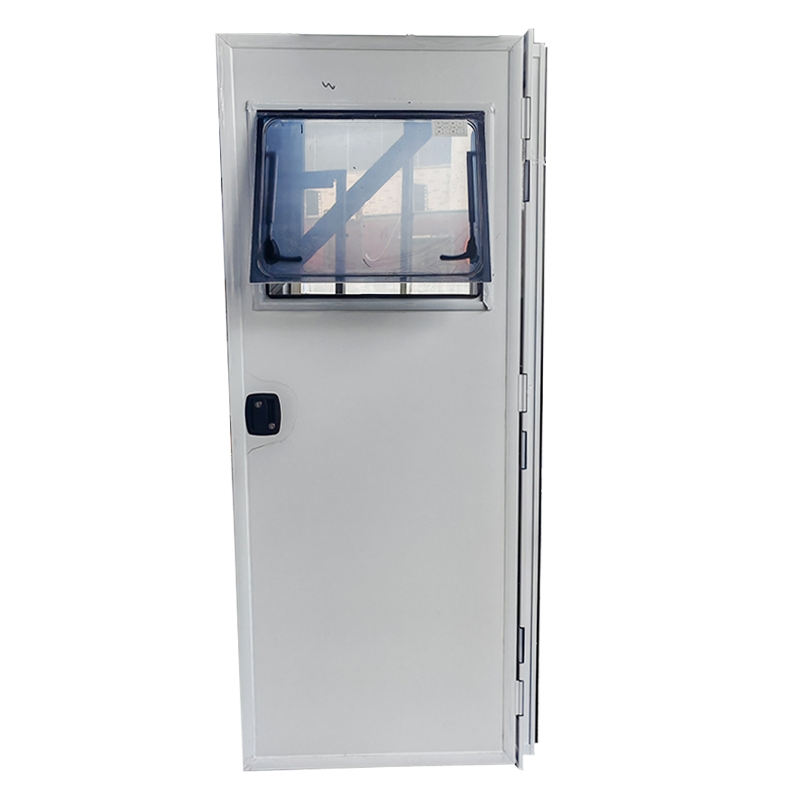

Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
1 / 5
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window
Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window

Custom Aluminum Profile Right Angle RV Caravan Motorhome Doors with Opening Window

Customization: Available
Material: Aliumimum Alloy
Wall Thickness: 30-40mm
Send Inquiry

Product Description

⚙ Basic Information

Model NO. MG09RD-OW

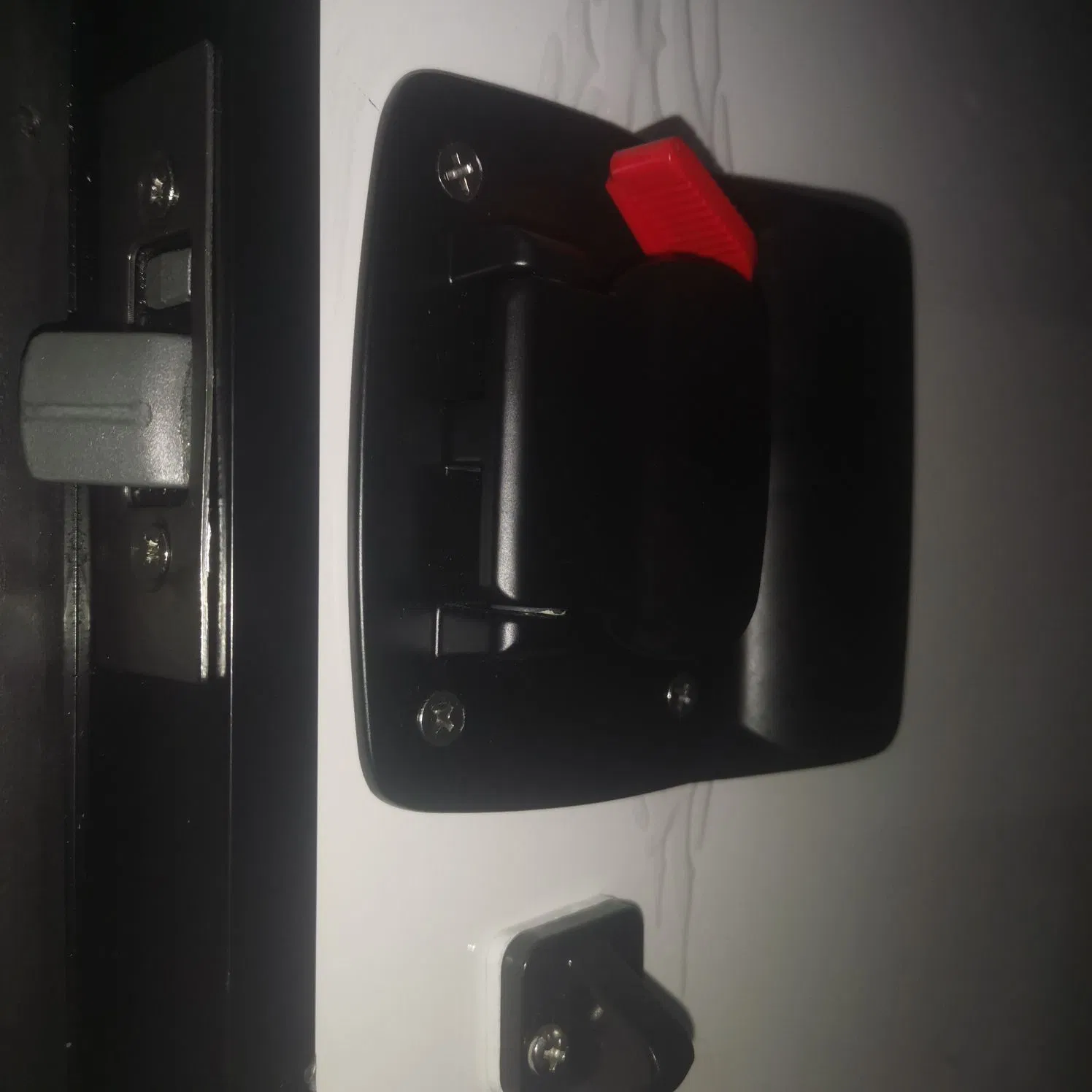

Door Lock Mechanical Lock
Install Method Side Screw Fixed
Hardware Inner Screen, Air Vent
Main Use Motorhome, Caravan, Trailer
Door Window 700x500mm Double Glazed
Specification 900x1850mm
Capacity 2000 Sets Per Month

★ Product Description

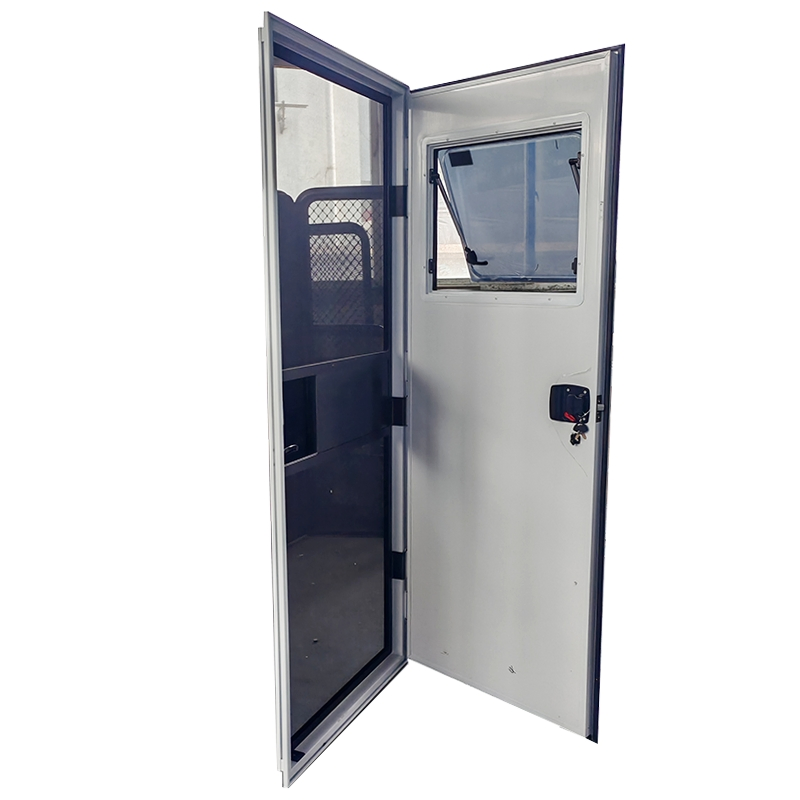

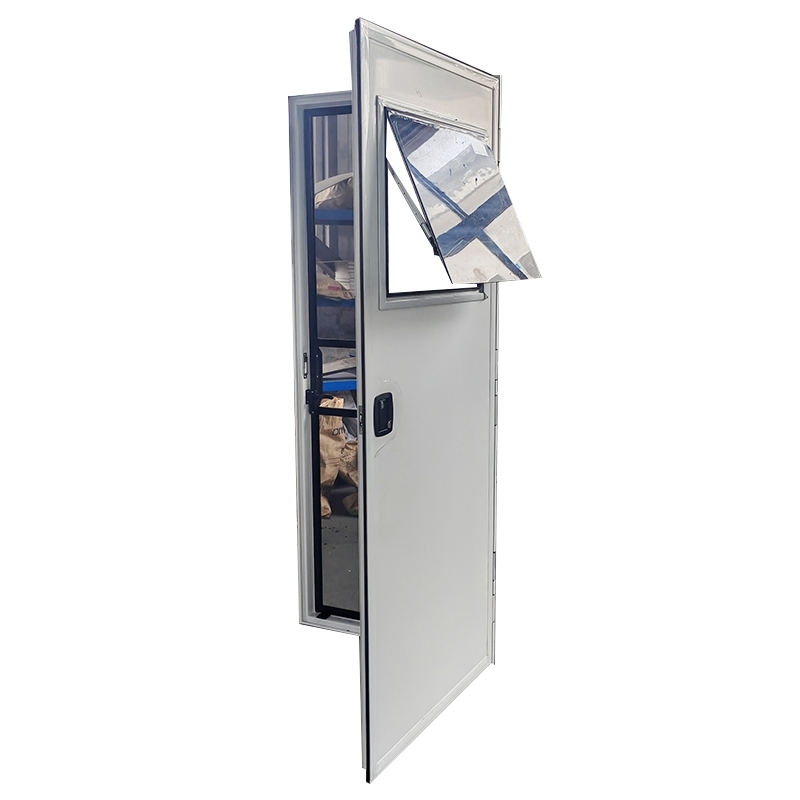

This entry door with fixed windows is an exceptional choice for maximum ventilation and security, featuring a metal mesh with a lock system. It allows you to sleep safely with the outer door open while camping.

✓
Material: High tensile Aluminum Alloy frame, anti-UV sandwich panel, double-glazing acrylic glass window with ECE certificate.
✓
Compatibility: Suitable for wall thickness of 35-40mm.
✓
Flexibility: Right or left hinge options available for custom needs.
✓
Functions: Open, close, lock, ventilate, insulate, prevent insects, and excellent water sealing.

📋 Product Parameters

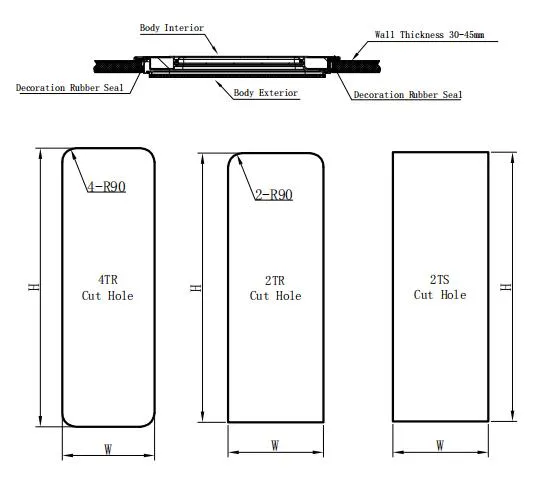

Various sizes are available. Cut-hole corner radius options include 2 upper corners R90, 4-R90, or 4 right angles.

Ordering Size (WxH mm) Overall Size (WxH mm) Corner Radius Options Fitting Diagram
622 x 1822 672 x 1872 A: 2 upper R90
B: 4-R90
C: 4 right angles		 Fitting Diagram
620 x 1850670 x 1900
620 x 1800670 x 1850
610 x 1800660 x 1850
580 x 1700630 x 1750

📦 Packaging & Shipping

Package Size: 205.00cm * 120.00cm * 20.00cm | Gross Weight: 60.00kg

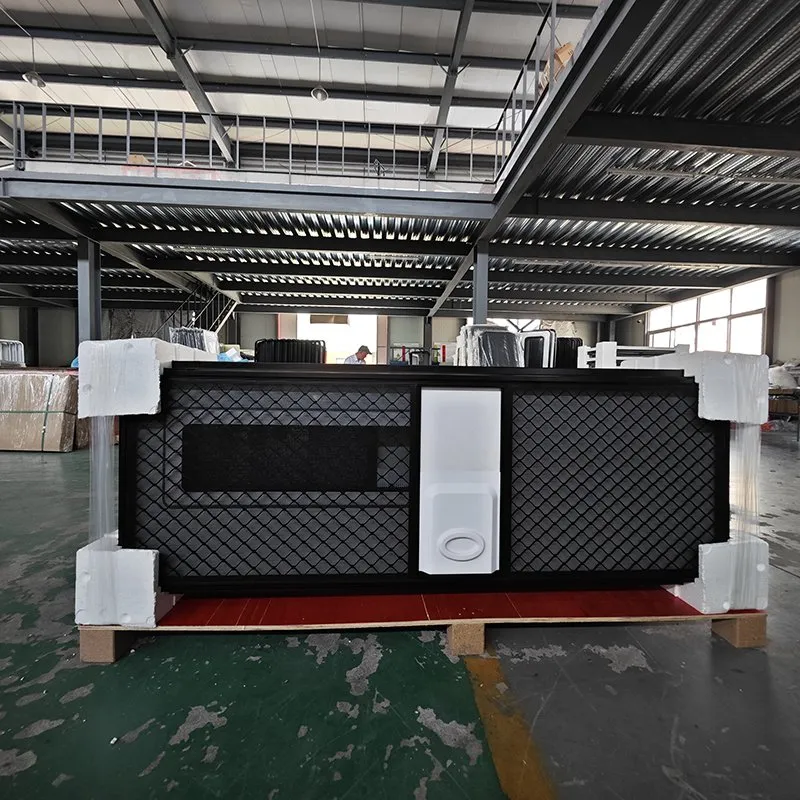

Packaging Box

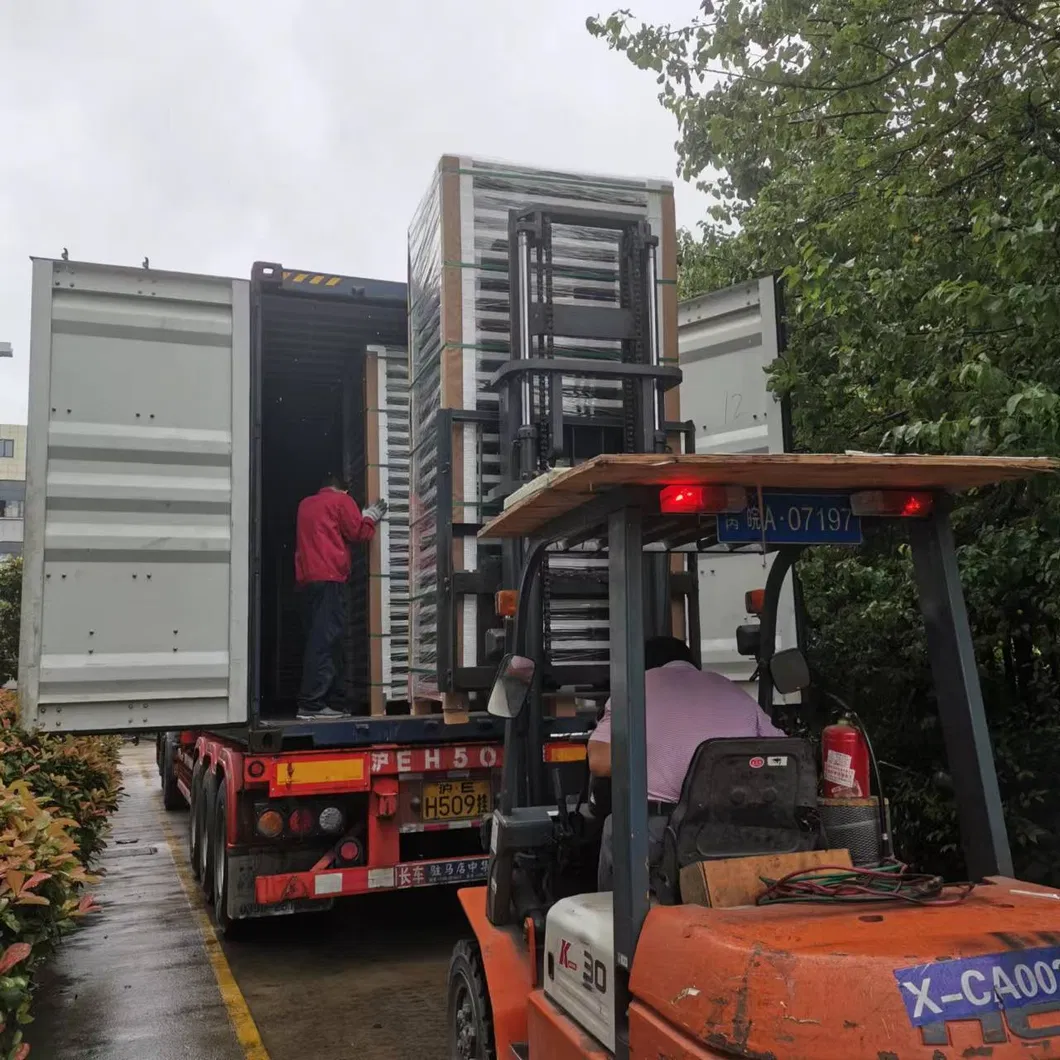

Shipping Pallets

🛡 Quality Assurance

Product Certificates

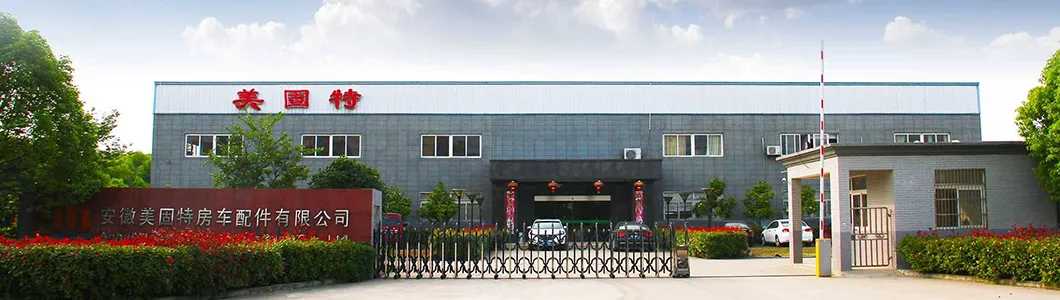

Factory Overview

💬 Frequently Asked Questions

What are the standard packing methods?
Samples are packed in carton or plywood cases with protective foam. For bulk sea or air shipments, items are palletized according to required height.
What are the accepted payment terms?
Generally T/T 30% as deposit and 70% before delivery. L/C at sight and other terms can be negotiated.
What is the typical delivery timeframe?
In-stock items take 3-5 days. Production for non-stock items is 10-15 days. Bulk or FCL orders may take 25-45 days depending on quantity.
Can products be customized according to samples?
Yes, we can produce based on your samples or technical drawings, including building specific molds and fixtures.
Is every product tested before delivery?
Yes, we perform rigorous QC testing on all goods before they are dispatched for delivery.
Do you provide a warranty for the doors?
Yes, all products come with a 12-month factory warranty and excellent after-sales support.
