ETL/cETL 60W/80W/100W/120W/150W/180W/200 Watt LED High Bay Pizza Lamp Lighting

1 / 5

ETL/cETL 60W/80W/100W/120W/150W/180W/200 Watt LED High Bay Pizza Lamp Lighting

Customization:	Available
Color Temperature:	Cool White
Lamp Body Material:	Aluminum

Send Inquiry

Product Description

Basic Specifications

Power

100W / 150W / 200W / 240W

Lifespan

≥50000H

IP Rating

IP67 / IP69K

LED Chips

Nichia / SMD3030

Beam Angle

60° / 90° / 120°

Luminous Efficacy

150-170LM/W

LED Driver

Meanwell HBG Series

Material

Die-Cast Aluminum

Certification

CE, RoHS, SAA, UL, PSE, TUV

Warranty

5 Years

Product Advantages

🔹 Hygienic Design: Special screwless design prevents bacterial growth, dust accumulation, and greasy dirt.
🔹 Food Safety: No glass and no exposed screws to avoid fragments dropping into food or machinery.
🔹 Superior Durability: IP67 water spraying and IP69K hot steam resistance for frequent hosed-down cleaning.
🔹 High Efficiency: Fresnel lens achieves 150-170LM/W, significantly higher than ordinary lenses.
🔹 Visual Comfort: Glare-free UGR<19 and high CRI>80 for improved workplace safety and comfort.
🔹 Thermal Management: Die-cast aluminum structure with large diameter PCB ensures fast and even heat dissipation.

Technical Specifications Data

Power	100W	150W	200W	240W
Input Voltage	AC100-277V (50-60Hz)
Luminous Flux (5000K)	13500LM	22500LM	27000LM	27000LM
System Efficacy	150-170LM/W
Color Temperature	3000K, 4000K, 5000K, 6000K, 6500K
CRI / PF	>80Ra / >0.95
Operating Temp	-30°C to +50°C
Net Weight	3.2kg	4.2kg	5.5kg	6.5kg

Product Presentation

Quality & Safety Standards

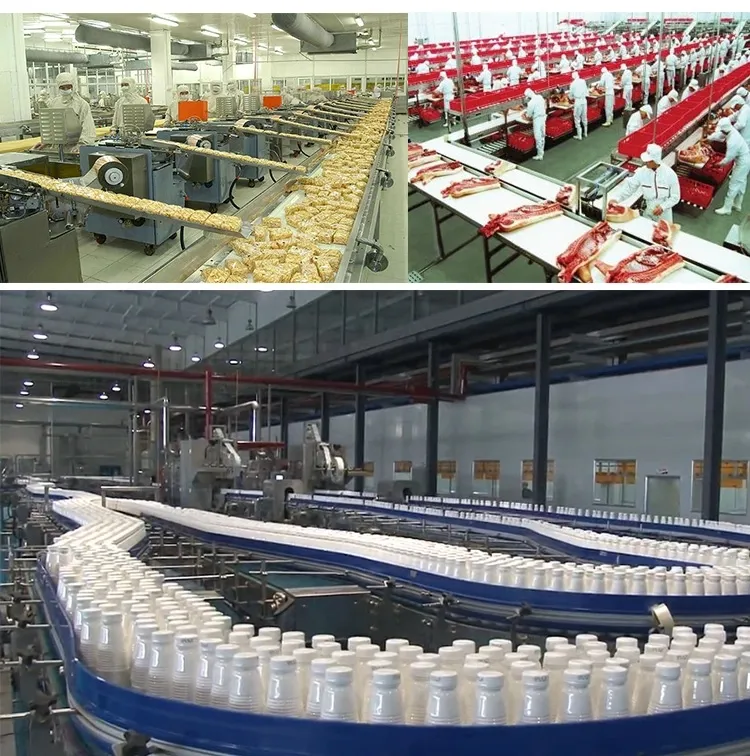

Ideal Applications: Food processing plants, oil refineries, slaughterhouses, cold storage, wineries, bakeries, and milk/meat processing plants.

Strict Quality Testing:

✓ Stability Test: 100% aging test for at least 48 hours.
✓ Lighting Test: Full inspection before packaging.
✓ Durability: IK10 impact resistance and 10KV surge protection.

Frequently Asked Questions

Is this high bay light suitable for wash-down environments?

Yes, it features an IP67 rating for water spraying and is IP69K rated for hot steam resistance, making it ideal for facilities that require frequent high-pressure cleaning.

Why is the screwless design important for food processing?

The screwless and smooth body design prevents the accumulation of dust, grease, and bacteria. It also eliminates the risk of screws or glass fragments falling into the food production line.

What dimming options are available for this light?

The fixture supports 0-10V dimming as standard. Optional functions like DALI, daylight sensors, and microwave sensors are also available upon request.

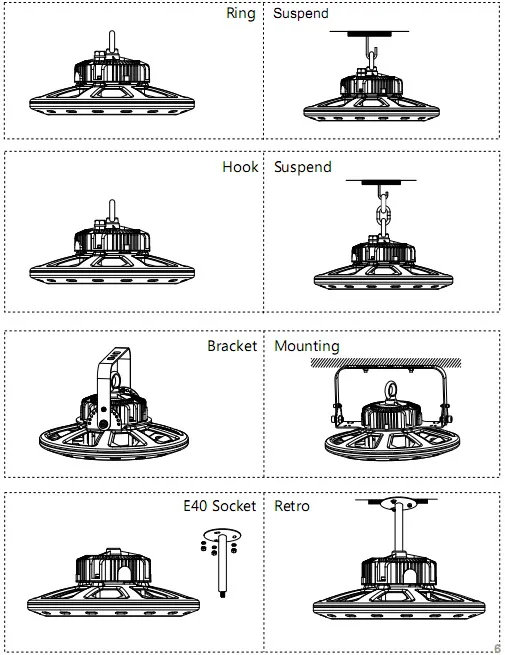

What mounting heights are recommended?

The ideal mounting height for these UFO LED high bays is between 8 to 15 meters, depending on the specific power wattage and desired light levels.

What certifications does this product hold?

The product is fully certified with SAA, PSE, UL, cUL, DLC, TUV, GS, CB, FCC, CE, and RoHS, ensuring compliance with international safety and performance standards.

Does the light come with a warranty?

Yes, we provide a comprehensive 5-year quality warranty for this LED High Bay light, supported by high-quality Meanwell drivers and Nichia/SMD3030 chips.
