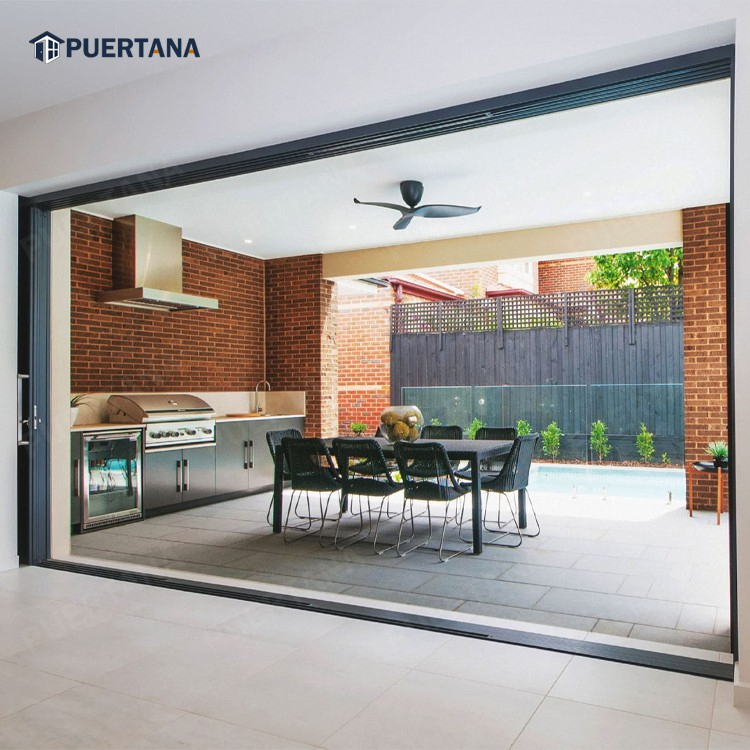

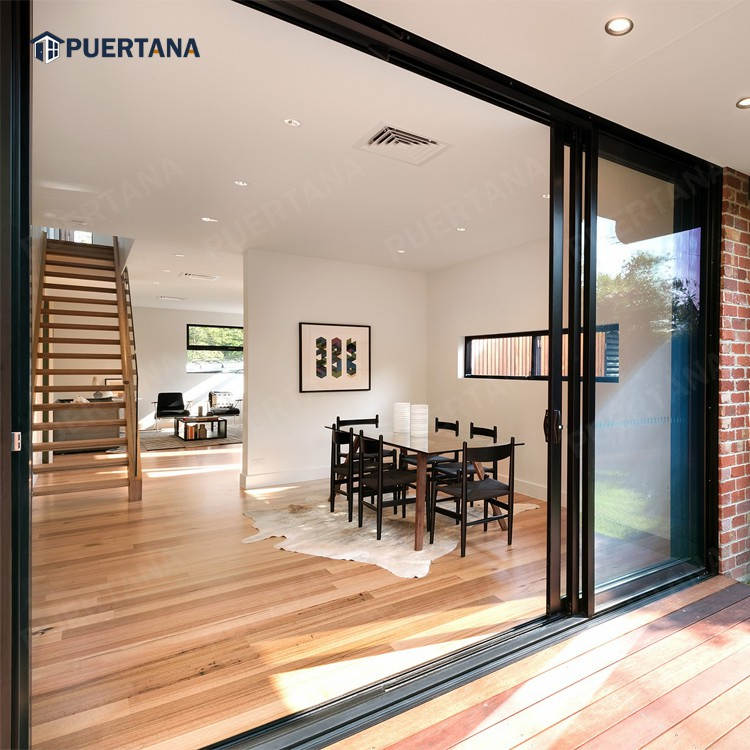

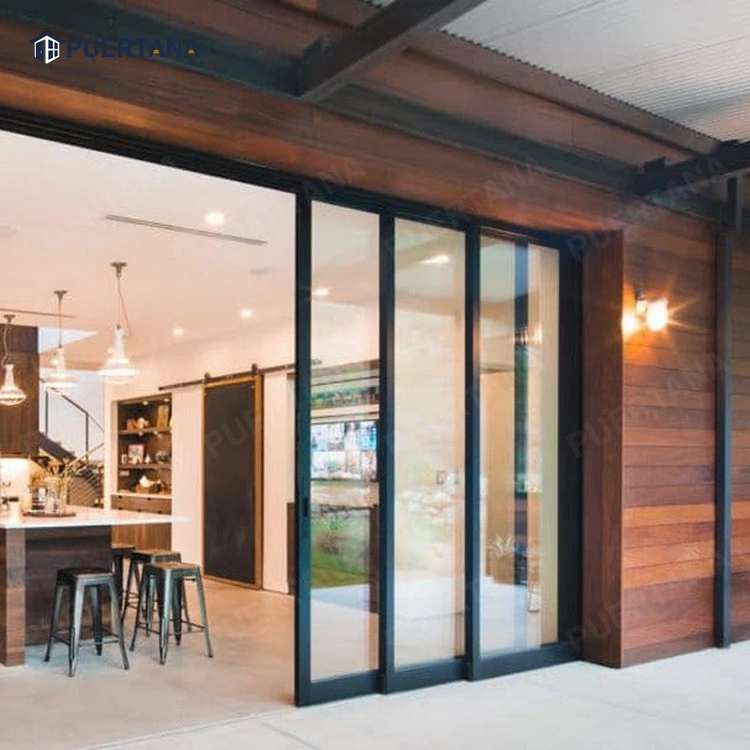

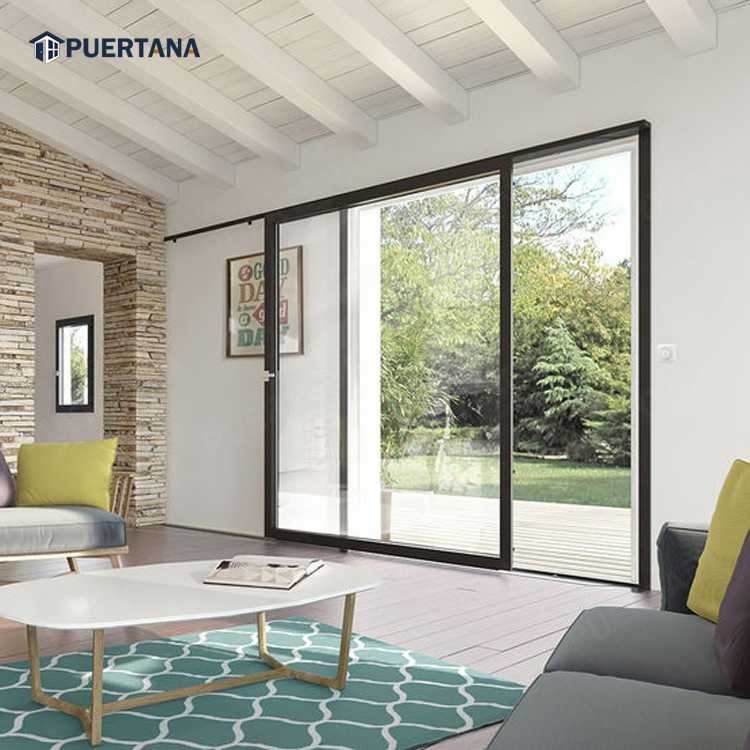

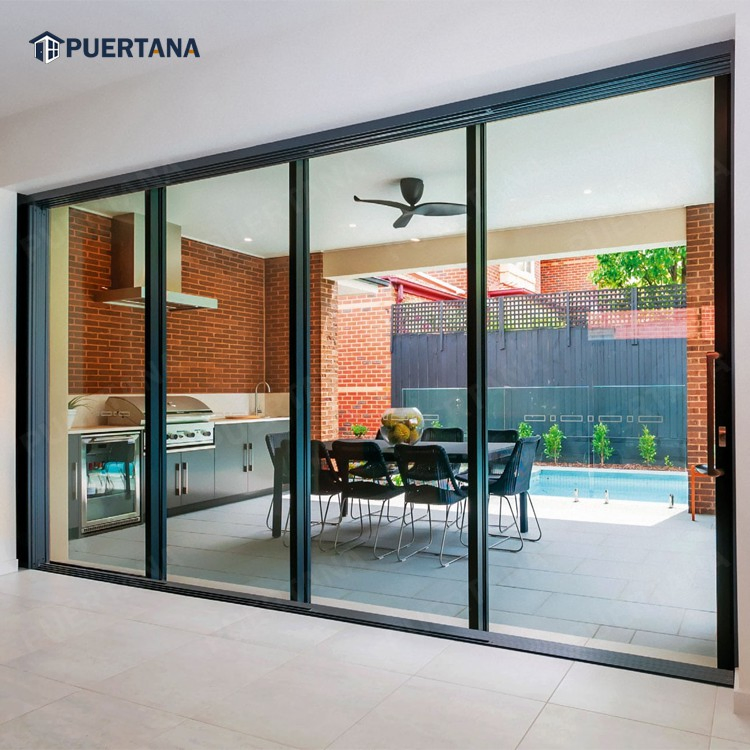

Exterior Conceal Hidden Aluminium Glass Pocket Stacking Slide Sliding Patio Door Inside The Wall

Customization: Available
After-sales Service: Online Technical Support
Warranty: More Then 5 Years

Product Description

📋 Overview - Basic Info
Model NO.
aluminum sliding door
Surface Finishing
Finished
Glass Type
Tempered Glass
Certification
CE, CCC, ISO, Nfrc
Open Style
Sliding
Position
Exterior
Material
Aluminum Alloy
U-Value
0.35-0.69
Shgc
0.14-0.97
Visible Transmittance
0.13-0.85
Standard
As2047/Nfrc/CE
Frame Colors
White/Black/Gray/Bronze
Hardware
China Top Brand/German Brand
Glass Options
Low-E/Impact Laminated/Tinted/Tempered
Wind Load Resistance
≥ 2.8 Kpa
Warm Eager Spacer
Available
Smart Lock System
Optional
Application
Residential, Commercial
Performance
Thermal Broken, Soundproof
Main Market
Au, USA, EUR
Transport Package
Wooden Case/ Carton
Production Capacity
100,000 Square Meter / Year
📍 Product Description

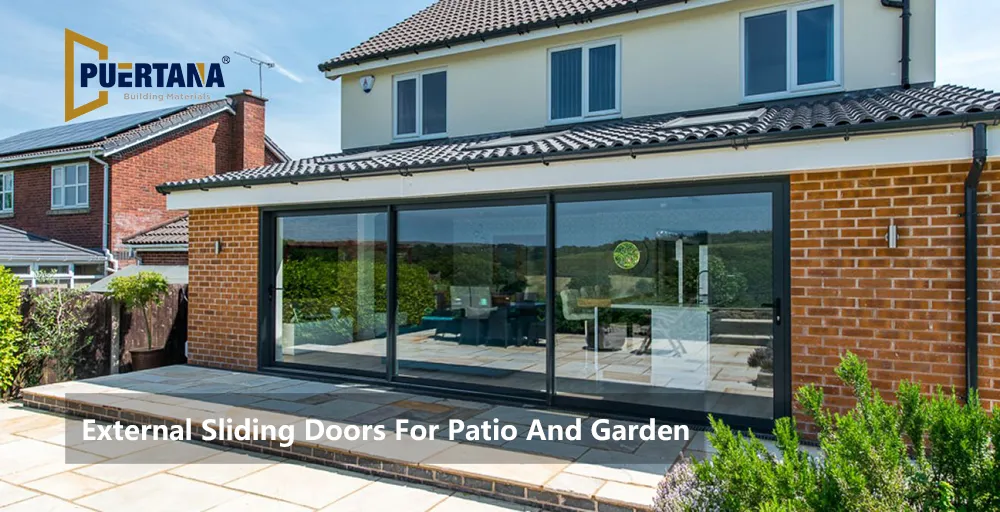

Aluminium Glass Sliding Door

When it comes to getting the most glass for your home, sliding doors are the best possible option. Top and bottom running tracks allow for very large door panels, keeping the framing to a minimum and maximising glazing. Sliding doors achieve a perfect halfway house between doors and windows. The expansive view created by the impressive glass sizes and slim sightlines feels more like a large window when the doors are closed. Pair this with smooth sliding operation and you have external doors that tick all boxes.

Divider
Product configurationSliding of 1, 2, 3, 4, 5, 6 & even number door panels
Standard/CertificateCE / NFRC / AS2047
Profile thickness2.0mm-4.0mm
Maximum dimensionsWidth up to 2000mm; Height up to 4000mm per sash
Sample lead time7 days
FeatureWaterproof / heat and sound insulation
ApplicationResidential / Commercial / Villa
HardwareGerman / China top brand handle and lock system with 10 year warranty
Delivery15-35 Days after order confirmed
General specsDouble glazed glass / Dual color / Powder coating / Multiple Rails
Mesh/Fly ScreensStainless Steel Security Mesh / Aluminium Security Mesh / Fiberglass / Retractable
📷 Detailed Features
Detailed Title

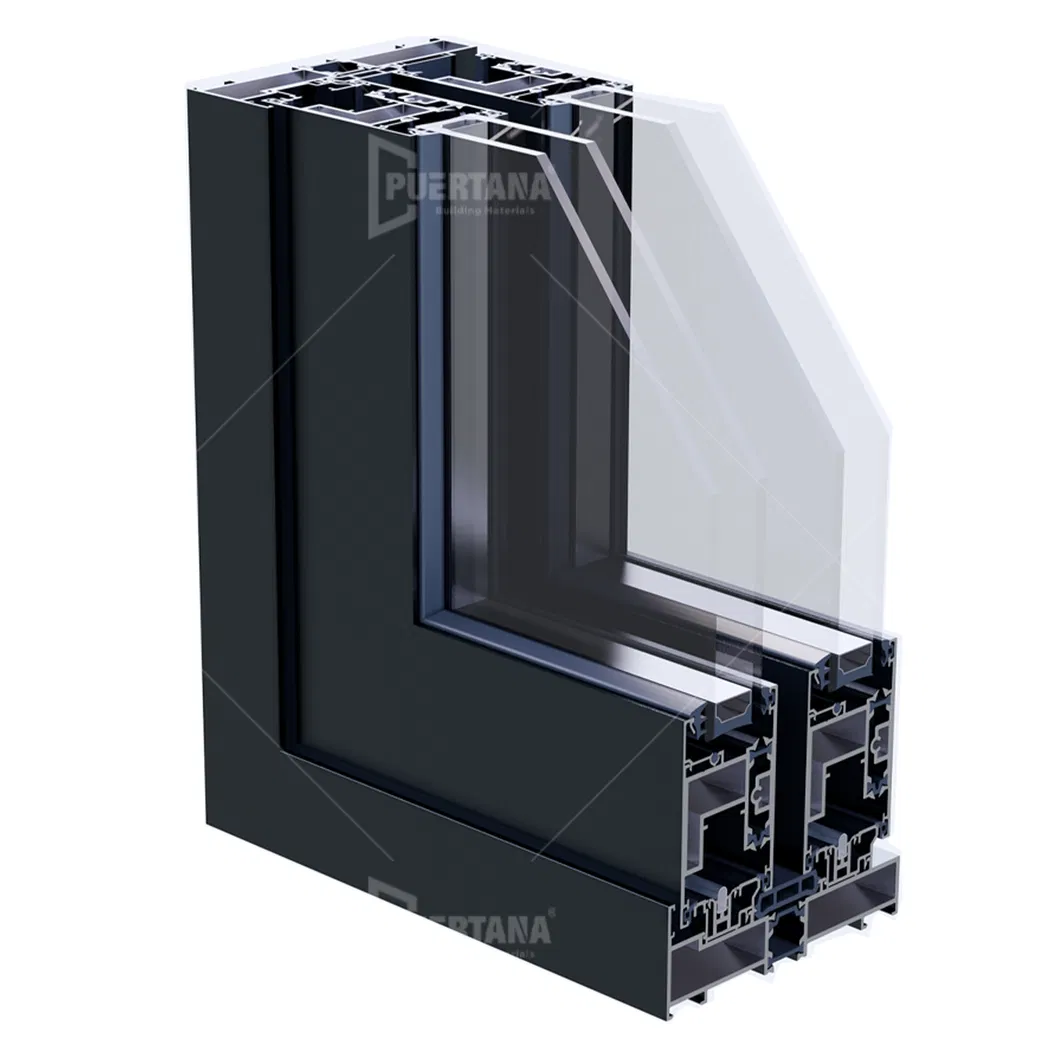

Custom Design
Different design just for you Heavy duty sliding door is an optimised, high performing, thermally insulated sliding door with a slim sightline. The system combines this highly attractive aesthetic line with remarkable energy efficiency, belonging to an entirely new generation of sliding systems thanks to technical innovation.
Easy to manufacture and install Frames and sashes are assembled using eccentric pin or press corners. Stainless steel corner chevrons guarantee a perfect alignment. Drainage holes and vent cut outs are prefabricated using precision tools, ensuring fast and accurate assembly.

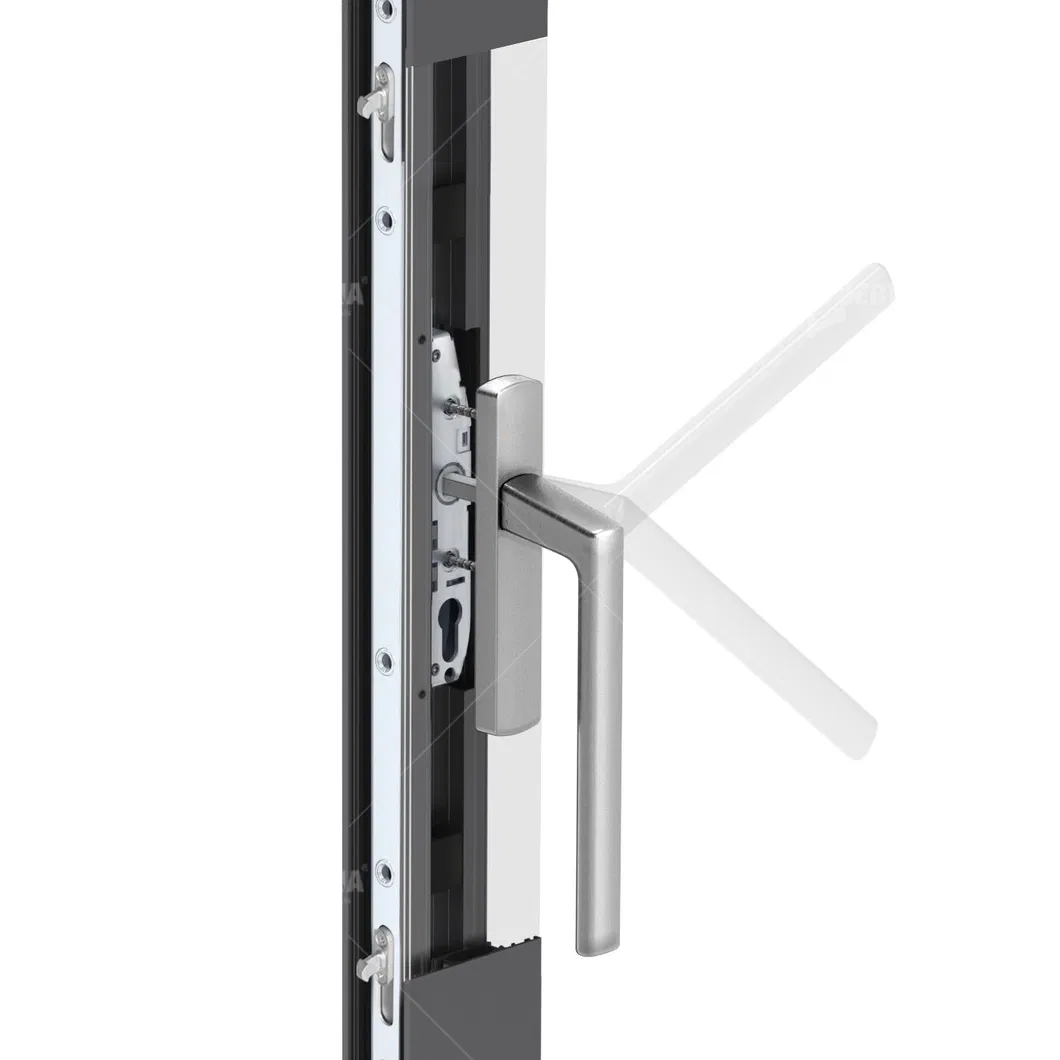

Installation

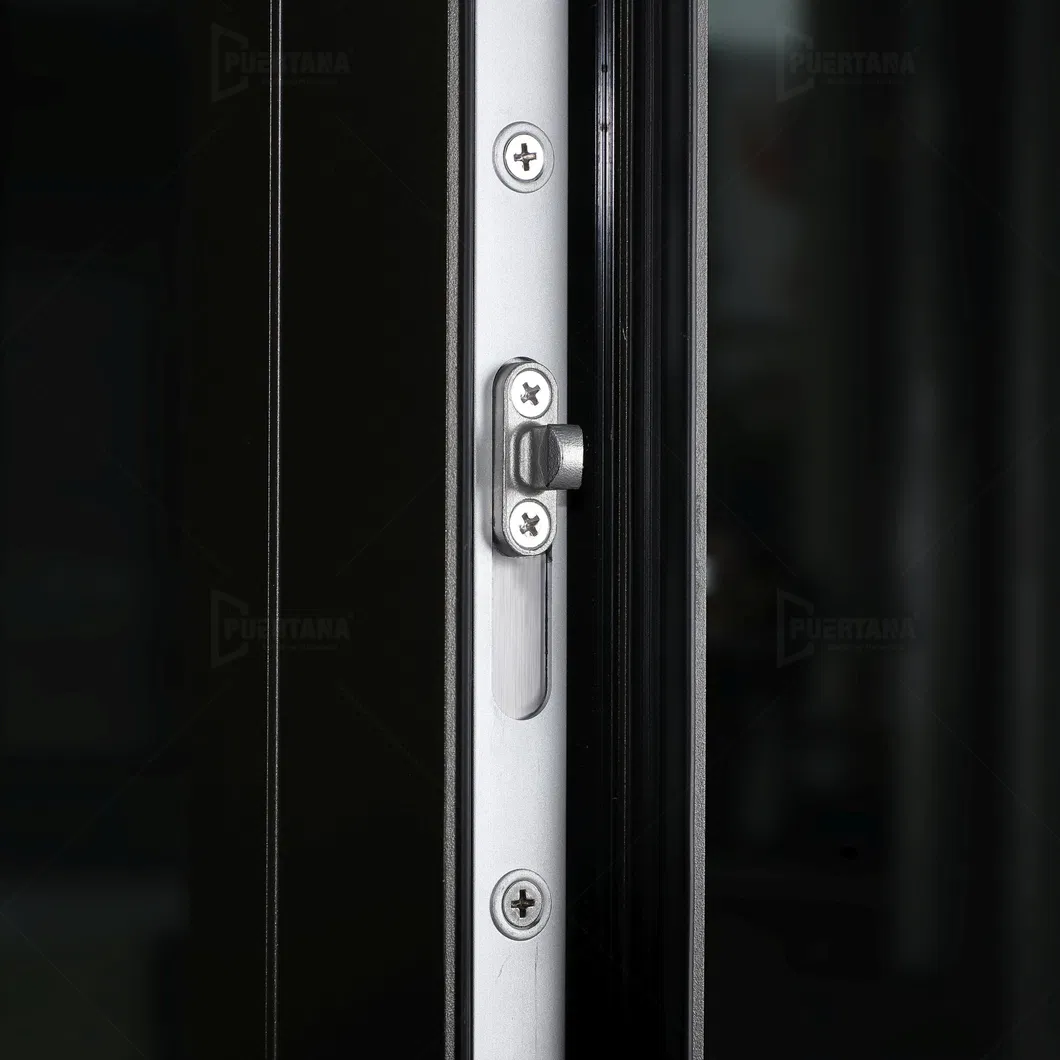

Durability
Impressive strength & durability A combination of strong profiles, stainless steel rails and polyamide rollers allows sliding doors up to 2.8 meters high. The stainless steel rail ensures smooth movement and avoids surface finishing peeling. Rollers can support up to 300kg per vent.
Advanced Energy saving Coupled with 40mm glass fibre reinforced polyamide strips, these profiles reduce thermal conduction. Customized PE strips further insulate cavities, leading to high thermal performance and lower energy consumption.

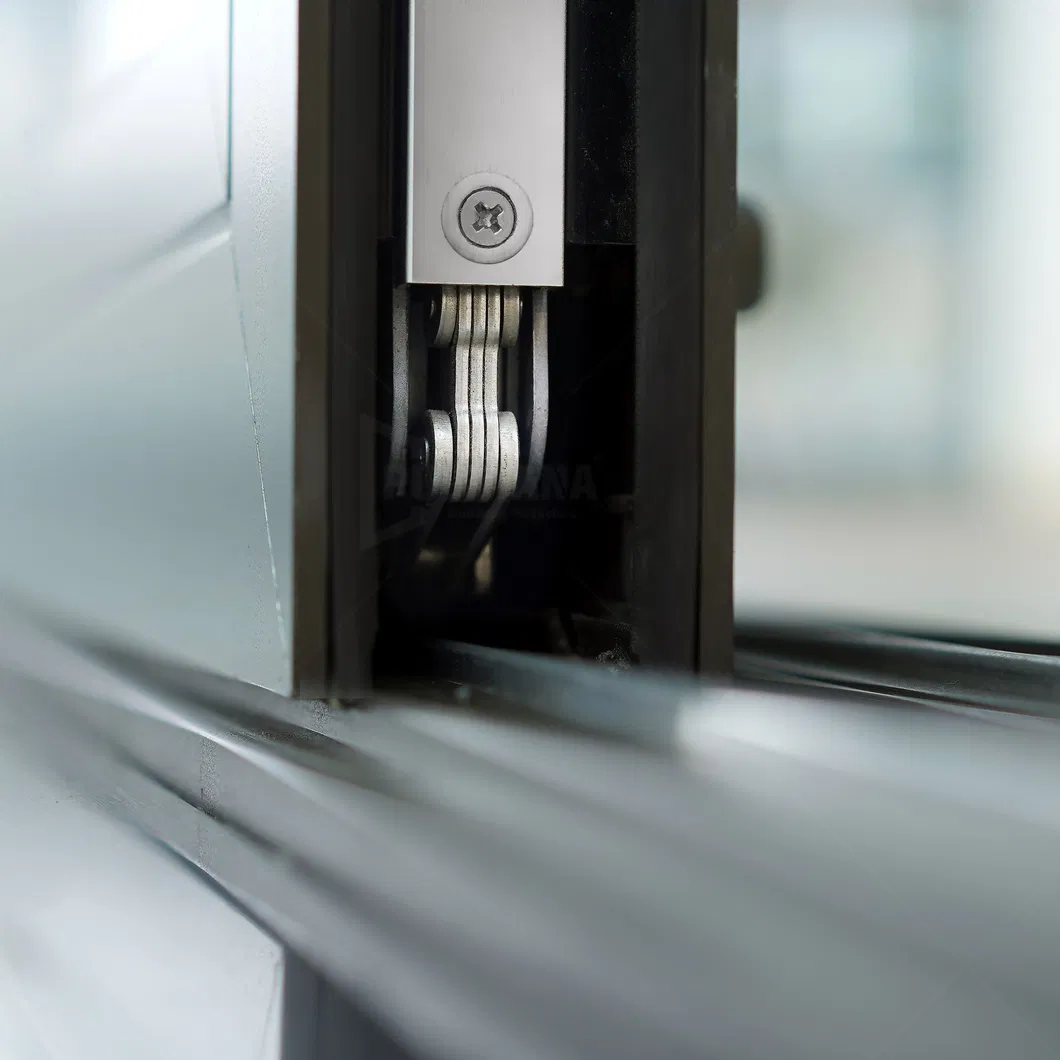

Energy Saving

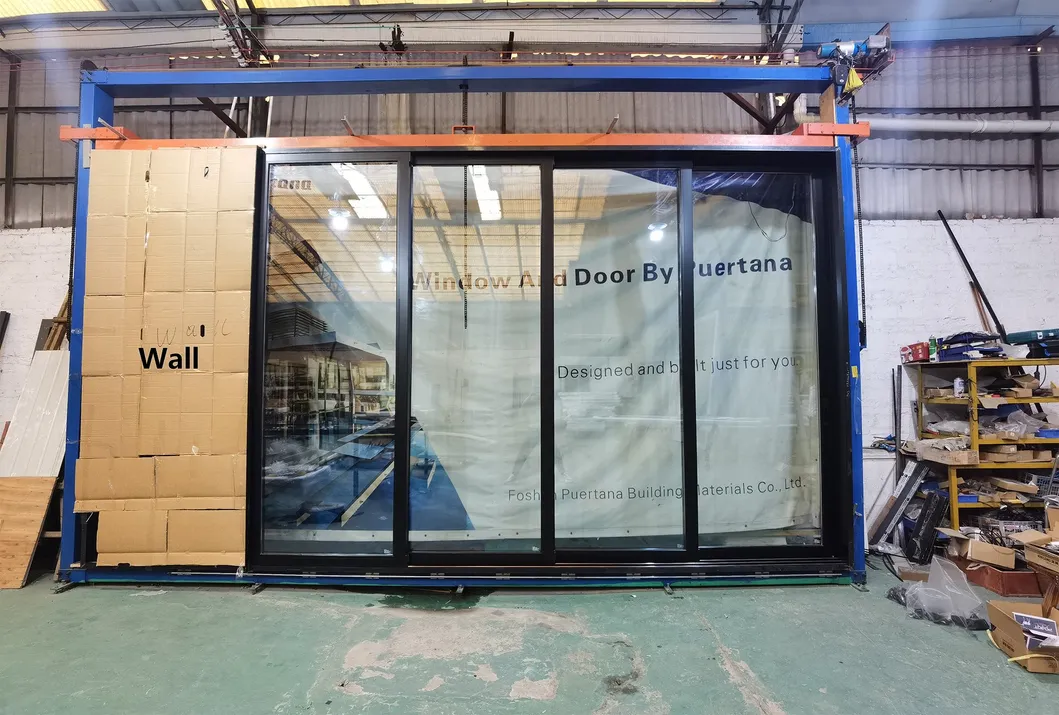

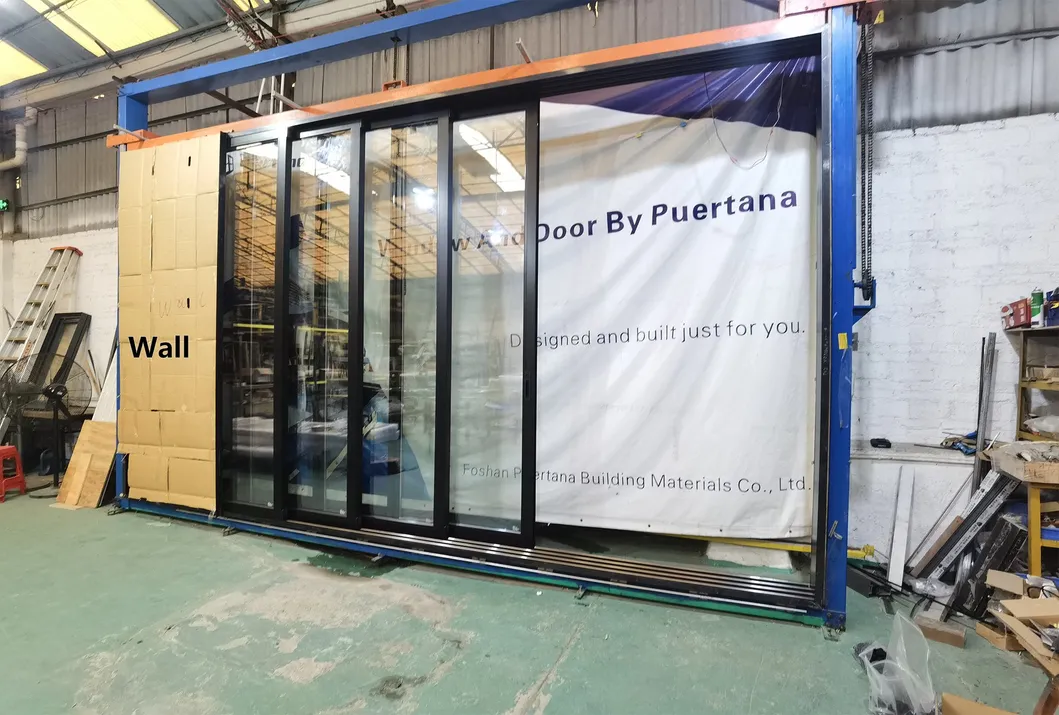

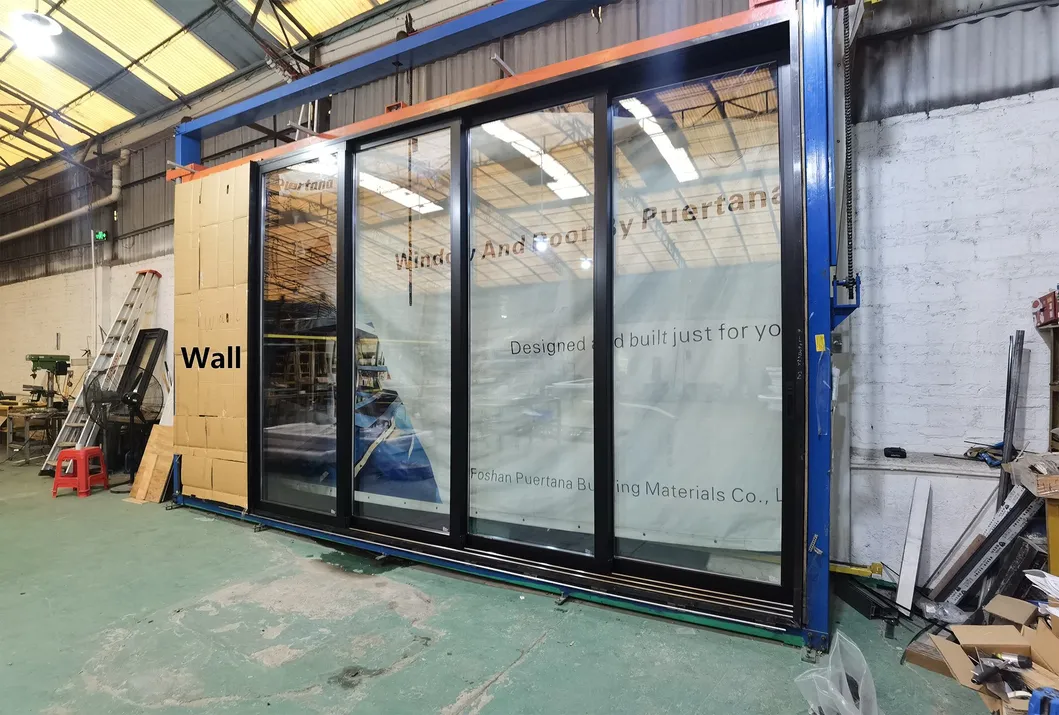

Gallery 1 Gallery 2

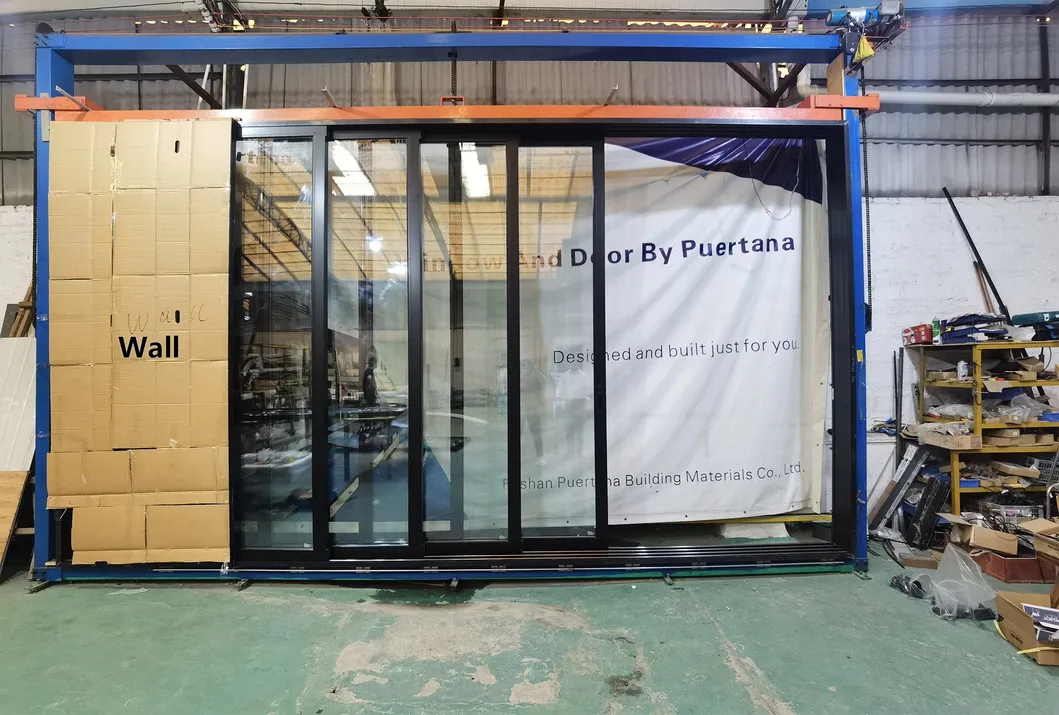

Gallery 3 Gallery 4
🏭 Profile & Advantages

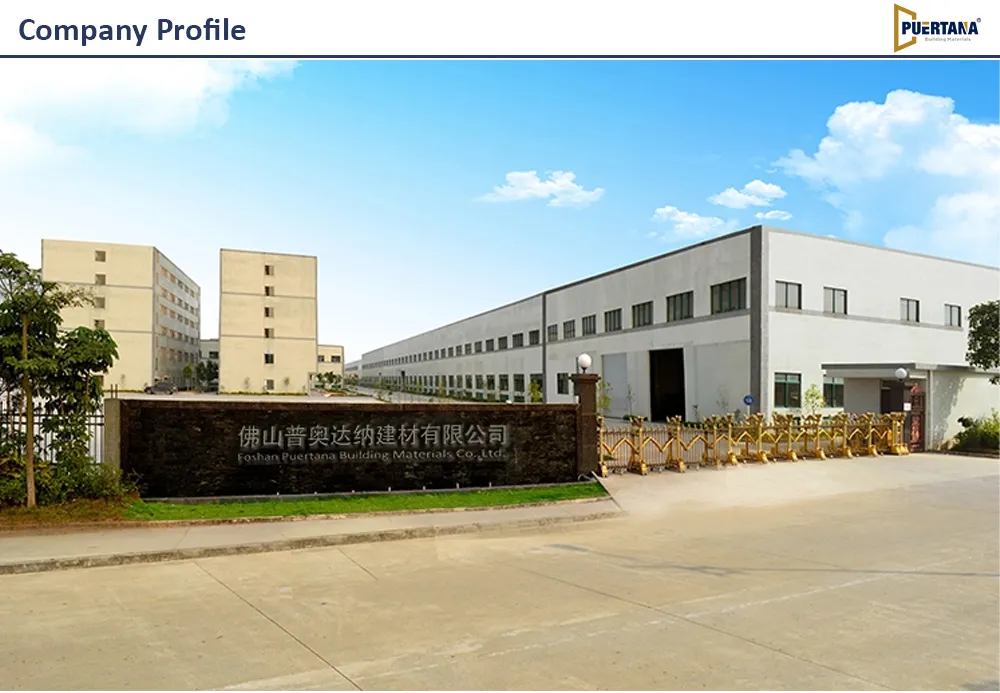

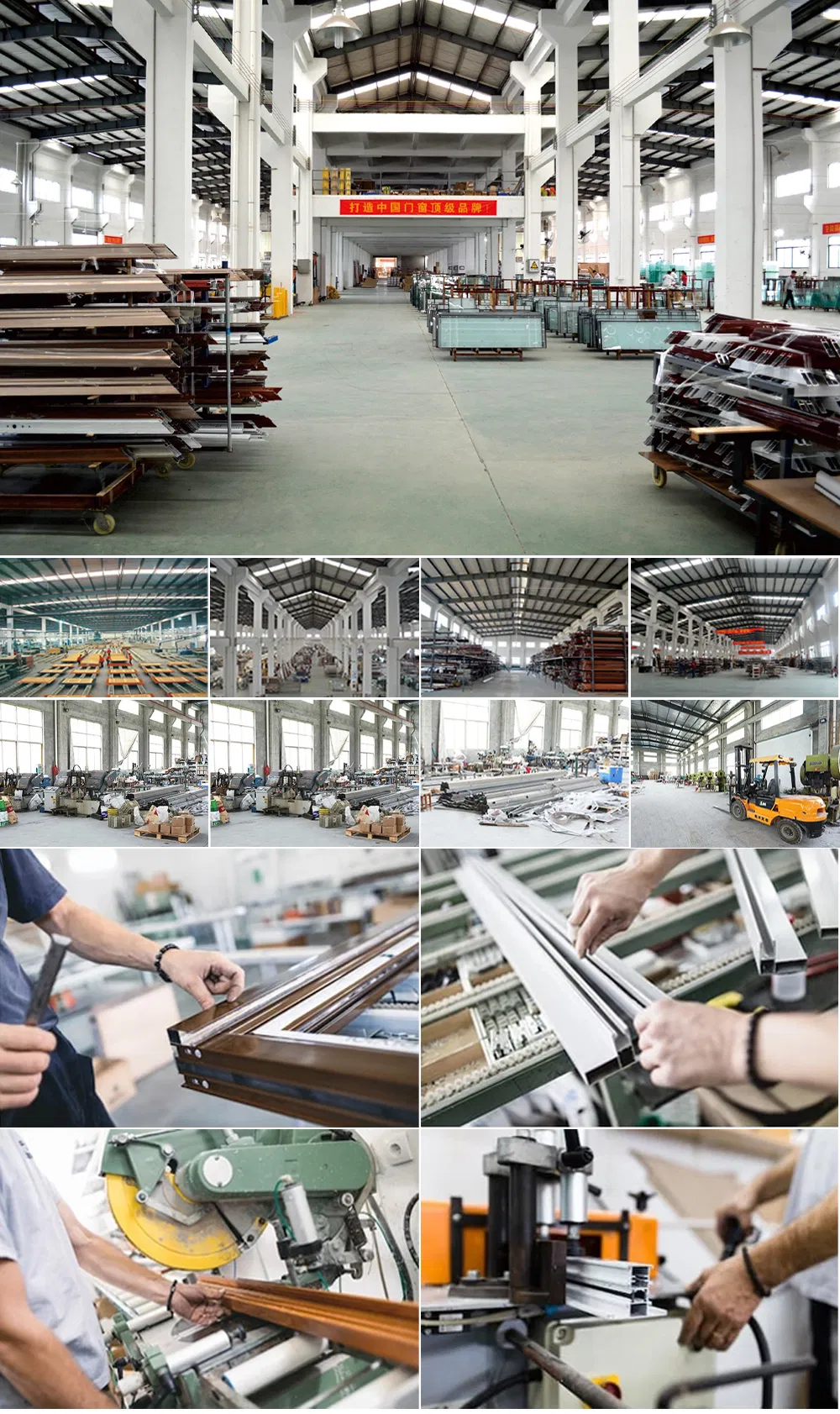

Workshop

Founded in 2010, we are a modernized enterprise specializing in high-end aluminum alloy doors & windows, solid wooden doors, sunrooms, and shower rooms. Our facility covers 5,000 square meters with over 100 dedicated staff members integrating R&D, manufacturing, sales, and service.

With a superior research team focusing on low carbon environmental products, our offerings have gained many national patents for appearance, structure, and practicability. We serve housing builders, developers, and contractors globally, ensuring products meet local building codes.

Team Advantages
📡 Certifications & Gallery
Certifications

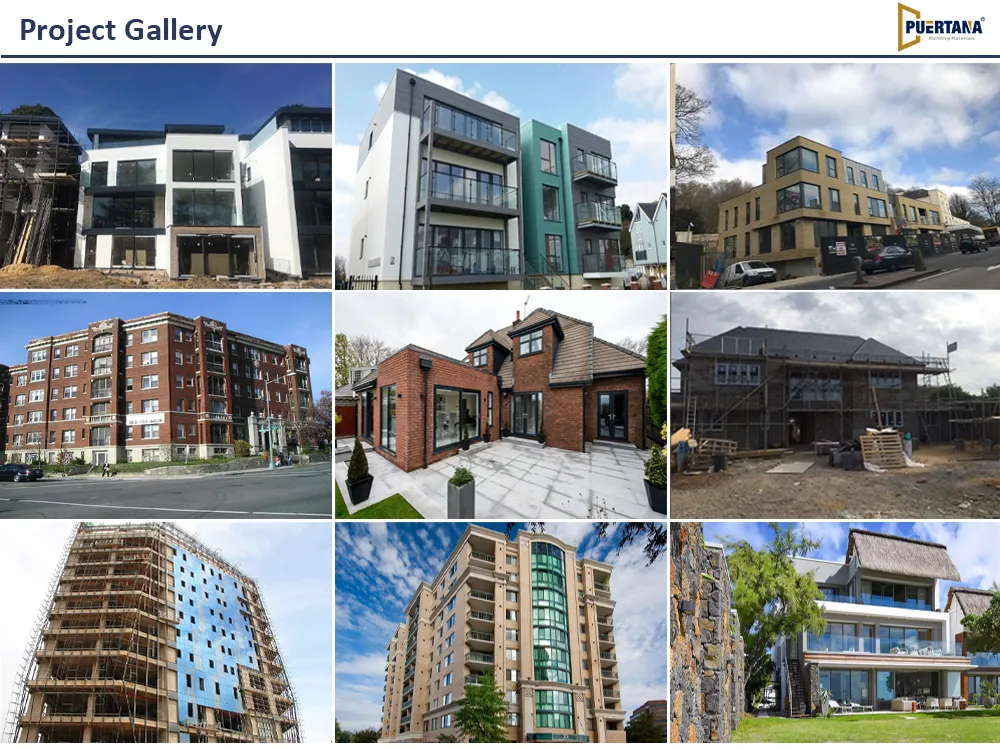

🏛 Project Gallery
Projects
📦 Packaging & Shipping
Logistics
Frequently Asked Questions
FAQ Header
Q: Are you a factory?
A: Yes, we are a professional manufacturing factory.
Q: What is your MOQ?
A: Our MOQ for aluminum products is 5m², and for wood doors, it is 5 sets.
Q: What are your payment terms?
A: T/T 30% deposit, with the full balance due against delivery.
Q: Can you help with international delivery?
A: Yes, we can handle shipping terms including FOB, CFR, CIF, and DDU.
Q: What is the standard production time?
A: Normally it takes 25-30 days, though this is negotiable depending on order size.
Q: How do you ensure product quality before delivery?
A: We have a dedicated QC department that inspects products to ensure they are 100% compliant with standards.
