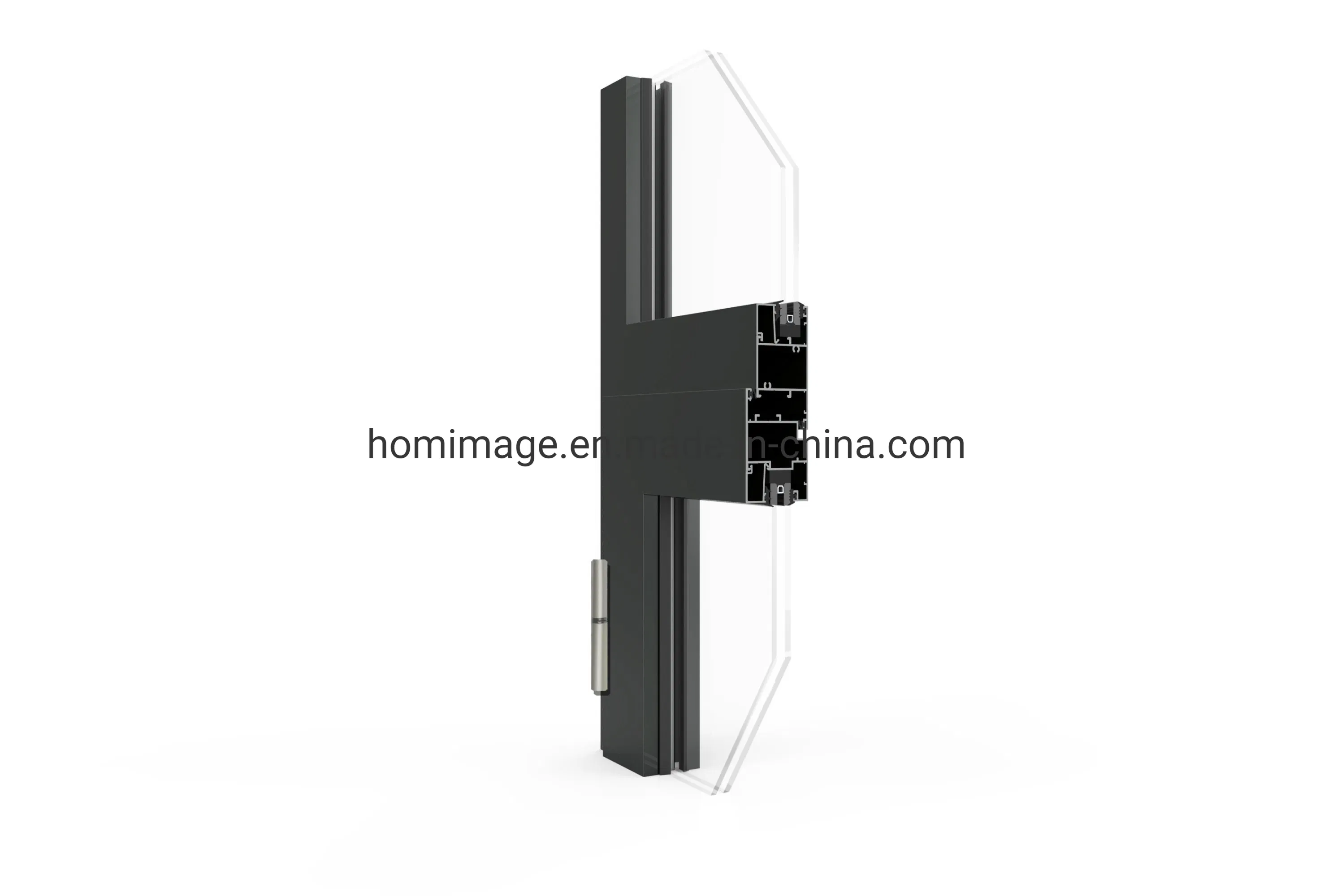

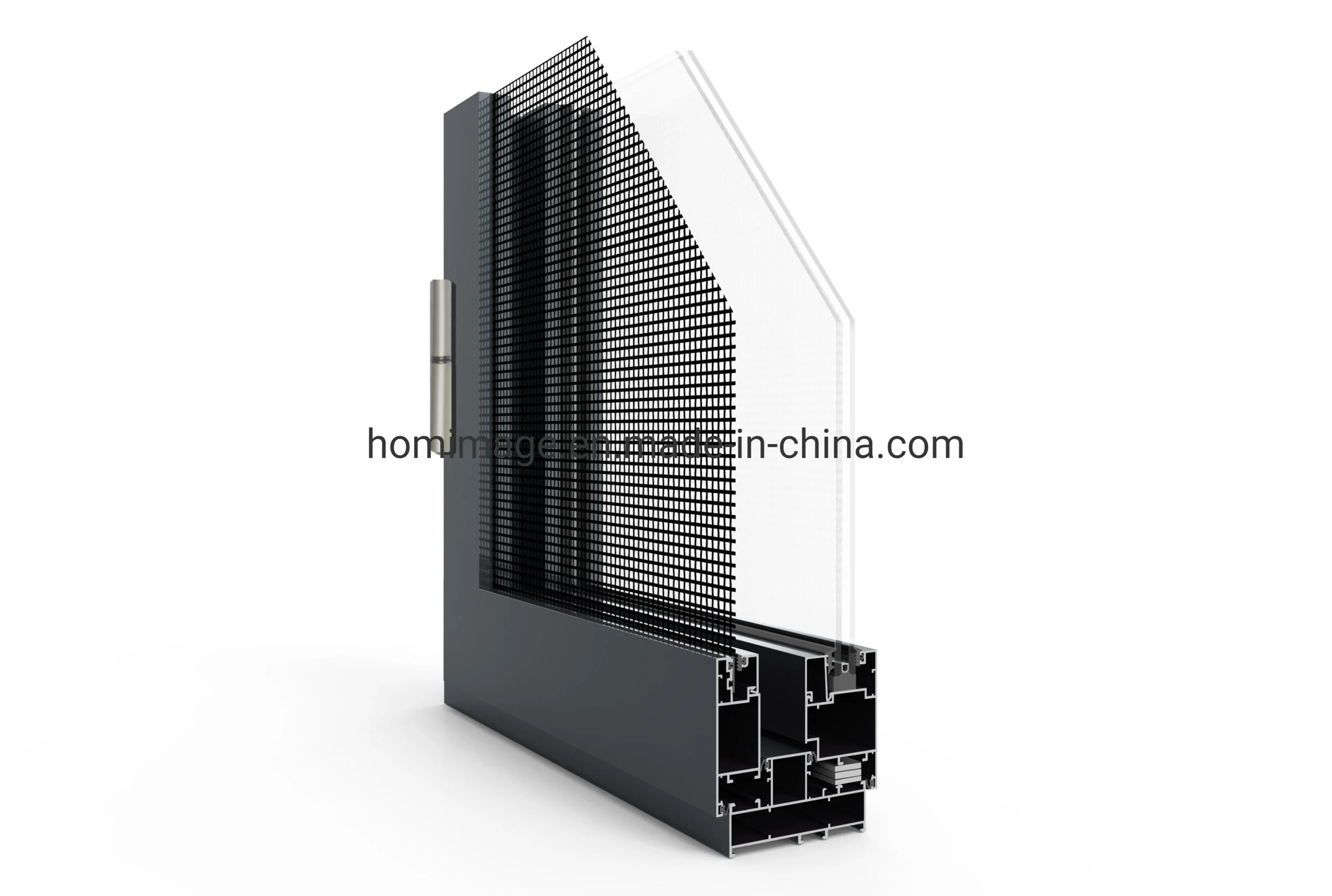

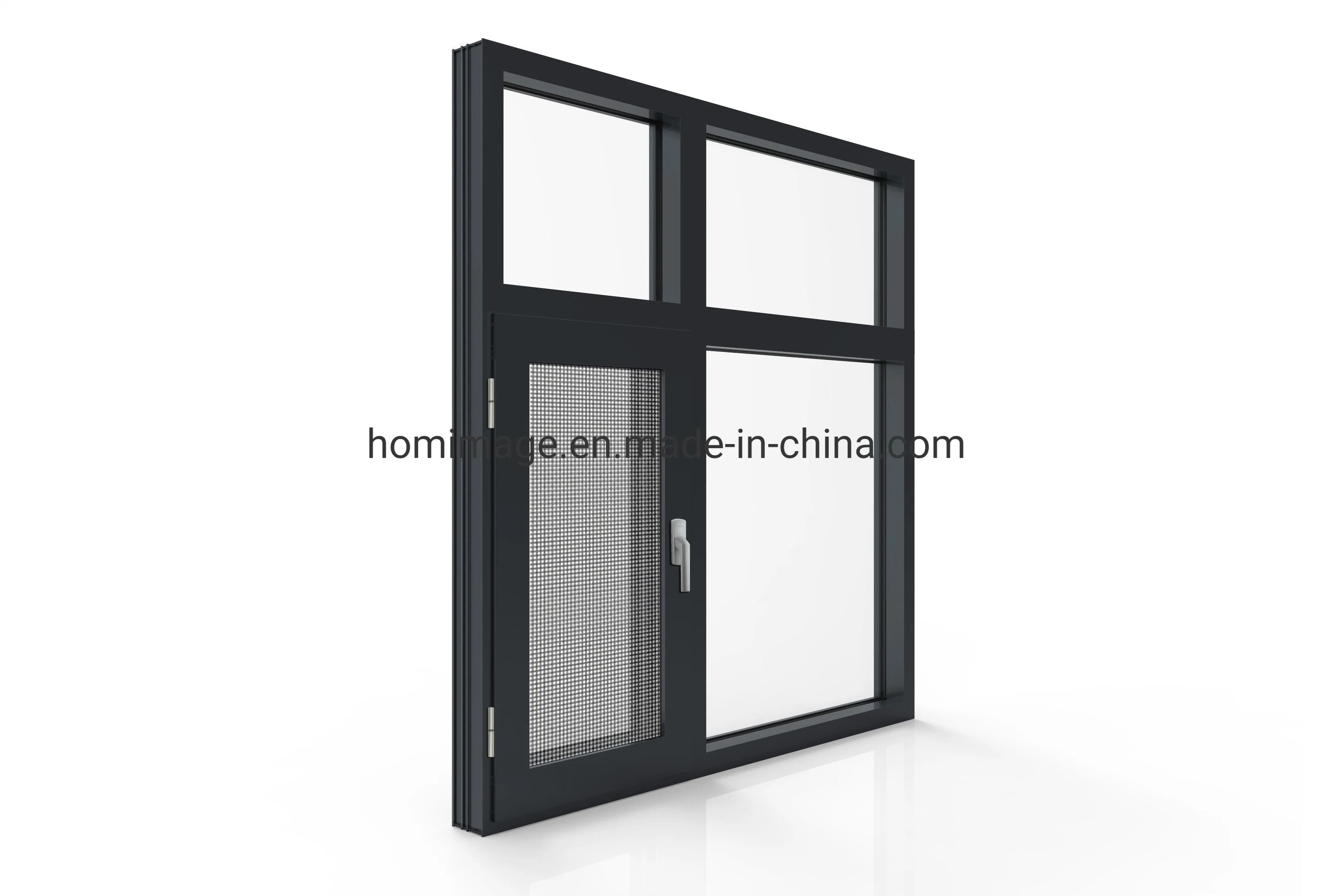

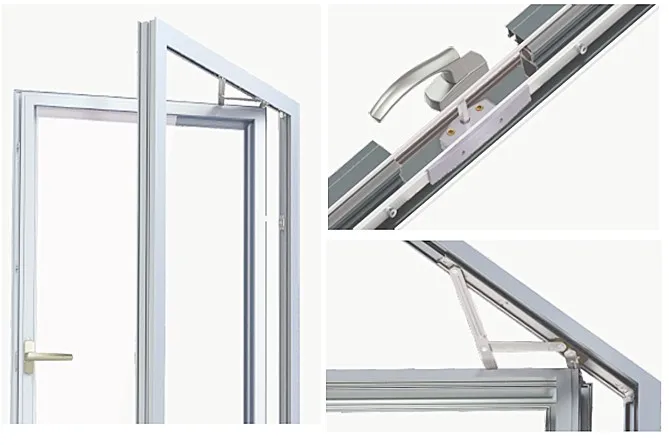

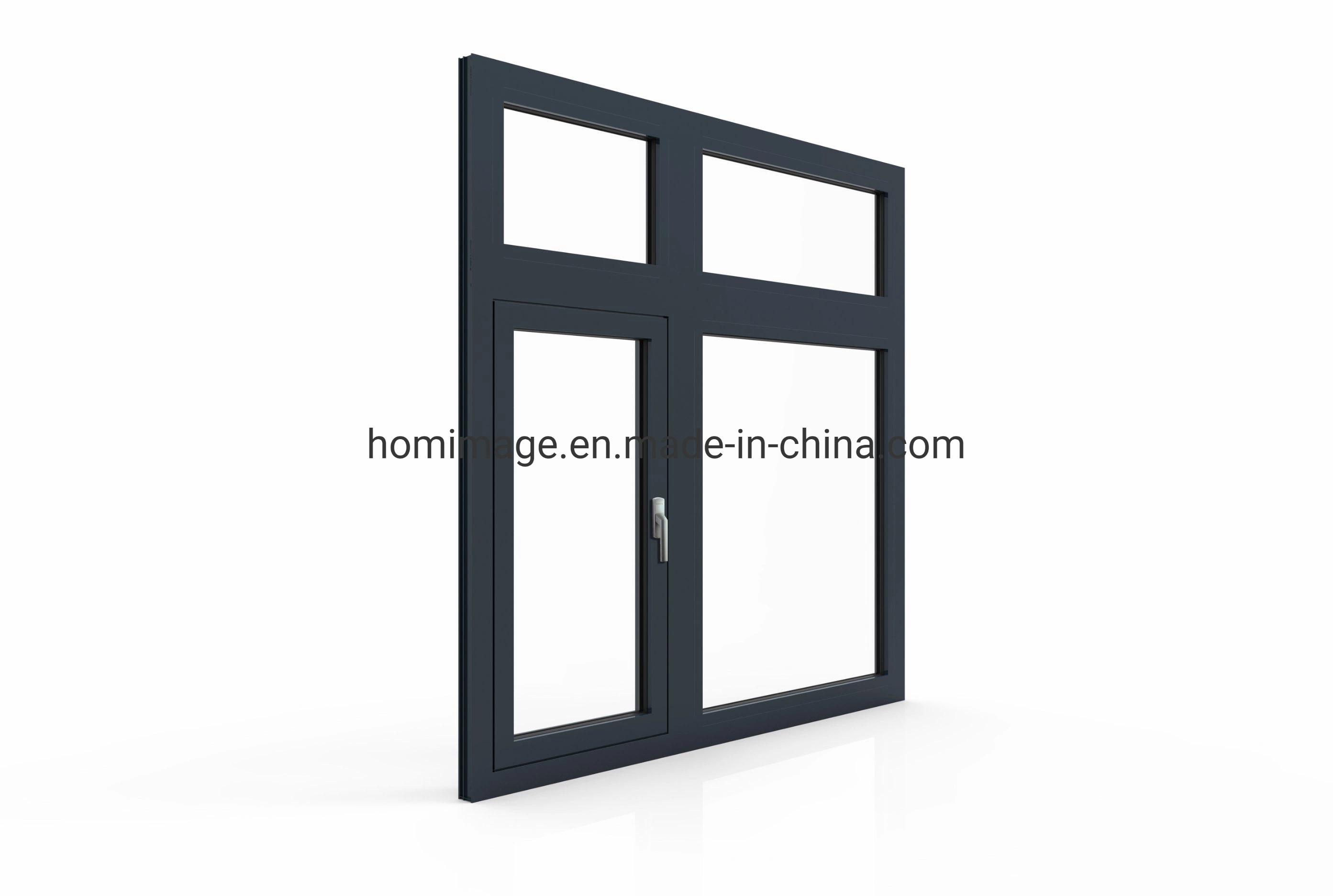

HW49/HW100 series is an elegant outside/inside casement system, offering multiple opening methods including outside opening, inside opening, awning, and tilt-turn. It features an inward side glass bead to solve security and safety installation challenges in both low and high-rise buildings. The new drainage design guarantees exceptional water tightness.
| Performance Specifications | ||||
|---|---|---|---|---|
| Heat Preservation [W(m2.k)] | Sound Insulation (DB) | Watertight (Pa) | Airtight Performance | Wind Load (KPA) |
| 2.3-2.8 (Level 5/6) | 35DB (Level 4) | 500PA (Level 5) | Level 6 | 4.1KPA (Level 7) |
| Technical Parameters | |||
|---|---|---|---|

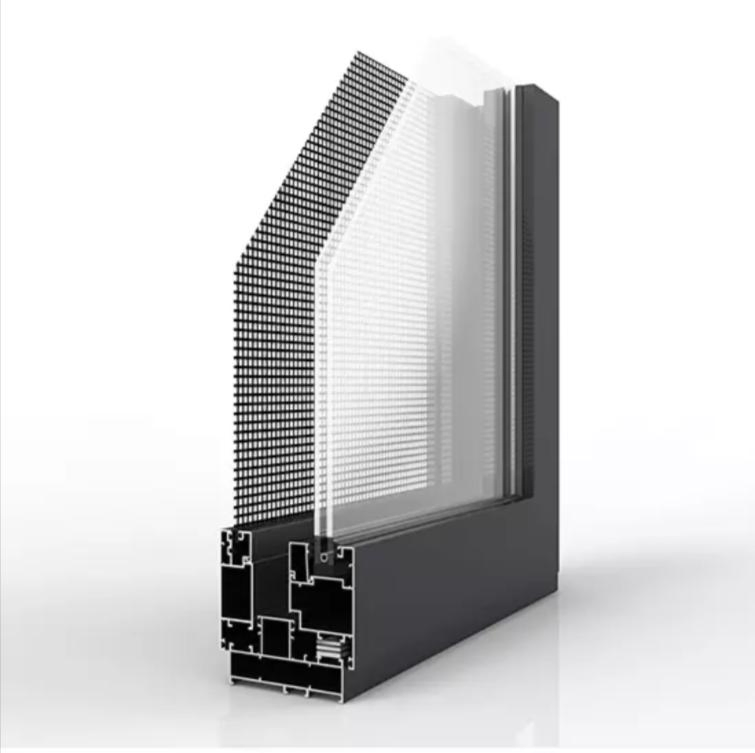

| Sash Range (mm) | Visible Width/Height | Aluminum Profile Depth | Glass Thickness |
| Width: 300-800mm Height: 300-1800mm Weight: 45kg |
HCW49: Frame 51mm / Sash 74mm HCW100: Frame 49mm / Sash 74mm |
HW49: Frame 49mm / Sash 49mm HW100: Frame 100mm / Sash 49mm |
SGU: 4-10mm DGU: 14-35mm |

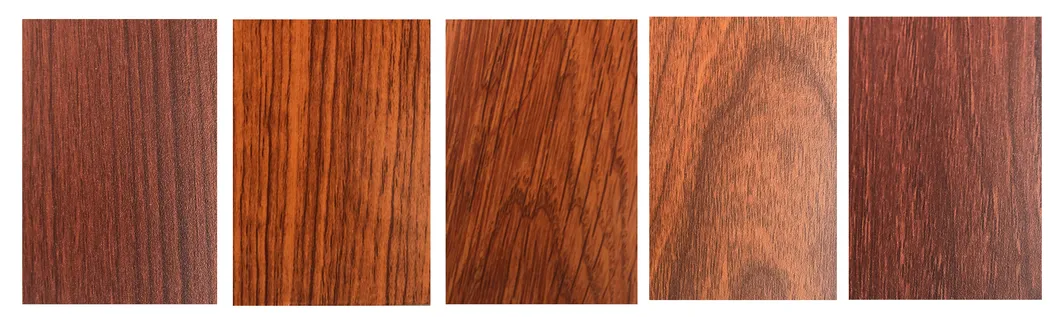

Available in Powder Coating, Anodized, and Wooden Finishes
| Aluminium Alloy | Extrusion Diameters | Casting Lines | Extrusion Lines | Coating Lines | Anodized Lines |
|---|---|---|---|---|---|
| 6063/6061-T4,5,6 | 80mm-300mm | 2 Lines | 14 Lines | 1 Vertical line | 1 Full-auto line |

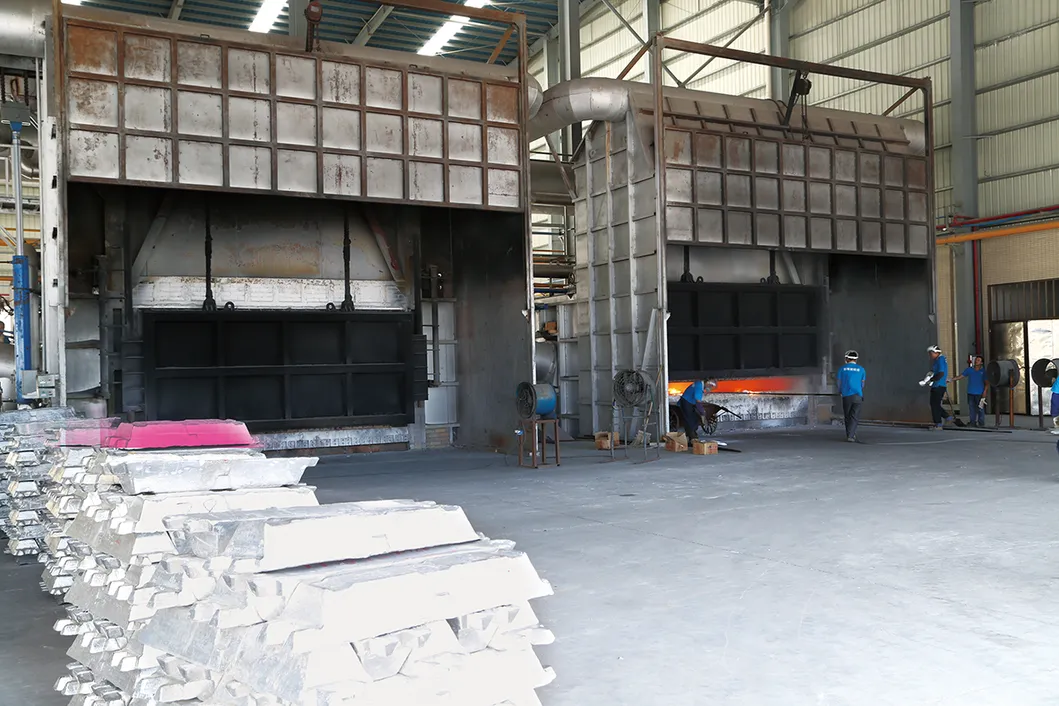

Billet Casting

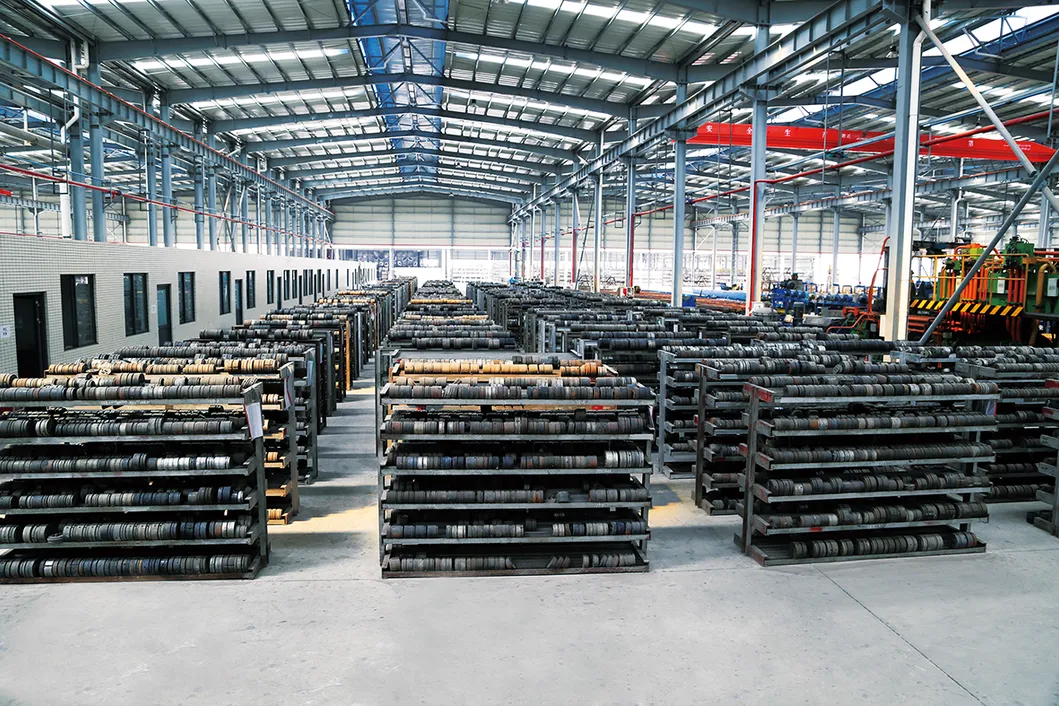

Dies Workshop

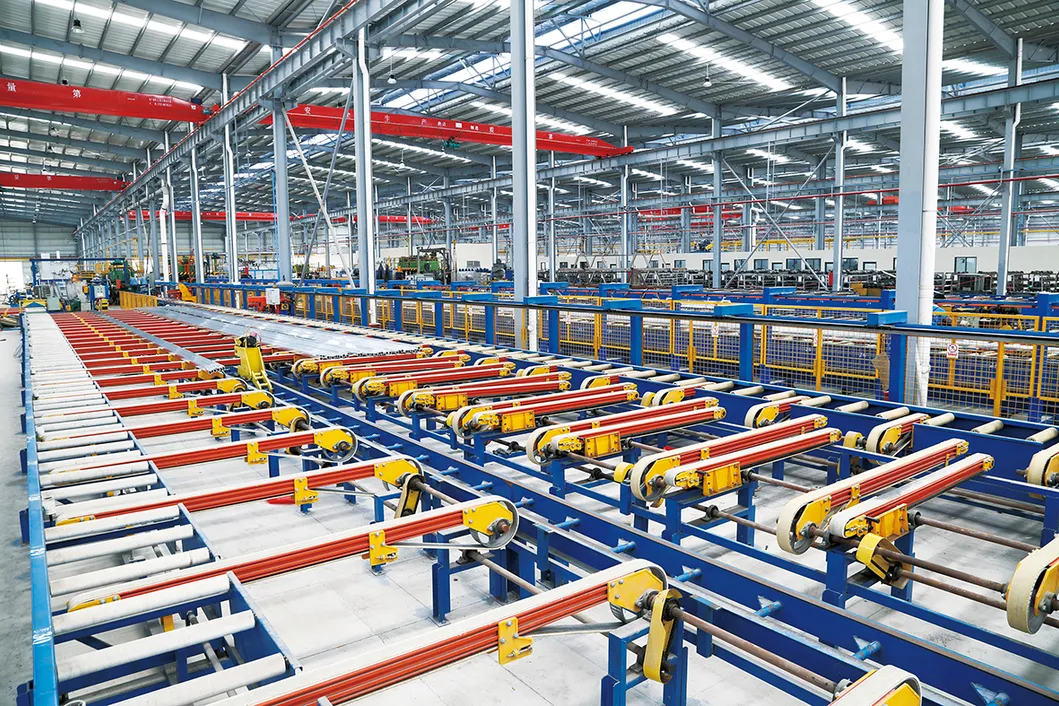

Extrusion Workshop

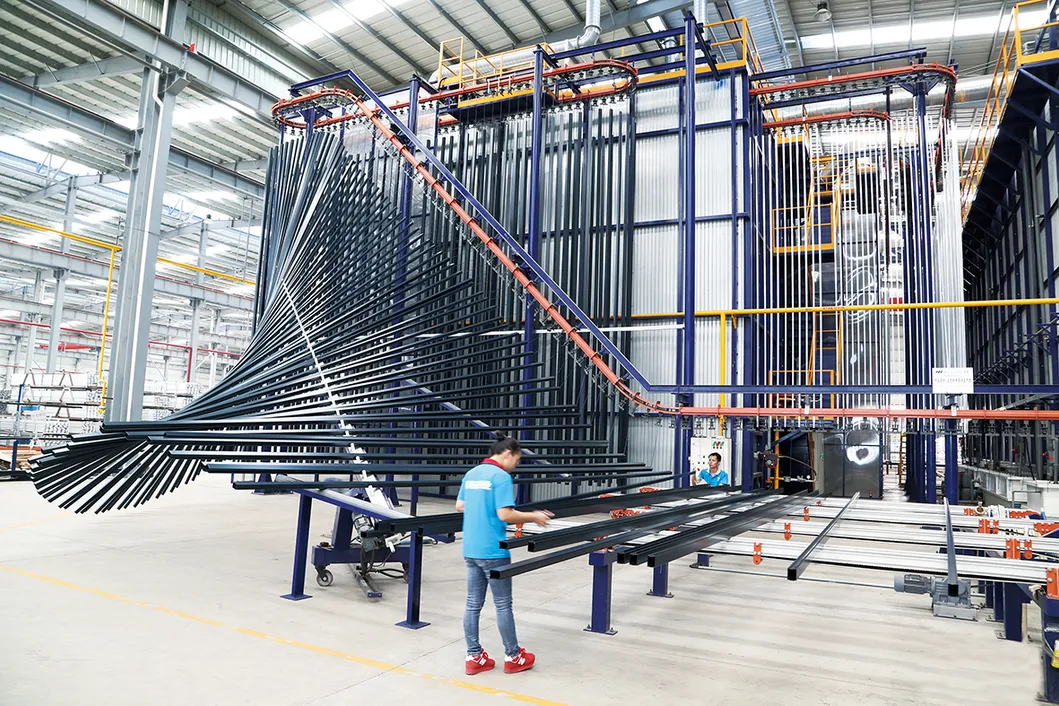

Powder Coating

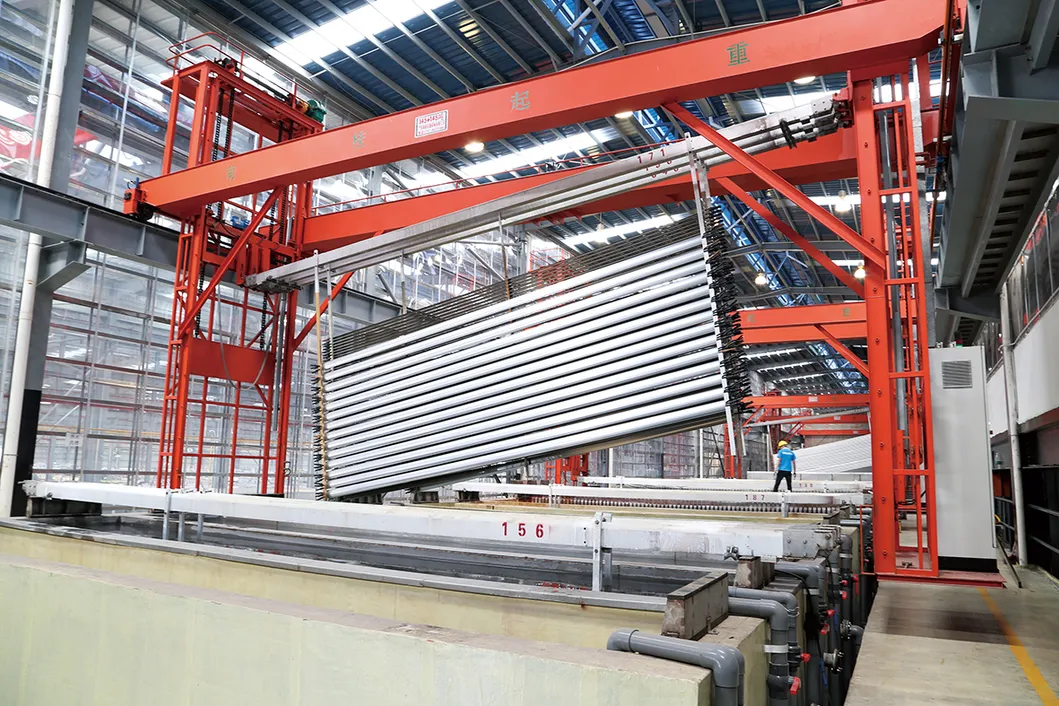

Auto-Anodized
