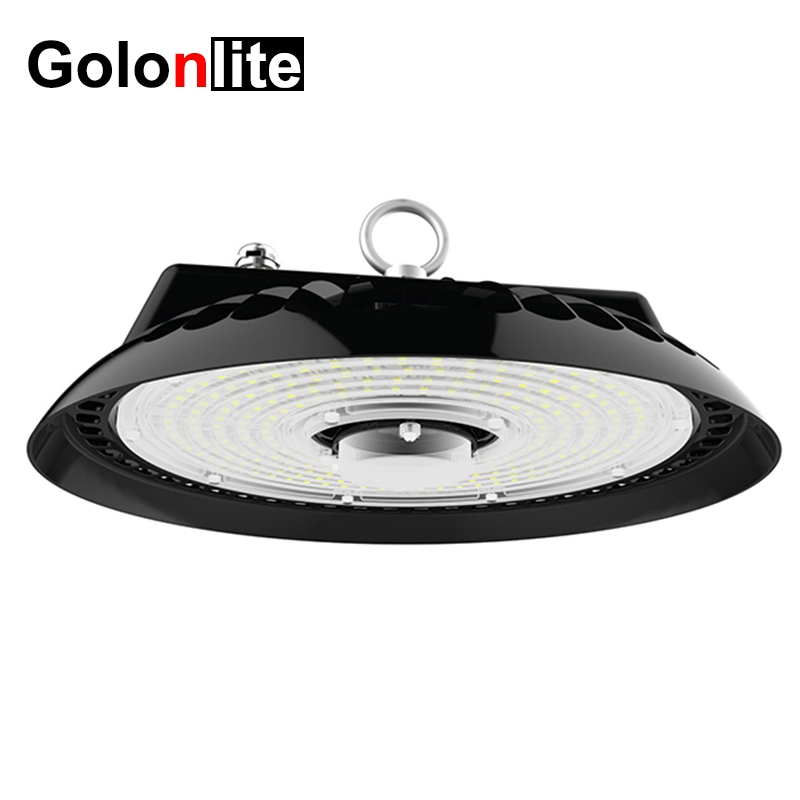

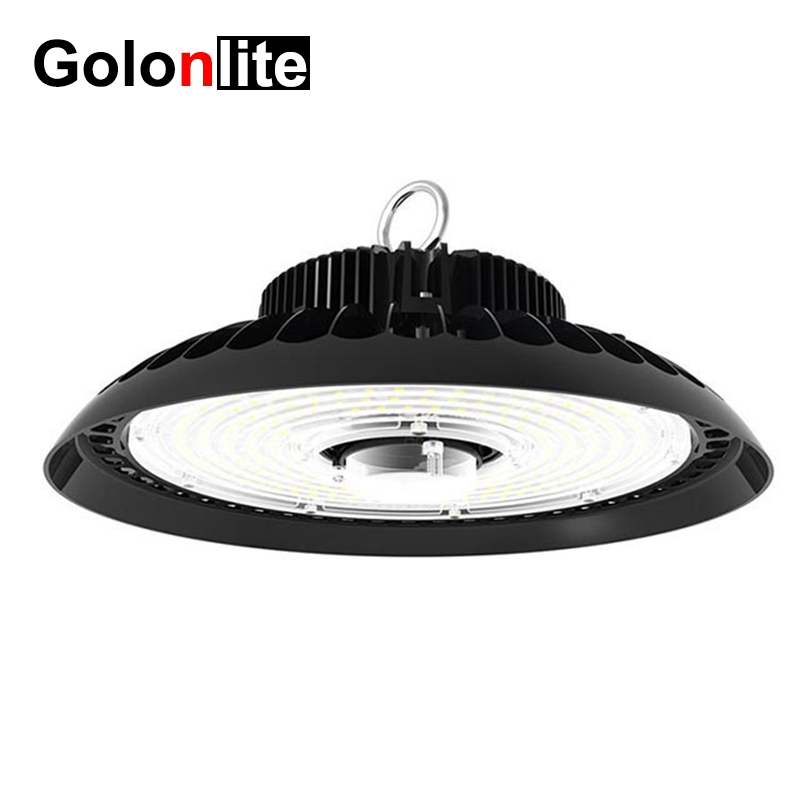

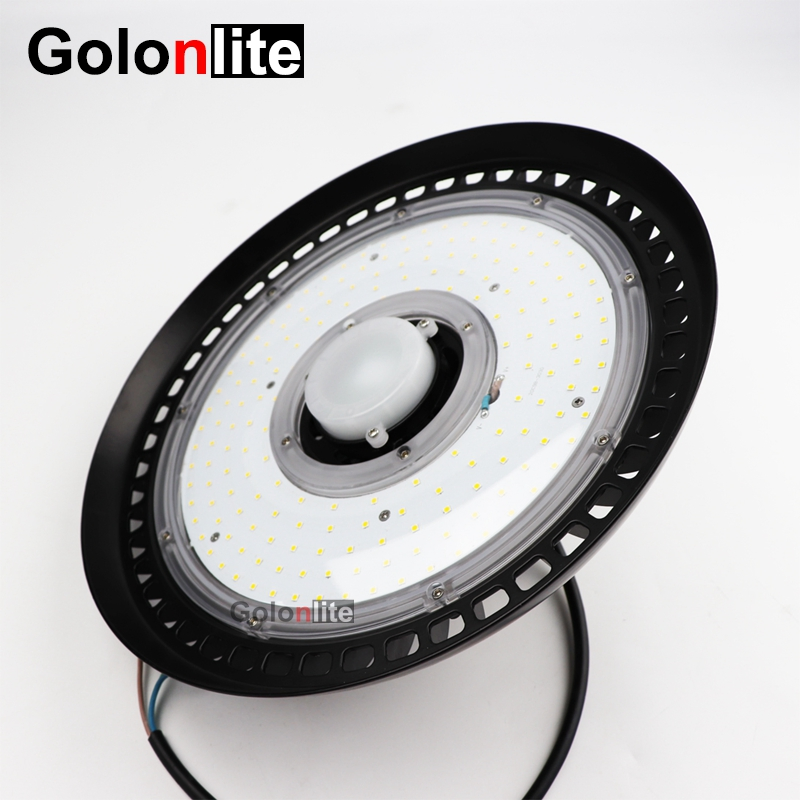

Industrial Lighting 100W 150W LED High Bay

1 / 5

Industrial Lighting 100W 150W LED High Bay

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

GL-UHB-03D

Power

200W 150W 100W

Lifespan

≥50000H

IP Rating

IP65

LED Chips

Lumileds SMD3030

Warranty

5 Years

Material

Die Casting Aluminum

CRI

>Ra80

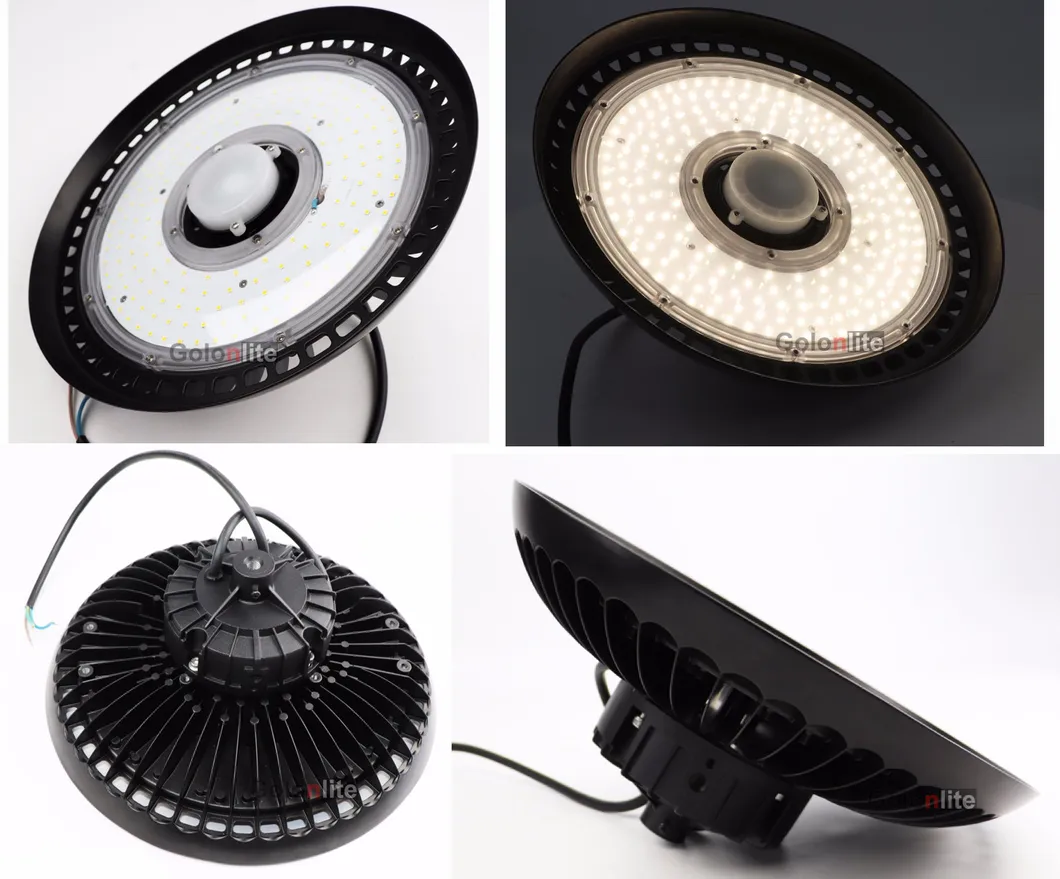

Industrial LED High Bay Light

170 Lm/WHigh Luminous Efficiency

IP65 RatingWaterproof & Dustproof

Smart SensorMicrowave & Daylight Control

5 YearsLong Term Warranty

Technical Performance Data
Light	LED Type	Lumileds SMD3030
	Luminous Efficiency	170Lm/W
	CCT(K)	3000K - 6500K
	CRI	> Ra80
	Power Supply	Meanwell / Lifud
	Lifespan (Hrs)	> 50,000 Hours
Electricity	Input Voltage	100-277VAC 50/60Hz
	Dimming	1-10V, PWM, Resistance, Dali

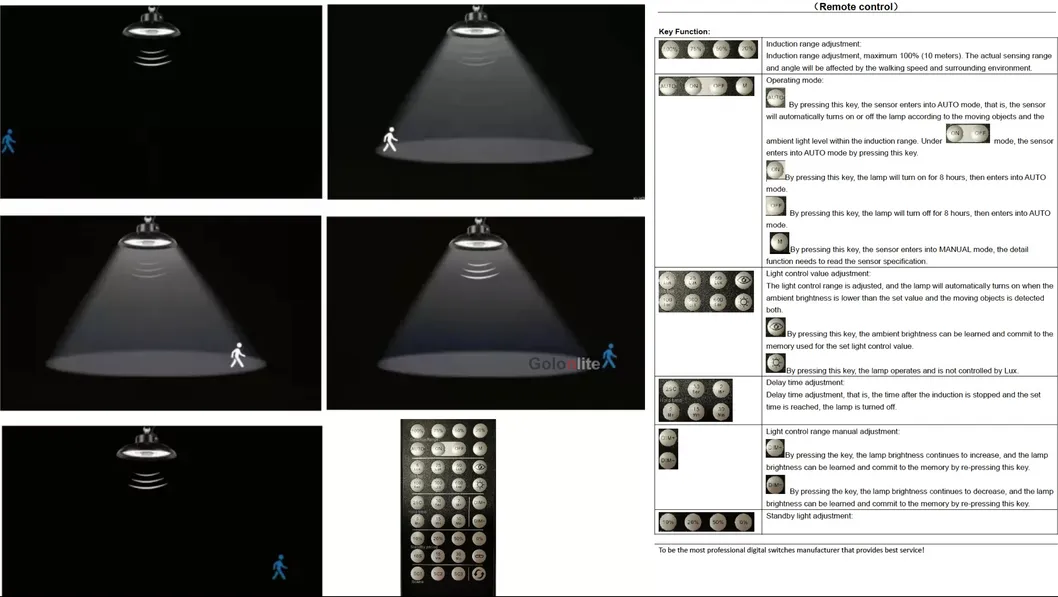

	Sensor control	Microwave sensor (100% 75% 50% 20%)

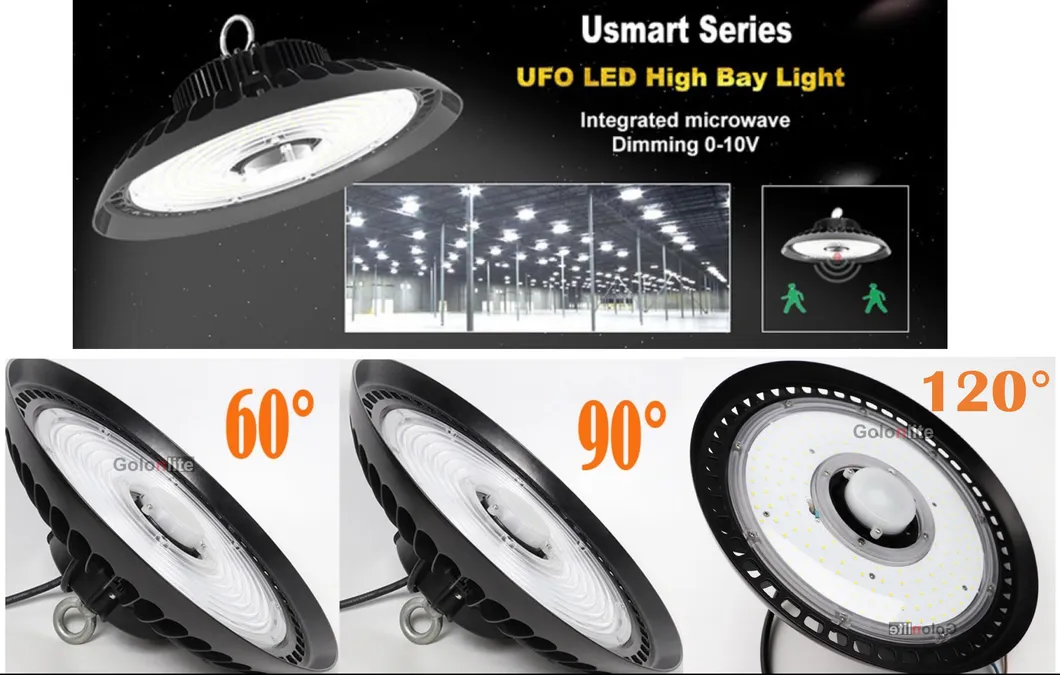

	Beam angle	60° / 90° / 120°

Product Key Features

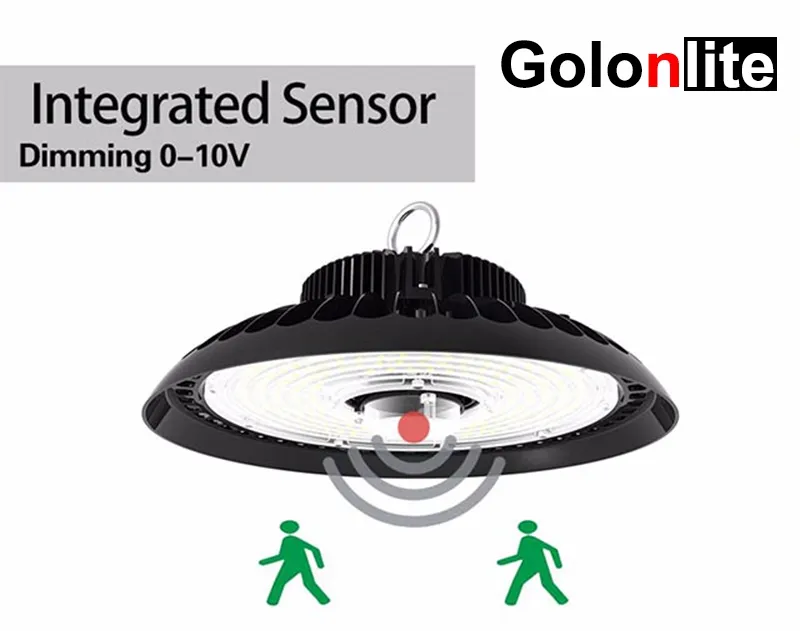

• Smart Control: Microwave sensor / Day light / Photocell sensor options.

• Efficiency: Super bright 170Lm/W high lumens efficiency for maximum energy saving.

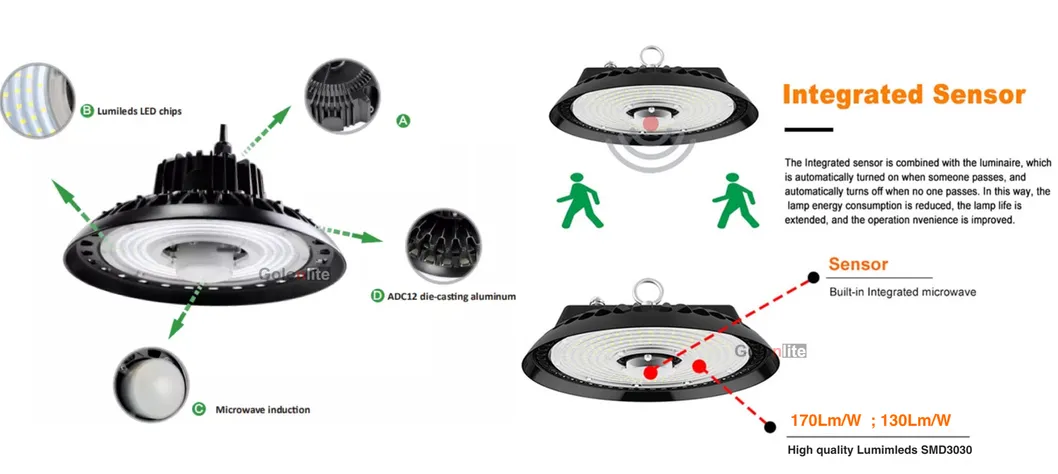

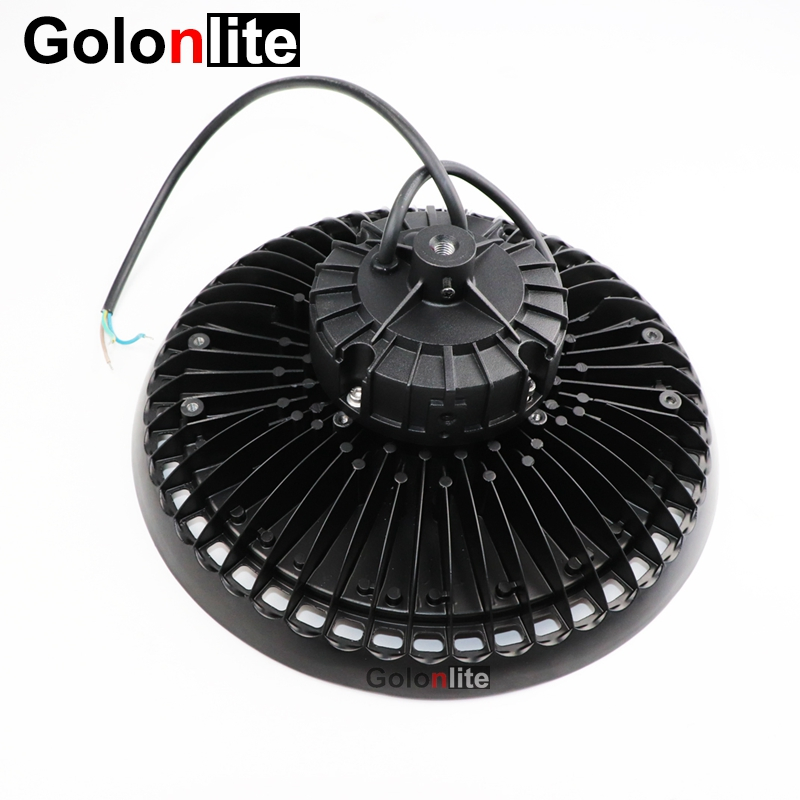

• Thermal Design: Black Fin aluminum housing with lighter, compact heat sink.

• Durability: External Meanwell driver ensures remarkable performance and top quality.

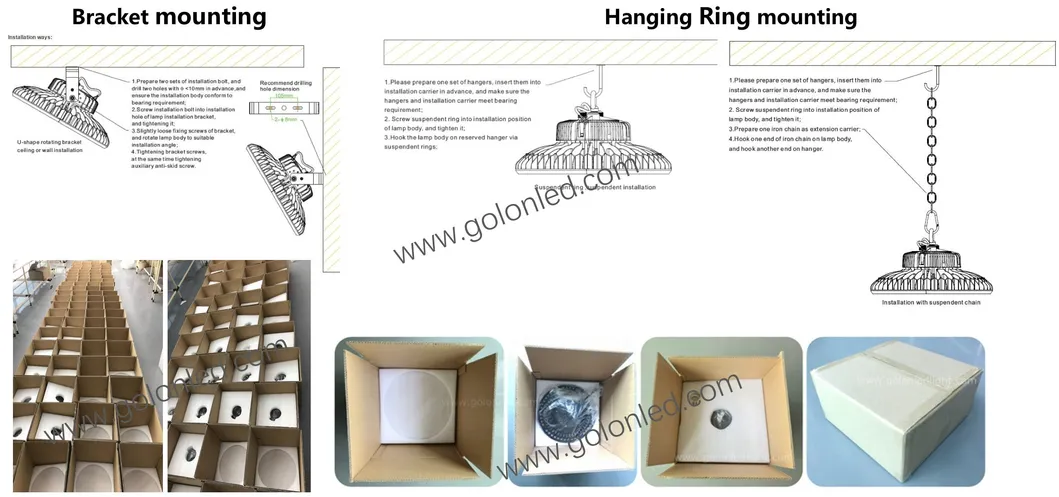

• Versatile Mounting: Supports Ring/Hook hanging or adjustable bracket mounting.

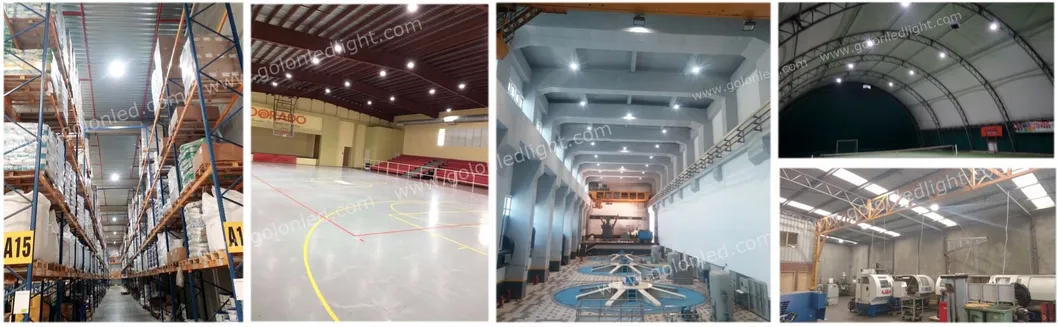

Installations & Applications

Widely used in shopping malls, exhibition halls, parking lots, gymnasiums, parks, building facades, and industrial warehouses.

Packaging Specifications

Model	Power	Lumens	Replacement	Size (mm)	G.W/CTN
GL-UHB-02D	200W	26000Lm	600-800W	Φ400*196	8.1Kg
GL-UHB-03D	160W	20800Lm	500-600W	Φ340*187	5.93Kg
GL-UHB-04D	100W	13000Lm	400-500W	Φ280*185	4.33Kg

Professional Services

• Dialux Lighting Study: Free lighting design and IES files provided.

• OEM/ODM: Support for unique designs and custom models.

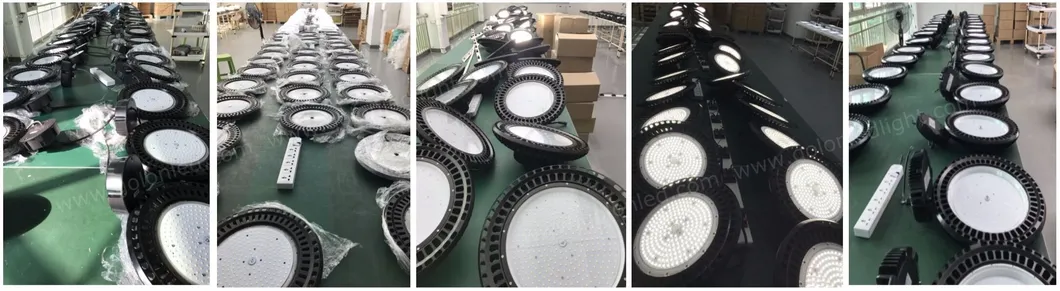

• Fast Delivery: Efficient production cycle with global shipping capability.

• Support: 24-hour response for inquiries and after-sales service.

Frequently Asked Questions

1. What is the luminous efficiency of these high bay lights?

The lights feature a high efficiency of up to 170Lm/W, providing superior brightness while maximizing energy savings.

2. Are these lights suitable for outdoor use?

Yes, the lights carry an IP65 waterproof rating, making them suitable for both indoor and outdoor industrial applications.

3. What kind of sensor control is available?

They come with microwave motion sensors and daylight/photocell sensor options, allowing for dimming levels of 100%, 75%, 50%, and 20%.

4. What is the standard warranty for this product?

We offer a 5-year warranty on our sensor LED high bay lights, backed by high-quality components like Meanwell or Lifud drivers.

5. What are the available beam angles?

The product supports multiple beam angle options including 60°, 90°, and 120° to suit different ceiling heights and lighting requirements.

6. How can these lights be mounted?

These fixtures support versatile installation methods, including Ring/Hook hanging for ceilings or adjustable bracket mounting for walls and structures.
