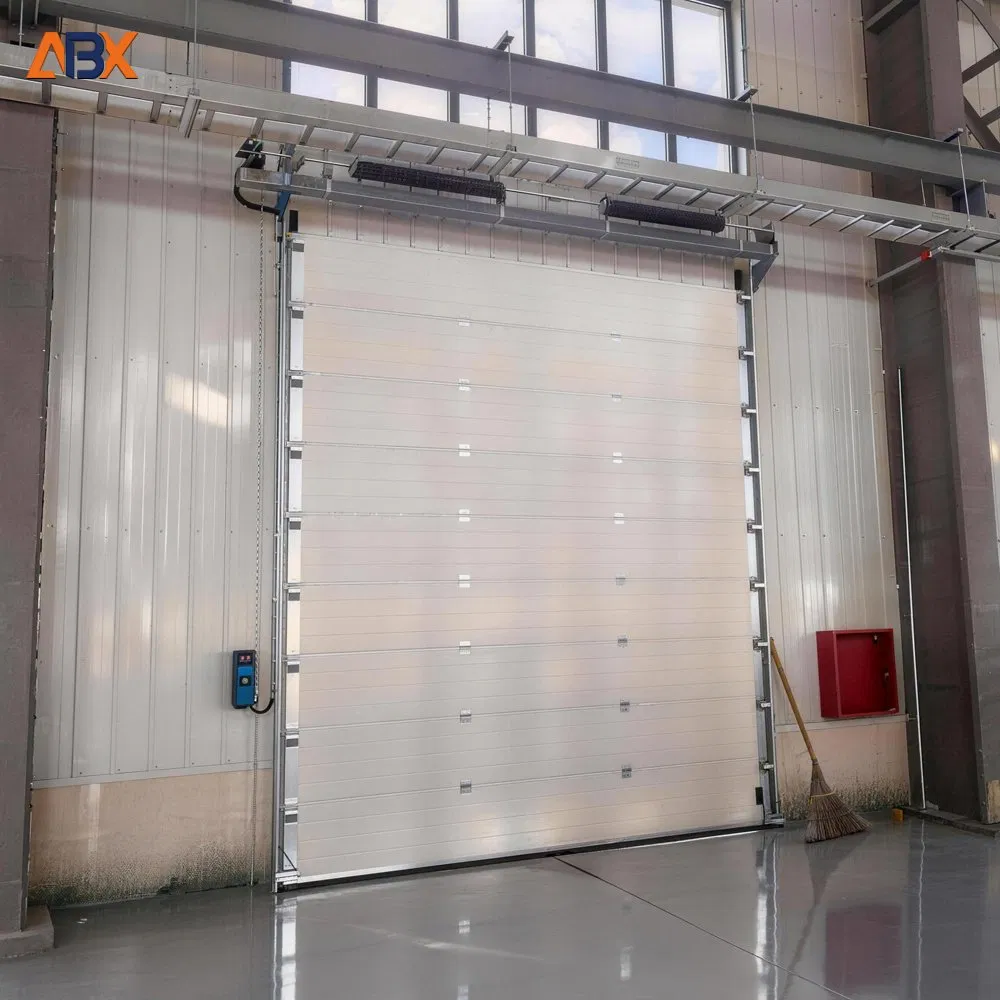

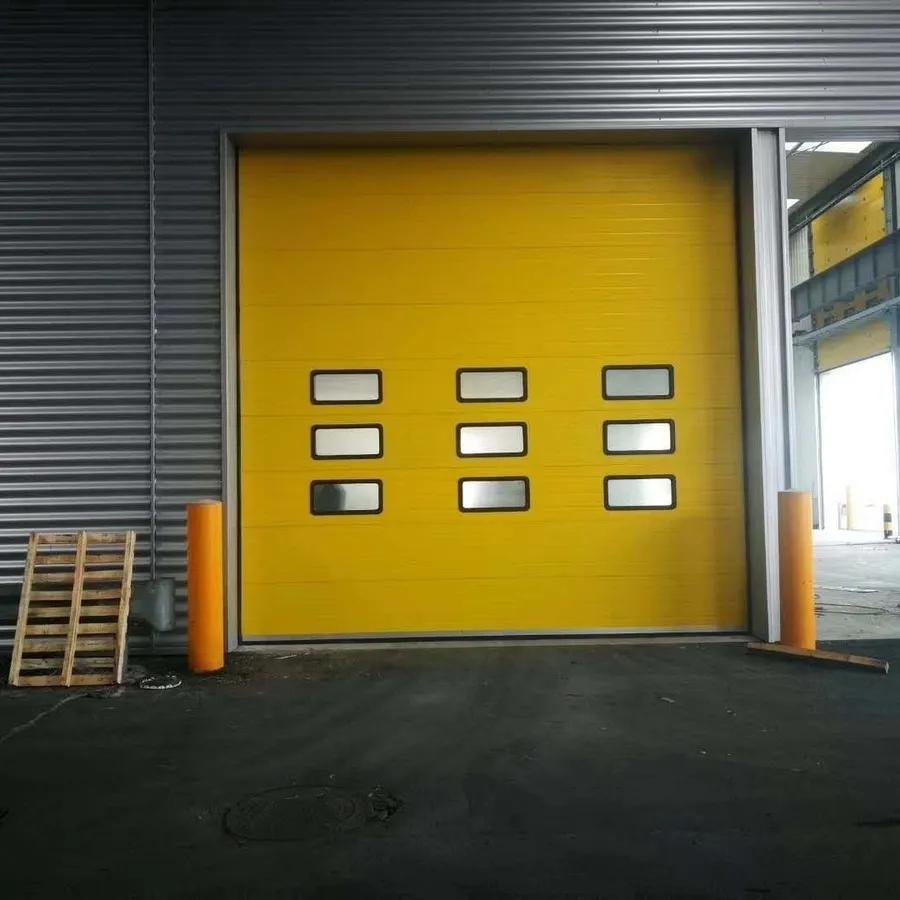

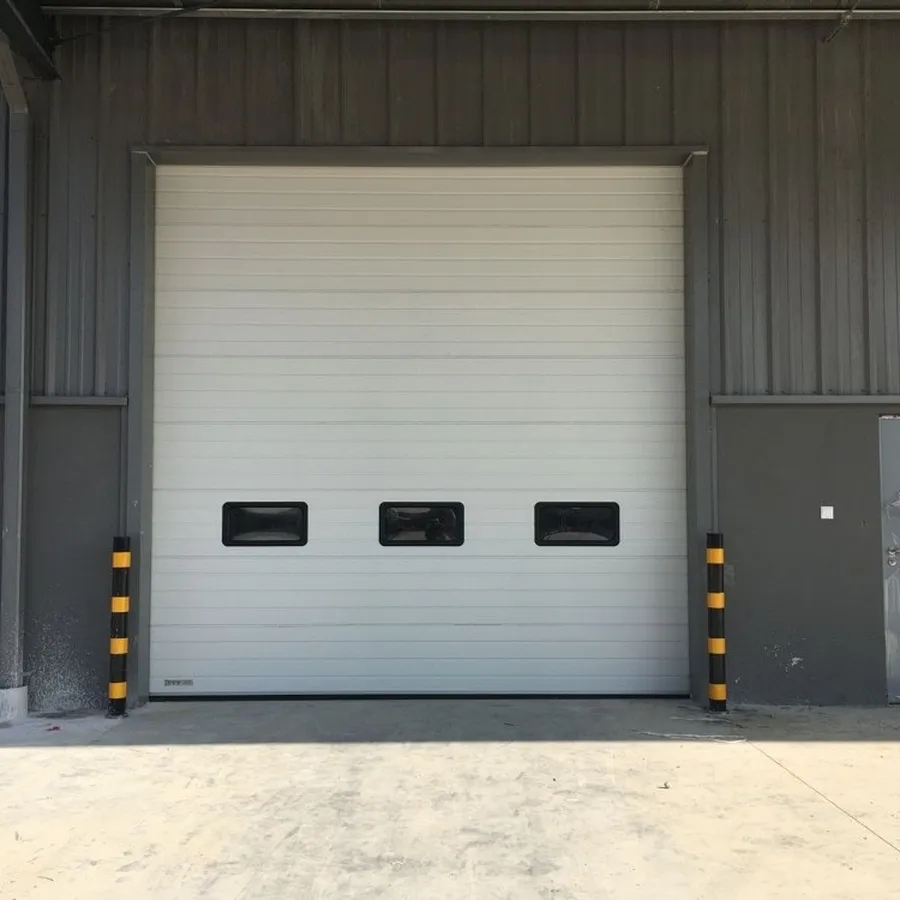

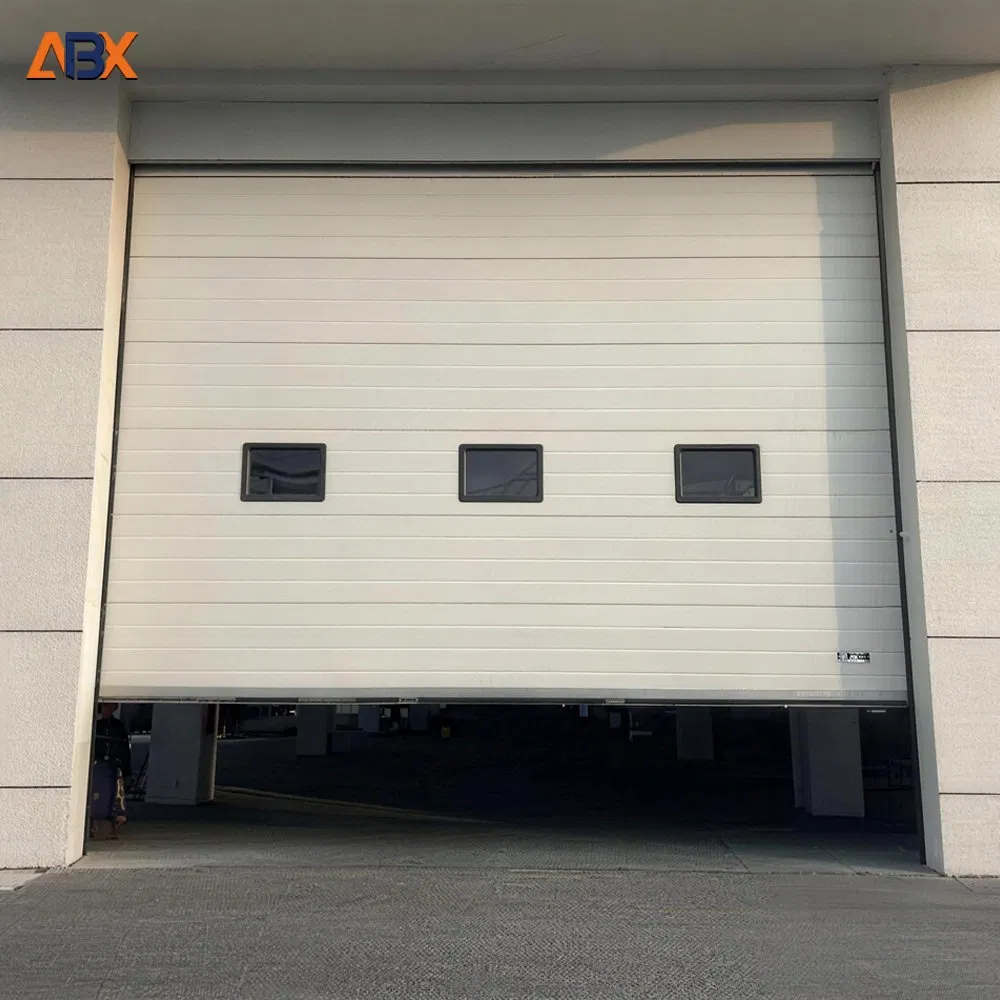

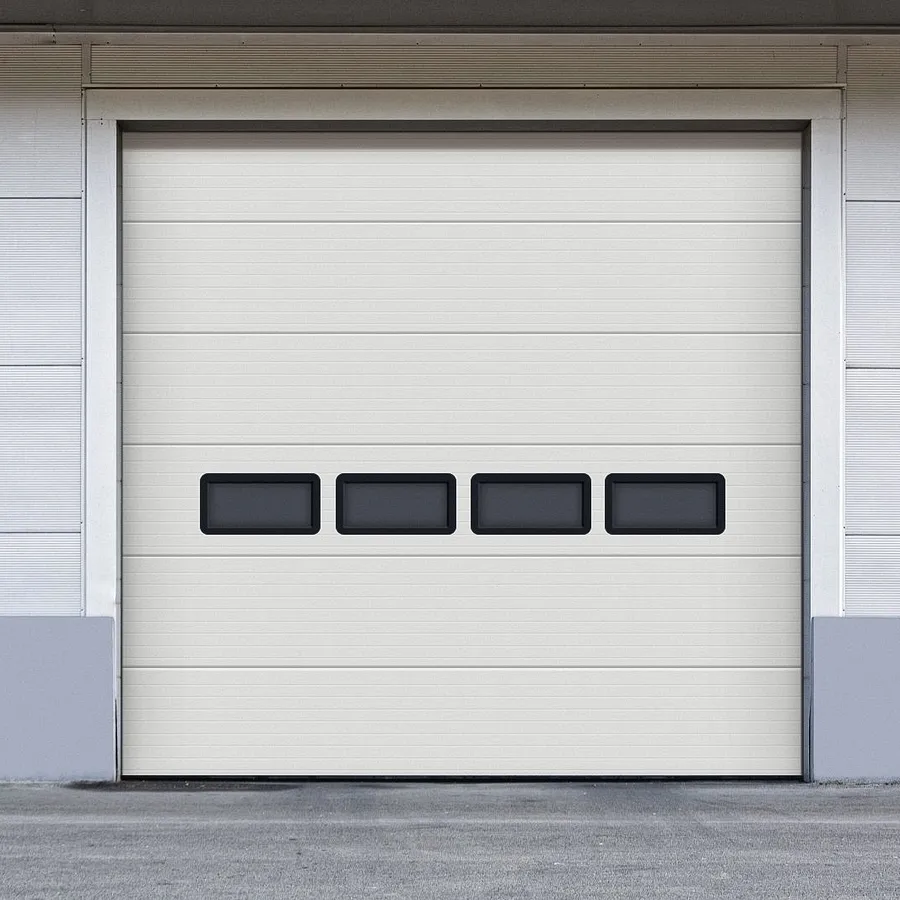

INDUSTRIAL LIFTING DOOR
Industrial lifting door is a professional industrial exterior door designed to meet strict requirements for insulation, sealing, high-frequency switching, and safe use. Currently, it is widely adopted by modern industrial and logistics projects.

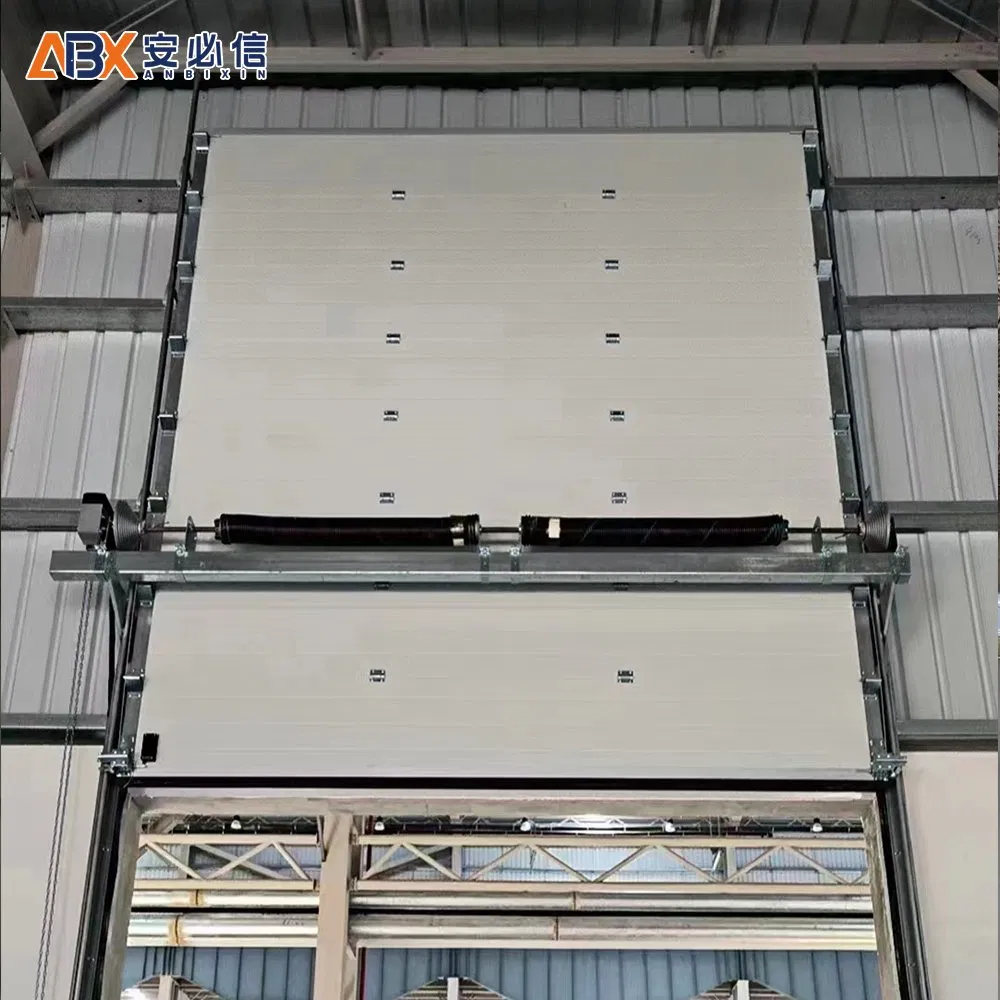

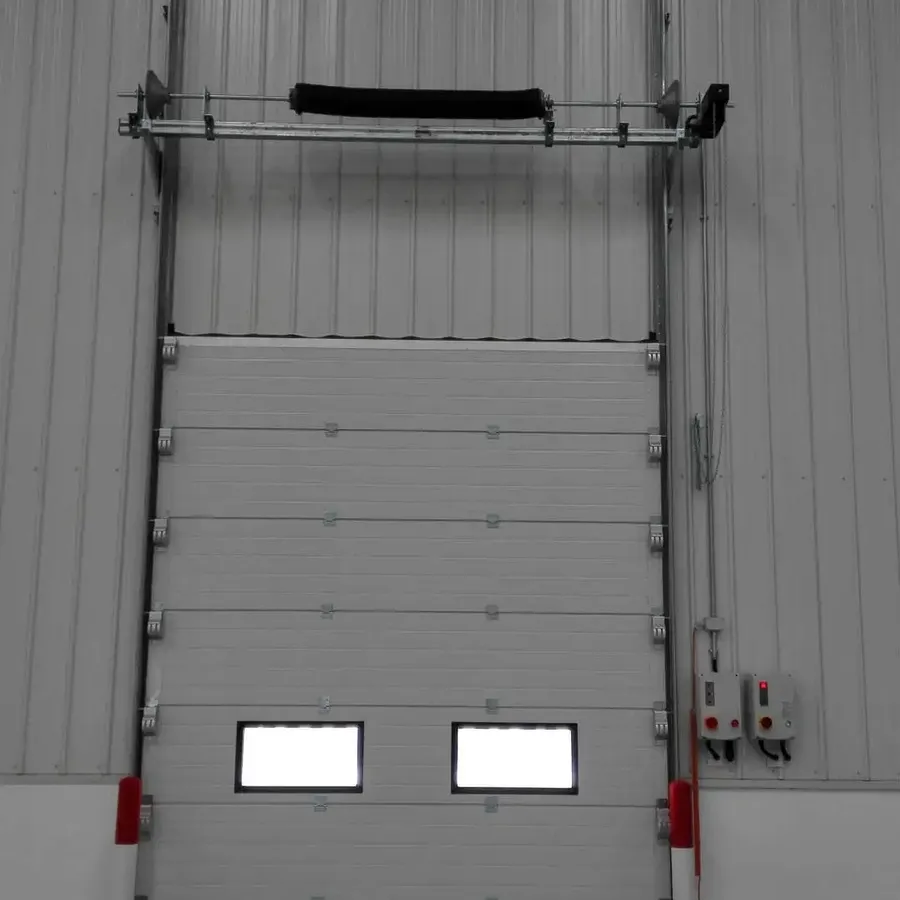

The lifting methods are categorized into standard lifting, segmented vertical lifting, and high-position lifting. These doors are composed of high-quality door bodies, balance systems, drive and control systems, and safety devices.

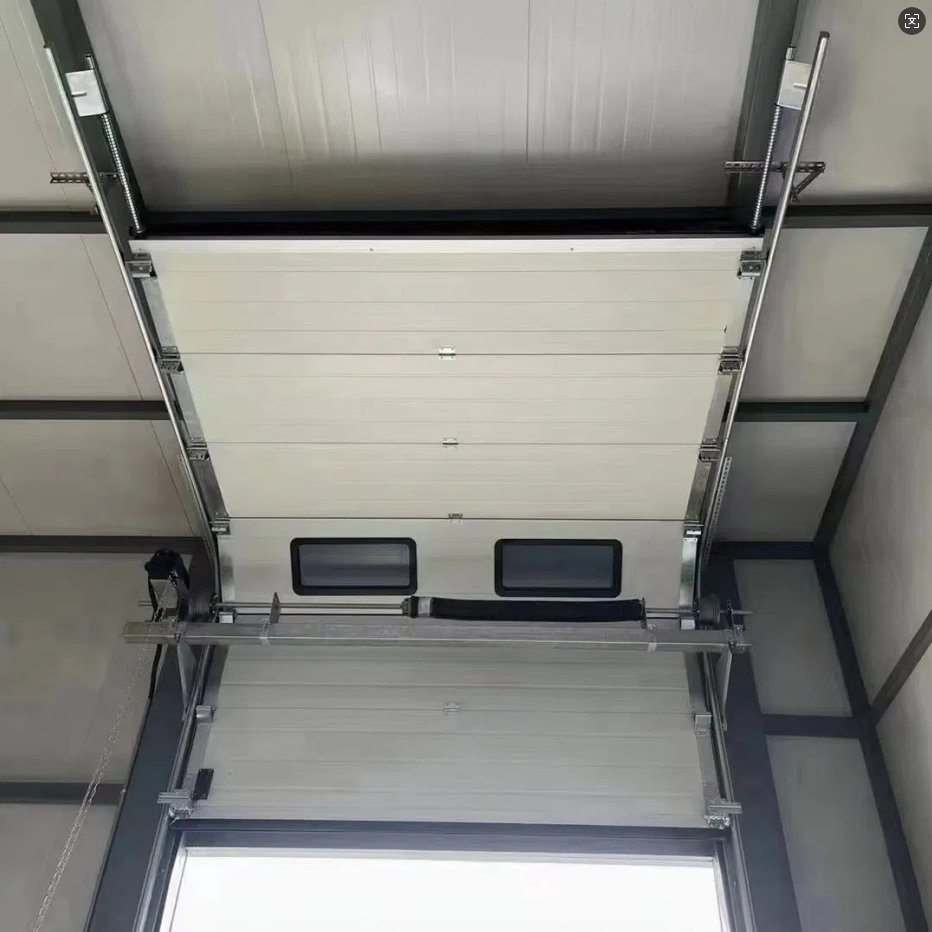

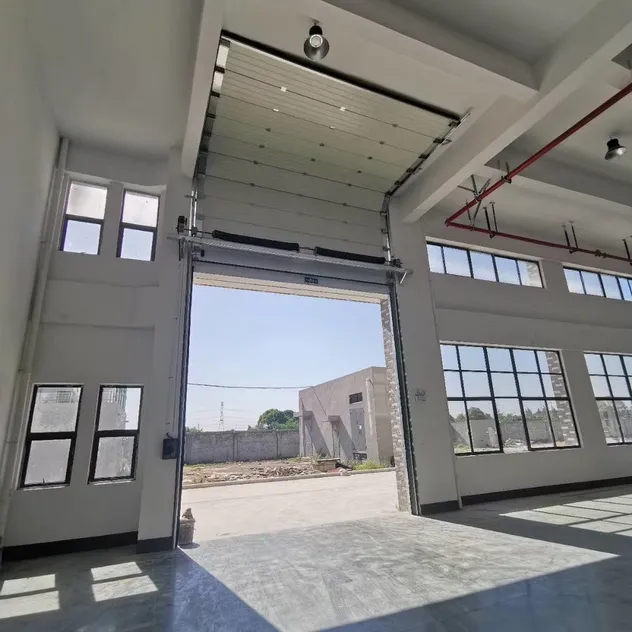

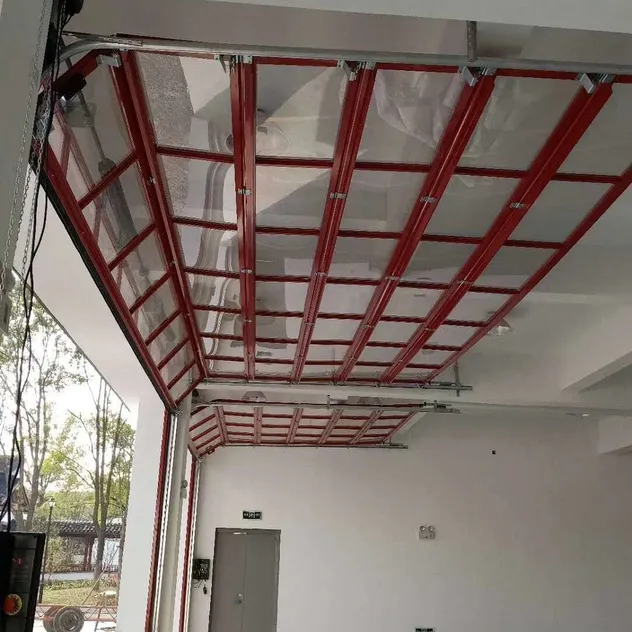

Opens vertically upwards and hangs flat above the door opening, maximizing indoor space efficiency.

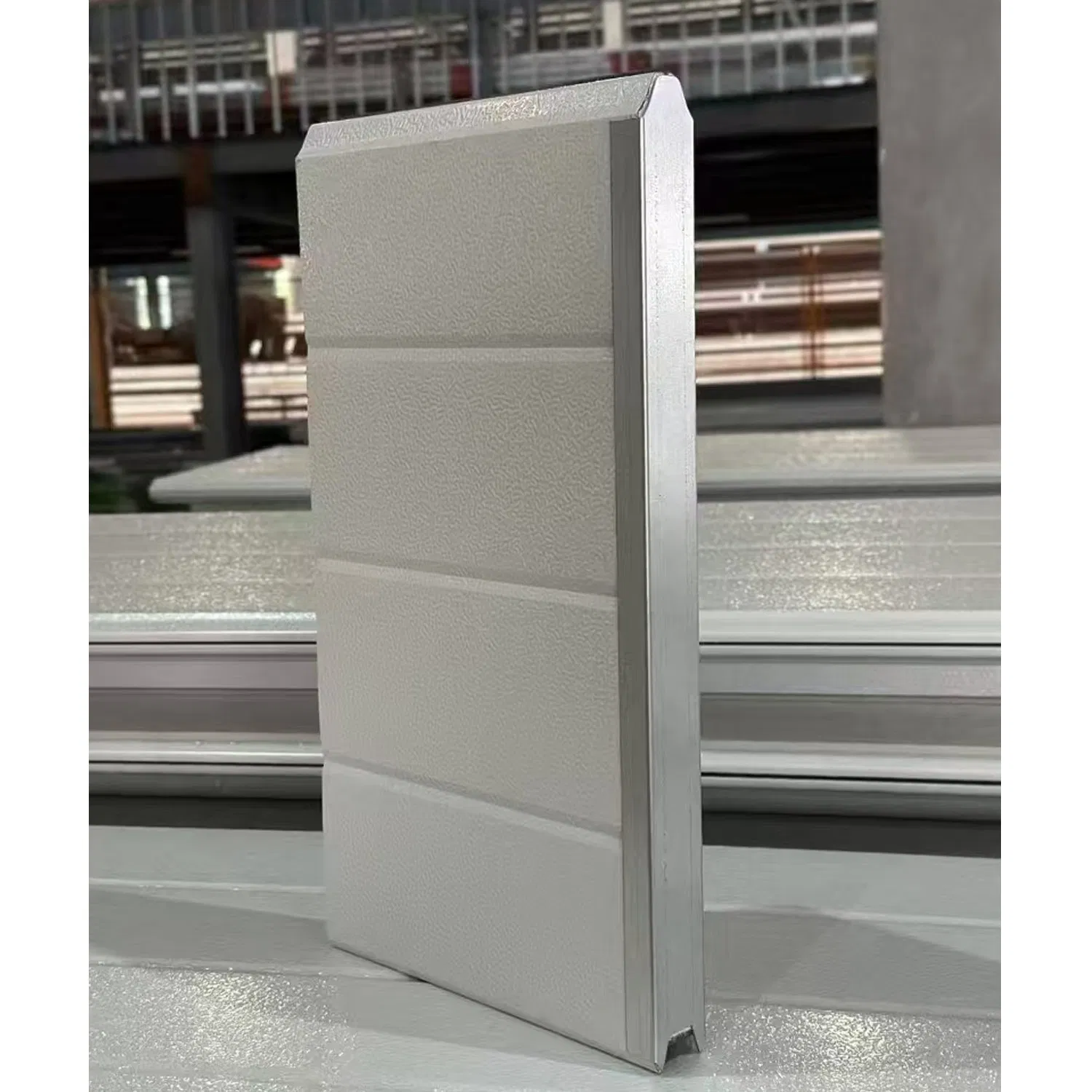

Double-layer steel plate with a high-density polyurethane insulation layer provides excellent thermal effects.
Embossed galvanized steel surface is durable, easy to clean, and enhances the corporate image.

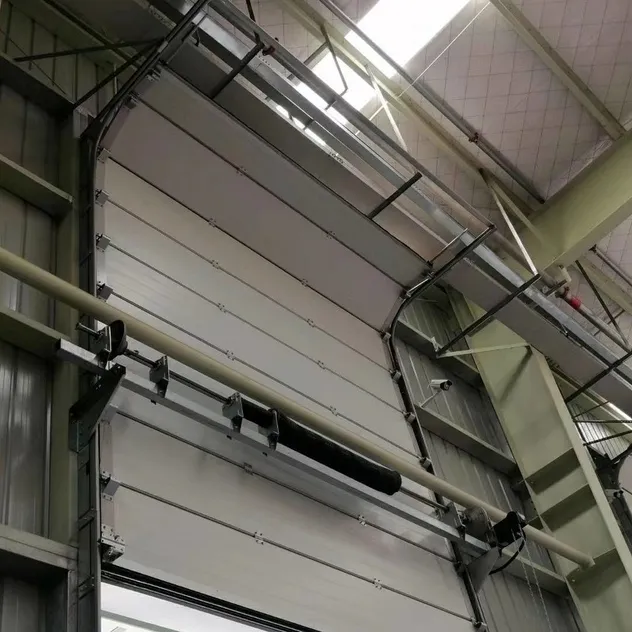

Galvanized pulley seats with adjustable ball bearings and wear-resistant rubber wheels ensure silent operation.
Designed with external reinforcement ribs to resist instantaneous level 10 wind forces based on European standards.

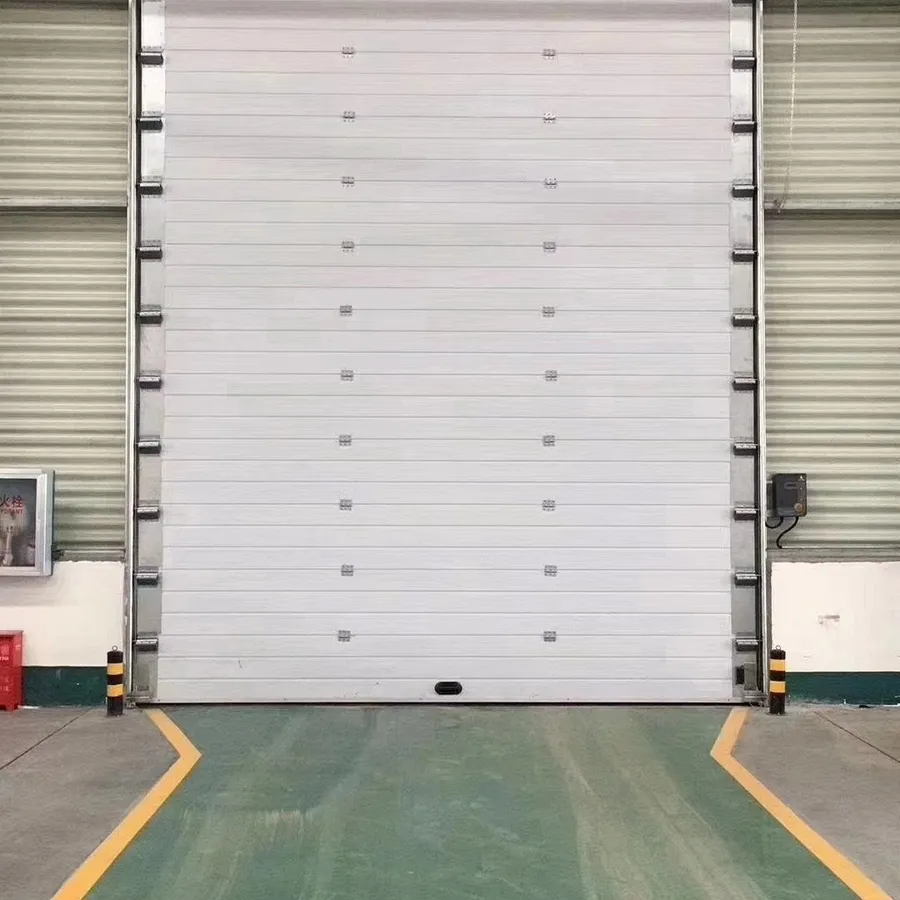

Equipped with anti-fall devices, airbags (optional), and torsion spring breakage safety mechanisms.
| Parameter Item | Specification Details |
|---|---|
| Door Panel Thickness | 40mm |
| Surface Coating | 25-30 Microns |
| U Value | 0.84W/m2ºC |
| Torsion Spring Material | 82b Heat-treated Steel |
| Shaft Specification | 25.4mm Diameter 45# Steel |
| Wire Rope | Flexible Steel Rope ∮3.8mm |
| Guide Rail | 2mm Thick Galvanized Steel |
| Rollers | 3-Inch Industrial Grade Steel |
| Noise Level | ≤60DB |
| Window Material | 3mm Thick Plexiglass |

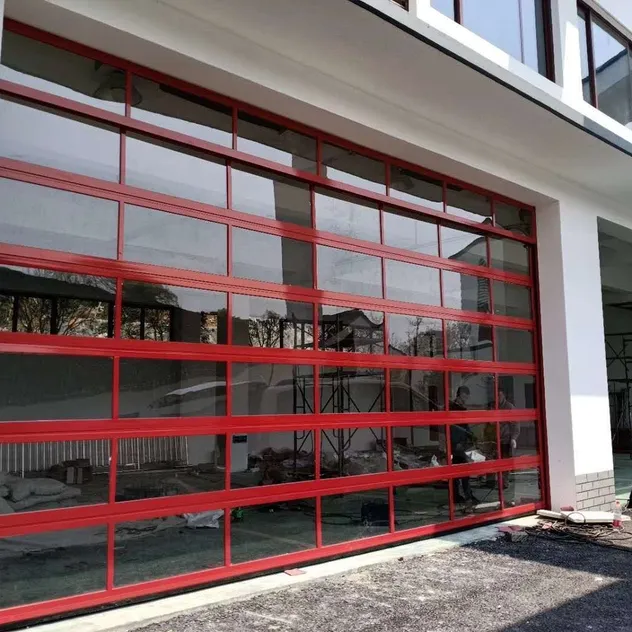

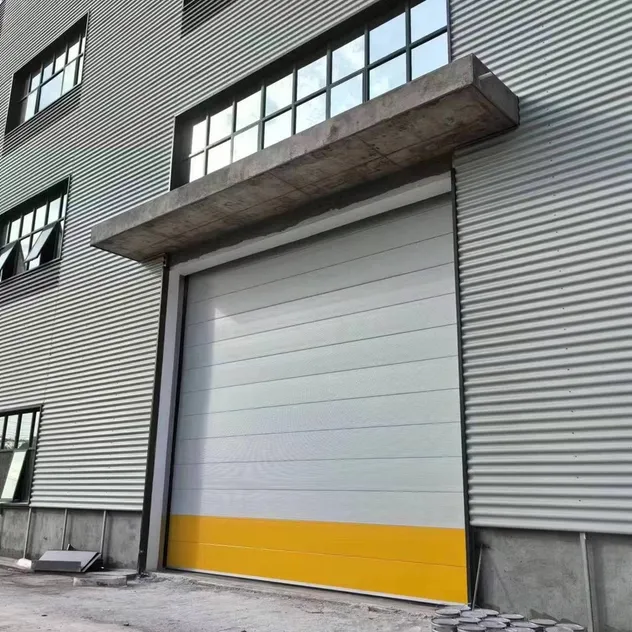

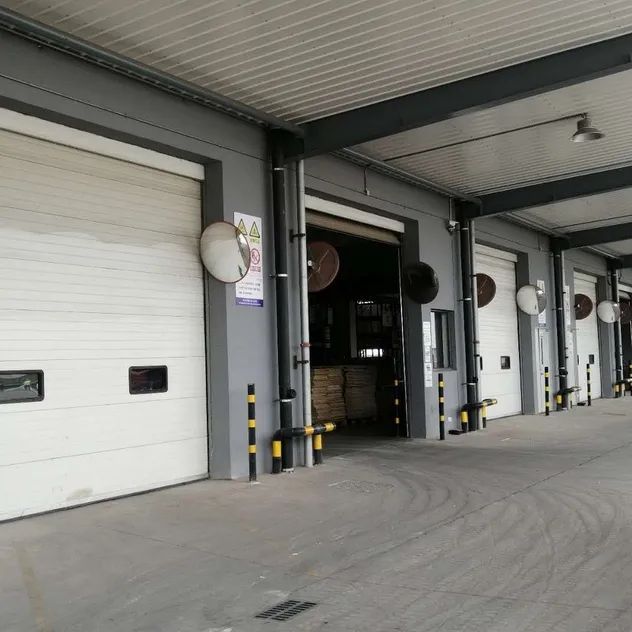

Control the door from both interior and exterior sides.
Flexible wireless control for multiple doors.
Automatic detection of moving vehicles or objects.
