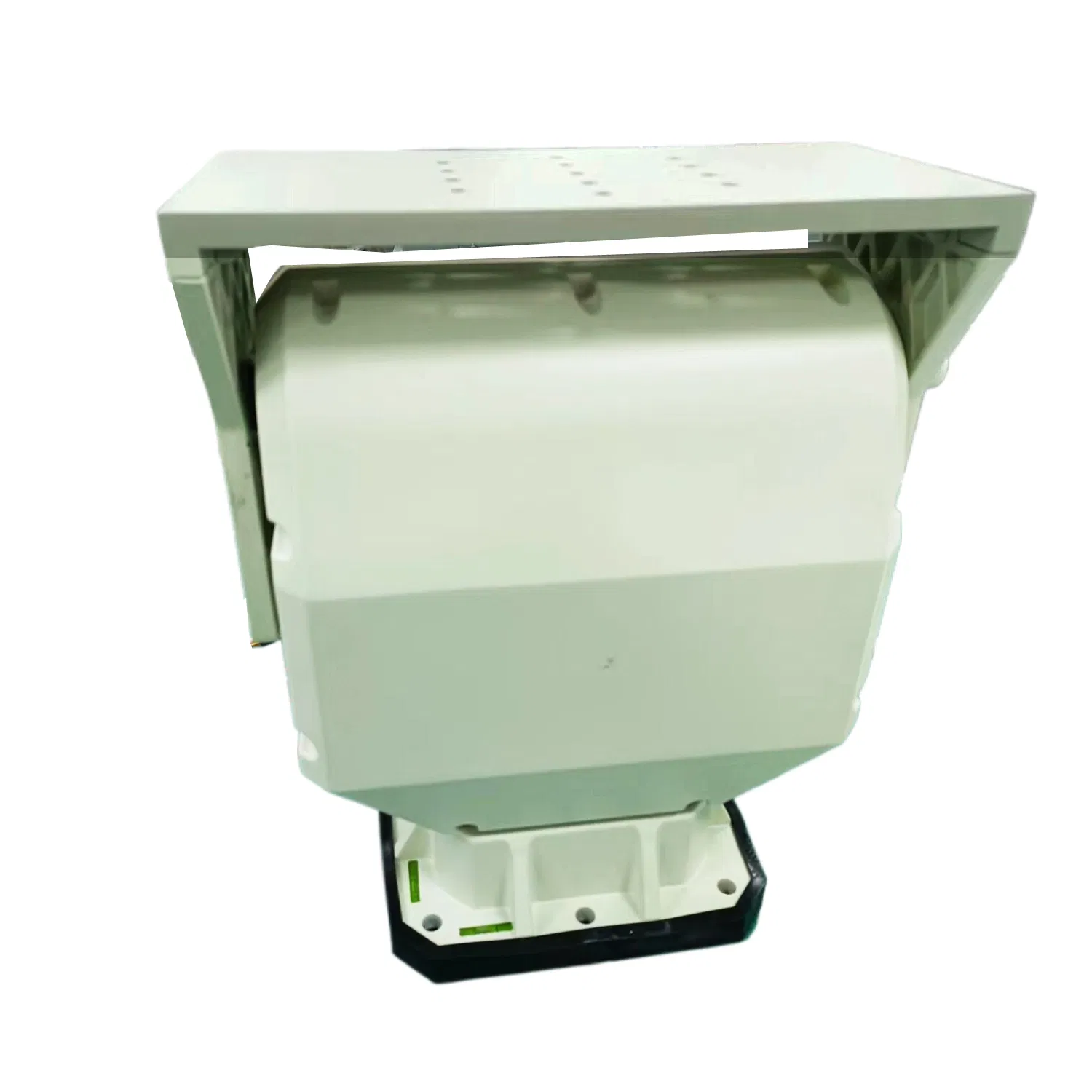

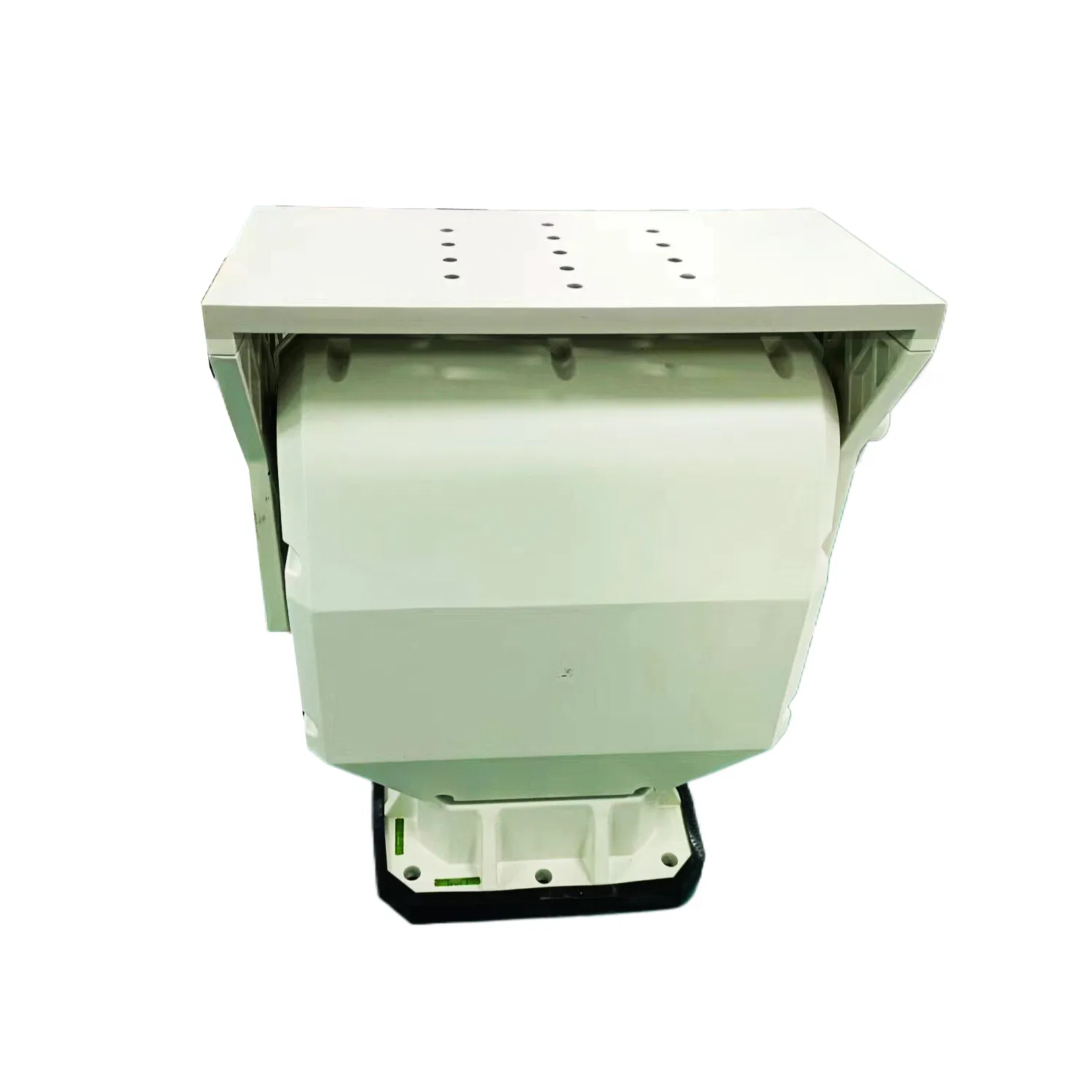

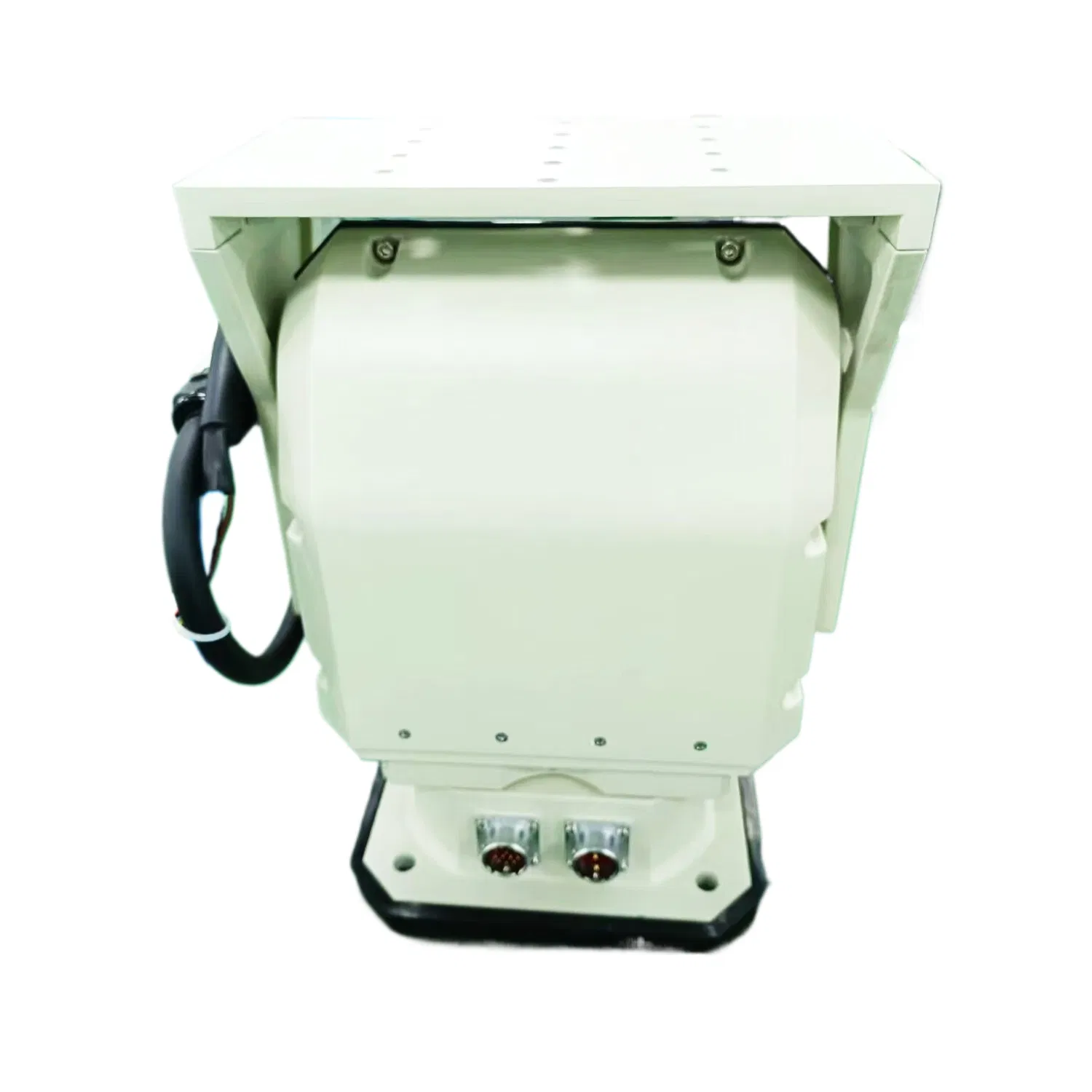

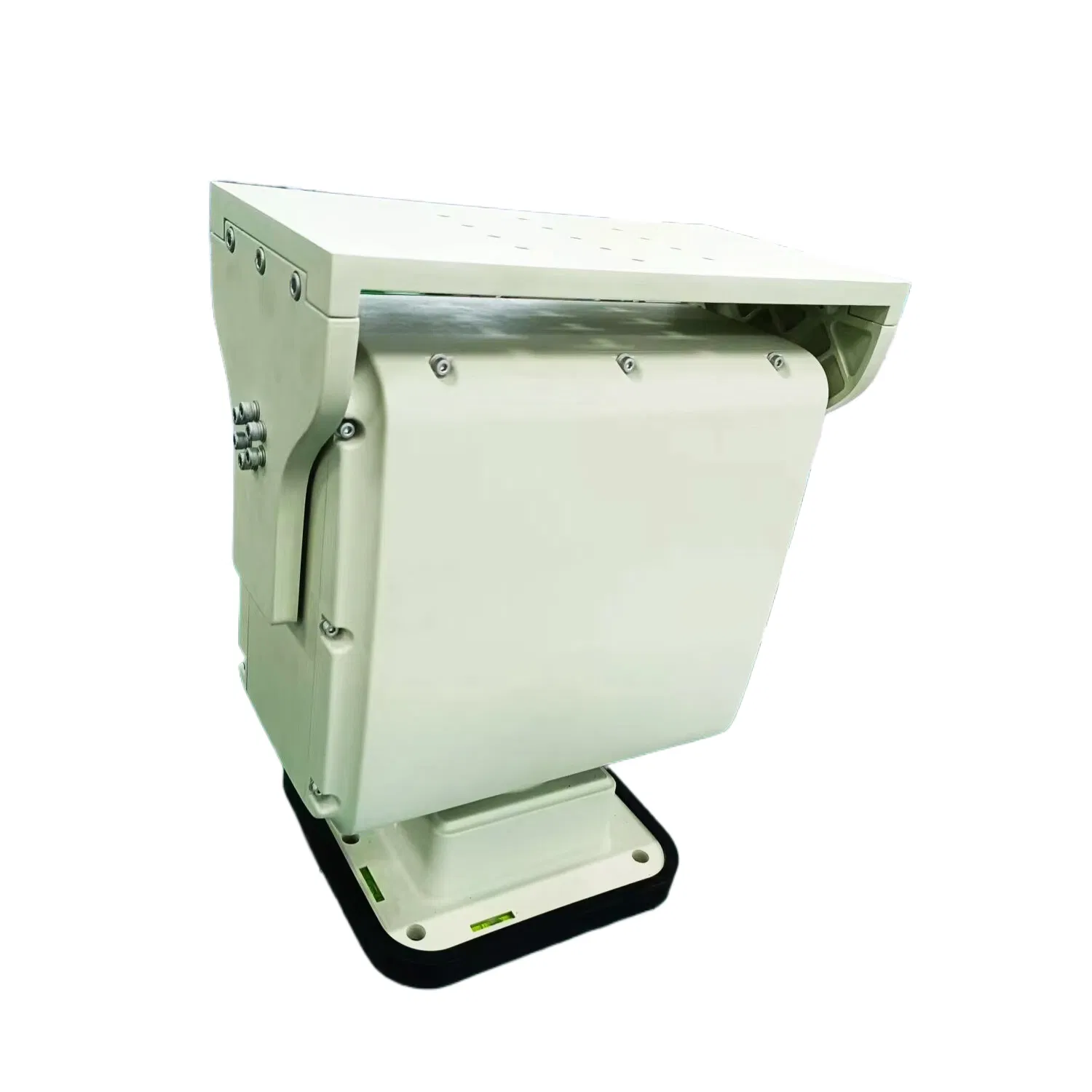

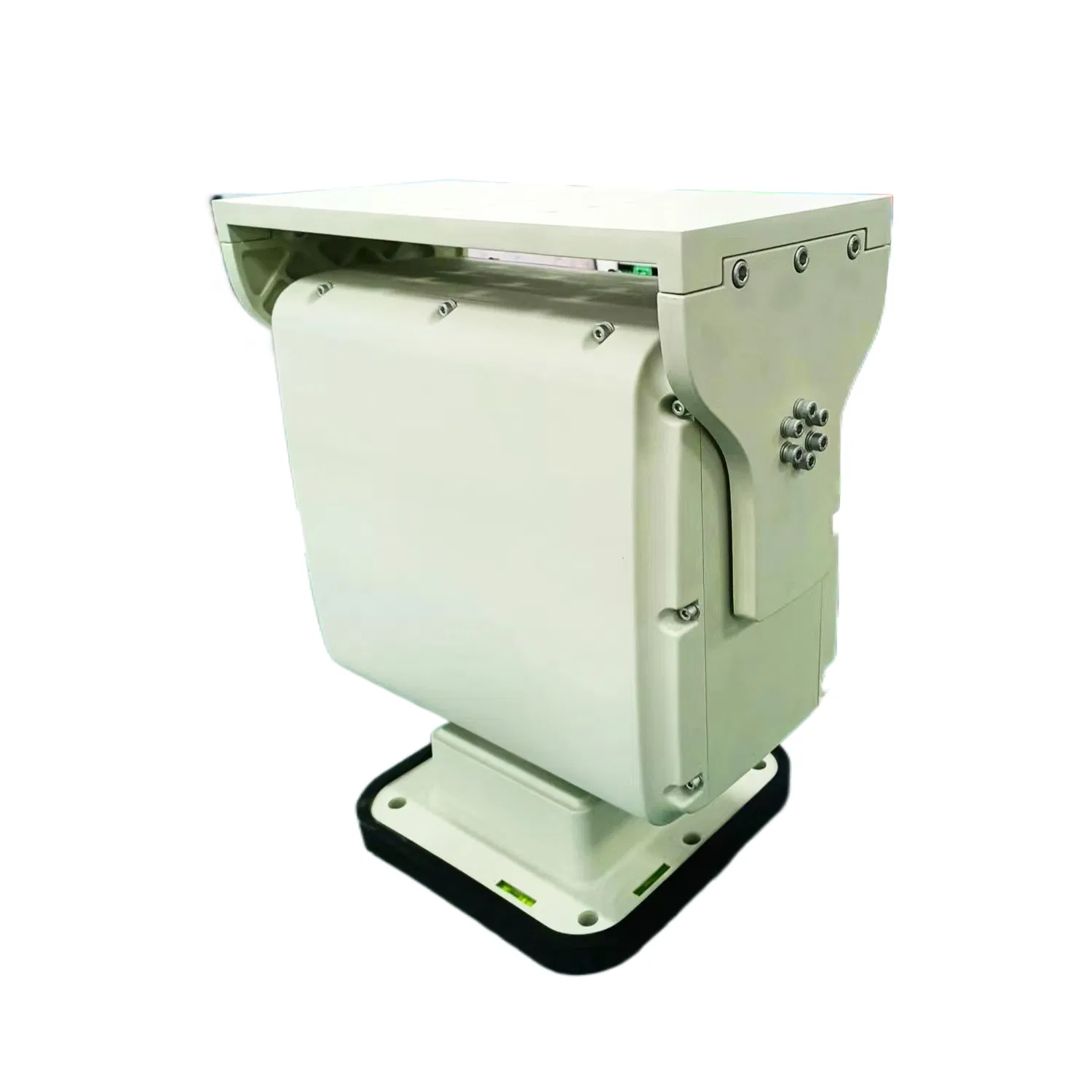

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

1 / 5

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Information

Model NO.

SP25

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

520tvl

Certification

CE, FCC, RoHS, ISO9001: 2000

Feature

Waterproof, High Definition, Mini Size

Effective Distance

≧30m

Sensor Size

1/3 inch

Rotate Speed

Pan 0.1°~15°/S; Tilt 0.1°~15°/S

Rotate Angle

Pan 0~360°; Tilt +20°~-60°

Production Capacity

500 Sets Per Month

Packaging & Delivery

Package Size

26.50cm * 18.00cm * 31.50cm

Gross Weight

11.500kg

Transport Package

Wooden Case/Carton

Product Description

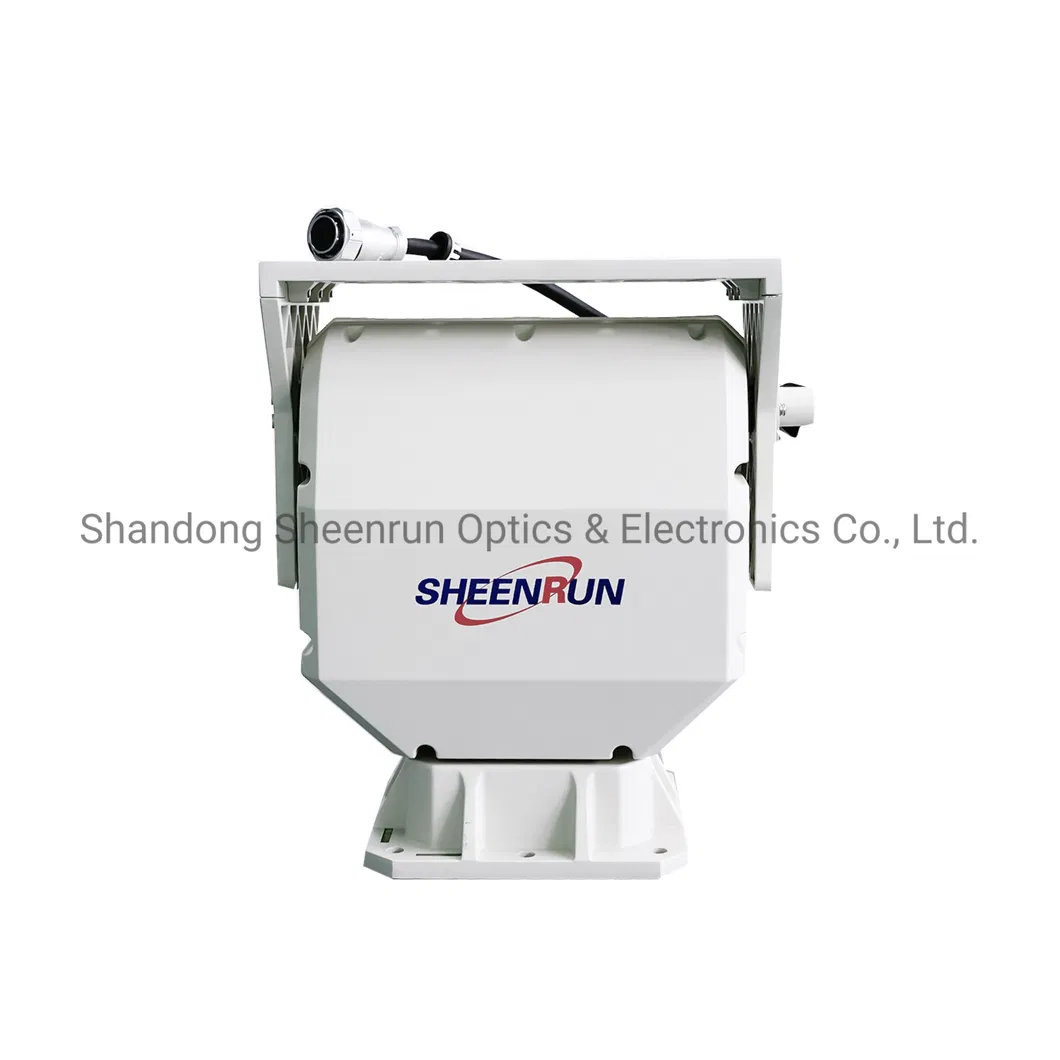

Intelligent Pan Tilt Motor

Product Features

Load capacity at most 20Kg
Support function of self-adaption of many kinds of lens
High precision of positioning, can be ±0.1°
High aluminum alloy shell, high precision gear-driven, auto lock when power off
Pan rotate 0~360° continuously, tilt rotate ±60°, ±45°, ±30° optional
Protection grade IP66
Support OSD menu function
Function of returning pantilt position, focal length, focus value information

Detailed Specifications

Rotate Speed	pan 0.1°~15°/S; tilt 0.1°~15°/S
Rotate Angle	pan 0~360°; tilt +20°~-60°
Presetting Bits	255
Precision	Can reach ±0.1°
Lens Presetting	Support FUJINON, COMPUTAR, KOWA lens
Protocol	Pelco-D, Pelco-P optional
Baud Rate	2400/4800/9600/19200 bps
Interface	RS422/RS485
Input Power	AC24V±20%, 50/60Hz; DC28V±20%
Protection Grade	IP66
Operation Temp	-30ºC~+55ºC (-40ºC~+65ºC optional)
Weight / Size	11.5Kg / 265mm×180mm×315mm

Packaging & Shipping

Packaging Info 1

Packaging Info 2

Production Capability

Production Capacity

Frequently Asked Questions

Q1: What is the maximum load capacity for this pan-tilt motor?

The system supports a maximum load capacity of up to 20Kg, suitable for various heavy-duty camera setups.

Q2: Does it support precise positioning for monitoring?

Yes, it features high precision positioning that can reach an accuracy of ±0.1°.

Q3: Is this device suitable for outdoor or harsh environments?

Absolutely. It has an IP66 protection grade and an aluminum alloy shell, making it waterproof and weatherproof for extreme conditions.

Q4: What communication protocols are supported?

The device supports standard RS485 and RS422 interfaces with Pelco-D and Pelco-P protocols.

Q5: Can it return current position and focal length data?

Yes, it has an optional function to return pantilt position, focal length, and focus value information in real-time.

Q6: What lens brands are compatible with the presetting function?

The system adapts to many major lens brands, including FUJINON, COMPUTAR, and KOWA.
