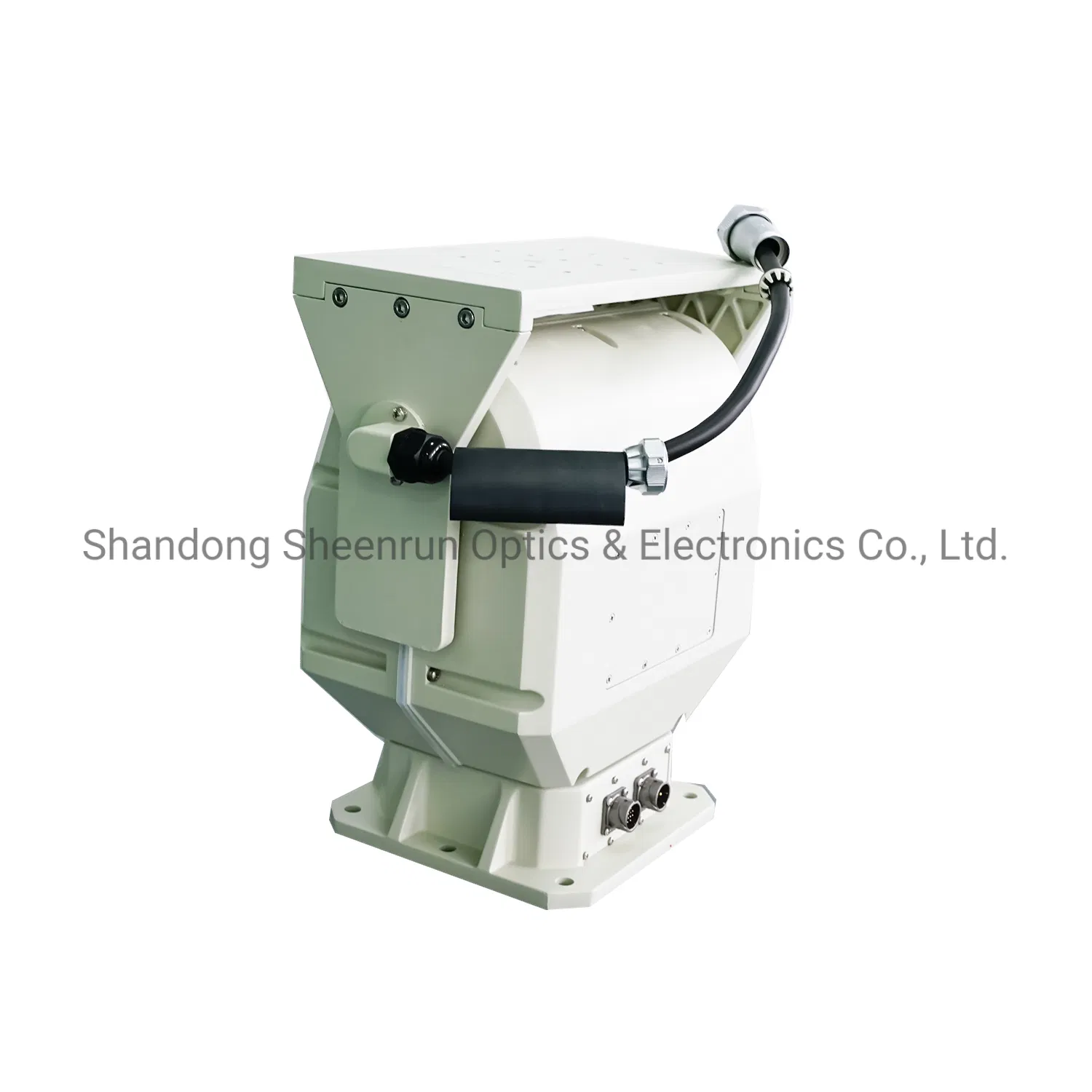

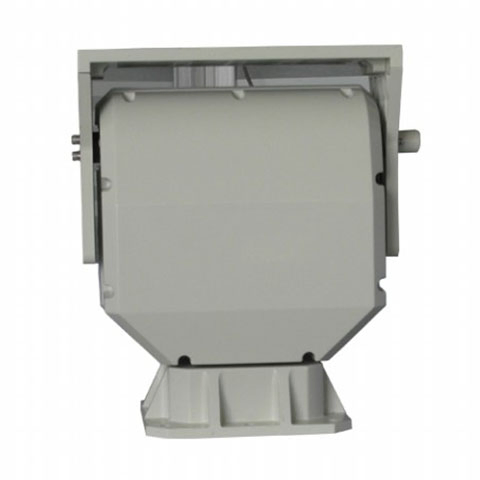

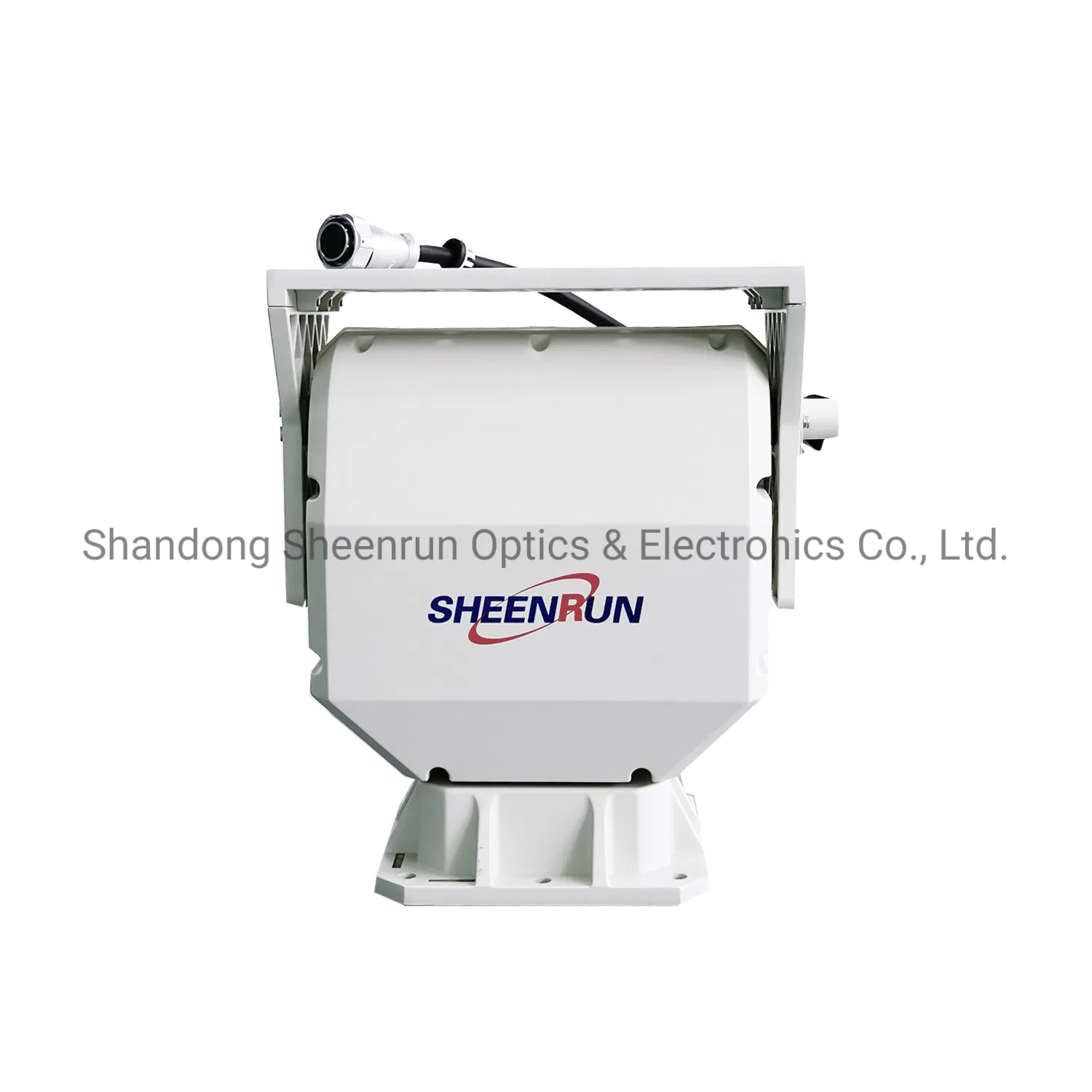

50kg Waterproof Heavy Duty Vehicle Radar Mounted Motorized RJ45 PTZ Pan Tilt Head for Thermal Camera

1 / 5

50kg Waterproof Heavy Duty Vehicle Radar Mounted Motorized RJ45 PTZ Pan Tilt Head for Thermal Camera

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Technical Specifications

Model NO.

SP5050

Certification

CE, FCC, CCC, ISO9001

Feature

Waterproof / Weatherproof

Remote Control

With Remote Control

Max Load

50kg

Pan Rotation

0°~360° Continuous

Tilt Rotation

+45° ~ -45°

Pan Tilt Speed

Up to 60°/S

Protocol

Pelco-D/P

Protection Level

IP66

Power

Less Than 80W

Origin

China

Product Description

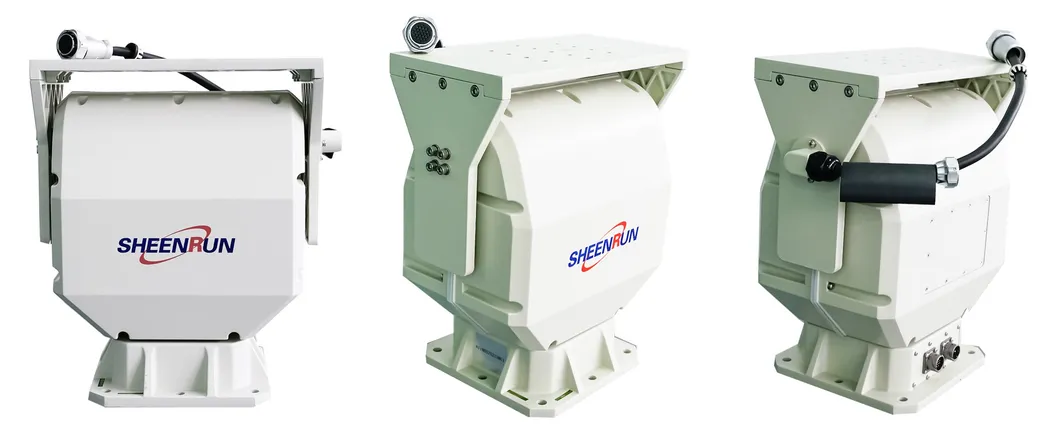

50kg Waterproof Heavy Duty Vehicle Radar Mounted Motorized RJ45 PTZ Pan Tilt Head designed for high-performance thermal camera systems. This unit is engineered for stability and precision in demanding environments.

Key Features

Max Load Capacity: 50kg
Support RS485 (RS422 or RS232 optional)
Self-adaptive Lens preset support
High resetting accuracy up to ±0.1º
Die-cast aluminum alloy construction
Self-locking steel worm-gear driven system
360º continuous pan rotation
IP66 Weatherproof protection class
Support OSD Menu (optional)
Real-time data return for position and focal length

Technical Parameters

Model	SP50
Pan/tilt Speed	Pan:0.01º~12º/s, Tilt:0.01º~8º/s
Rotation Angle	Pan:360º continuous, Tilt:+45º~-45º
Number of Presets	200
Positioning Accuracy	±0.1º
Auto Cruising	8 tracks (each with 10 presets)

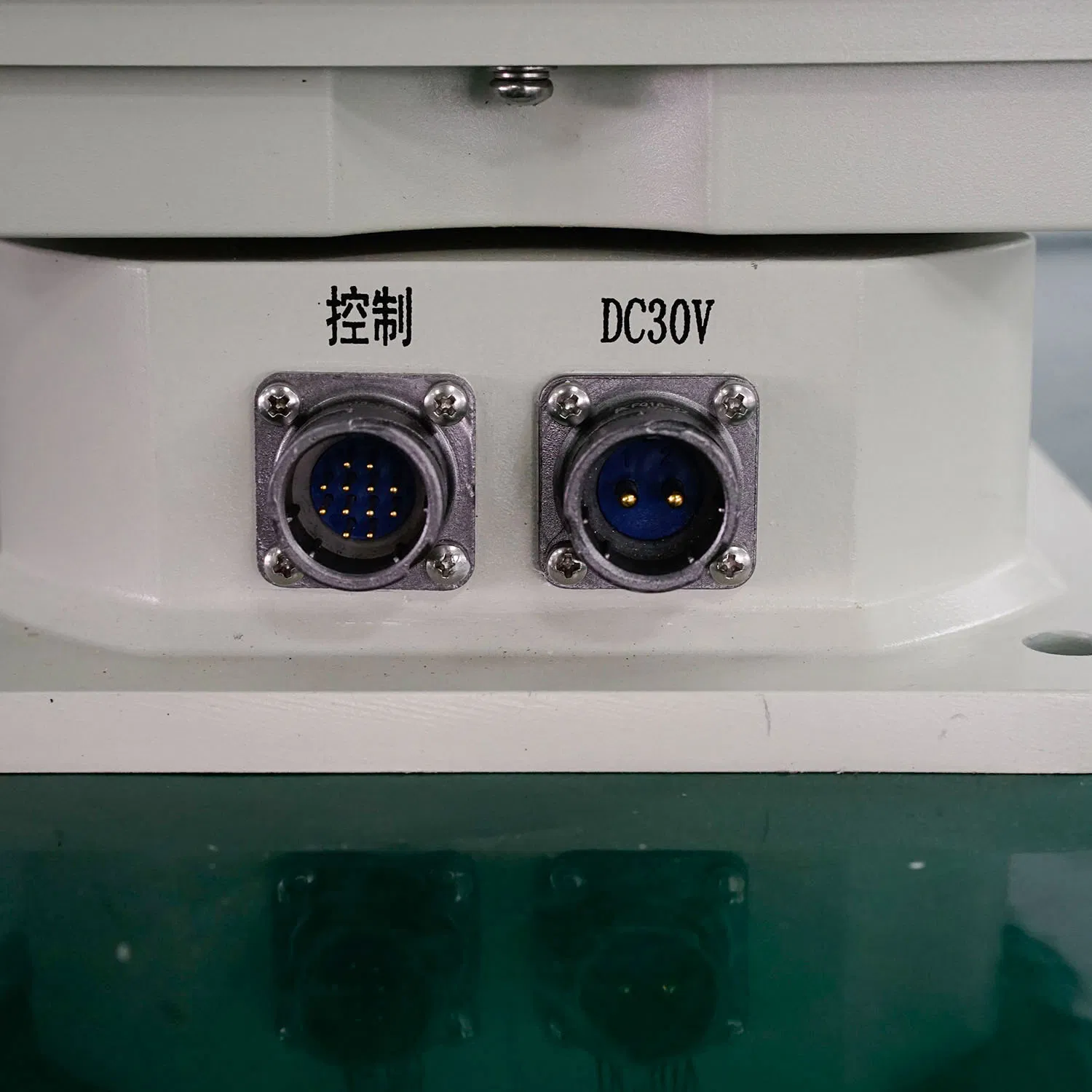

Input Voltage	AC24V±20% or DC28V±20%
Operation Temp	-25ºC to +65ºC (Extendable to -40ºC)
Load Mode	Top-mounted / Side-mounted
Dimensions	350mm * 206mm * 380mm

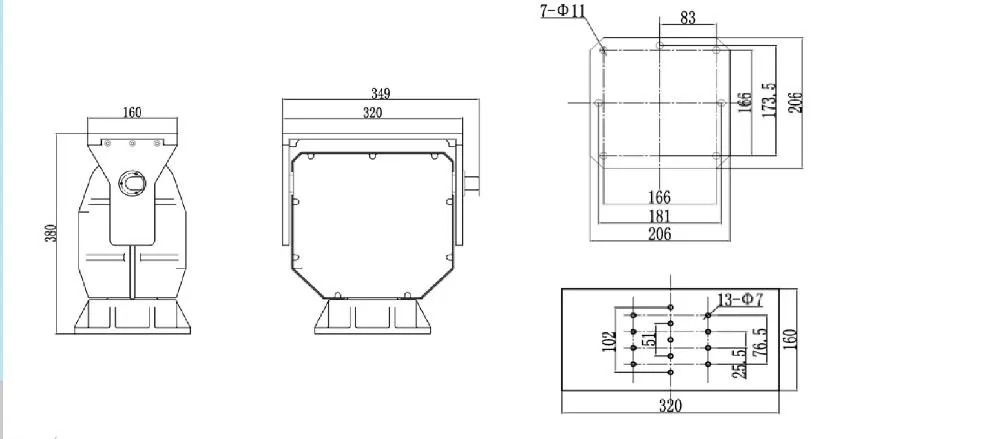

Dimensions & Packaging

Manufacturing Excellence

As a leading manufacturer founded in 2004, the company specializes in long-range thermal imaging and laser night vision systems. With a focus on independent innovation, the developed technologies have reached international standards, serving defense, railway, highway, and forest fire prevention sectors globally. All products are designed for all-weather surveillance and national security maintenance.

Frequently Asked Questions

What is the maximum load capacity for this PTZ head?

This heavy-duty PTZ head supports a maximum load of 50kg, making it suitable for large thermal cameras and radar equipment.

Is the device suitable for outdoor vehicle use?

Yes, it features an IP66 protection rating, ensuring it is waterproof and weatherproof for vehicle-mounted applications in harsh environments.

What communication protocols does it support?

It supports standard Pelco-D and Pelco-P protocols via RS485, RS422, or optional RS232 interfaces.

What is the rotation range and accuracy?

It offers 360° continuous pan rotation and +45° to -45° tilt, with a high resetting accuracy of ±0.1°.

Does it have a power-off locking mechanism?

Yes, it adopts a high-precision steel worm-gear driven system that is self-locked when the power is turned off to maintain position.

What is the standard warranty and shipping method?

The product typically comes with a 1-year warranty. Small orders are shipped via express (DHL/FedEx/UPS), while bulk orders can be arranged via sea or air.
