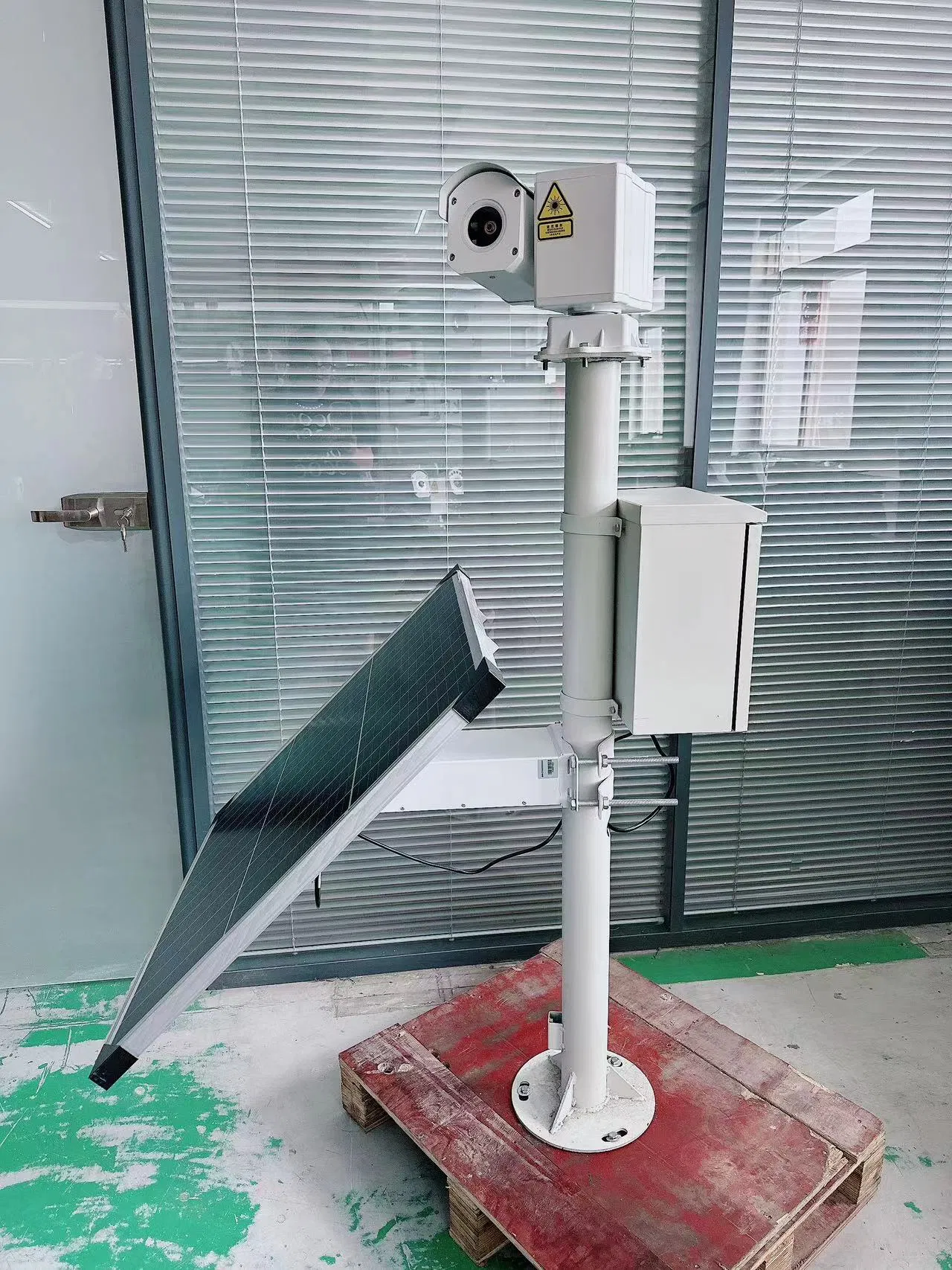

Sideloading High Speed Outdoor Pan Tilt Head

1 / 5

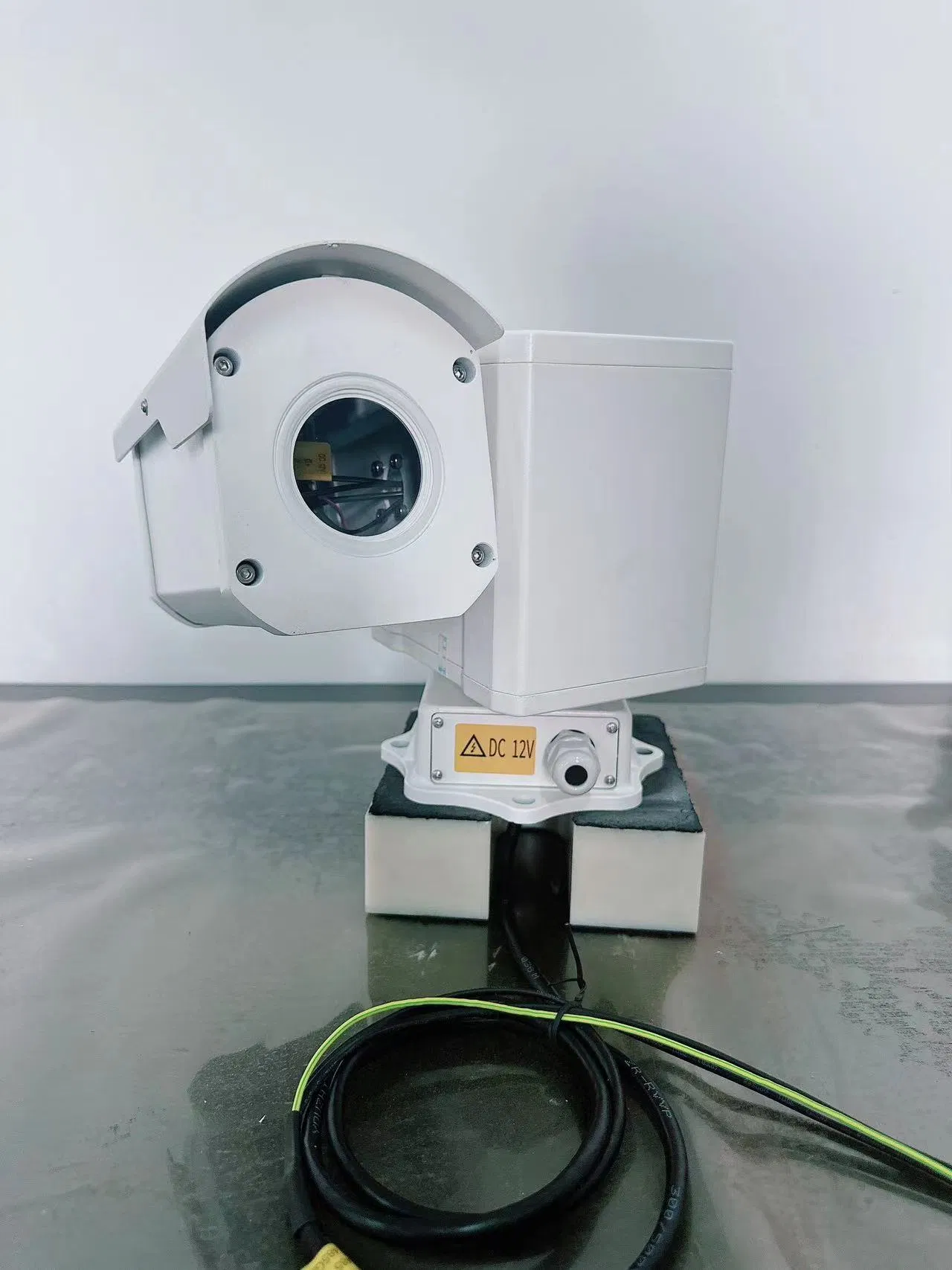

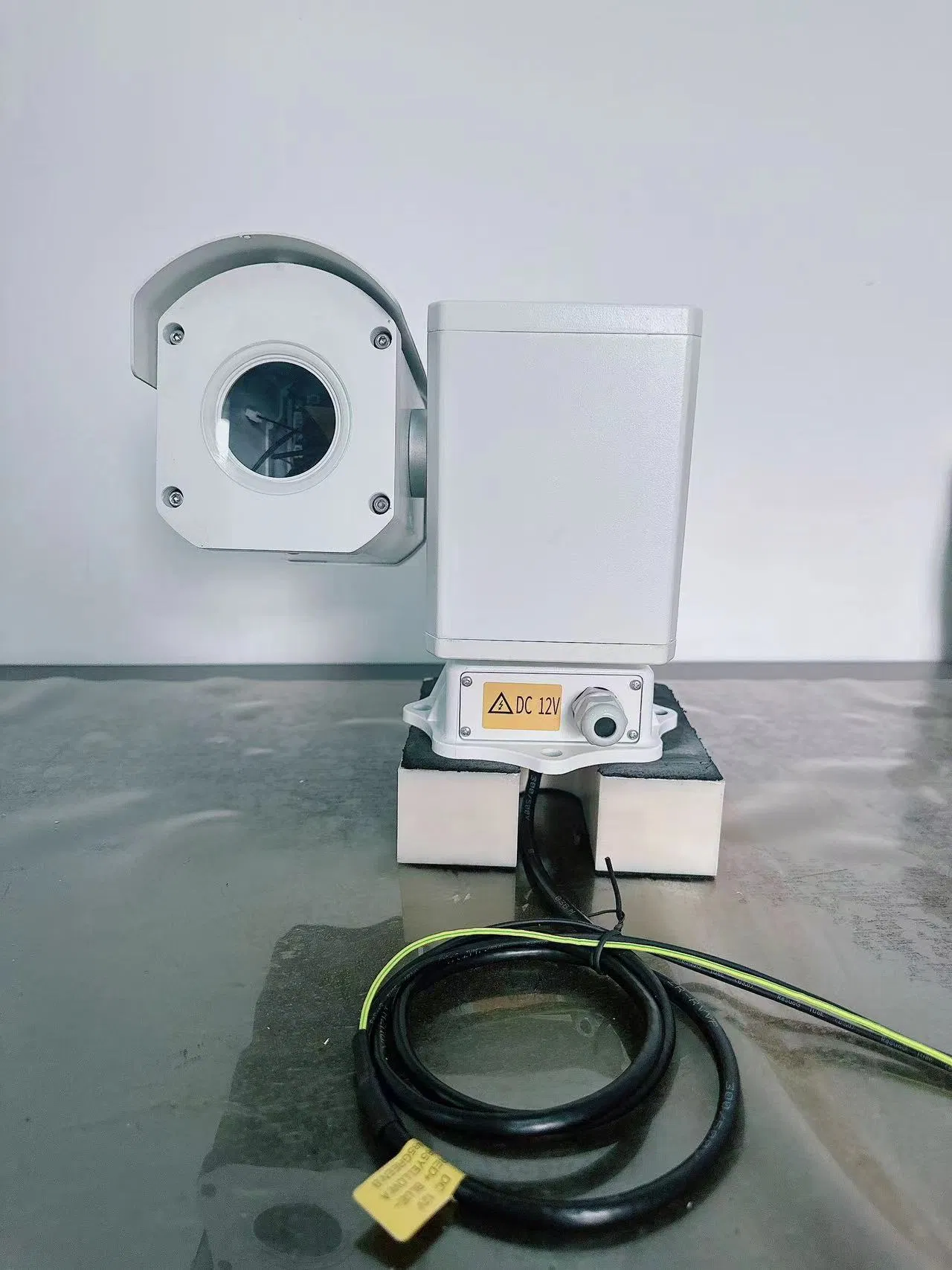

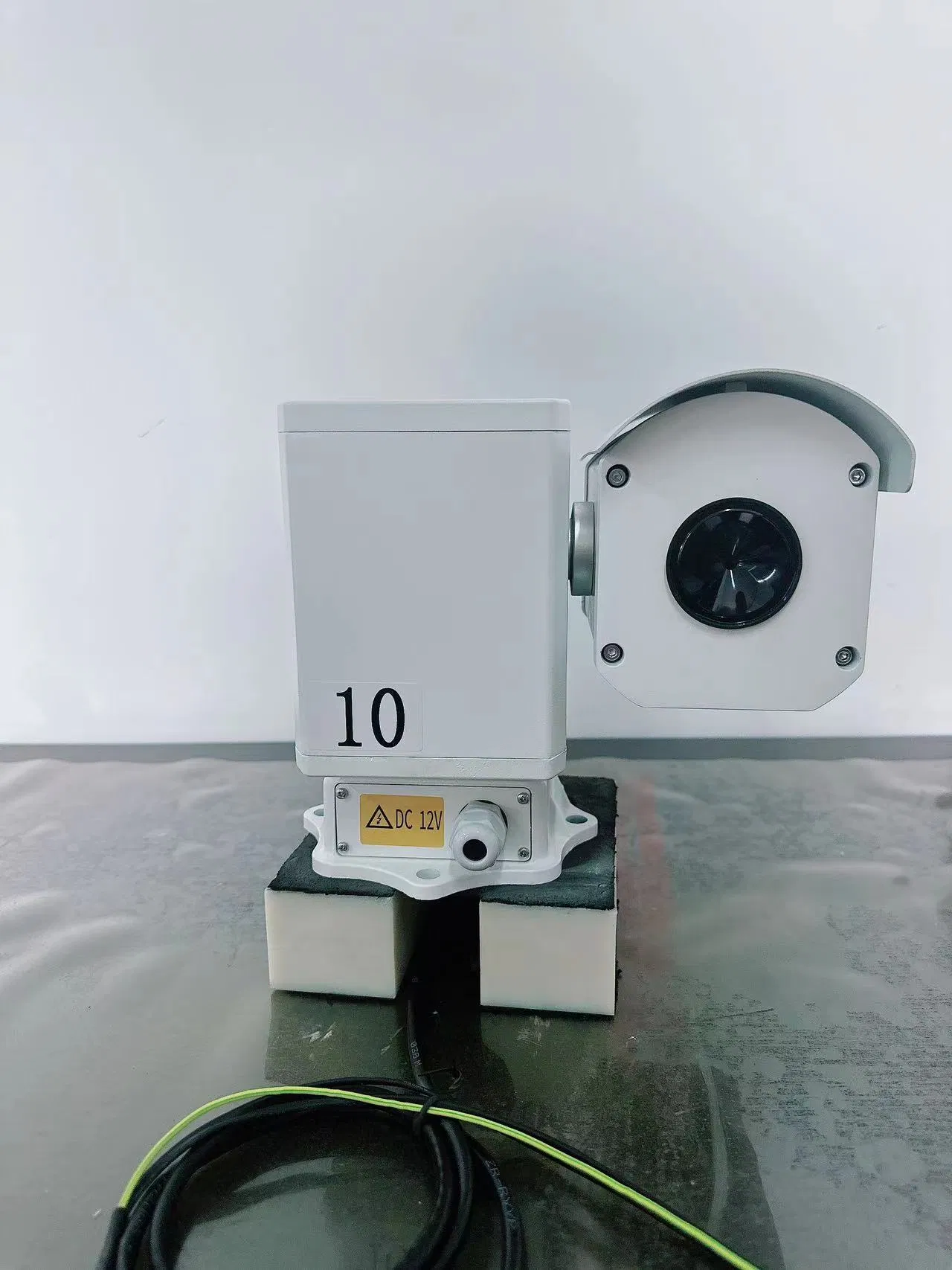

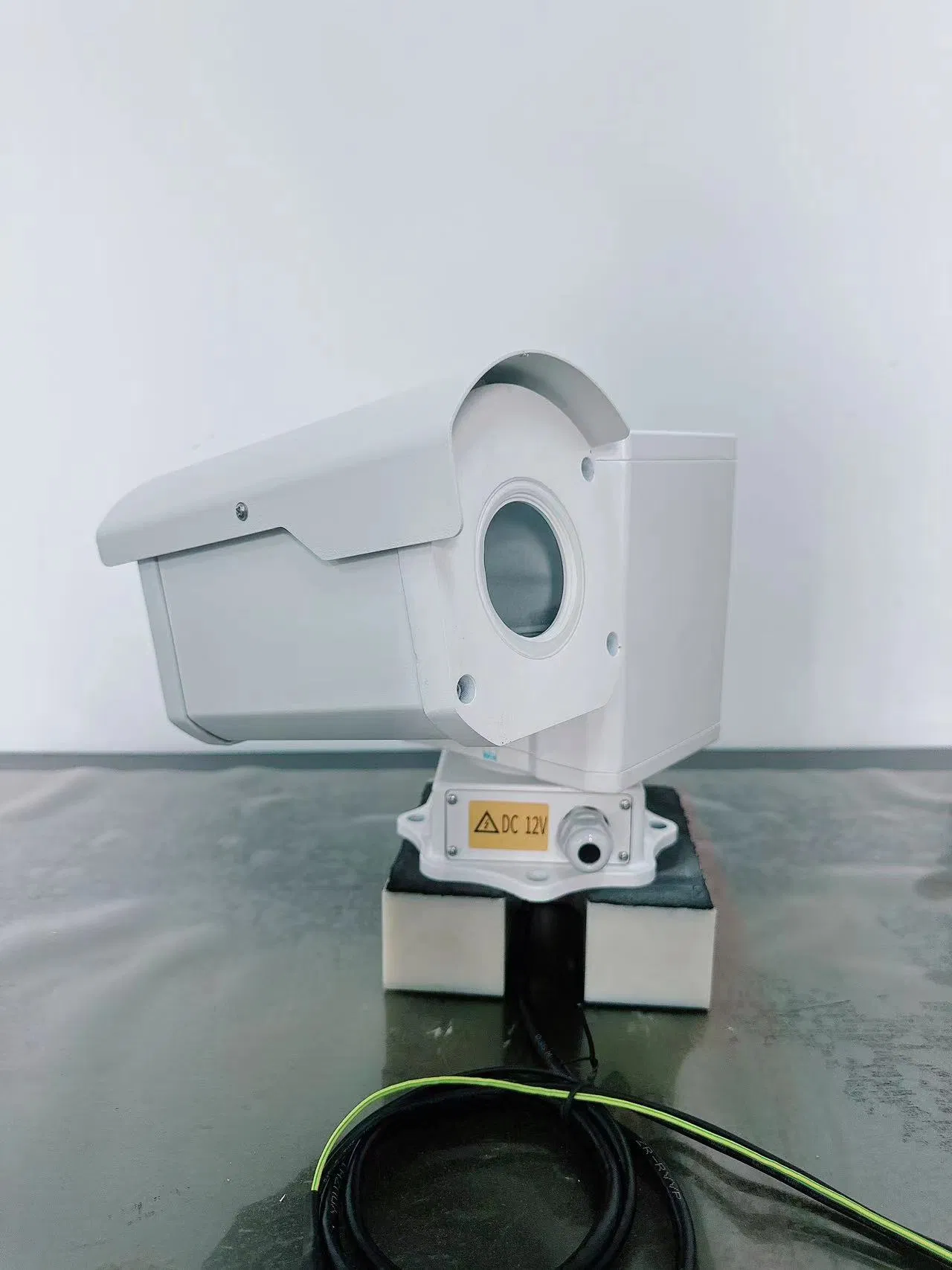

Sideloading High Speed Outdoor Pan Tilt Head

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	3020	Type	IP Camera
Sensor	CMOS (1/4 inch)	HDMI Format	720P
Certification	ISO9001: 2000	Effective Distance	≧30m
Features	Waterproof / Weatherproof, High Definition, Mini Size
Rotation Speed	Horizontal: 0.1°/s~100°/s; Vertical: 0.1°/s~50°/s
Protection Rating	IP67	Material	Aluminum alloy

Product Overview

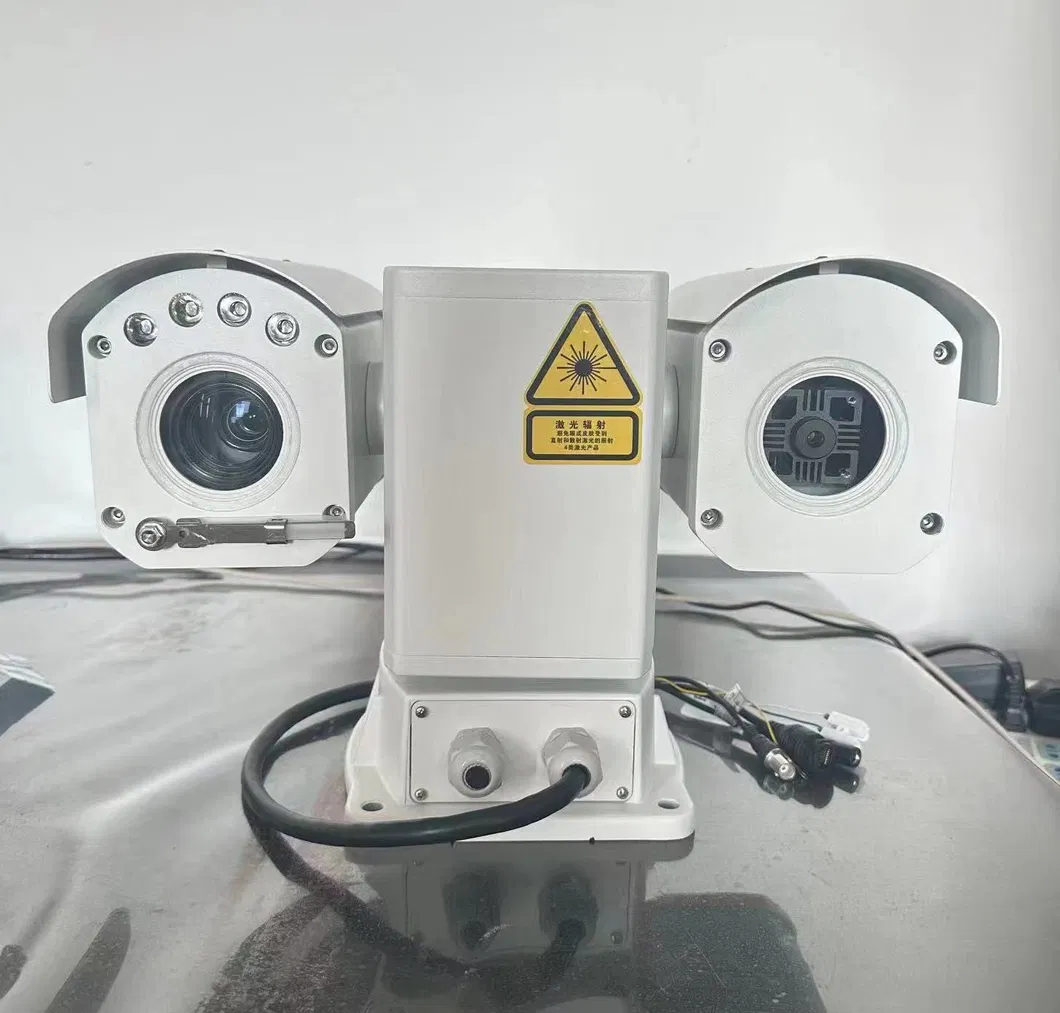

Laser bird repellent high-speed outdoor pan tilt head with intelligent AI camera

Key Product Features

◈ Achieve a maximum horizontal rotation speed of 100 °/s for rapid target tracking.

◈ Integrated auxiliary lighting for exceptional night monitoring performance.

◈ Linkage function between camera and light source for automated control.

◈ Novel and compact appearance, ideal for individual combat and mobile systems.

◈ Equipped with safety limit columns to ensure secure pan-tilt operation.

◈ Integrated wipers to maintain clear window optics and image quality.

◈ Optional ultrasound integration to enhance bird repelling efficacy.

◈ Supports loudspeaker for departure warning sounds and remote shouting.

◈ Mirror laser technology with large scanning amplitude and wide light spot coverage.

Technical Specifications

Parameter Detail		Standard Value
Power Input	DC9V-18V / DC24V-36V	Peak Power	<40W (Normal <20W)
Rotation Angle	Horizontal: 0~360°; Vertical: -90°~+90°	Communication	RS485 / Pelco-D
Presets	200 Positions	Baud Rate	2400 to 19200bps
Night Vision	Infrared (100m) / White Light (80m) / Laser (300m)
Environment	-40ºC to +65ºC; Humidity <90%	Surge Protection	GB/T17626.5 Level 4
Dimensions	363mm * 220mm * 262mm	Net Weight	8KG

Packaging & Gallery

Frequently Asked Questions

What is the maximum range of the laser bird repellent?

The system is equipped with a mirror laser that can reach an irradiation distance of up to 300 meters, providing wide coverage for effective bird deterrence.

Can this device operate in extreme weather conditions?

Yes, it features an IP67 protection rating and is designed to operate in temperatures ranging from -40ºC to +65ºC, making it suitable for harsh outdoor and vehicle-mounted environments.

How fast can the pan-tilt head move to track targets?

The device achieves a high-speed horizontal rotation of up to 100°/s and a vertical speed of up to 50°/s, allowing for rapid response and tracking.

Does the system save its position after a power failure?

Yes, it includes a Power Failure Memory function. Once power is restored, the gimbal will automatically resume the action it was executing (preset, patrol, or scan) before the interruption.

What kind of maintenance features are included?

The unit is equipped with built-in wipers to ensure the camera window remains clean, providing clear imaging even in dusty or rainy conditions.
