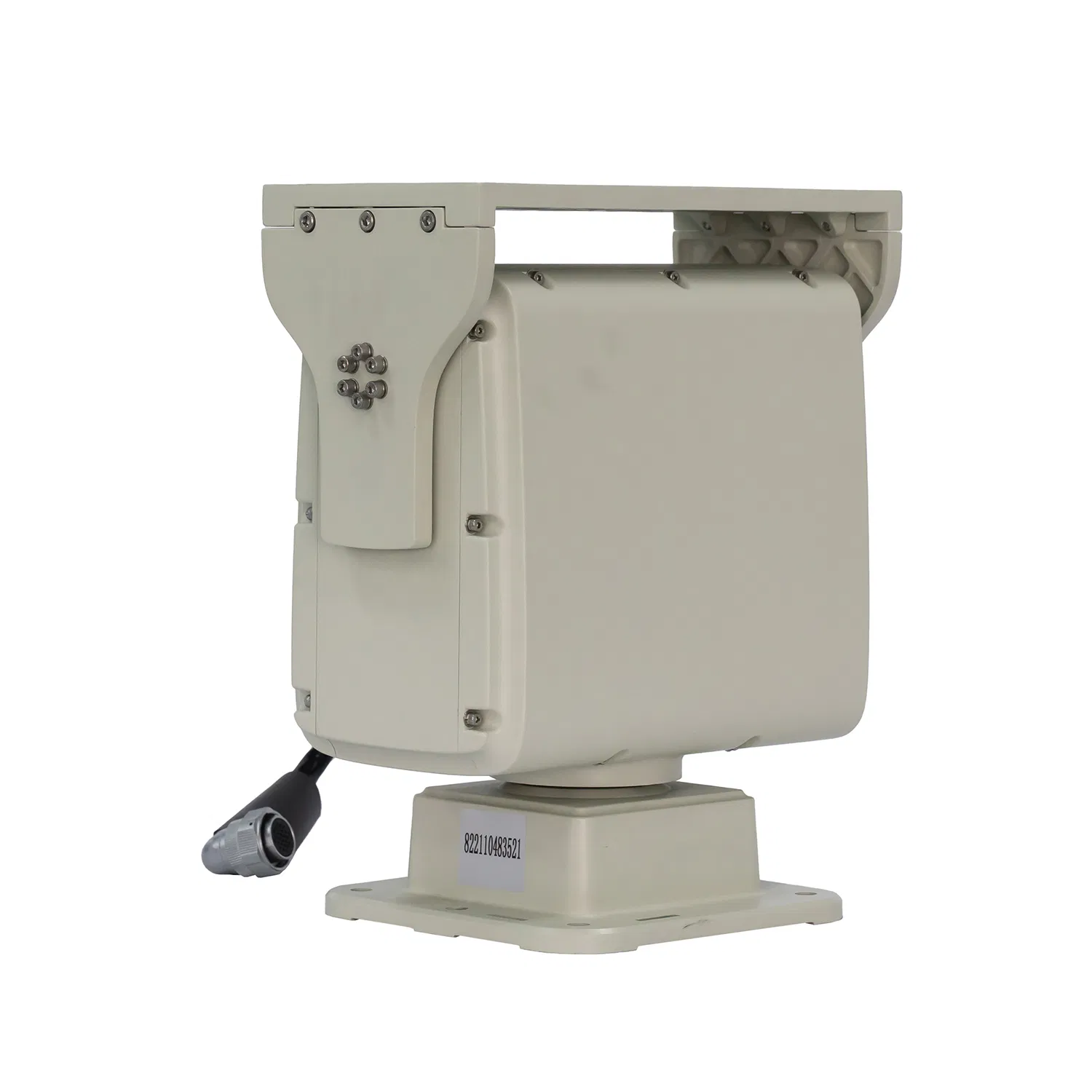

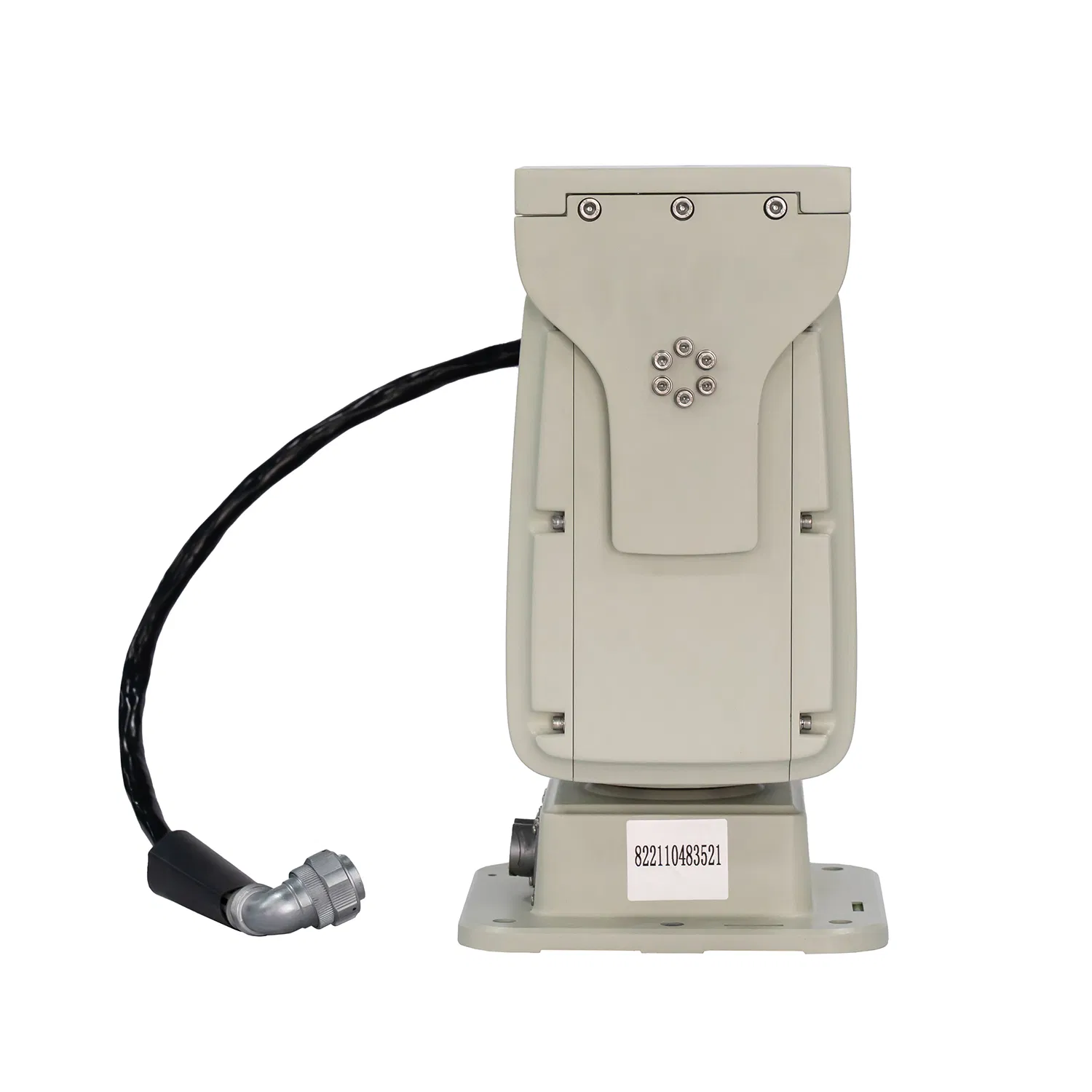

Pan Tilt Camera Mounted Pantilt Head for CCTV Cameras

Customization:	Available
Technology:	Pan Tilt Unit
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Specifications

Model NO.

SHR-SP50

Type

CCTV Camera

Sensor

CMOS

Horizontal Resolution

540tvl

Certification

CE, FCC

Feature

Waterproof / Weatherproof

Effective Distance

≧30m

Accuracy

0.1 Deg

Communication Protocol

Pelco-D/P Optional

Protection Class

IP66

Origin

China

Production Capacity

1000/Month

★

Product Description

SHR-SP50 is an intelligent pan tilt unit with max 50kg payload, it is a heavy duty pan tilt for outdoor applications. Protection grade of this pan tilt unit could reach up to IP66, ideal for harsh environment. It could be widely used for plant monitoring, electric power station inspection, highway, road monitoring, forest fire prevention, border & coastal defense etc. According to the loading capacity, the intelligent pan tilt unit could be divided into light-duty, medium-duty and heavy-duty pan tilt. SHR-SP50 is a heavy-loading pan tilt unit.

Note: Speed and angle of the pan tilt unit could be customized by different project needs.

✔

Key Features

Max Load: 35kg/50kg
Support RS485 (RS422 or RS232 optional)
Lens preset with self-adaptive function
High resetting accuracy, up to ±0.1º
High strength die-cast aluminum alloy material
High-precision steel worm-gear driven, self-locked when power off
Pan: 0~360º continuous rotate
Protection Class: IP66
Support OSD Menu (optional)
Returns pan tilt position, focal length, and focus data

📋

Technical Specifications

Model	SHR-SP5035	SHR-SP5050
Pan/tilt Speed	Pan:0.01º~20º/s, Tilt:0.01º~10º/s	Pan:0.01º~12º/s, Tilt:0.01º~8º/s
Rotation Angle	Pan:0°~360º continuous, Tilt:+45º~-45º
Presets	200 Positions
Accuracy	±0.1º
Auto Cruising	8 tracks (each with 10 presets)
Interface	RS485/RS422, supporting angle query returns
Input Voltage	AC24V±20% or DC28V±20%
Power Consumption	≤80W
Operation Temp	-25ºC~+65ºC (Up to -40ºC optional)
Max Load	35 kg	50 kg
Dimensions	350mm206mm380mm (LWH)

📷

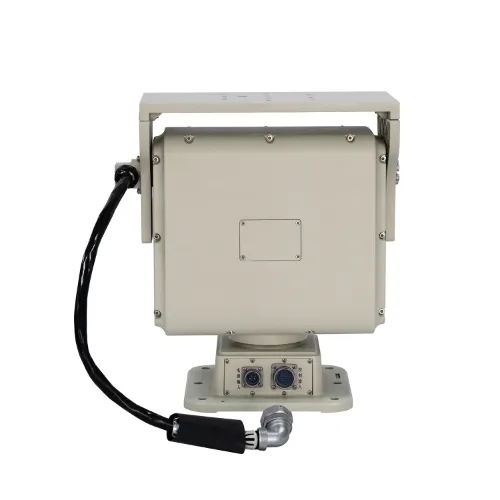

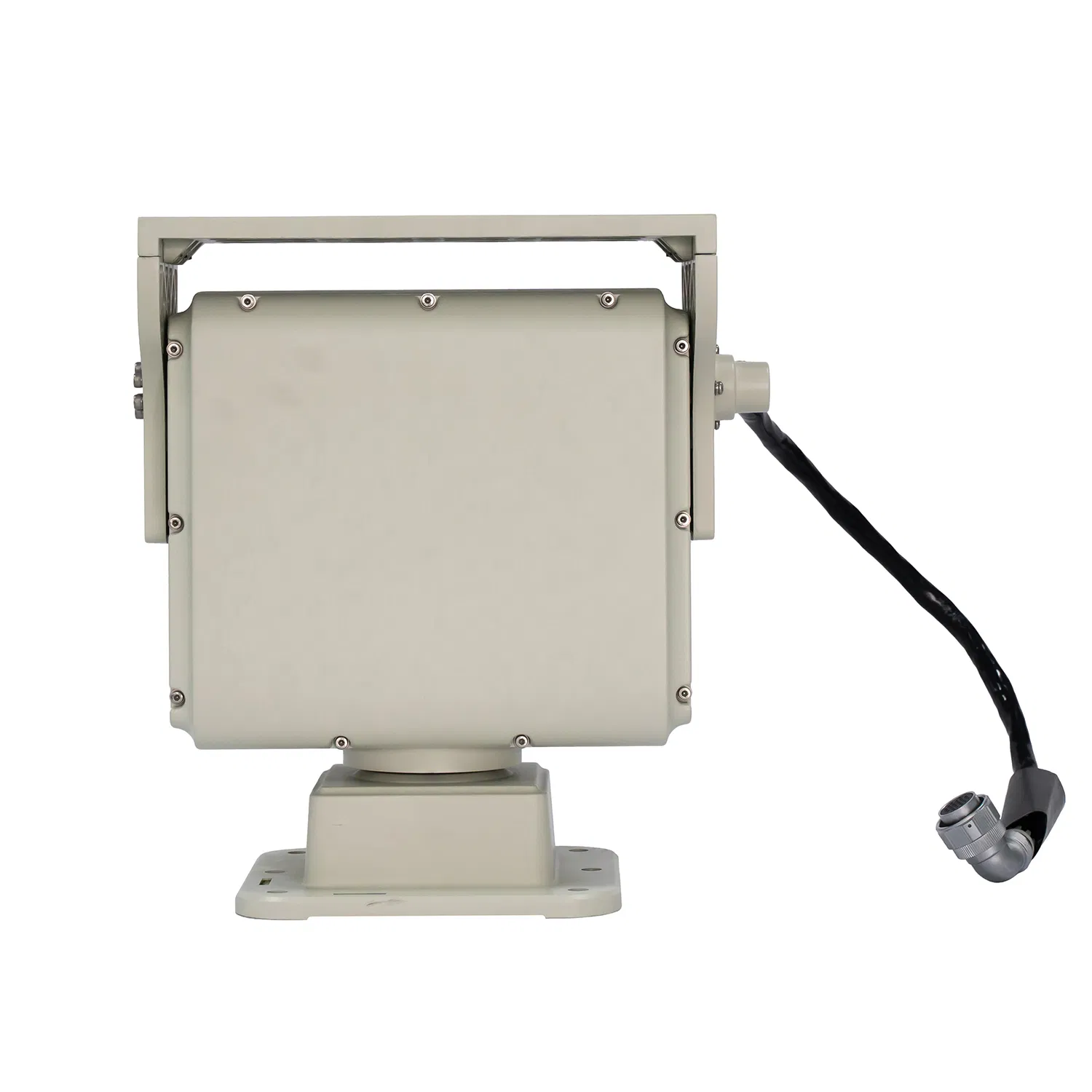

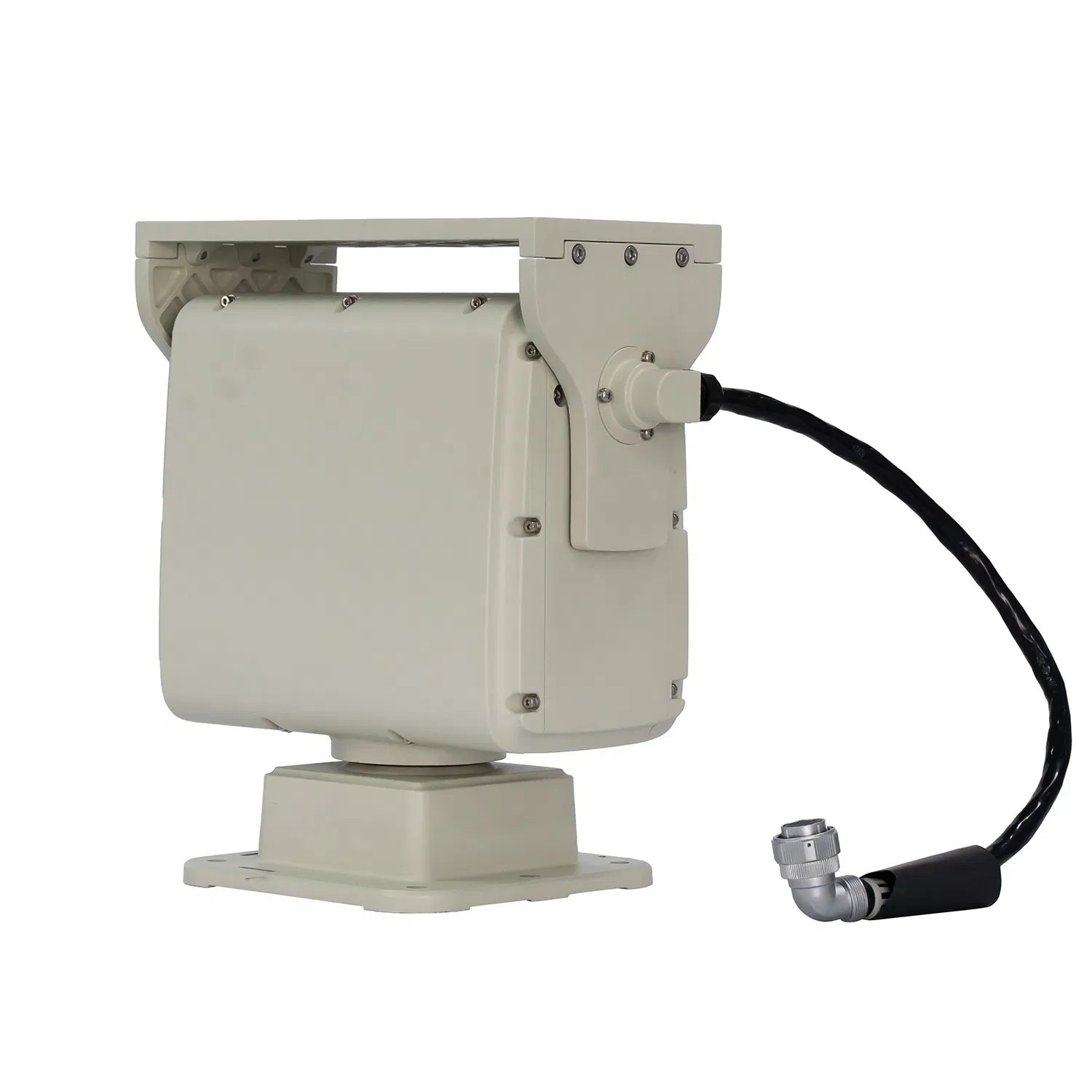

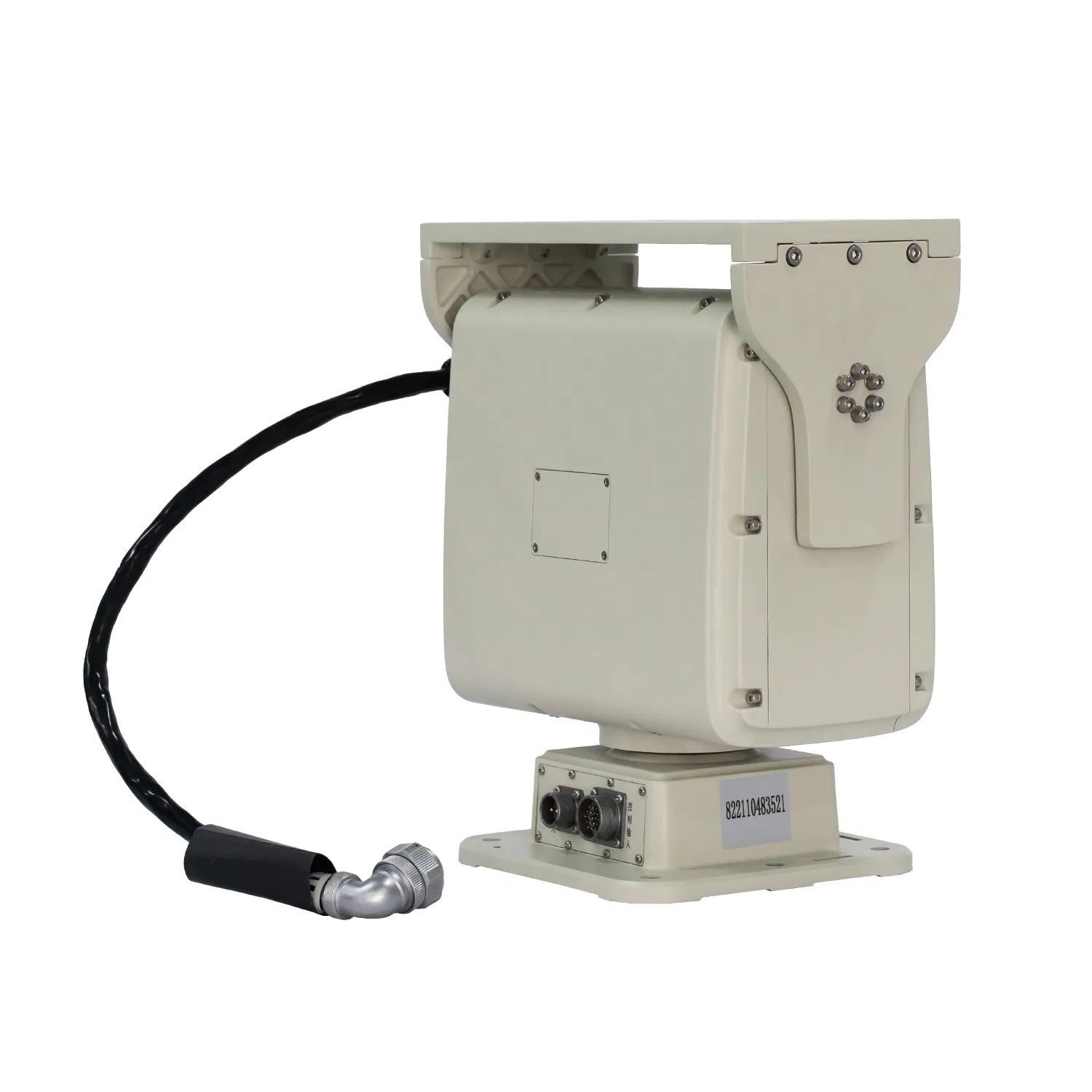

Product Showcase

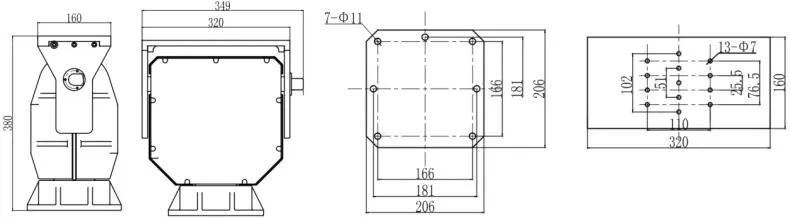

Size & Dimensions

System Overview

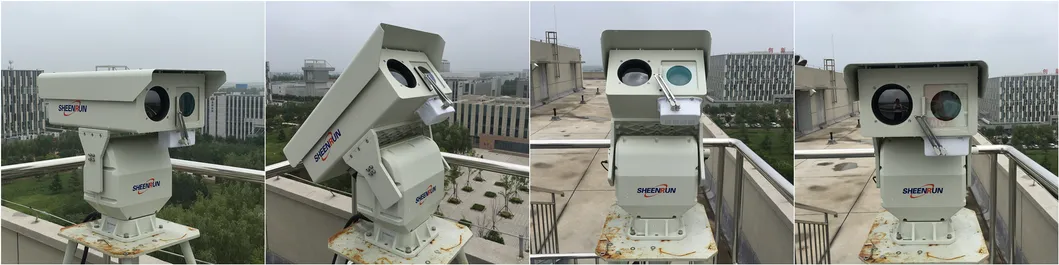

Application Scenarios

Ideal for plant monitoring, electric power station inspection, highway and road monitoring, forest fire prevention, and border & coastal defense.

Frequently Asked Questions

What is the maximum payload capacity of the SHR-SP50?

The unit is available in two versions, supporting a maximum load of either 35kg or 50kg, depending on the specific model chosen.

Is the unit suitable for outdoor use in harsh weather?

Yes, the SHR-SP50 features an IP66 protection rating and is constructed from high-strength die-cast aluminum alloy, making it ideal for coastal and industrial environments.

Does the pan tilt unit maintain its position during a power failure?

Yes, it utilizes a high-precision steel worm-gear driven system that is self-locking, ensuring the unit stays in position even when the power is off.

What communication protocols does this device support?

It supports standard RS485 (or RS422/RS232 optional) communication using Pelco-D and Pelco-P protocols.

What is the positioning accuracy for presets?

The unit provides extremely high resetting accuracy of up to ±0.1º, allowing for precise monitoring and target tracking.

Can the rotation speed be adjusted?

Yes, both pan and tilt speeds are variable (starting from 0.01º/s) and can be customized to meet the specific requirements of your project.
