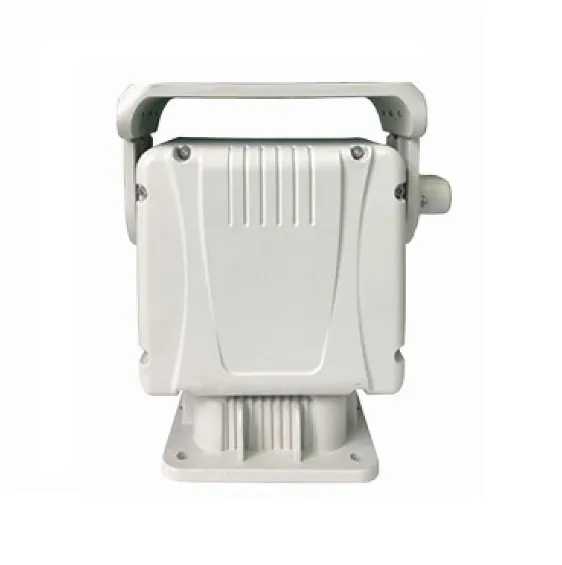

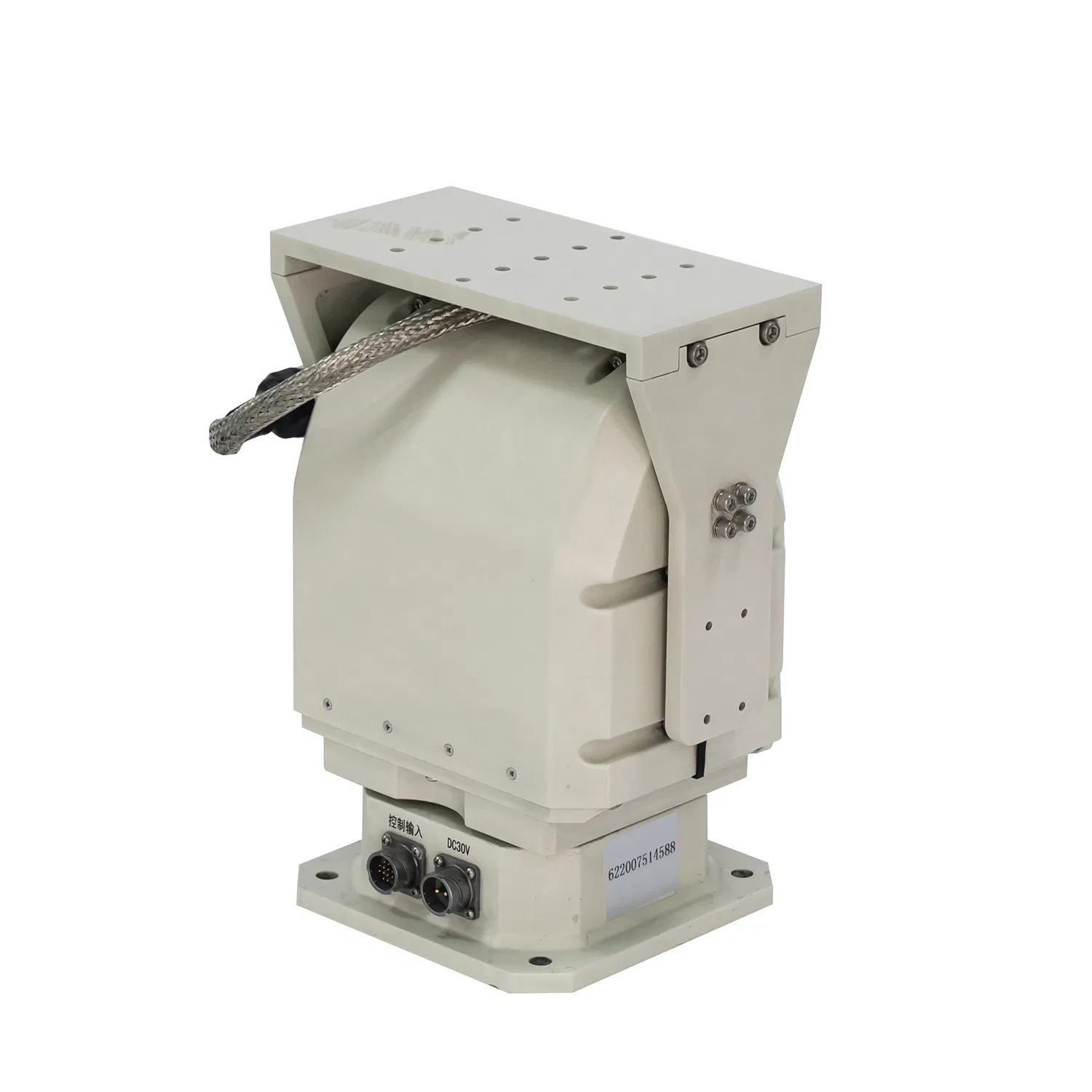

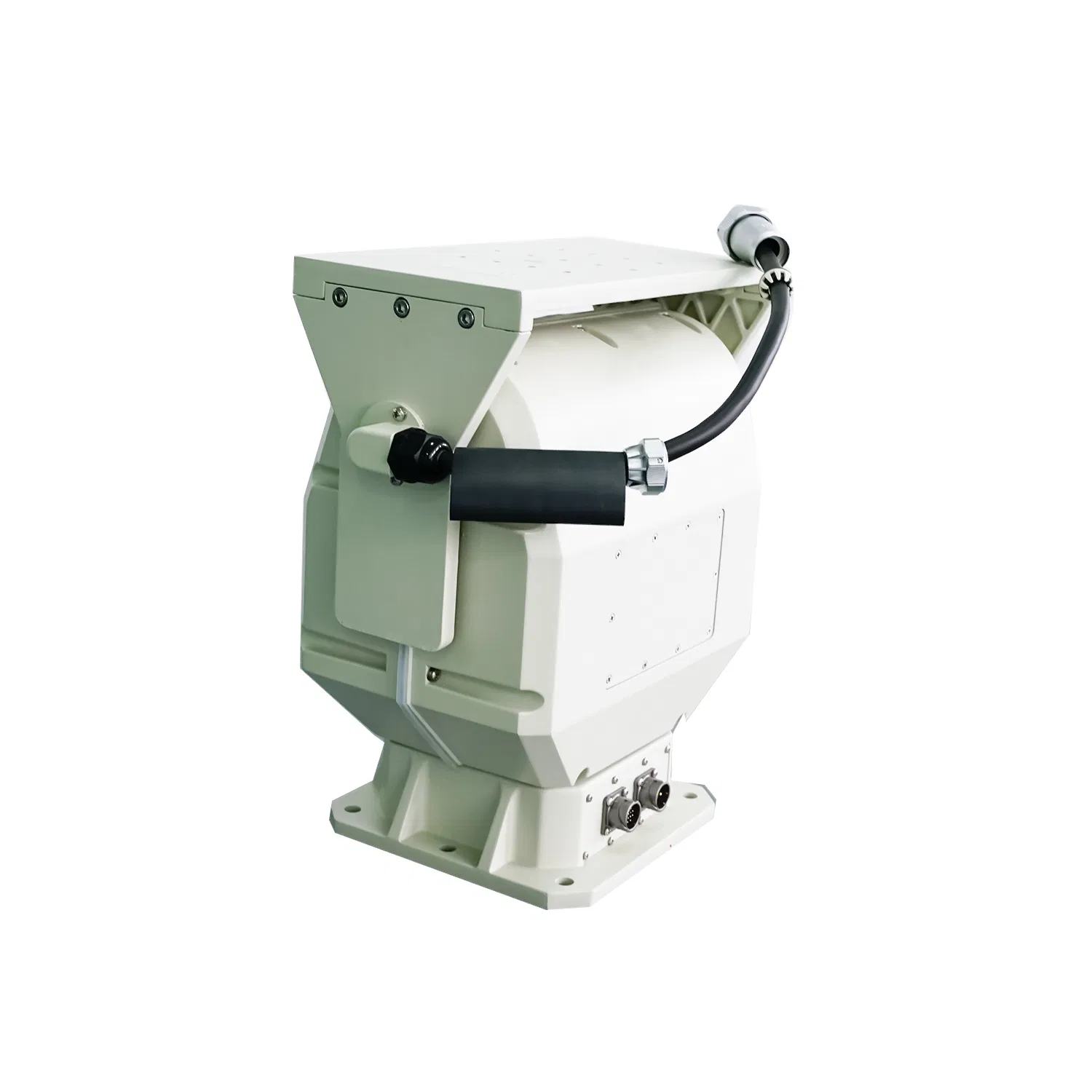

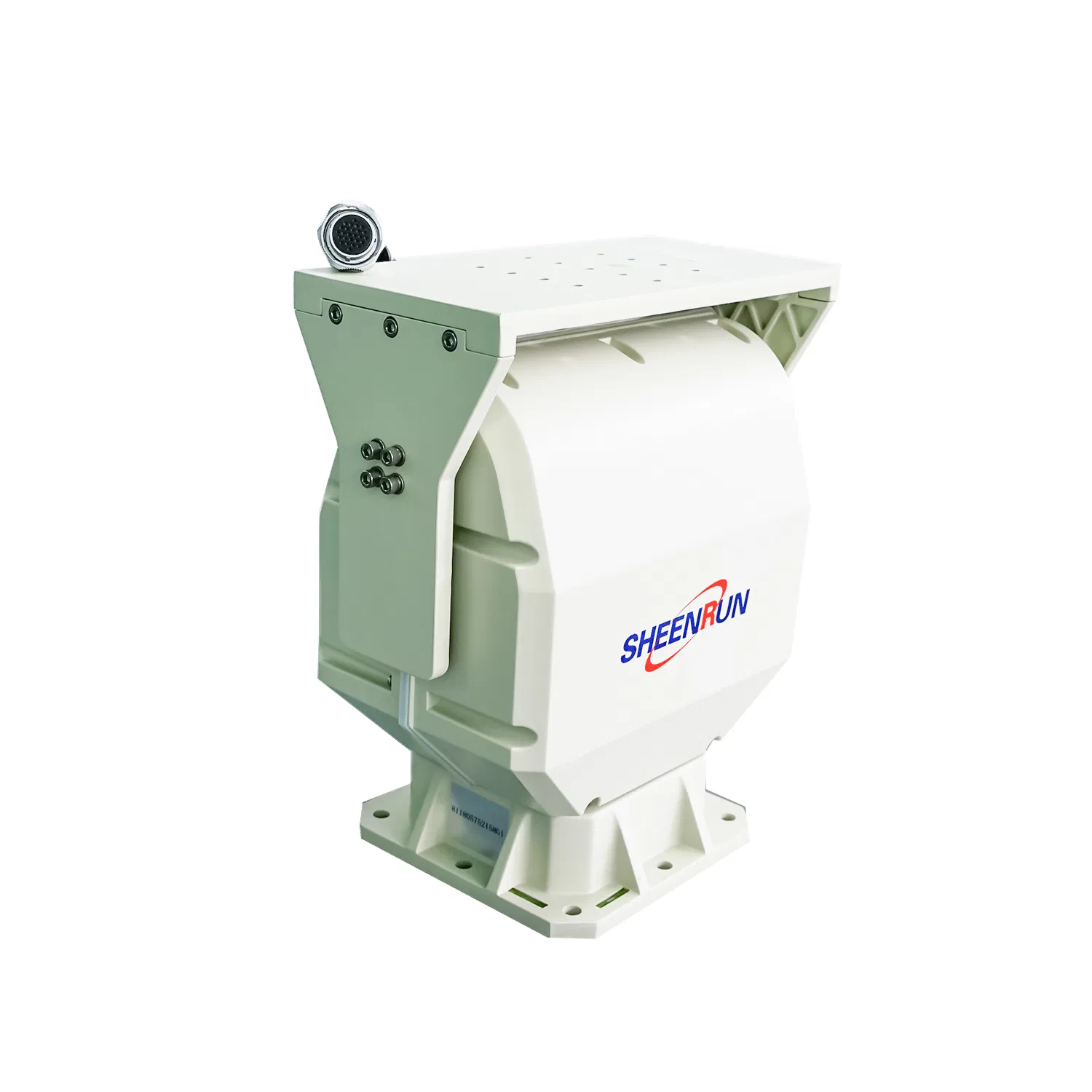

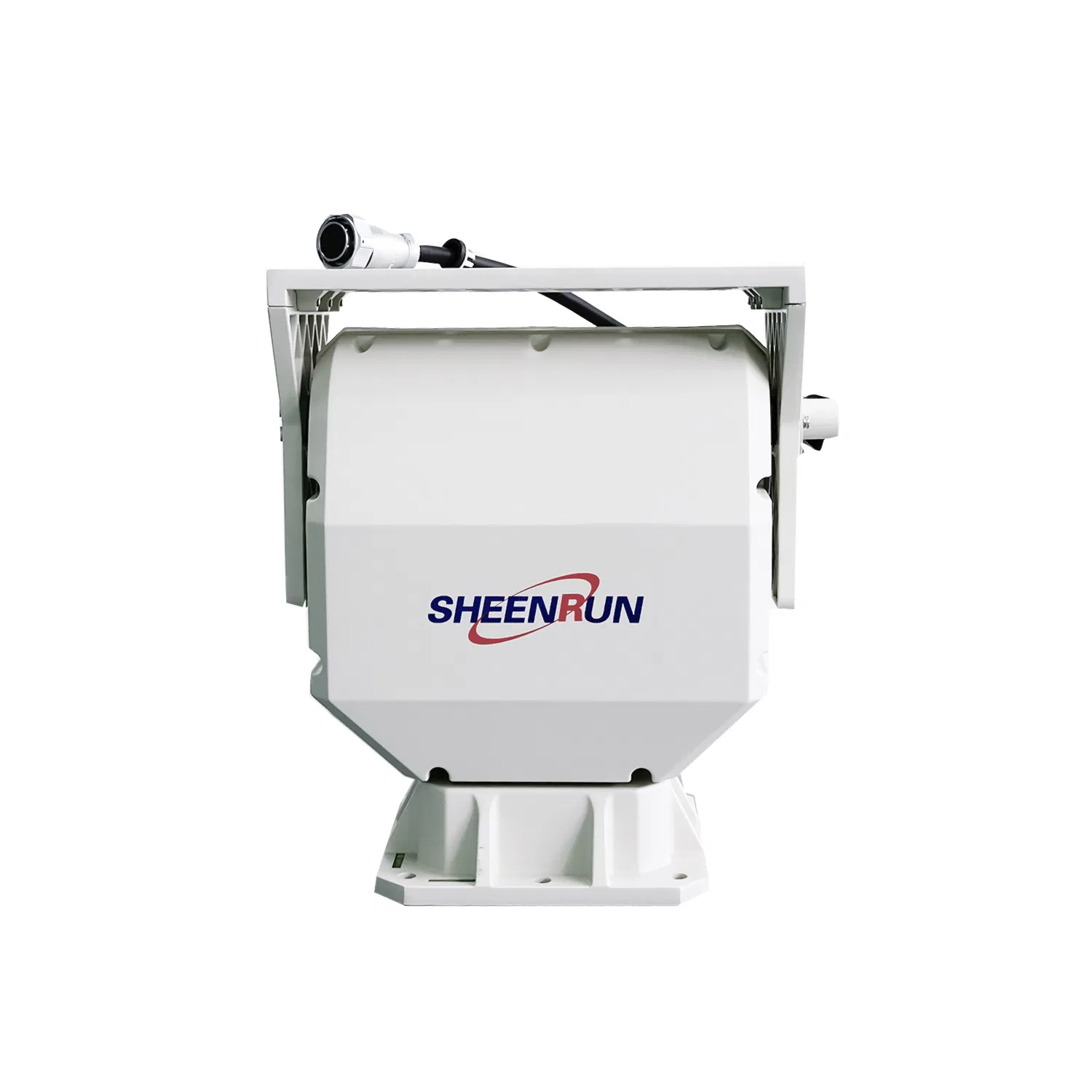

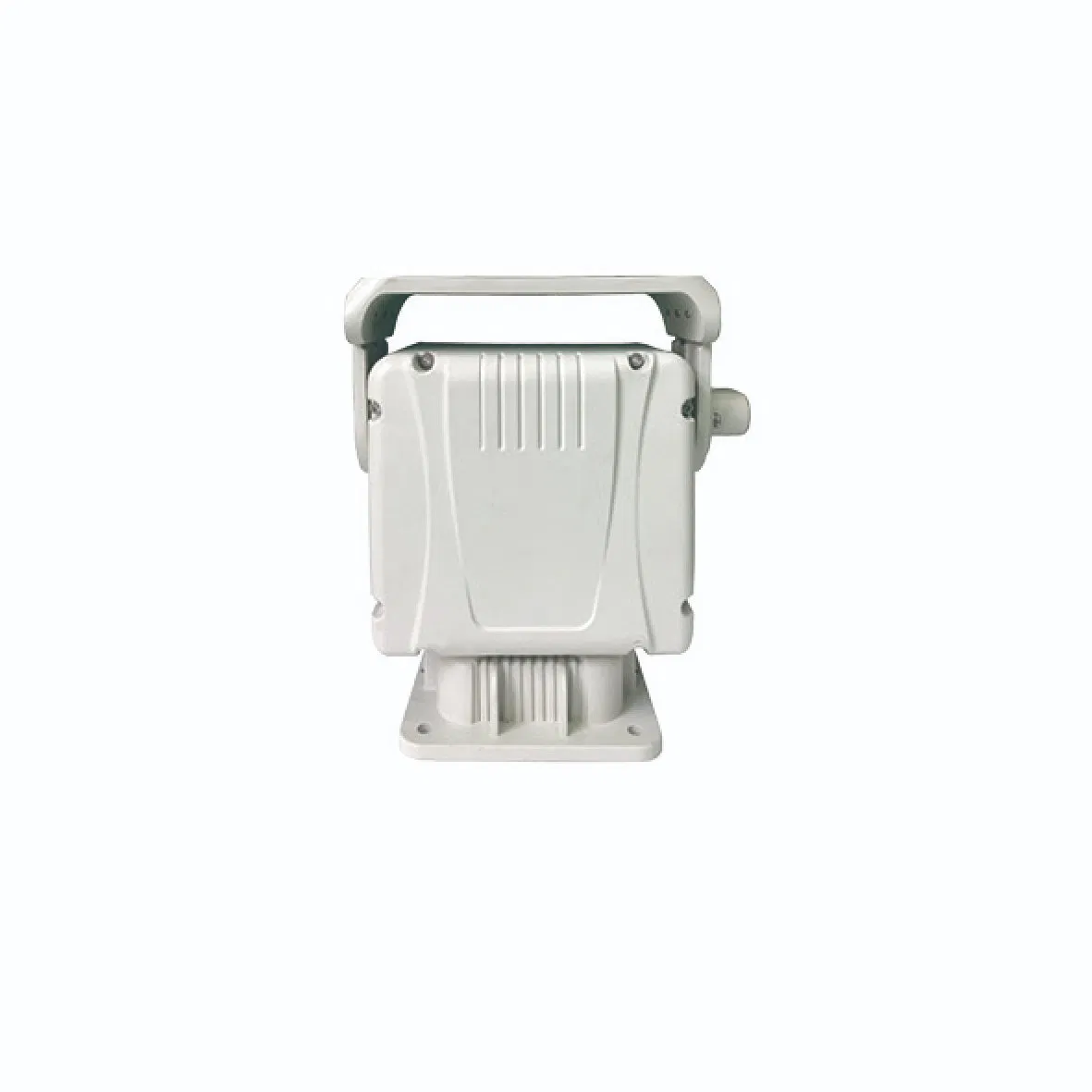

Basic Information
Model NO.SHR-PT15
TypeCCTV Camera
SensorCCD
HDMI Format1080P
Horizontal Resolution520tvl
CertificationCE, FCC, ISO9001: 2000
FeatureWaterproof, Mini Size
Effective Distance≧30m
Sensor Size1/3 inch
Load Capacity5-10kg
ProtocolPelco-D/P
DrivenWorm-Gear
Product Features
◈ 1) Max Load: 5kg/10kg
◈ 2) Support kinds of lens preset with self-adaptive function
◈ 3) High resetting accuracy, up to ±0.1º
◈ 4) Adopt die-cast aluminum alloy material
◈ 5) Adopt high-strength worm-gear driven, self-locked when power is off
◈ 6) Pan: 0º~360º continuous rotation
◈ 7) Protection Class: IP66 Waterproof
◈ 8) OSD menu, Network (optional)
◈ 9) Optional function: returning data of pan tilt position, focal length, focus etc.
Technical Specifications
| Model | SHR-PT15 |
| Rotating Speed | Pan: 0.01º~30º/s, Tilt: 0.01º~15º/s |
| Rotation Angle | Pan: 0º~360º continuous, Tilt: +60º~ -60º |
| Number of Presets | 200 |
| Preset Accuracy | ±0.1º |
| Auto Cruising | 8 tracks (each with 10 presets) |
| Input Voltage | AC24V±20%, 50/60HZ; DC28V±20% |
| Power Consumption | ≤50W |
| Operation Temp | -25ºC~+65ºC (Optional -40ºC~+65ºC) |
| Protection Class | IP66 |

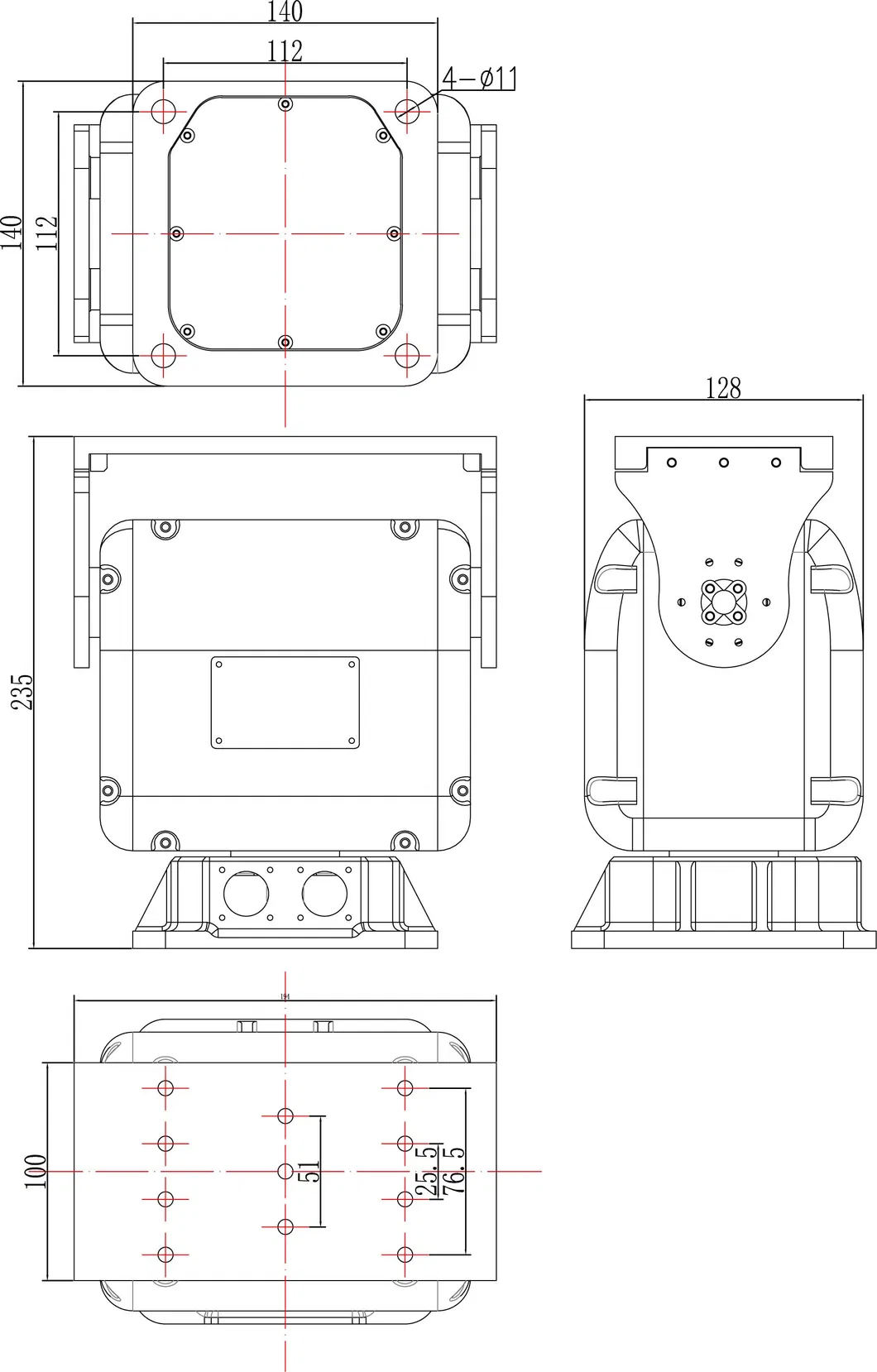

| Dimensions | 265mm * 180mm * 315mm |
| Weight | 5.5 kg |
Packaging & Delivery
Package Size40.00cm * 33.00cm * 46.00cm
Package Gross Weight11.000kg
Transport PackageWooden Case/Carton
Frequently Asked Questions
🔹 What is the maximum load capacity for this Pan Tilt?
The SHR-PT15 supports a maximum load capacity of 5kg to 10kg depending on the configuration.
🔹 Is the device suitable for extreme outdoor weather?
Yes, it features an IP66 protection class rating, making it waterproof and weatherproof, with an operating temperature range down to -25ºC (or -40ºC as an option).
🔹 Does the unit lose its position when the power is off?
No, it utilizes a high-strength worm-gear driven system which is self-locking when the power is turned off.
🔹 How many preset positions can be configured?
The system supports up to 200/255 preset positions with a high accuracy of ±0.1º.
🔹 What control protocols are supported?
It standardly supports Pelco-D and Pelco-P protocols via the RS485 interface.
🔹 Does it support continuous 360-degree rotation?
Yes, it supports 0º~360º continuous horizontal pan rotation for full area coverage.
