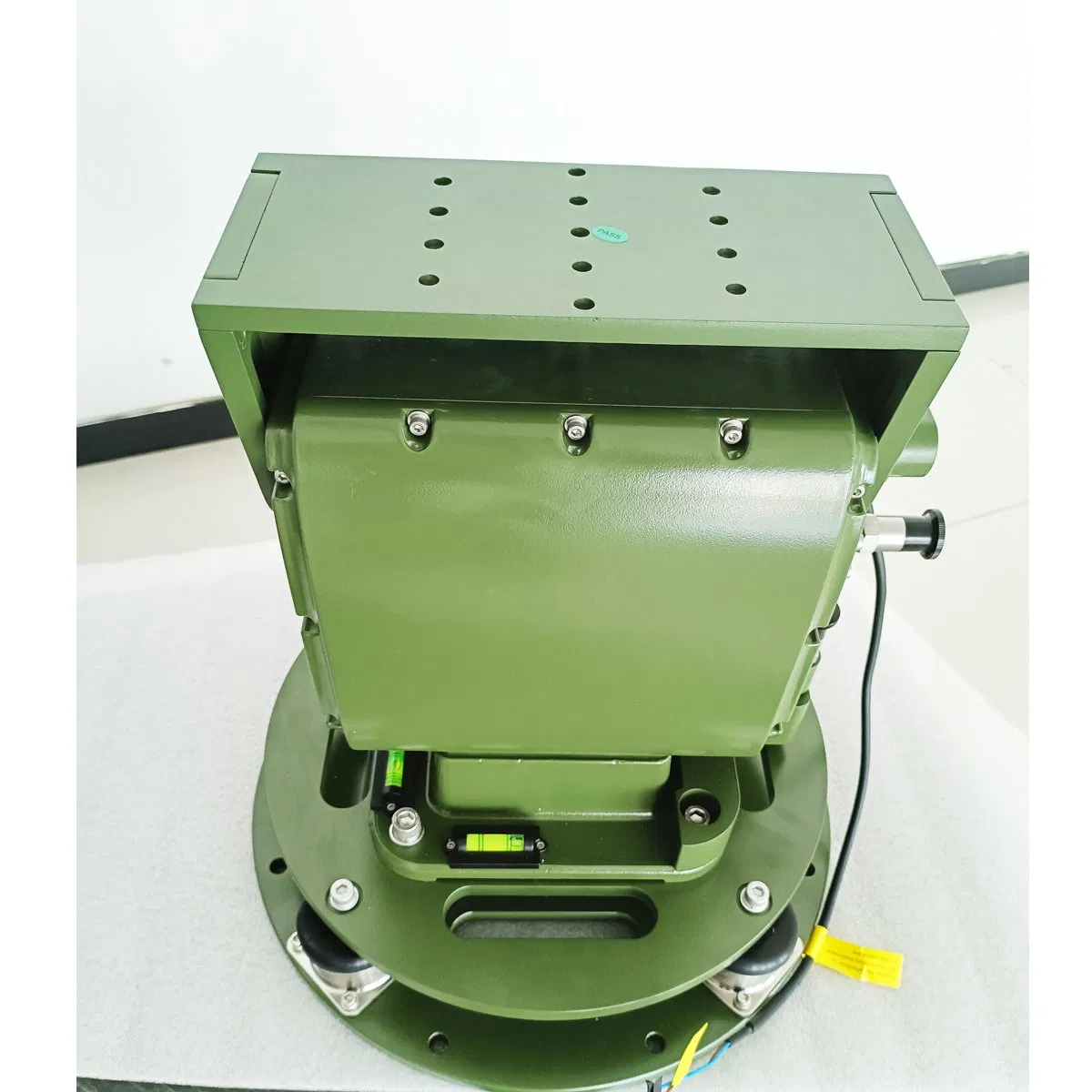

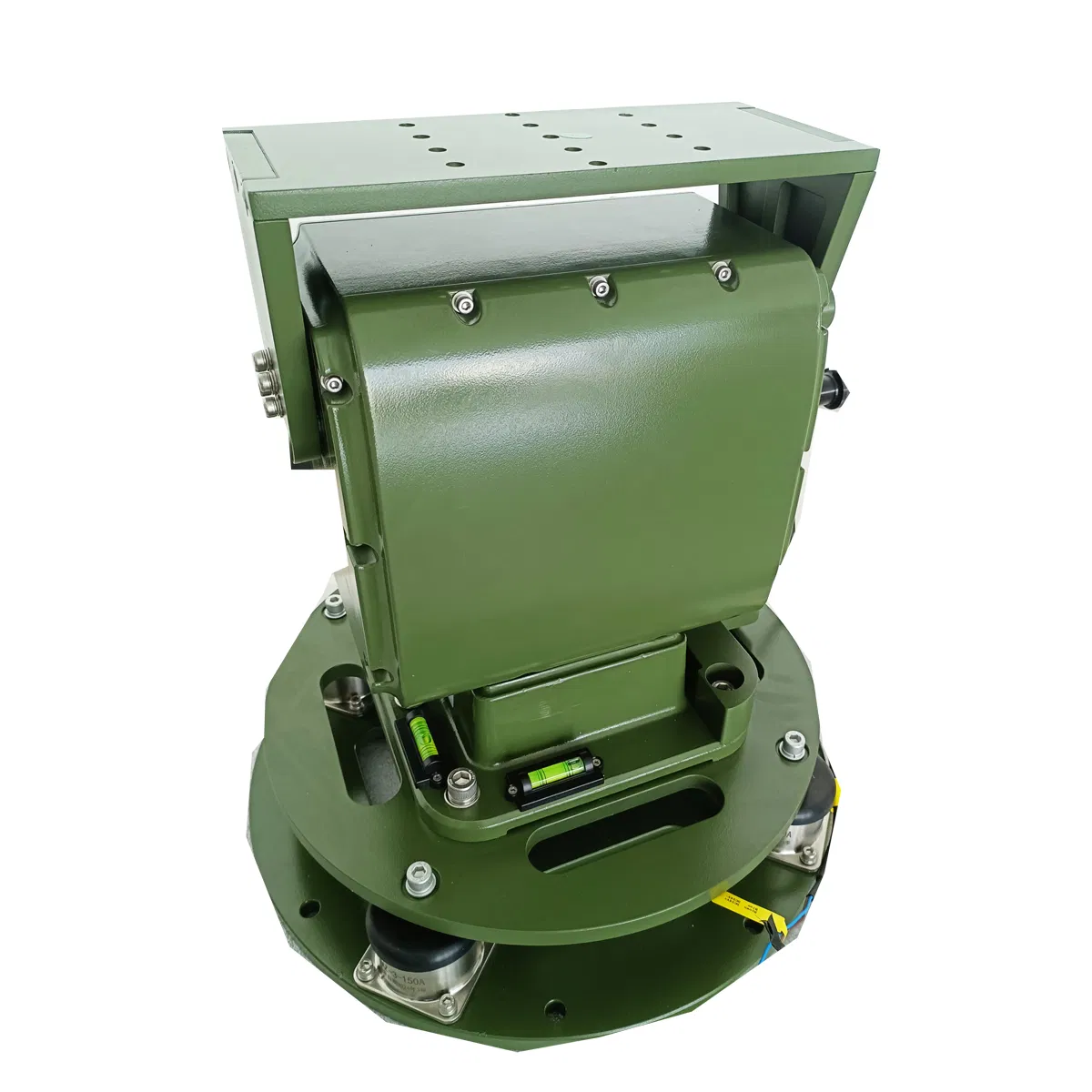

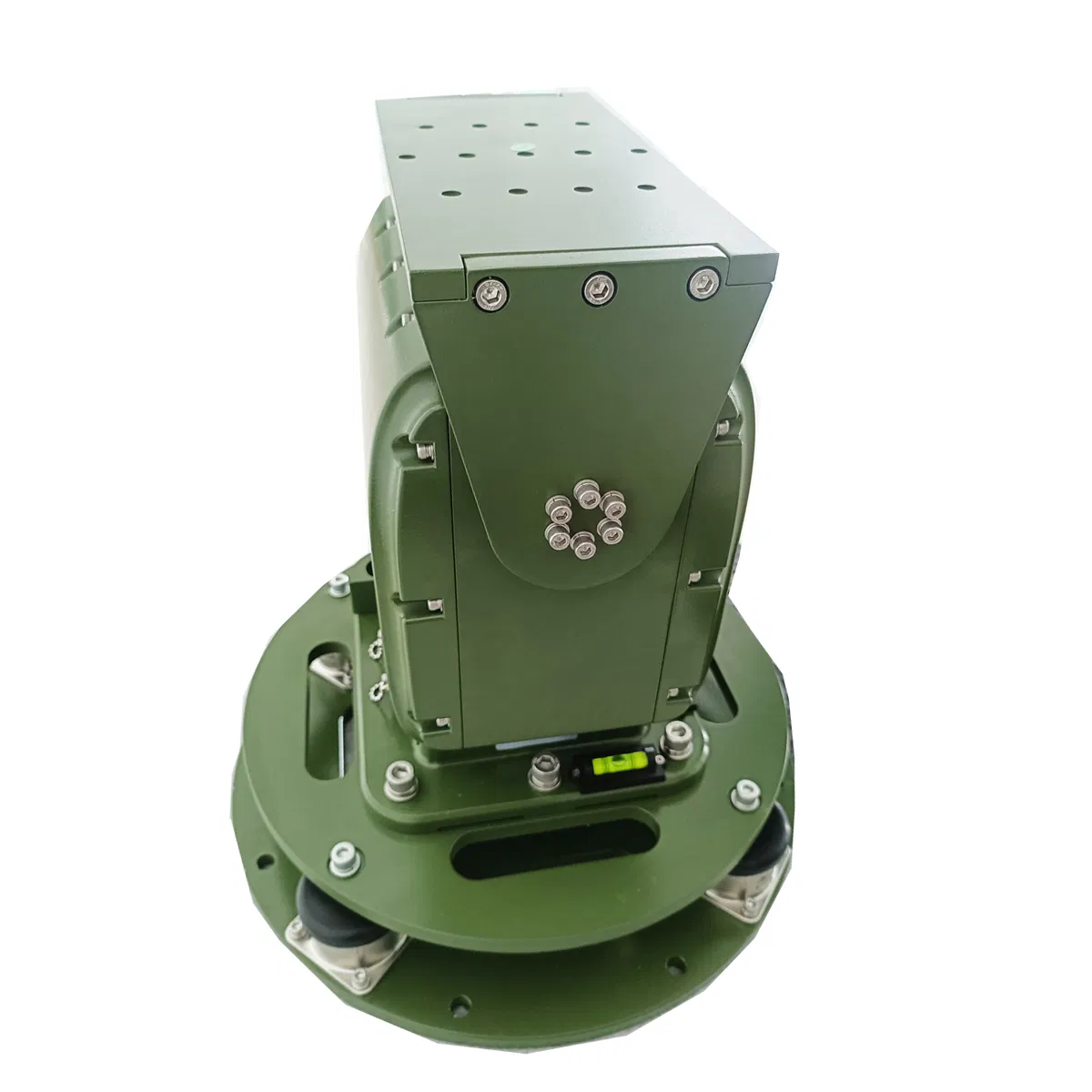

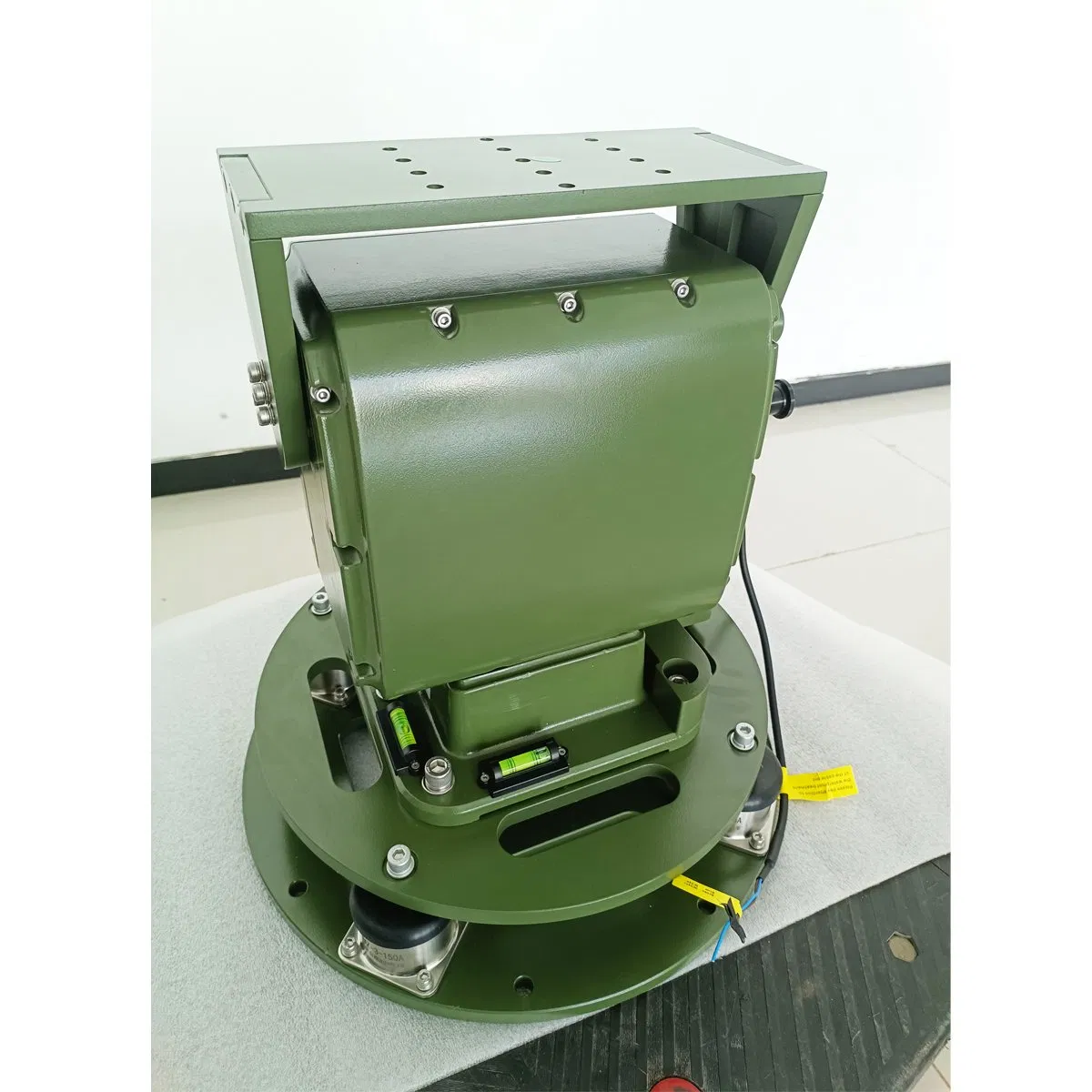

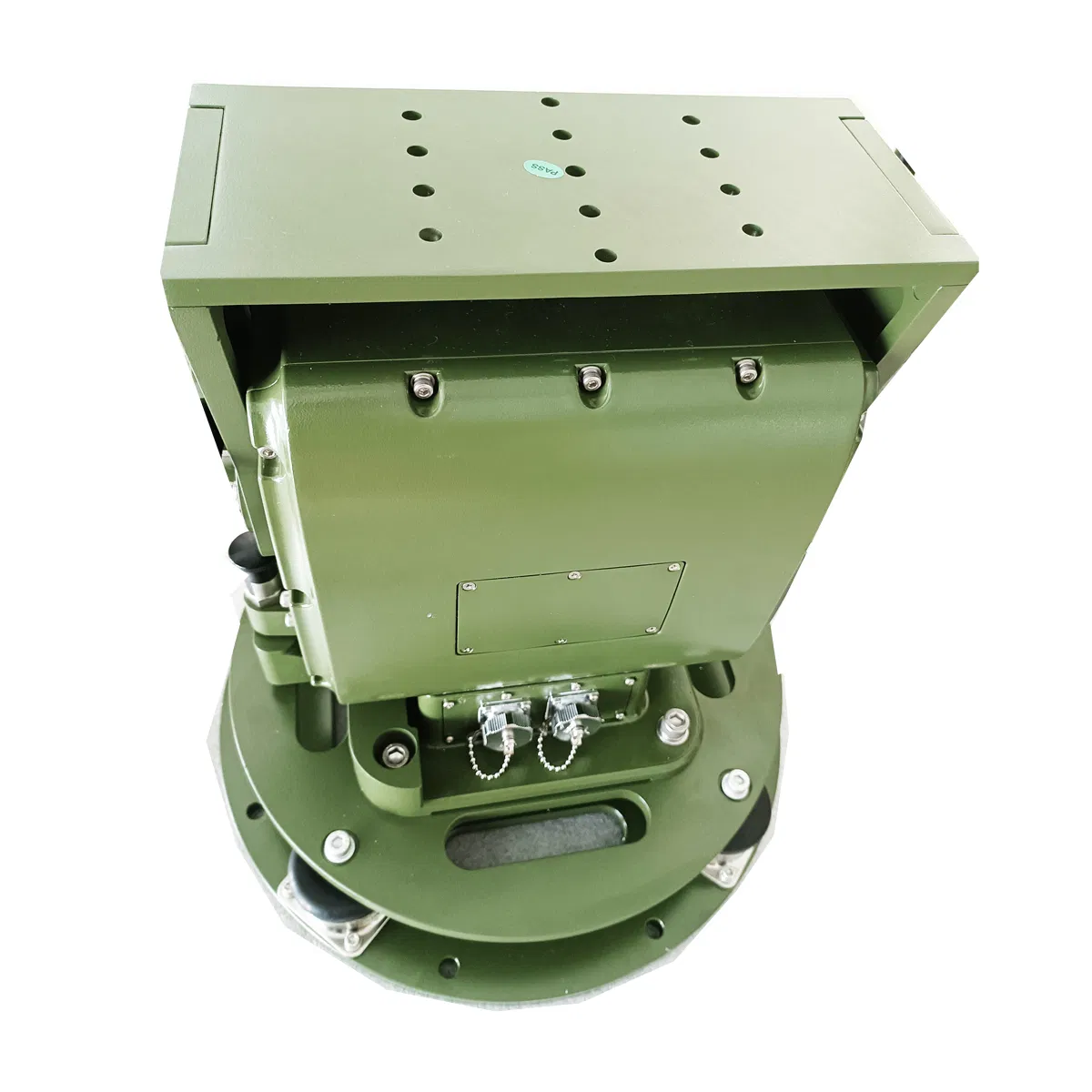

Max Load capacities: 10kg / 15kg / 20kg options available
Support for various Lens preset functions
High-speed pan tilt rotation up to 60º/s
Exceptional resetting accuracy up to ±0.1º
Robust die-cast aluminum alloy material construction
High-precision, high-strength gear-driven with power-off self-locking
Continuous 0º~360º pan angle
IP66 rated protection for outdoor durability
Optional data return for pan tilt position, focal length, and focus
| Parameter | SP5035 | SP5050 |
|---|---|---|
| Pan/tilt Speed | Pan: 0.01º~20º/s, Tilt: 0.01º~10º/s | Pan: 0.01º~12º/s, Tilt: 0.01º~8º/s |
| Rotation Angle | Pan: 0°~360º continuous, Tilt: +45º~-45º | |
| Presets | 200 Positions | |
| Accuracy | ±0.1º | |
| Interface | RS485 / RS422 supporting angle query | |
| Voltage | AC24V±20% / DC28V±20% | |
| Max Load | 35 kg | 50 kg |
| Protection | IP66 | |
Professional wooden or carton packaging is provided to ensure maximum transport safety for all components.

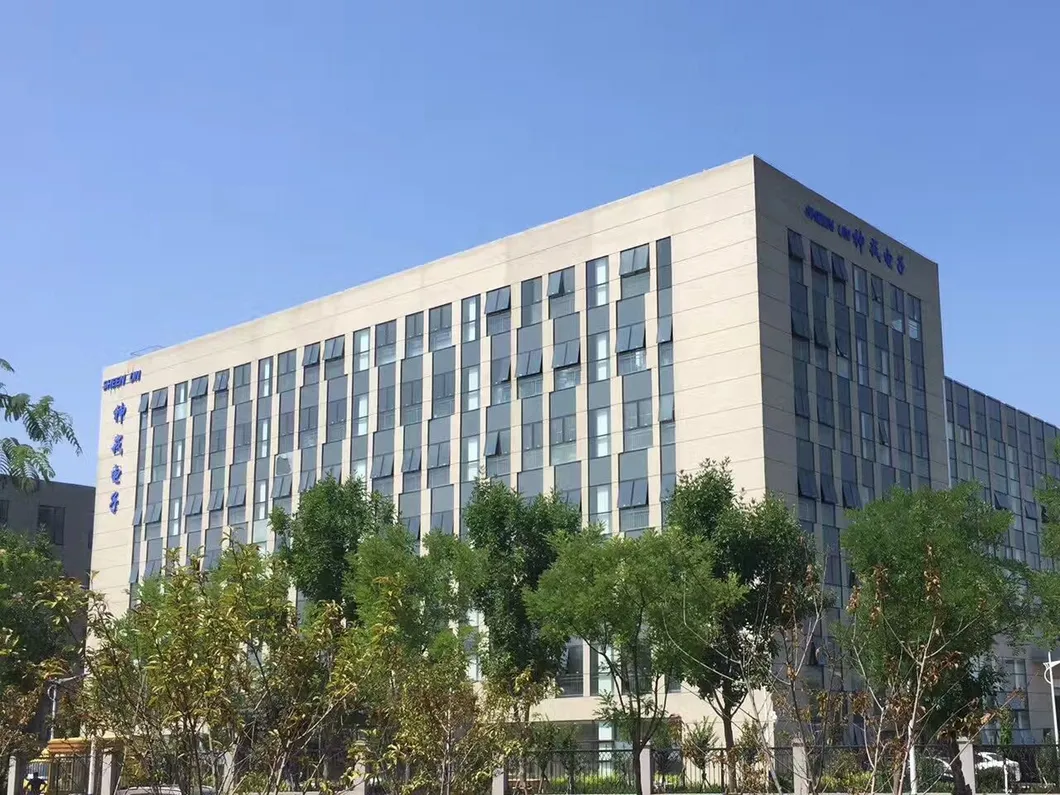

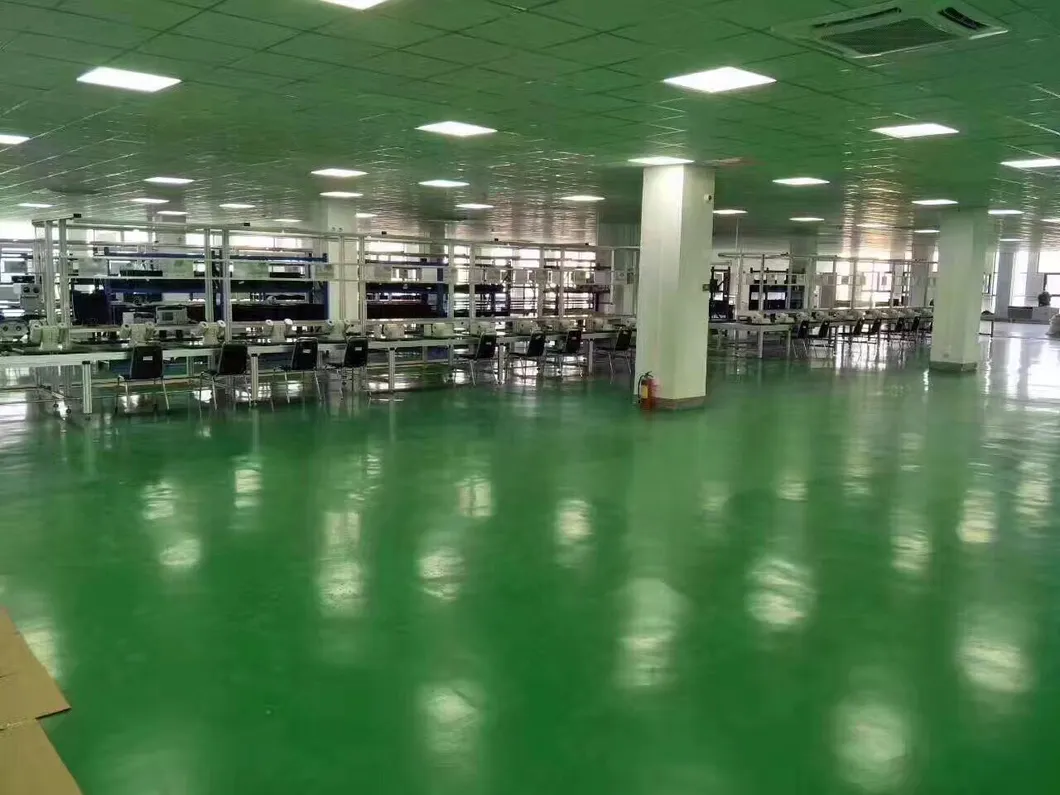

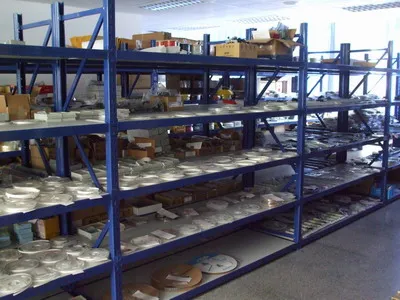

Founded in 2004, the facility is a leading manufacturer of long-range thermal imaging cameras and laser night vision systems. Recognized as a core research center for surveillance technology, the manufacturer emphasizes independent innovation.

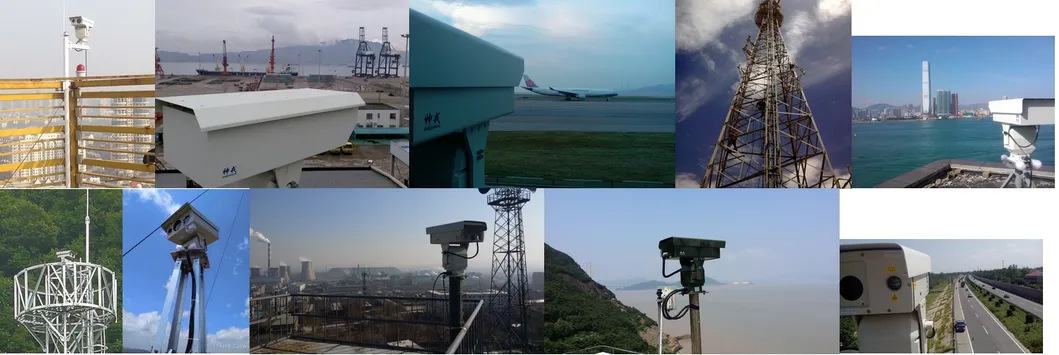

With advanced continuous zoom infrared thermal technology, these products are widely deployed in national defense, safe city initiatives, railways, and industrial fields, providing all-weather surveillance and technical support for large-scale security maintenance.
