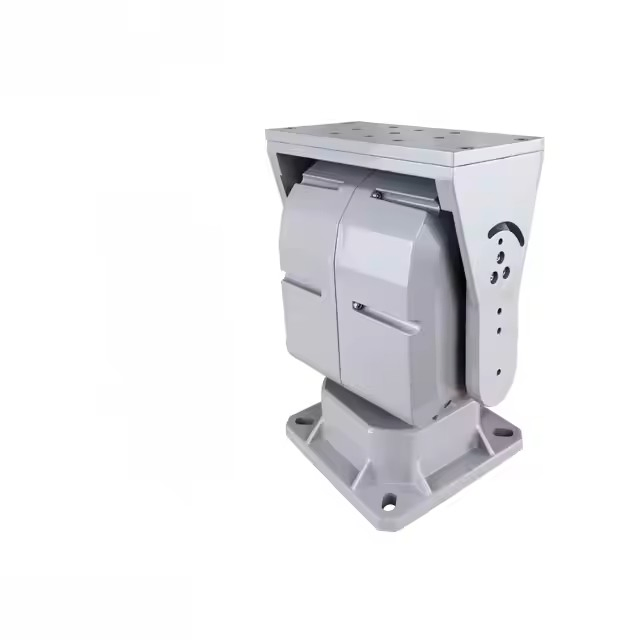

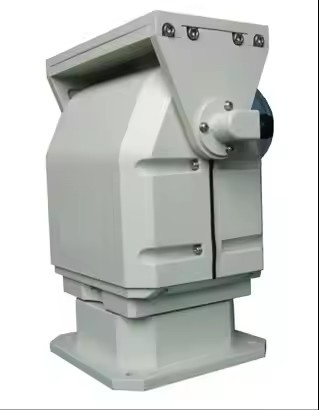

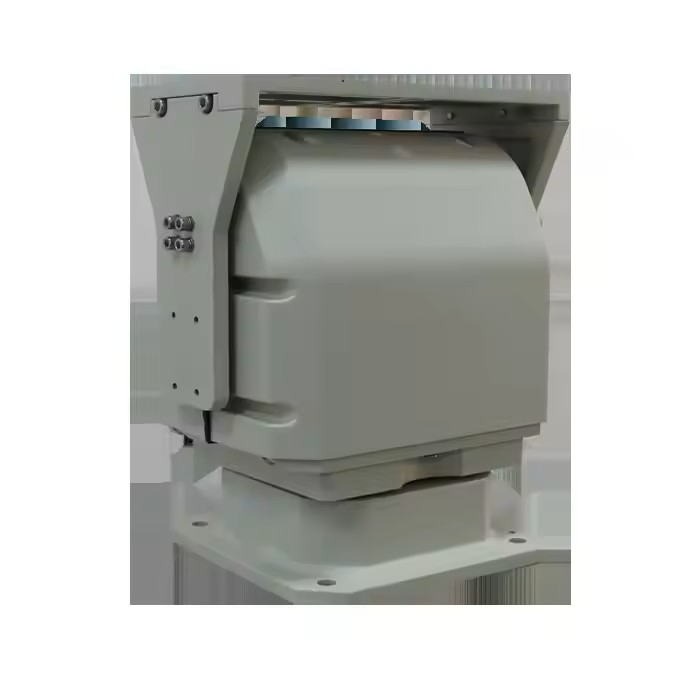

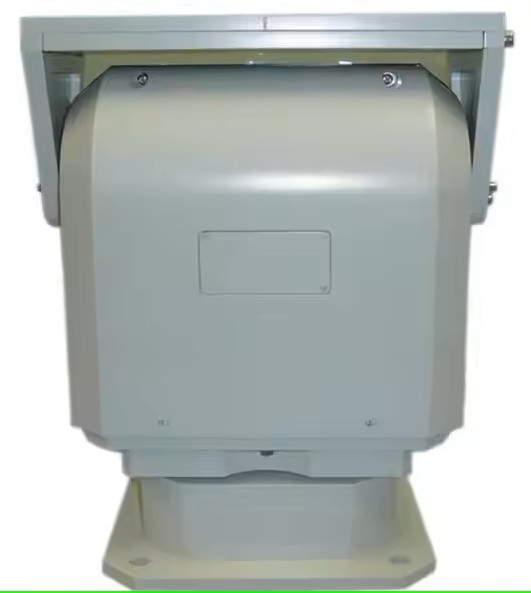

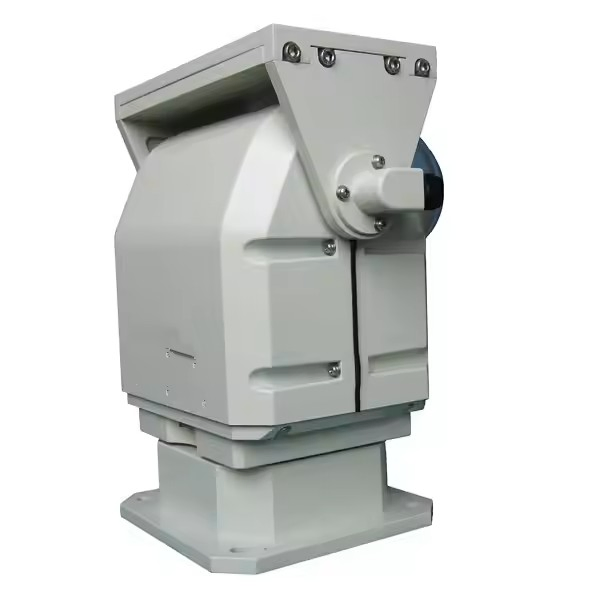

Intelligent High-Speed Pan-Tilt Unit Mg-2520, Fully Weatherproof

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Specifications

Model No.

SHR-HNIR104Y

Type

IP Camera / PTZ Camera

Sensor

CMOS (1/3 inch)

Resolution

1080P (640X512 Thermal)

Lens

Autofocus (16.7-1000mm)

Detection Distance

Human: 13km, Vehicle: 19km

Spectral Range

3-5um (Cooled Focal Plane Array)

Protection

IP66 Waterproof / Vandal-proof

Package Size

105cm * 60cm * 50cm

Gross Weight

40.00kg

Product Description

Long Range Harbor Security Camera: High-performance Cooled Thermal Zoom Imaging system equipped with Laser Range Finder (LRF) for day and night monitoring over 10km-15km.

Three spectral imaging design: visible light, thermal imaging, and laser night vision for comprehensive detection.
Continuous zooming thermal technology for clear imaging and large-area objective recognition.
High temperature sensitivity infrared detector with 50mK resolution.
Synchronous laser illuminating system for monitoring in complete darkness (0 Lux).
MCIC multi-tube core fusion technology for light homogenization without speckles or dark rings.
Supports fog penetration, backlight compensation, and multistage wide dynamic range.
3D locating function with frame selection magnifying and center-click features.
Anti-corrosion, acid rain proof, and high-temperature resistant professional shell.

Technical Parameters

Category		Details
Operating Distance	Night Vision	3000m
Operating Distance	Day Vision	3000m
Thermal Imaging	Detection	Human (5040m)	Vehicle (5040m)
	Recognition	Human (5040m)	Vehicle (5040m)
	Identification	Human (5040m)	Vehicle (5040m)
HD Lens	Focal Length	12.5~750mm (Auto Iris/Focus)
Camera	Sensor	1/1.8" Progressive Scan CMOS, H.264/H.265
Illuminator	Laser	810nm, 15W, 0.3°~30° continuous change
Pan-Tilt	Rotation	Horizontal 360° continuous, Pitching: -45°~+45°
Environment	Working Temp	-25ºC to +55ºC (IP66 Grade)

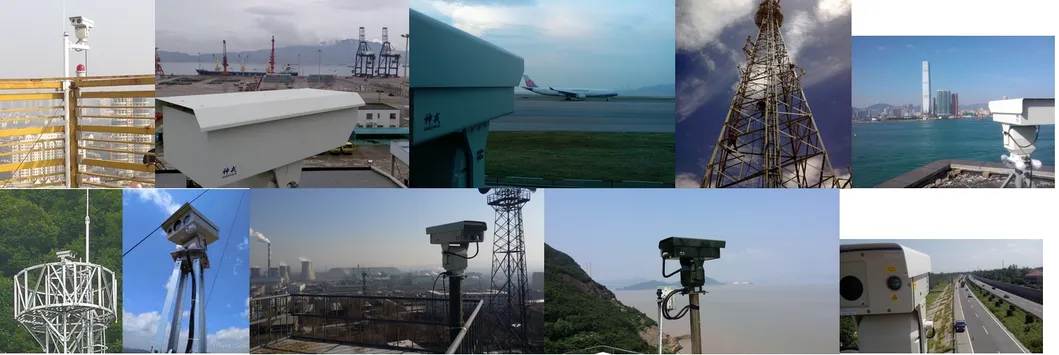

Applications

UAV detection and tracking, border defense, safe city monitoring, forest fire-proof monitoring, high altitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring, etc.

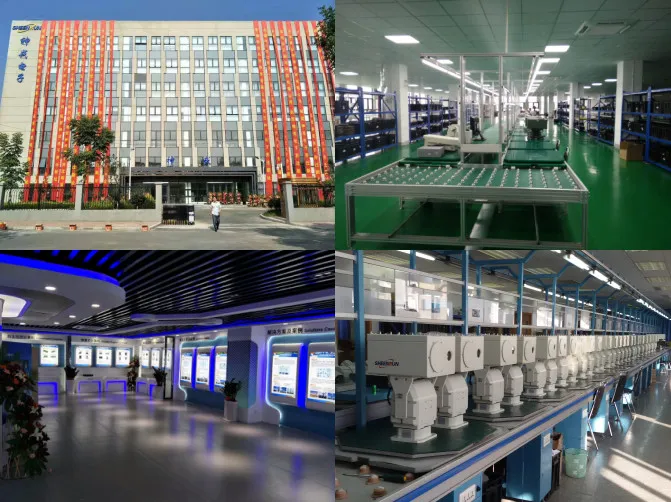

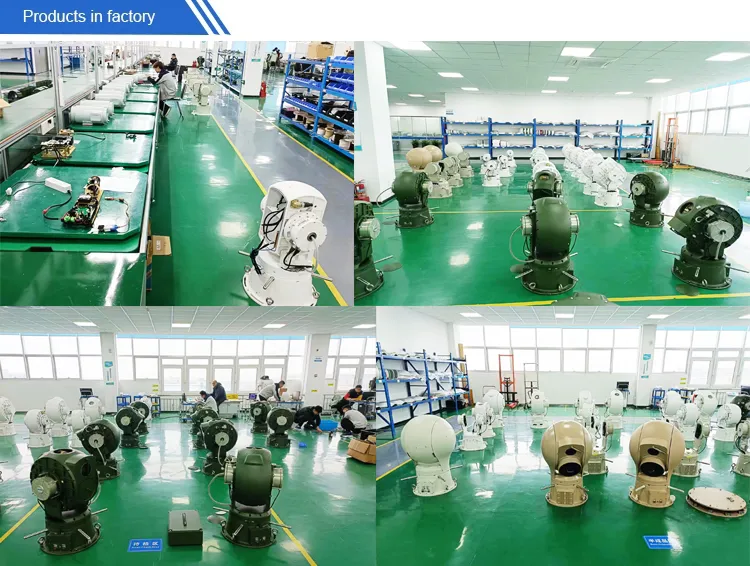

Manufacturing Facility & Quality Control

As a leading supplier of night vision and rugged information equipment, our facility specializes in independent innovation. We developed advanced laser night vision and uncooled continuous zoom thermal imaging technology. Our products are widely used in national defense, infrastructure, and public safety across more than 40 countries.

Frequently Asked Questions

What is the maximum detection distance of this camera?

The camera can detect humans at a distance of up to 13km and vehicles at a distance of up to 19km, depending on environmental conditions.

Does this system support monitoring in complete darkness?

Yes, it utilizes a synchronous zooming laser illuminating system and thermal imaging to provide clear monitoring even in 0 Lux conditions.

Is the device suitable for marine or harsh environments?

Absolutely. The camera features an IP66 protection grade with an anti-corrosion and anti-acid rain shell, making it ideal for harbor and coastal monitoring.

Can the thermal imaging camera focus automatically?

Yes, the system supports electronic zoom, electronic focus, and auto-focus functions for both the HD camera and the thermal lens.

What power supply is required for the system?

The system operates on a DC 30V power supply and comes with a waterproof AC90V~305V to DC30V power adapter.

What is the minimum order quantity (MOQ)?

The minimum order quantity for this professional long-range surveillance system is 1 unit.
