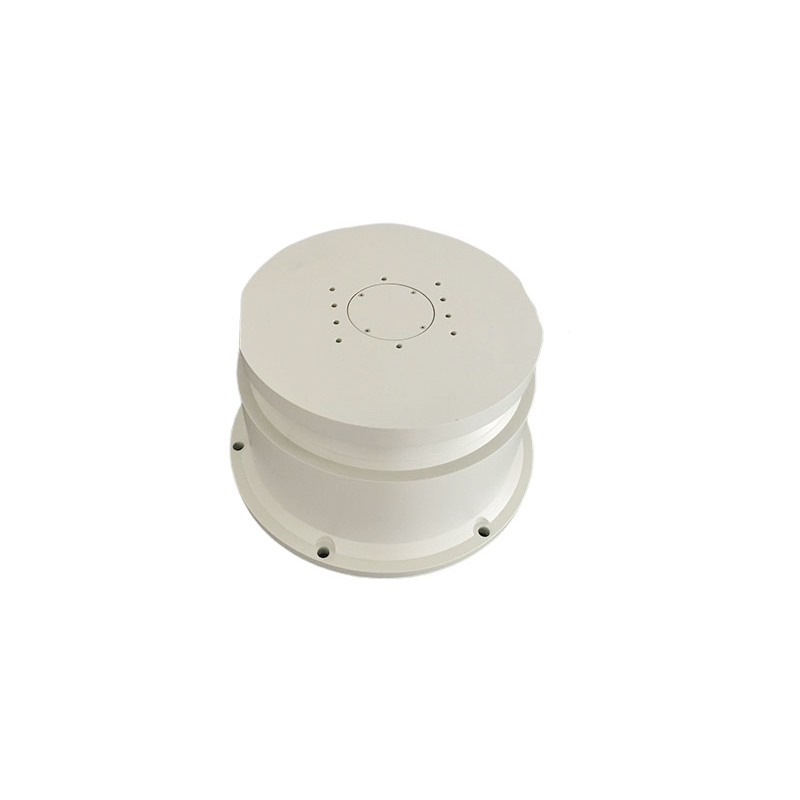

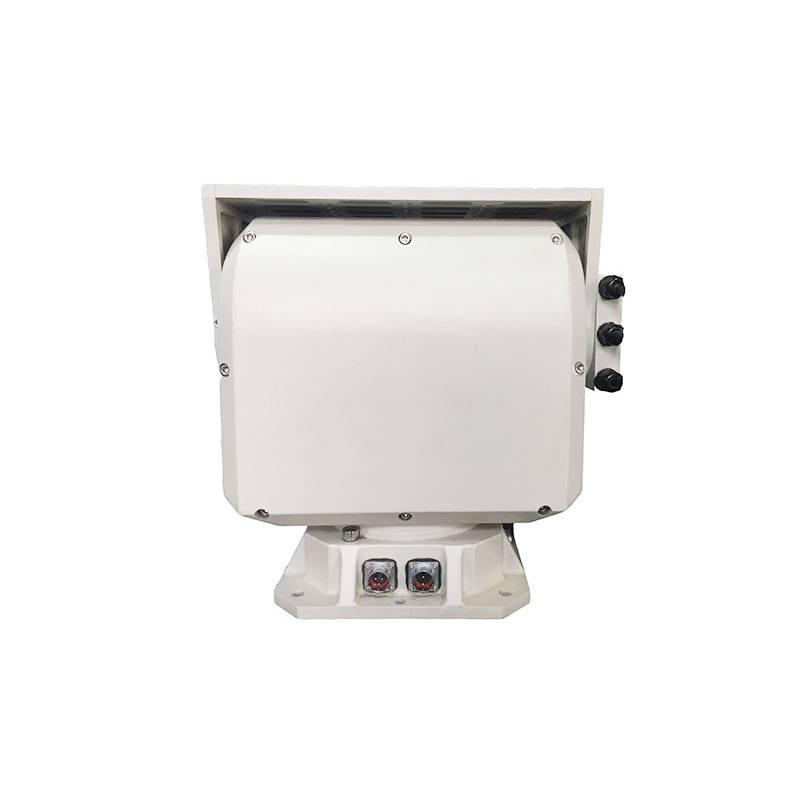

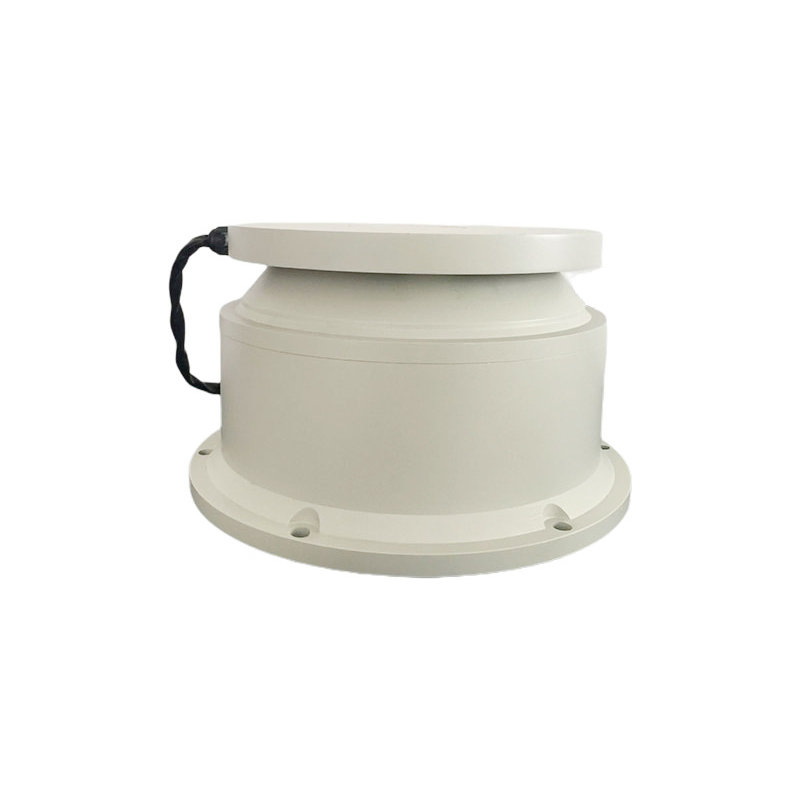

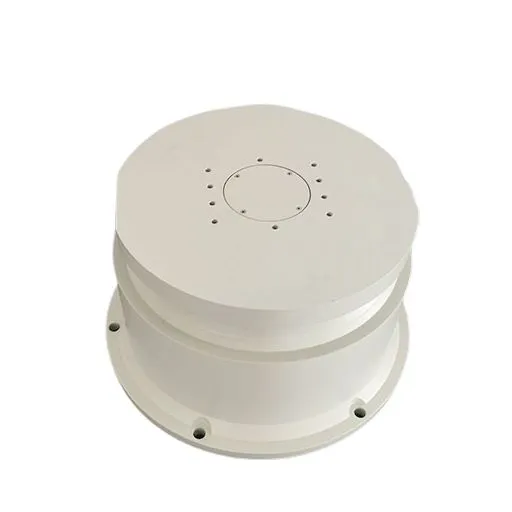

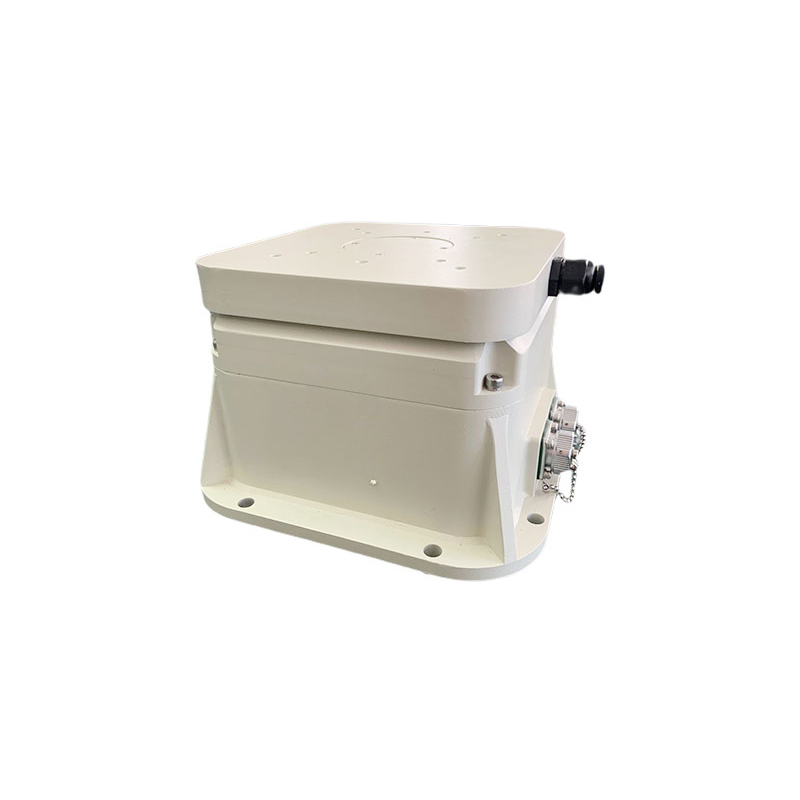

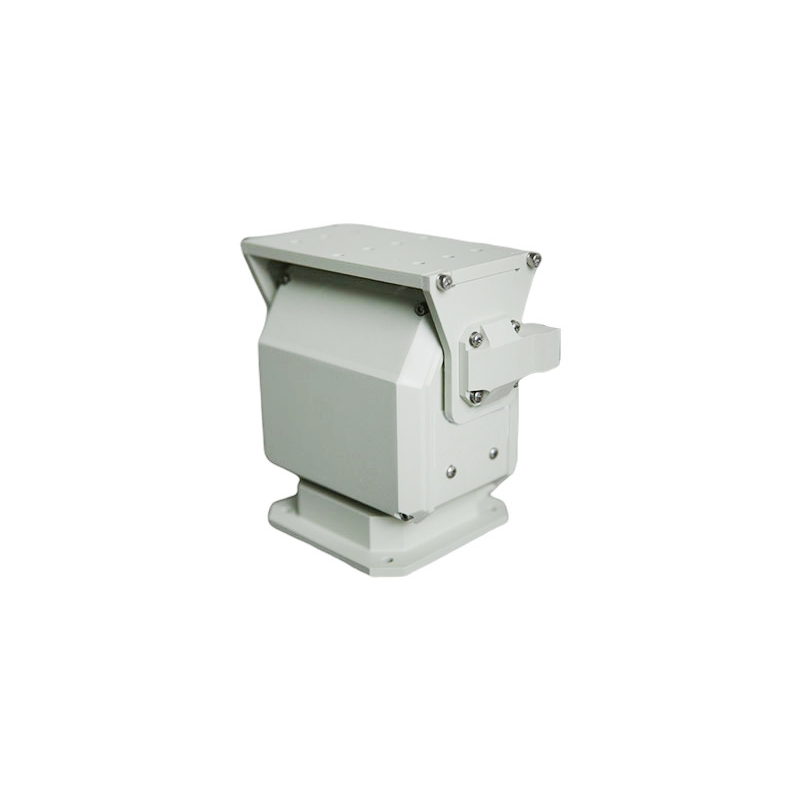

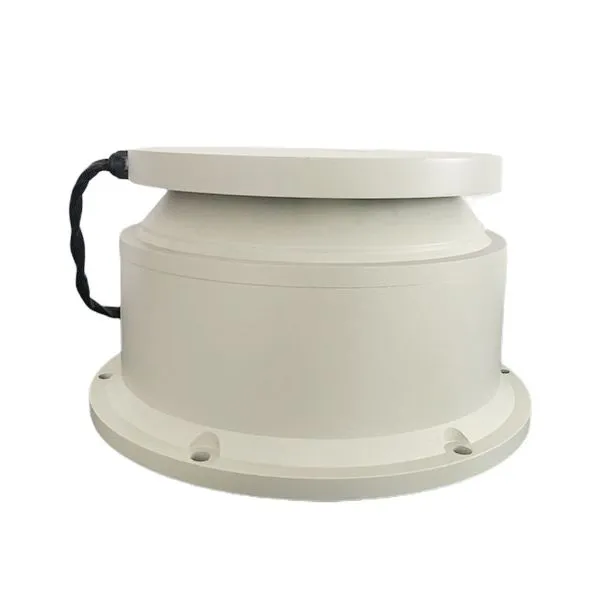

60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt

Send Inquiry

Product Description

Model NO.

CQ-TH50

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

650tvl

Kind

Manual Focus Lens

Certification

CE, FCC

Feature

Waterproof / Weatherproof, High Definition

Effective Distance

≧30m

Sensor Size

1/3 inch

Angle of Rotation

360 Degree

Load

60kg

Protection

IP66

High repetitive positioning accuracy up to ±0.1°
Built-in incremental encoder for closed-loop control
Shell made of high-strength aluminum alloy die-casting material
Worm gear transmission with power failure self-locking function
Optional network-specific slip rings for 100 or 1 Gigabit network transmission
Serial server can be built-in to realize network control
Supports information feedback: PT orientation, camera focal length, and focus values
Variety of lens preset position adaptive functions

Rotation Speed	Horizontal 0.01° to 30°/S
Angle of Rotation	Horizontal 0~360° continuous rotation
Preset Position	200 (expandable)
Repeat Positioning Accuracy	±0.1°
Angular Resolution	0.01°
Position Return	Supported
Auxiliary Switch	2 Groups, Passive, Normally Open
Automatic Homing	Auto-return time settable from 1 to 60 minutes
Communication Interface	RS485 (RS422 / RS232 / RJ45 optional)
Input Power Range	AC / DC24V optional
Operating Temperature	-25°C to +55°C, 90% ± 3%
Max Load	≥60Kg
Protection Class	IP66
MTBF	≥5000h
