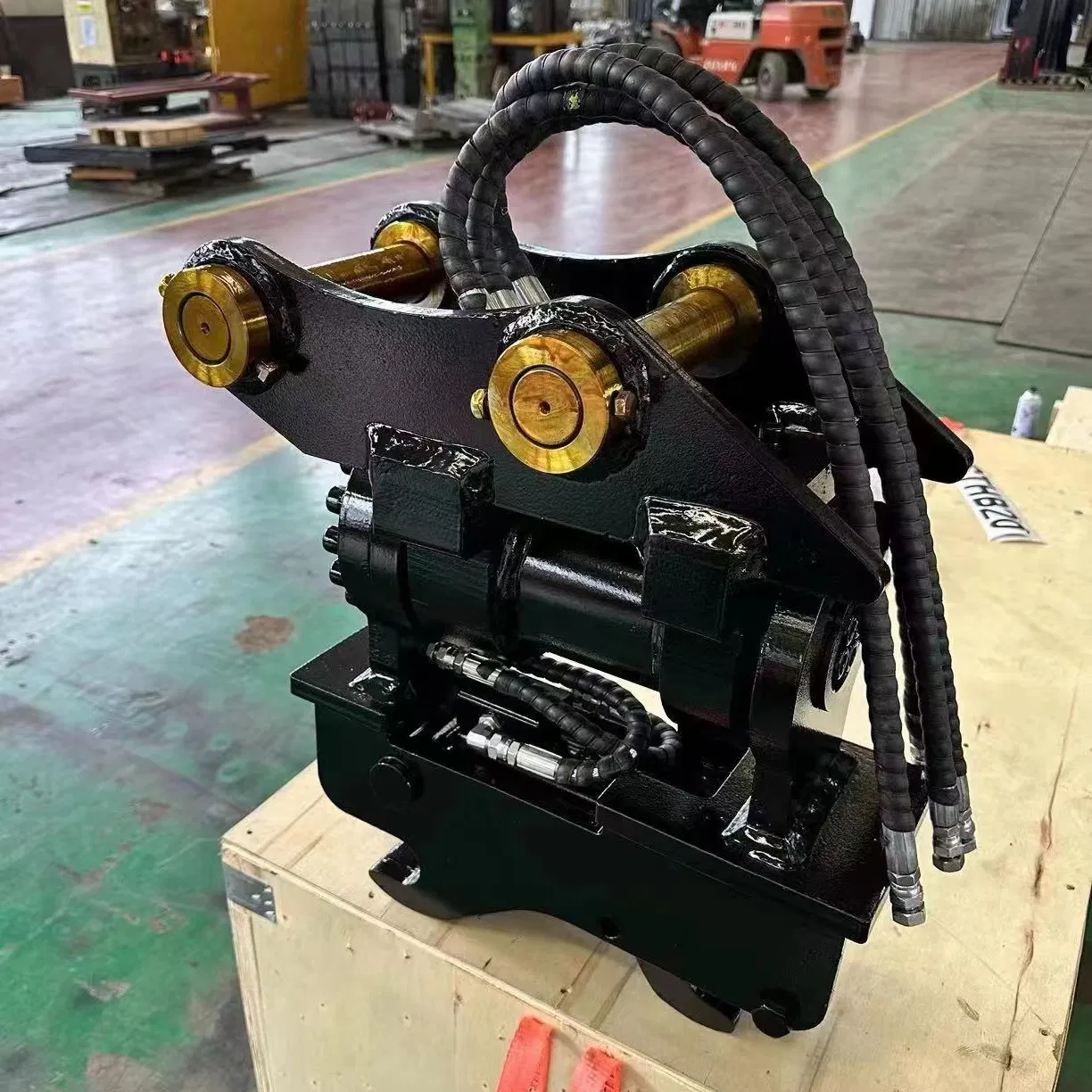

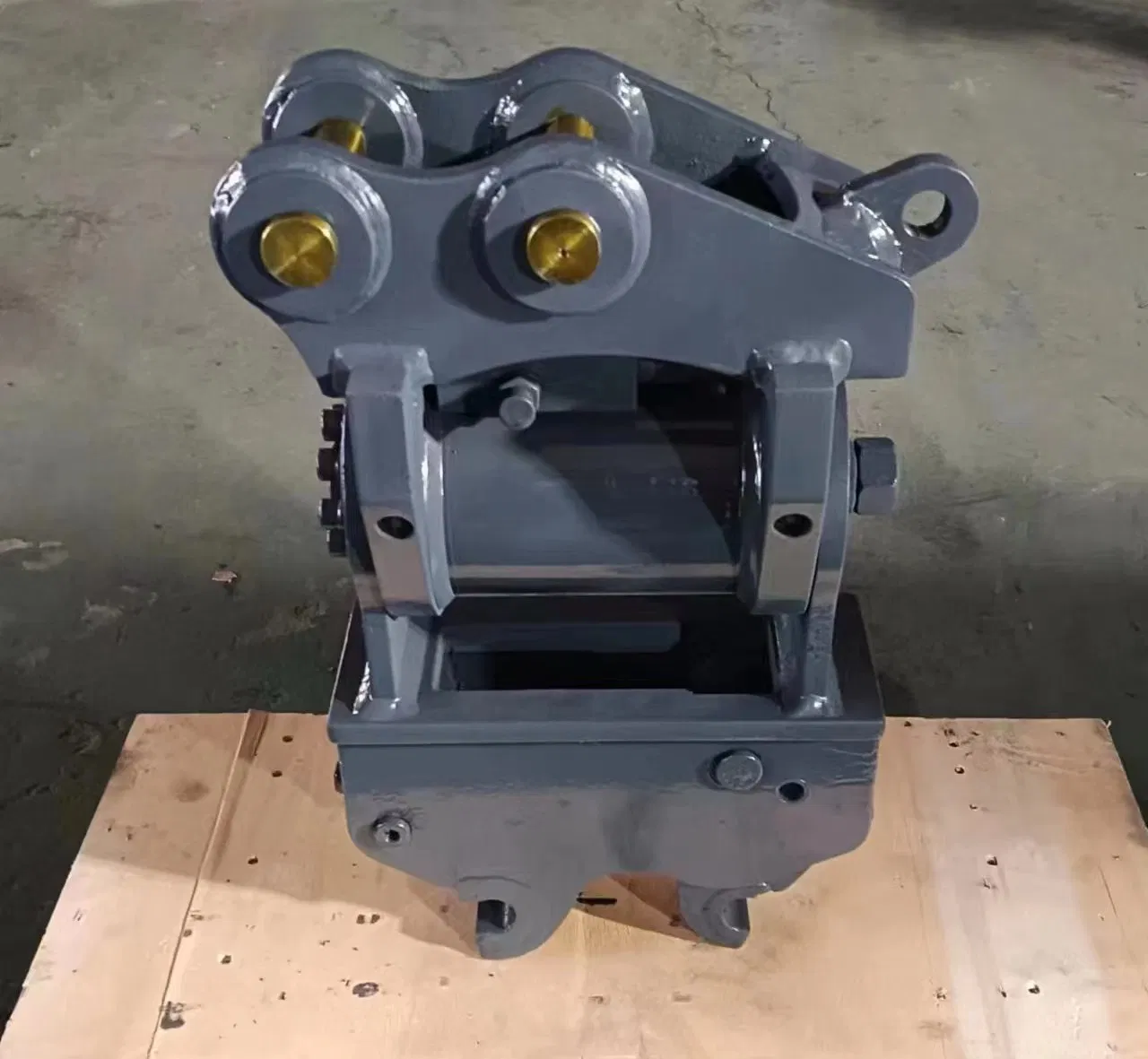

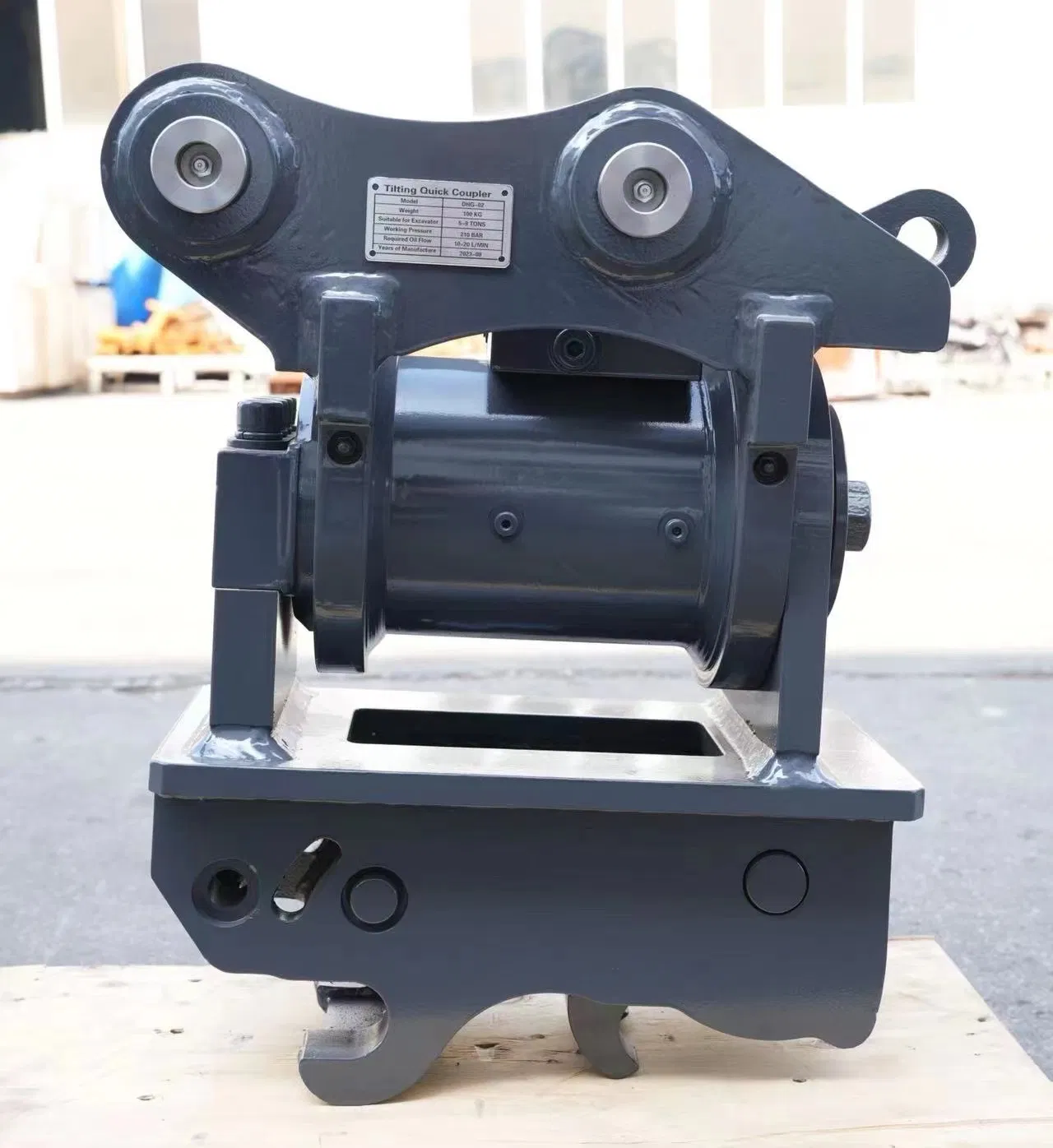

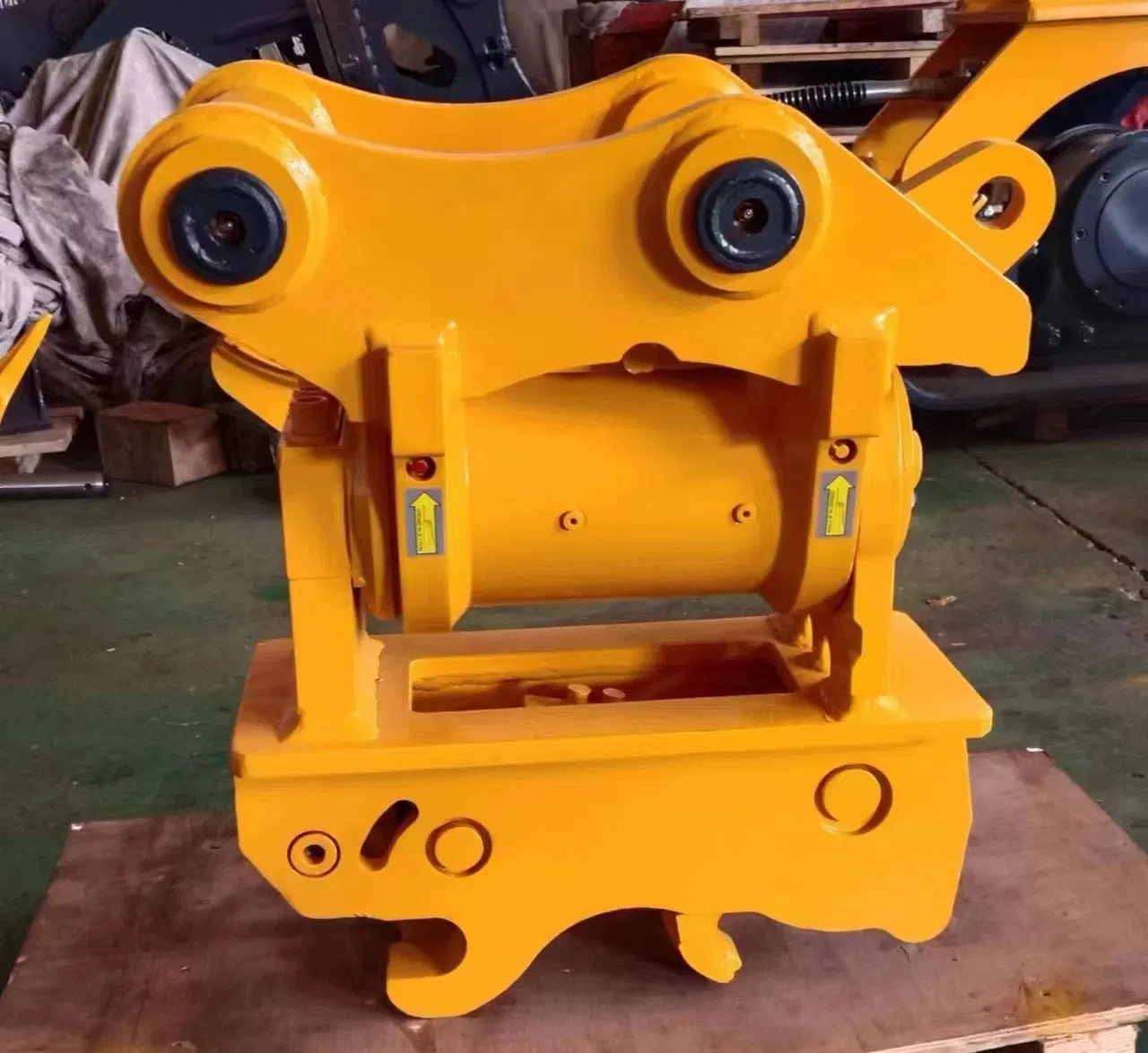

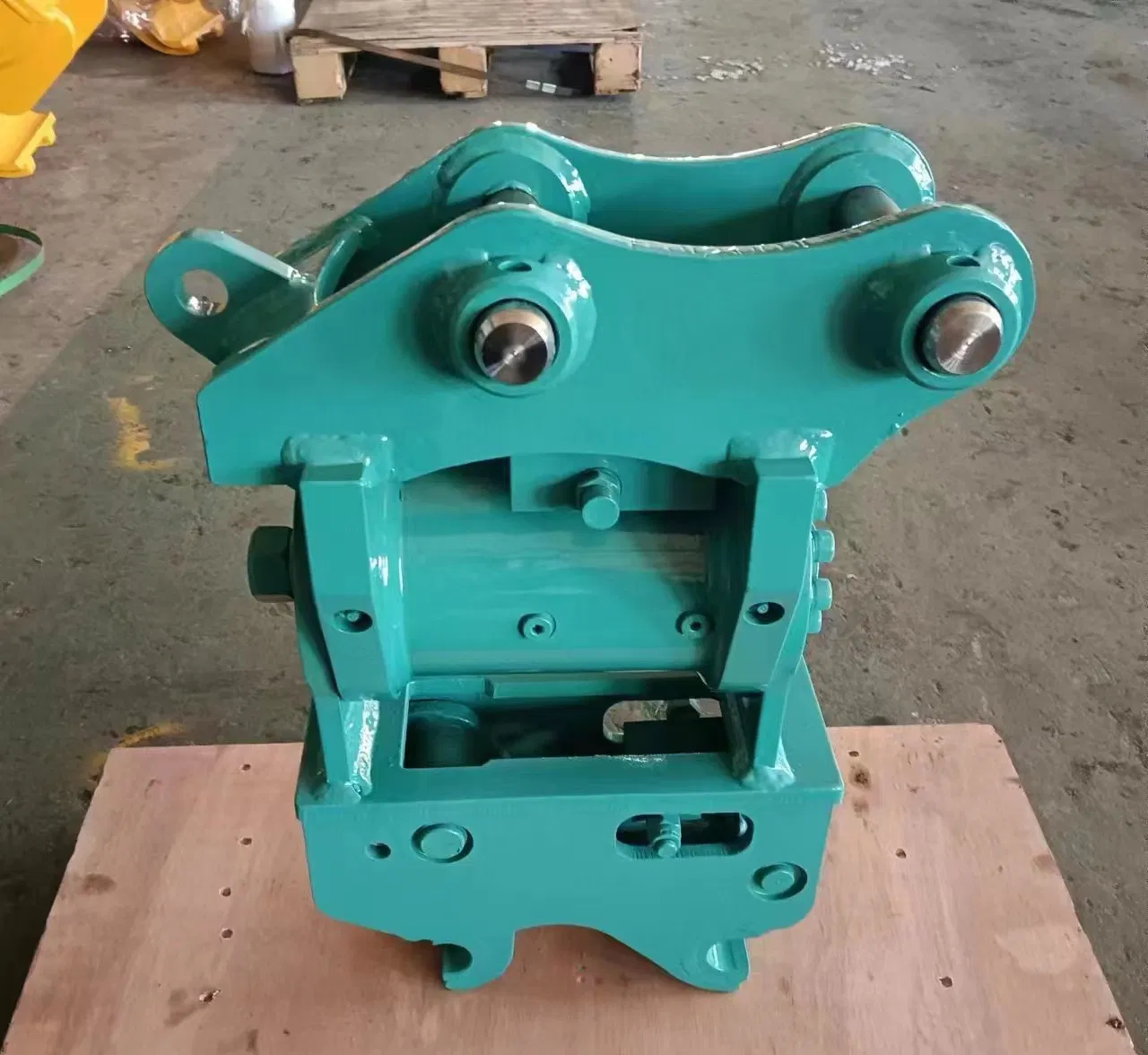

Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
1 / 5
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect
Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect

Essential Accessories for Excavators Suitable for Multi-Angle Conversion Hydraulic Tilt Quick Connect

Customization: Available
After-sales Service: Online Support Available
Warranty: 12-Month Warranty
Send Inquiry

Product Description

1

Basic Specifications

Model NO.
ZSPMINI
Type
All Excavator
Usage
Special Excavator, Marine, Mining
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000, Epr
Main Material
Q355b
Seal Brand
NOK
Suitable Ton
4-6 Tons
Packaging & Delivery
Package Size
69.00cm * 37.00cm * 100.00cm
Gross Weight
100.000kg
2

Product Description

Hydraulic Tilt Quick Connect
An essential accessory for excavators, the quick connector (quick change) allows for rapid switching between various attachments like buckets, rippers, breakers, and hydraulic shears. It improves efficiency, reduces labor intensity, and achieves multi-functionality with a single machine.

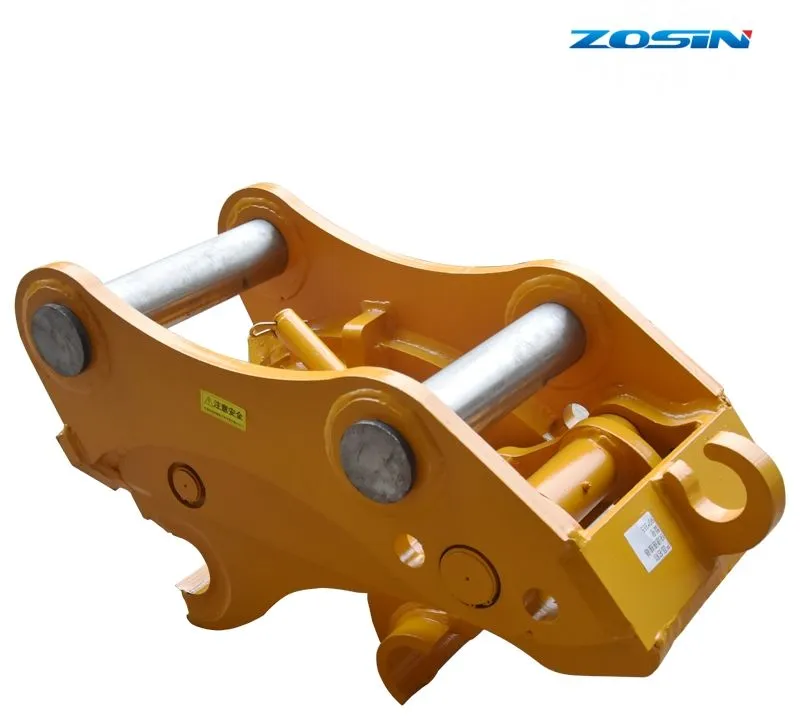

Hydraulic Features
Core Features
  • Integrated safety pin ensures operation even if the cylinder fails.
  • Hydraulically controlled one-way valve for oil circuit safety.
  • Eco-friendly paint: Epoxy ester primer and polyurethane topcoat.
  • High-strength manganese steel construction for durability.
Technical Components
  • Pin Shaft: Made of high-quality alloy steel 40Cr with quenching process.
  • Operation: Cab-controlled electric switch for easy disassembly.
  • Cylinder: Equipped with premium NOK sealing kits to prevent leakage.

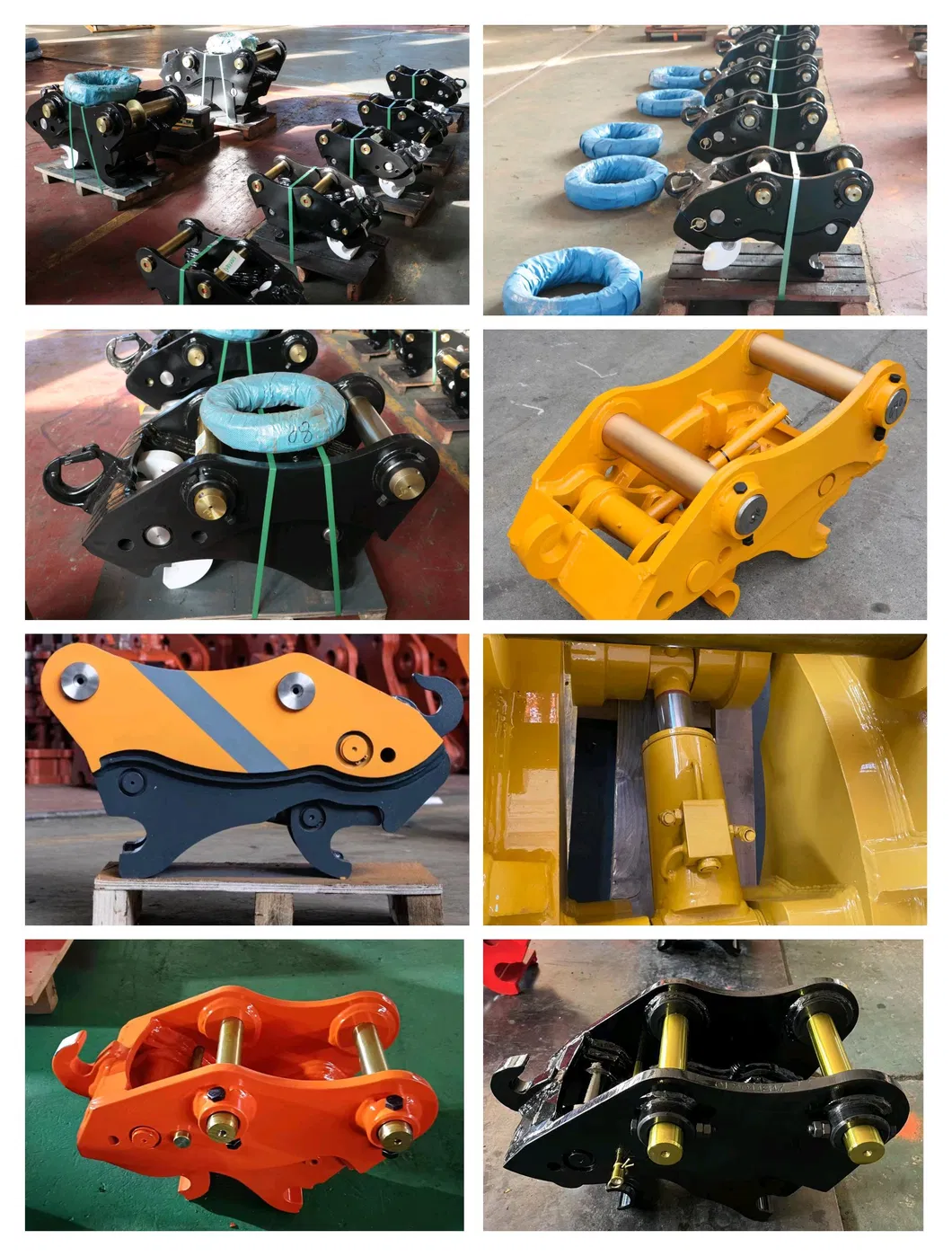

Technical Design
Types of Quick Couplers

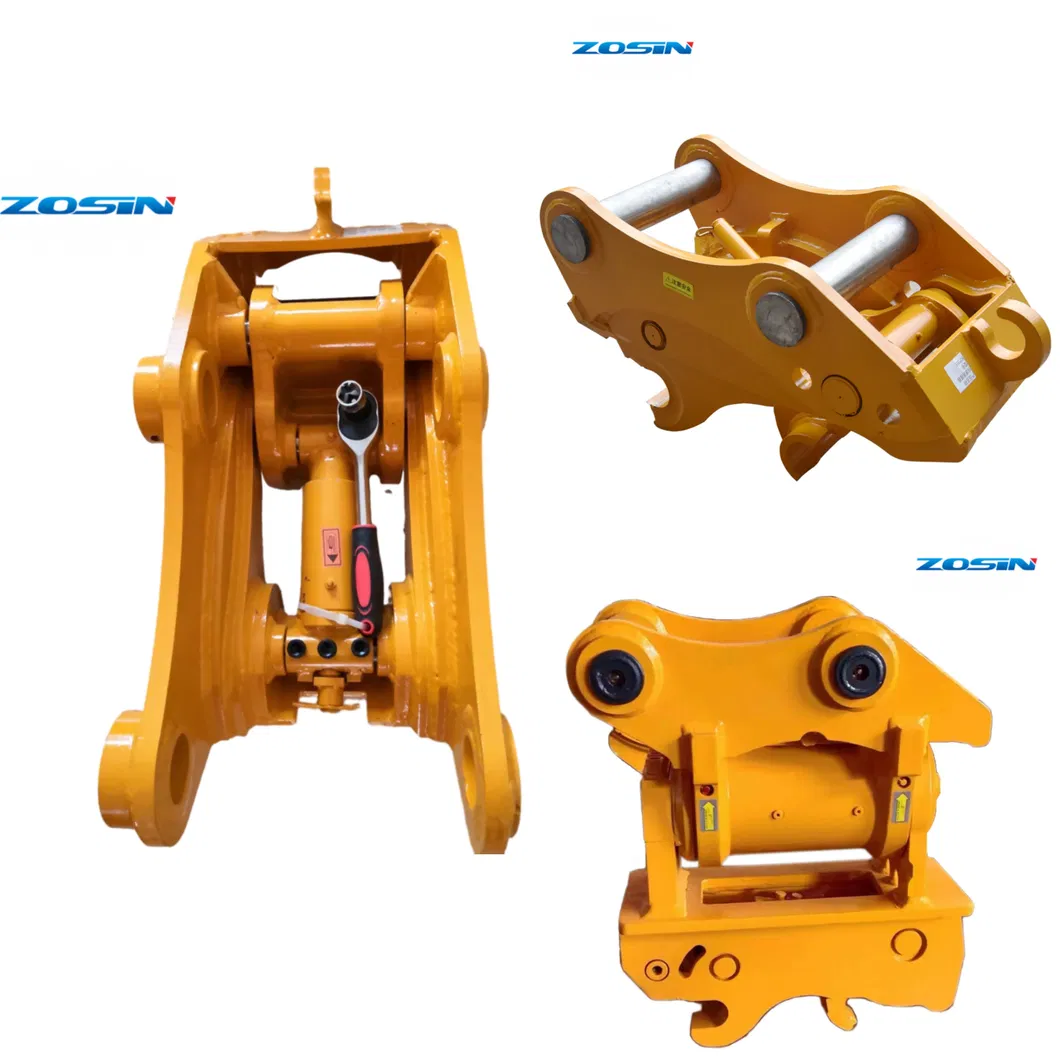

Quick Coupler Types

1. Mechanical: Equipped with a mechanical wrench, suitable for under 15 tons.

2. Hydraulic: Simple operation controlled directly from the cab.

3. Tilt: 90-degree tilt capability for complex working angles.

3

Model Specifications

Model Unit MINI ZSP02 ZSP04 ZSP06 ZSP10 ZSP20
Length mm 300-450 550-595 590-630 795-825 980-1060 1050-1250
Weight kg 30-50 70-100 70-100 220-290 500-600 700-1000
Pins Distance mm 33208 225-285 285-360 370-420 470-550 540-600
Pressure bar 40-200 40-200 40-200 40-200 40-200 40-200
Excavator ton 1.5-4 4-6 6-10 10-16 24-32 45-52
4

Related Excavator Attachments

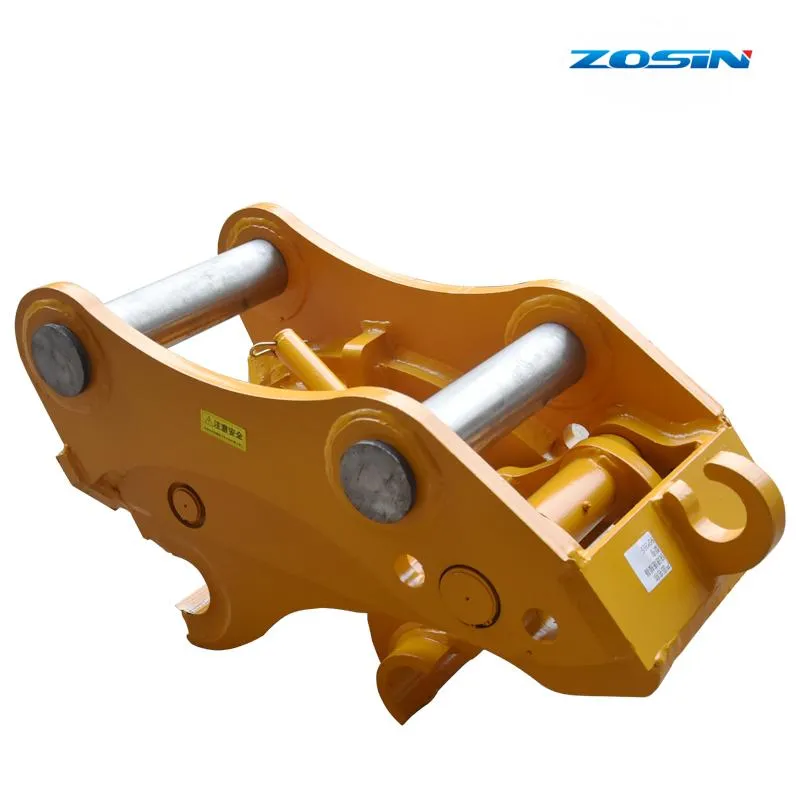

Hydraulic Quick Coupler

Hydraulic Coupler

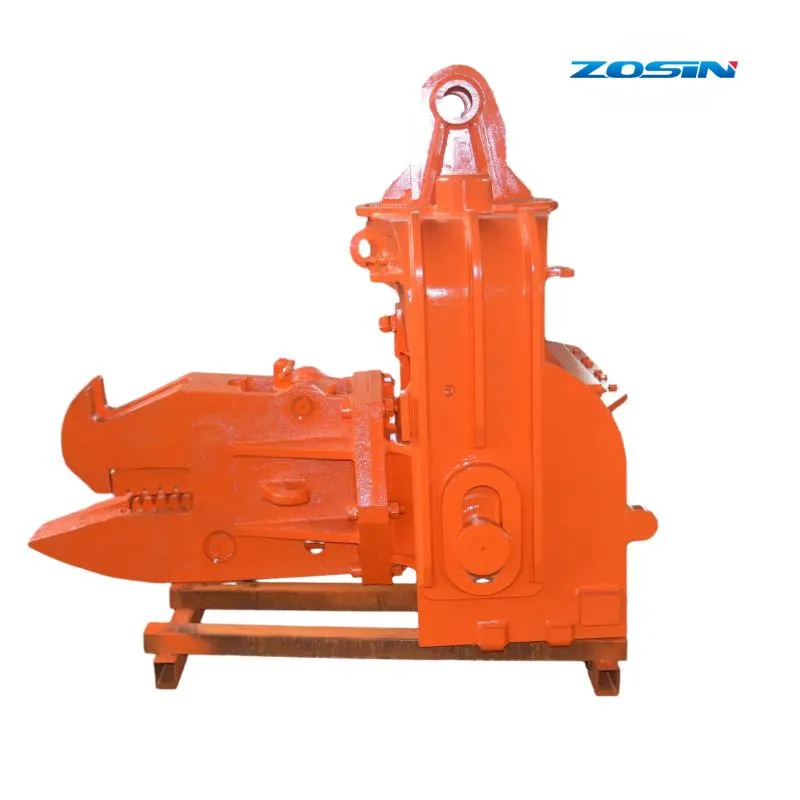

Pile Hammer

Pile Hammer

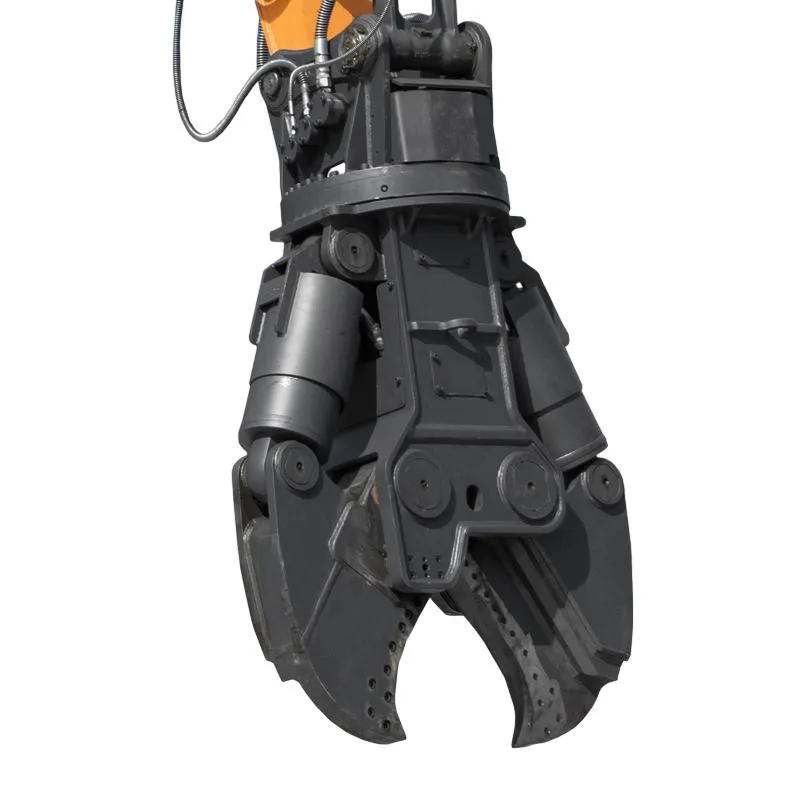

Metal Scraps Shear

Metal Shear

5

Why Choose Our Attachments

18+ Years Experience: Decades of production expertise in breaker hammers and couplers ensures product stability.
Large Scale Factory: Over 20,000 sqm facility integrating automated production and assembly workshops.
Full Customization: We support custom colors, logos, and materials based on specific dealer requirements.

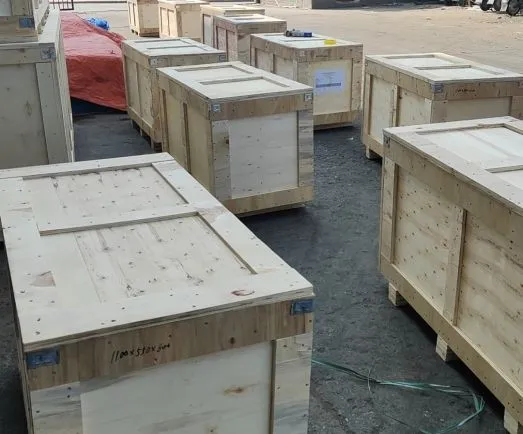

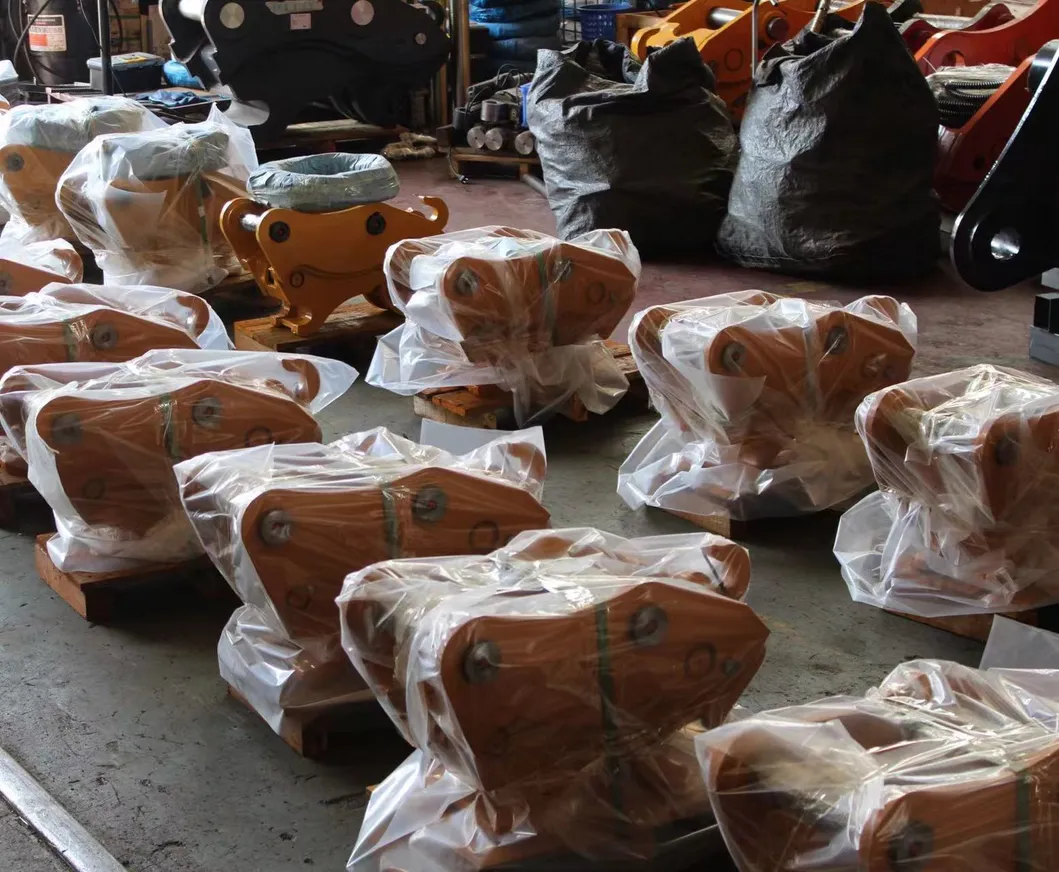

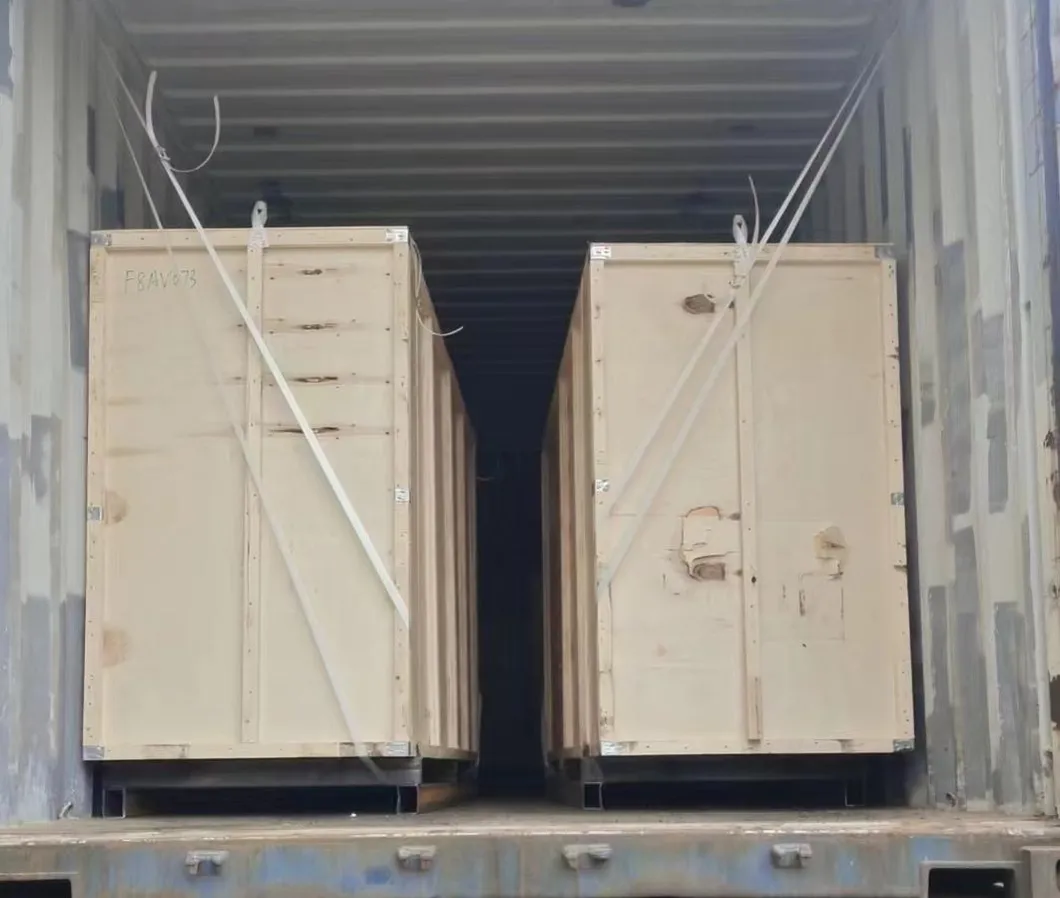

Factory Overview Production Line Shipment
?

Frequently Asked Questions

What is the standard delivery time?
Delivery typically takes 1-7 working days after order confirmation, depending on stock and customization needs.
Which payment methods do you accept?
We accept T/T, L/C, and Western Union. Trade Assurance is also recommended to protect the buyer's property.
Can you manufacture products based on custom designs?
Yes, we have over 10 years of experience in handling OEM orders and special designs from overseas clients.
How do I know if the coupler fits my excavator?
Simply provide your excavator's model number, and our engineering team will provide the best matching product specifications.
What are your main manufacturing advantages?
Our core strengths include fast delivery times, high-quality material sourcing (like manganese steel), and the latest production technologies.
What kind of packaging is used for international shipping?
We use standard export-grade wooden cases or pallets as per the customer's specific requirements to ensure safe transit.
