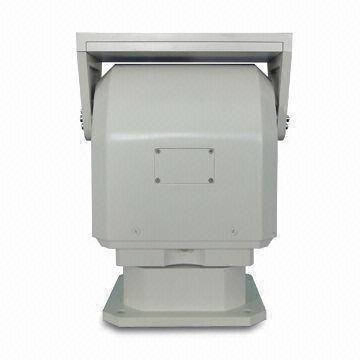

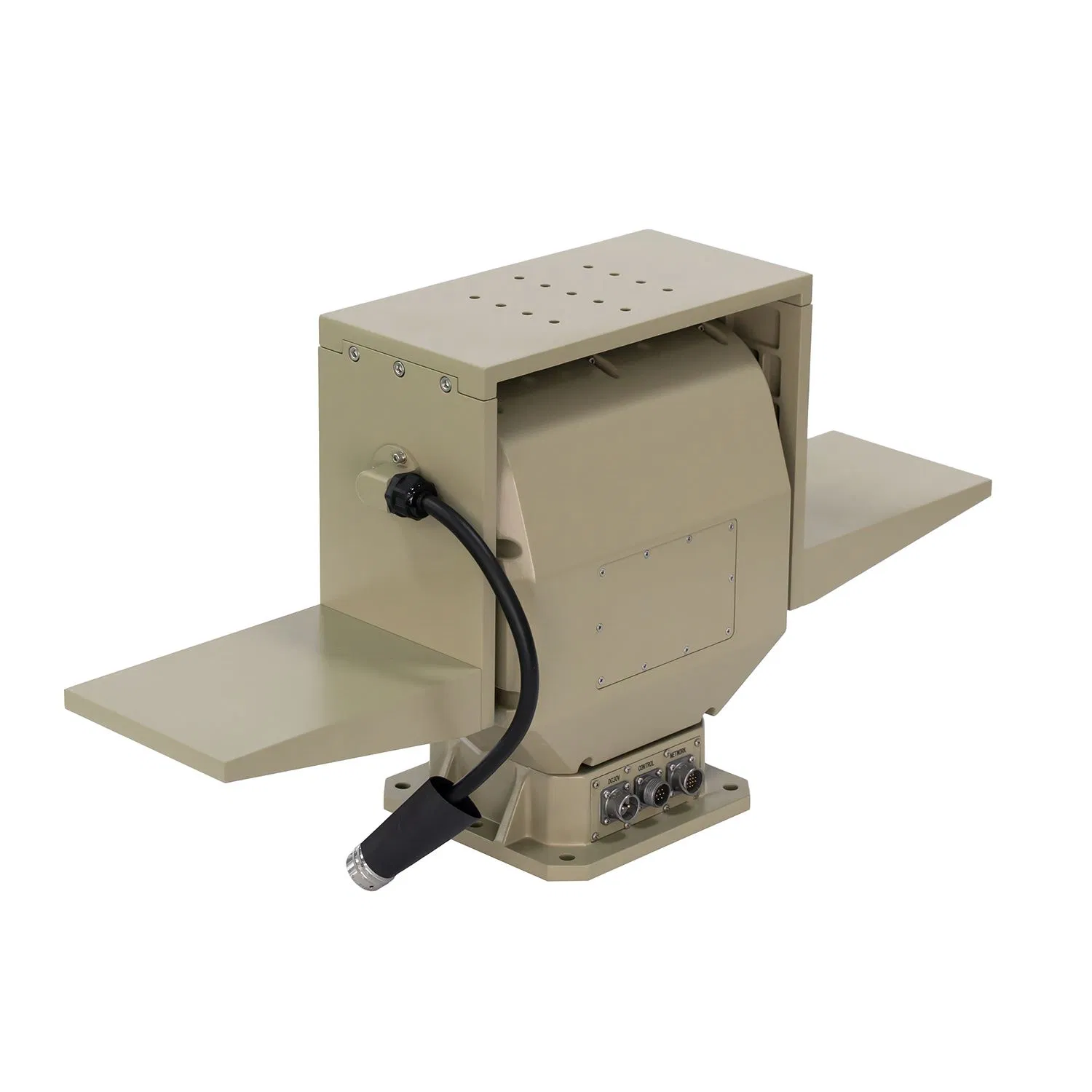

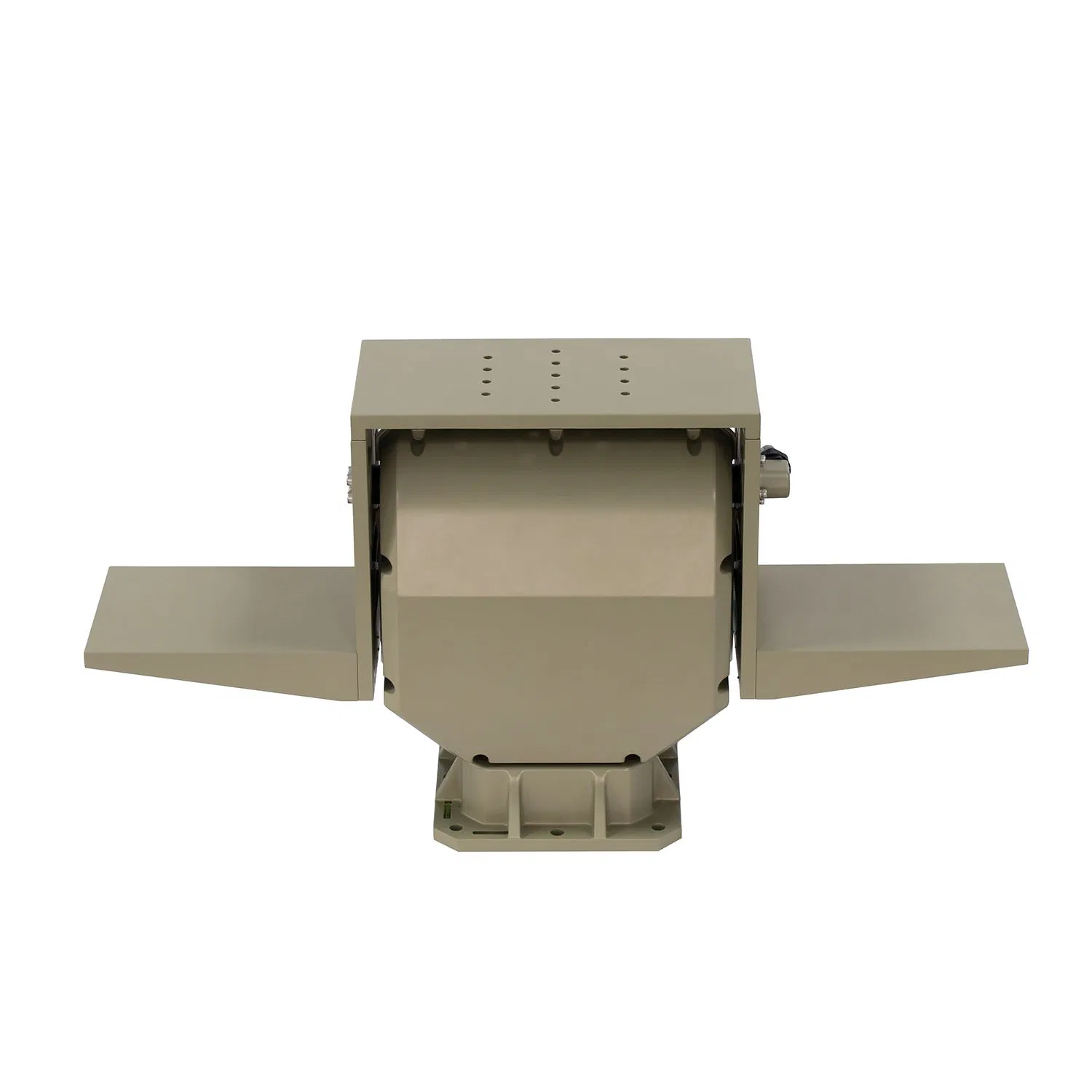

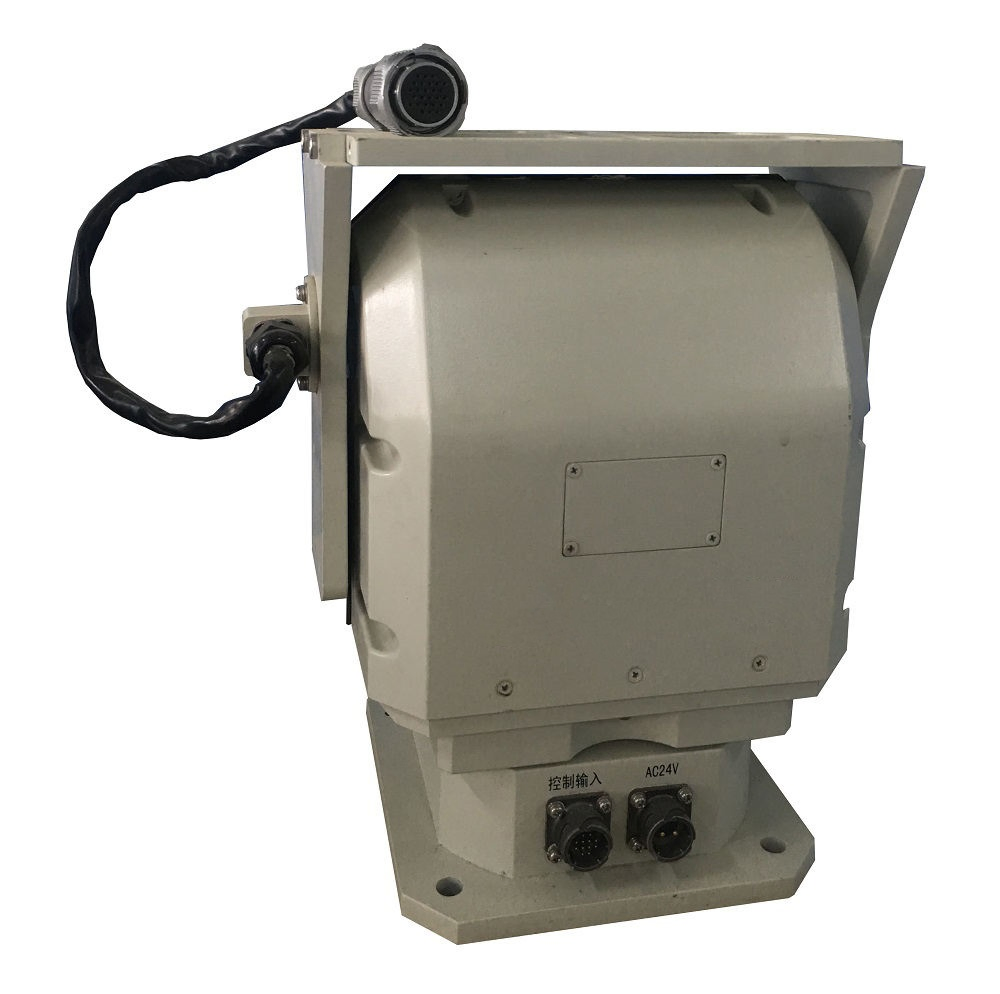

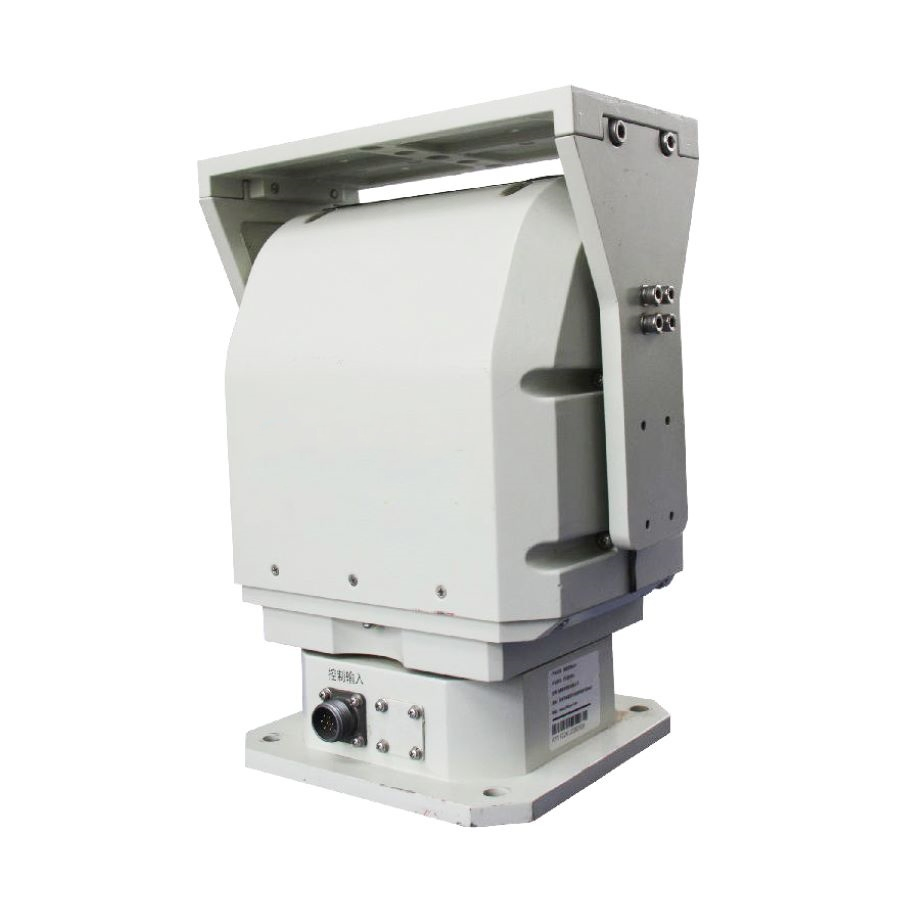

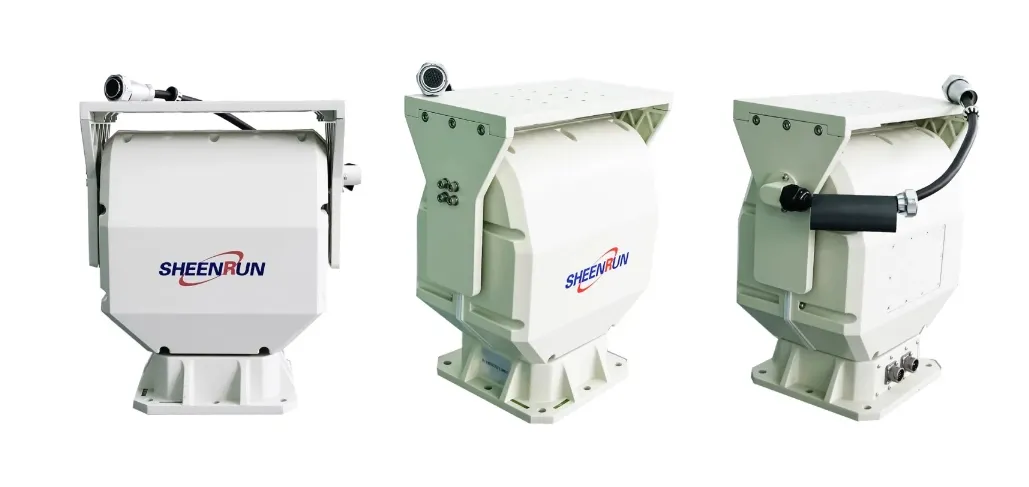

Heavy Max 50kg Payload CCTV Camera Pan Tilt for Rotation

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Product Overview

Model NO.

SP50

Sensor

CMOS

Certification

CE, FCC, ISO9001: 2000

Feature

Waterproof, High Definition, Vandal-proof

Tilt Angle

+45° ~ -45°

Protocol

Pelco-D/P

Protection

IP66

Max Load

50kg

Pan Tilt Speed

Up to 60°/S

Power

Less than 80W

Product Description

Key Features:

Max Load Capacity: 35kg / 50kg
Communication: Support RS485 (RS422 or RS232 optional)
Smart Lens: Supports various lens presets with self-adaptive function
High Precision: Resetting accuracy up to ±0.1º
Durable Build: Adopt die-cast aluminum alloy material
Mechanical: High-precision steel worm-gear driven, self-locked when powered off
Rotation: 0 ~ 360º continuous pan
Environment: IP66 protection class
Control: Support OSD Menu and telemetry data return (position, focal length, focus)

Technical Parameters

Model	SP50
Pan/tilt Speed	Pan: 0.01º~12º/s, Tilt: 0.01º~8º/s
Rotation Angle	Pan: 0°~360º continuous, Tilt: +45º~-45º
Number of Presets	200
Positioning Accuracy	±0.1º
Auxiliary Switch	2 groups
Auto Cruising	8 tracks (each with 10 presets)
Homing Function	Set up within 1~60 min scope
Input Voltage	AC24V±20% or DC28V±20%
Operating Temp	-25ºC to +65ºC (Optional -40ºC available)
Dimensions	350mm * 206mm * 380mm (LWH)
Weight	23KG

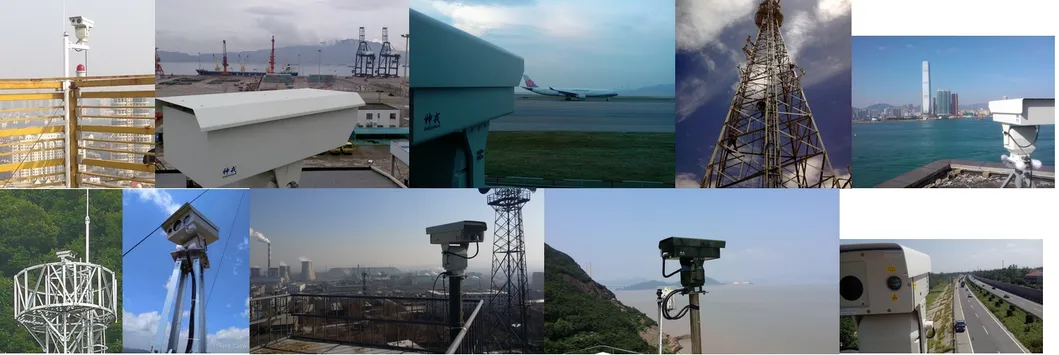

Application

Ideal for workshop monitoring, power station inspection, high-speed railway, road patrol, forest fire prevention, and coastal defense.

Packaging & Shipping

High-quality wooden or carton packaging is utilized to ensure safety during international transit.

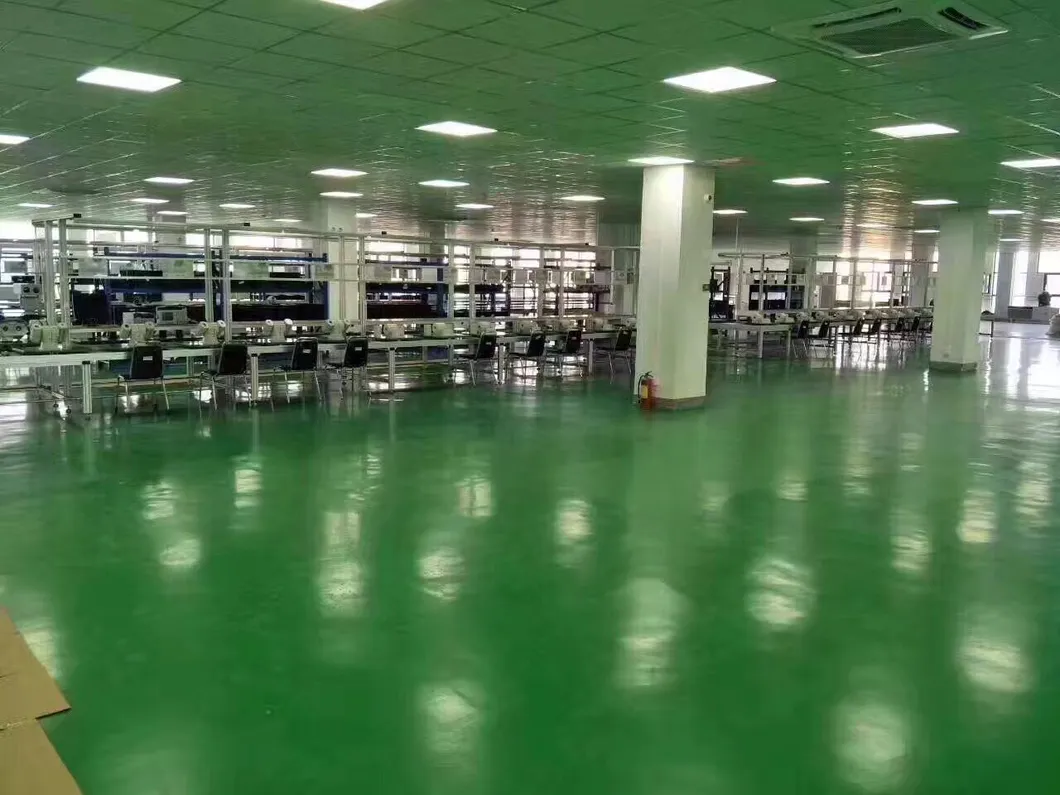

Company Profile

Founded in 2004, our company is a leading manufacturer of long-range thermal imaging and laser night vision technology. We specialize in independent innovation and have reached international advanced standards in continuous zoom infrared imaging.

Our products are widely applied in national defense, safe city projects, railways, and forest fire prevention, providing all-weather surveillance and technical support for security and stability.
