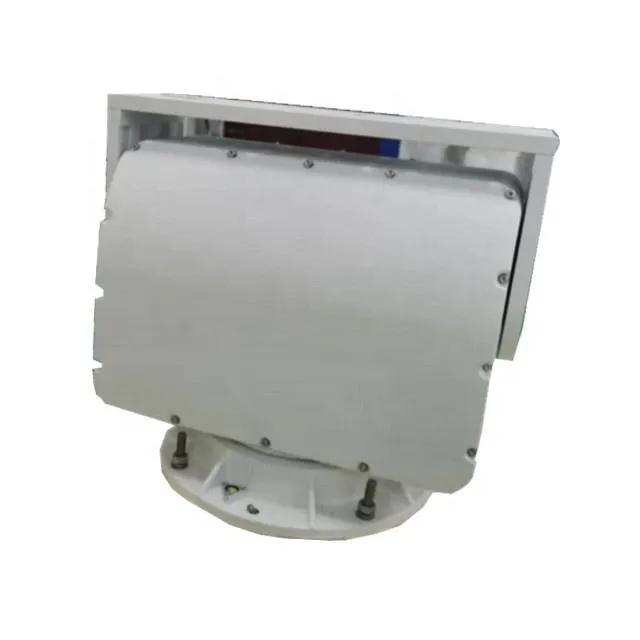

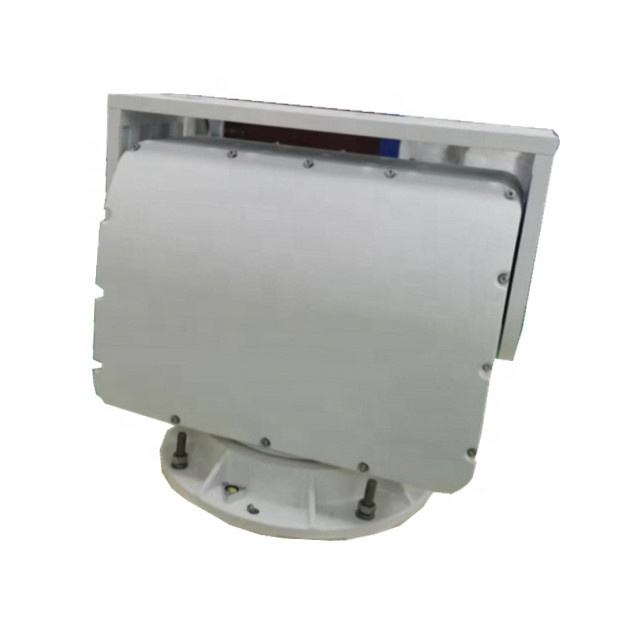

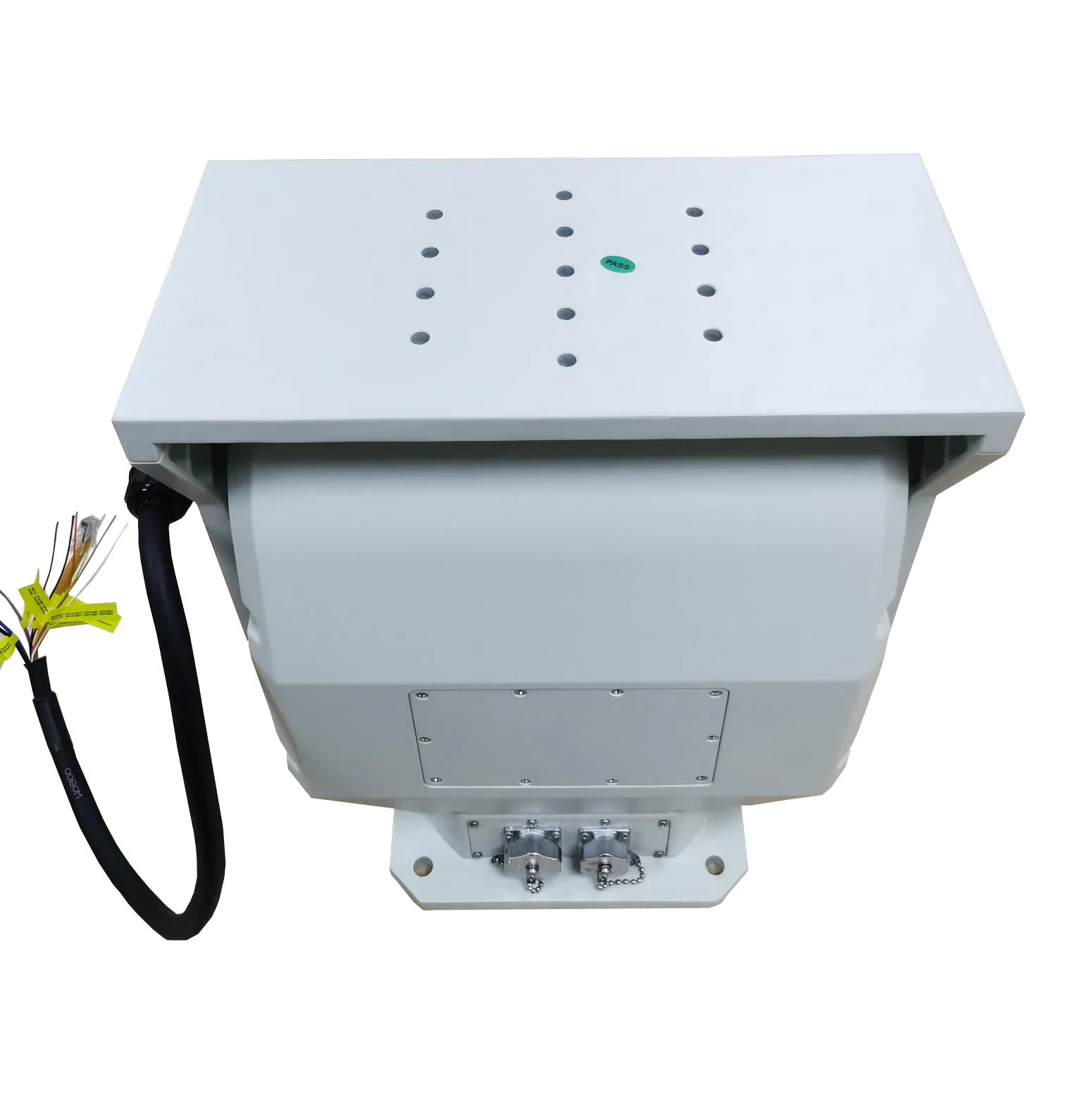

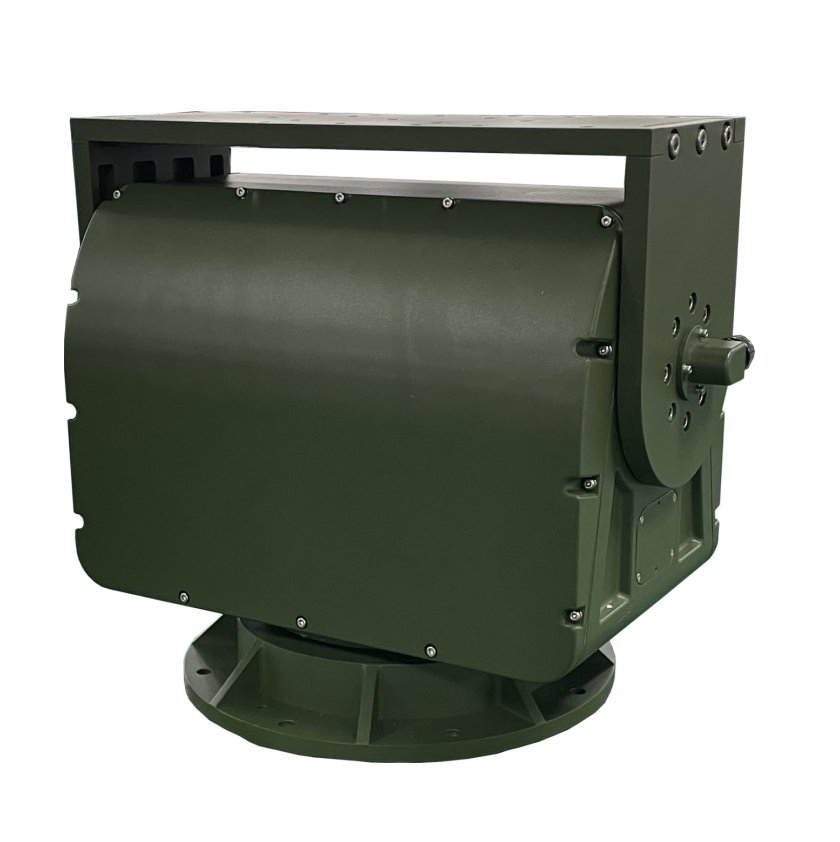

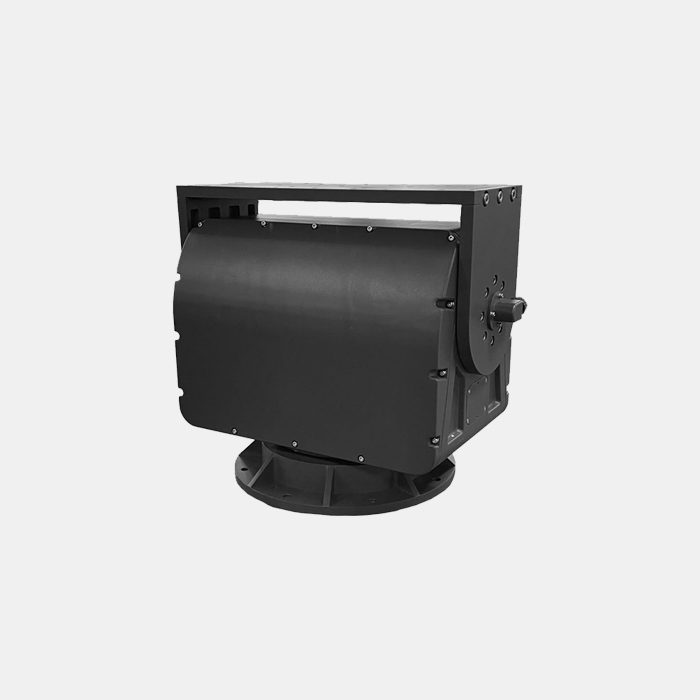

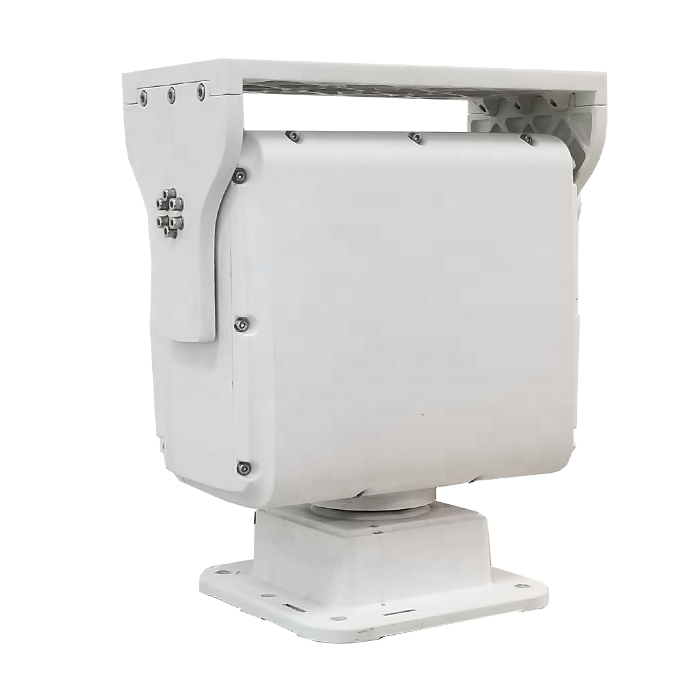

70-100kg Heavy-Duty Pan Tilt Outdoor and Waterproof

1 / 5

70-100kg Heavy-Duty Pan Tilt Outdoor and Waterproof

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

ℹ️

Basic Info

Model NO.

SP80

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

520tvl

Kind

Autofocus Lens

Certification

CE, RoHS, ISO9001: 2000

Feature

Waterproof, High Definition, Mini Size

Effective Distance

≧30m

Sensor Size

1/3 inch

Protection Class

IP66

Material

Aluminum Die Cast

Max Load

100kg

📦

Product Description

🔹

High Load Capacity: Maximum load capacity can reach up to 100Kg.

🔹

Precision Positioning: High repeatability positioning accuracy up to 0.1°, with closed-loop control option reaching 0.05°.

🔹

Rugged Construction: Shell made of high-strength aluminum alloy to resist harsh environments.

🔹

Environmental Protection: High protection level up to IP67.

🔹

Mechanical Reliability: Full metal worm gear transmission with self-locking functionality when powered off.

📊

Specifications

Parameter	SHR-SP8050	SHR-SP8080
Spinning Speed	Pan: 0.01°~50°/S; Tilt: 0.01°~10°/S	Pan: 0.01°~20°/S; Tilt: 0.01°~5°/S
Rotation Angle	Pan: 0°~360° continuous; Tilt: +70°~-70°
Preset Positions	200
Accuracy	±0.1° (Closed-loop optional ±0.05°)
Communication	RS485 (Optional RS422), Pelco-D/P
Input Power	DC48V ± 20%
Operating Temp	-25ºC to +65ºC (Optional -40ºC)
Max Load	70Kg	100Kg
Dimensions	464mm × 308mm × 400mm

🚚

Packaging & Shipping

Package Size

59.00cm * 45.00cm * 65.00cm

Gross Weight

64.000kg

🏢

Profile

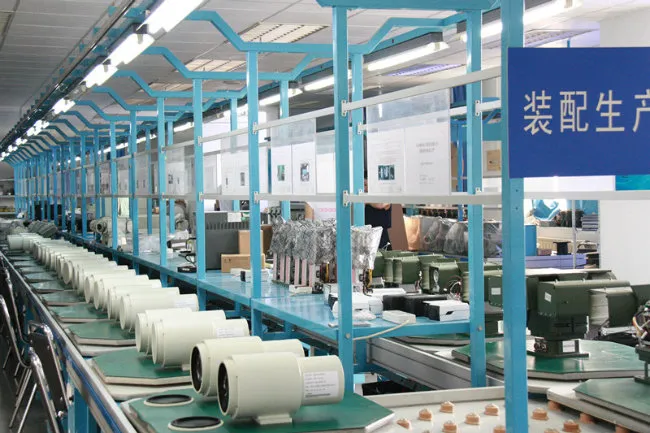

Founded in 2004, the company is a leading supplier of night vision equipment and rugged information technology. Specializing in independent innovation, the team developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems. With proprietary intellectual property rights, the synchronous zoom laser technology meets international advanced standards and maintains a significant global market share.

The organization remains committed to public security and national defense, focusing on growth alongside customers and employees through technological excellence.

❓

Frequently Asked Questions

1. What is the maximum weight the Pan-Tilt unit can handle? The system supports a maximum top load capacity of 100Kg for the SHR-SP8080 model and 70Kg for the SHR-SP8050 model.

2. Does the system maintain its position if power is lost? Yes, it utilizes a full metal worm gear transmission which provides a self-locking mechanism when the power is turned off.

3. What is the positioning accuracy of this equipment? The standard preset position accuracy is ±0.1°, but it can be optimized to ±0.05° with optional closed-loop control.

4. Is this unit suitable for outdoor use in extreme weather? Absolutely. It features an IP66 protection rating (IP67 optional) and is built with high-strength aluminum alloy to withstand harsh environments.

5. What communication protocols are supported? The unit supports RS485 and Pelco-D or Pelco-P protocols. RS422 for real-time feedback is also available as an option.

6. What are the temperature operating limits? The standard operating temperature range is -25ºC to +65ºC, with an optional low-temperature configuration for -40ºC environments.
