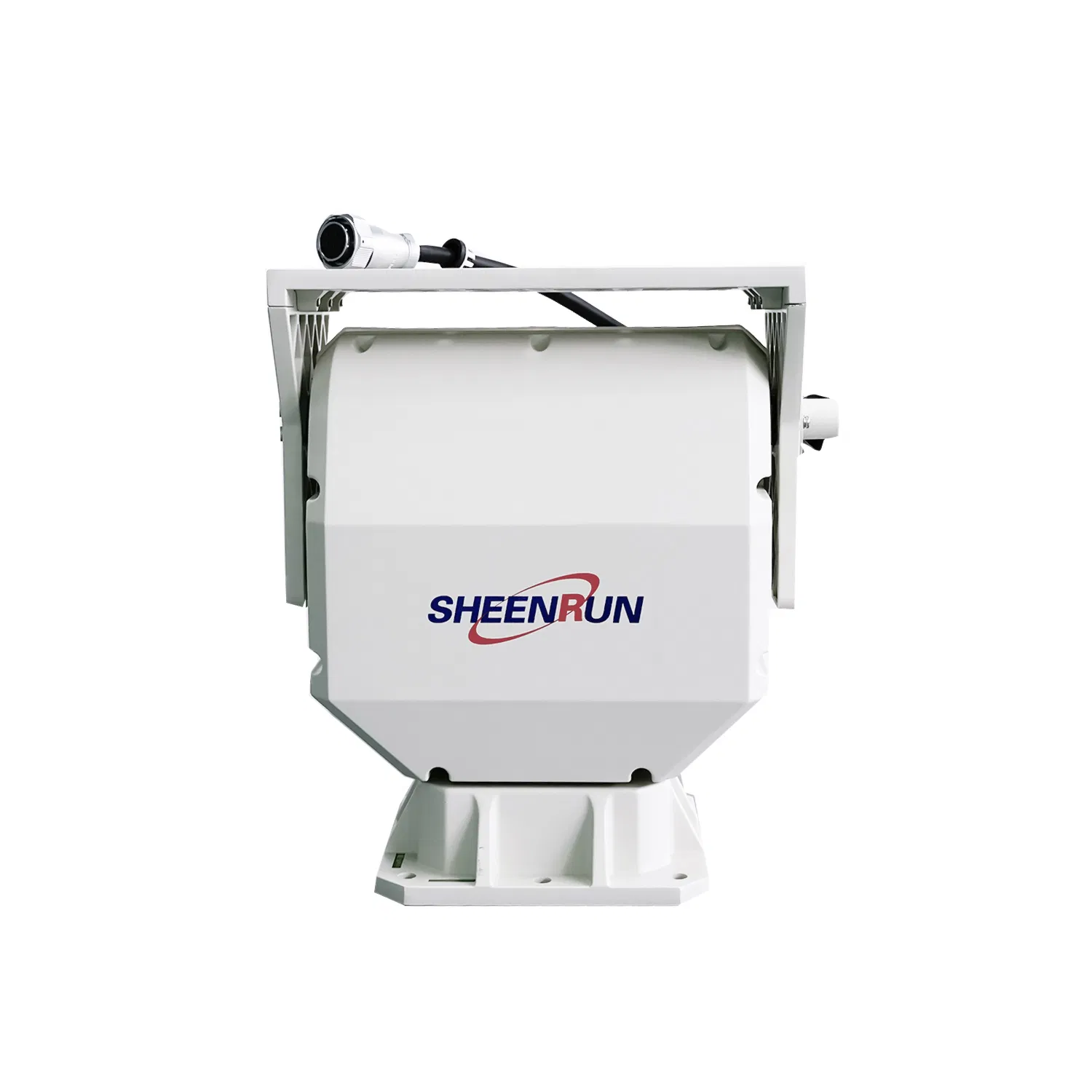

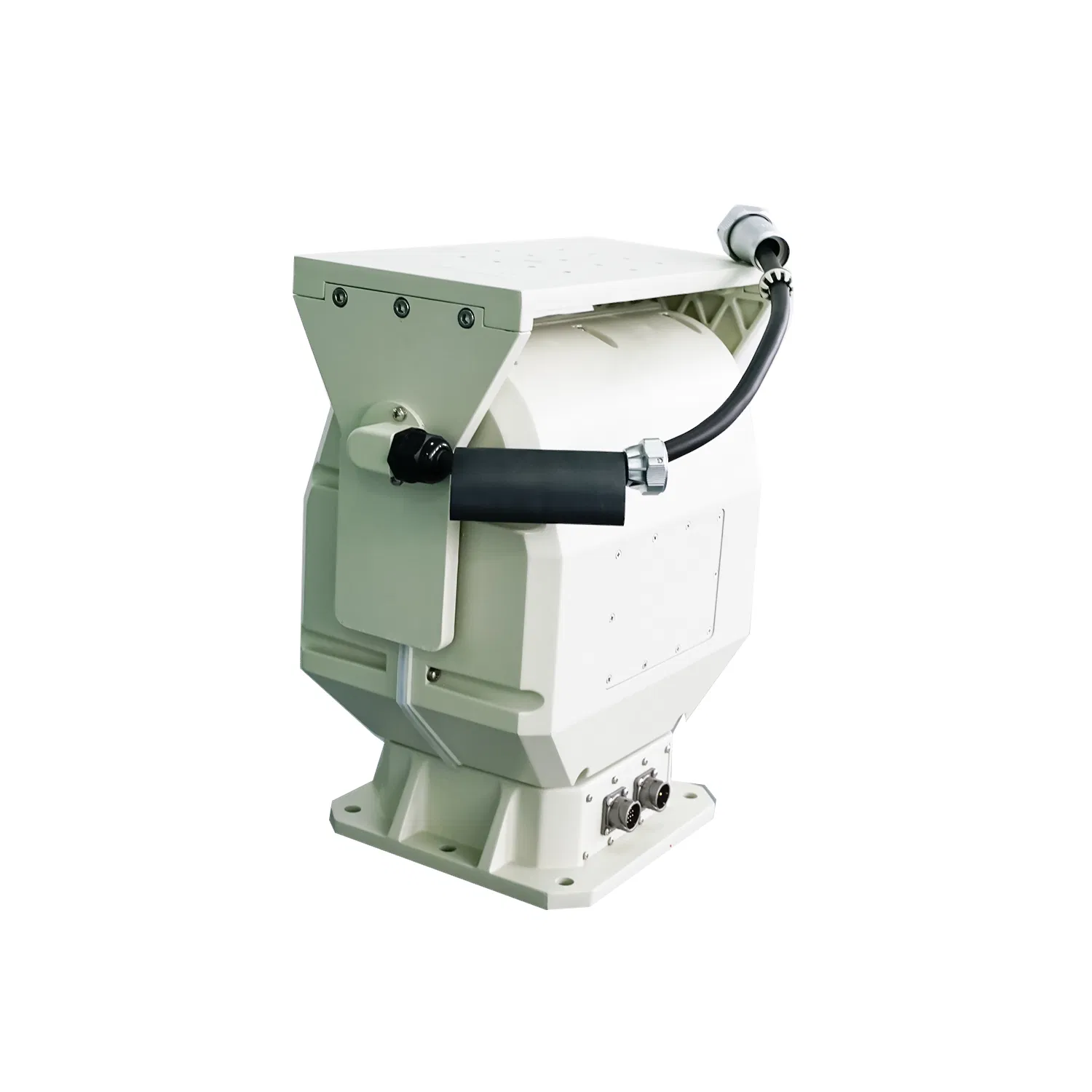

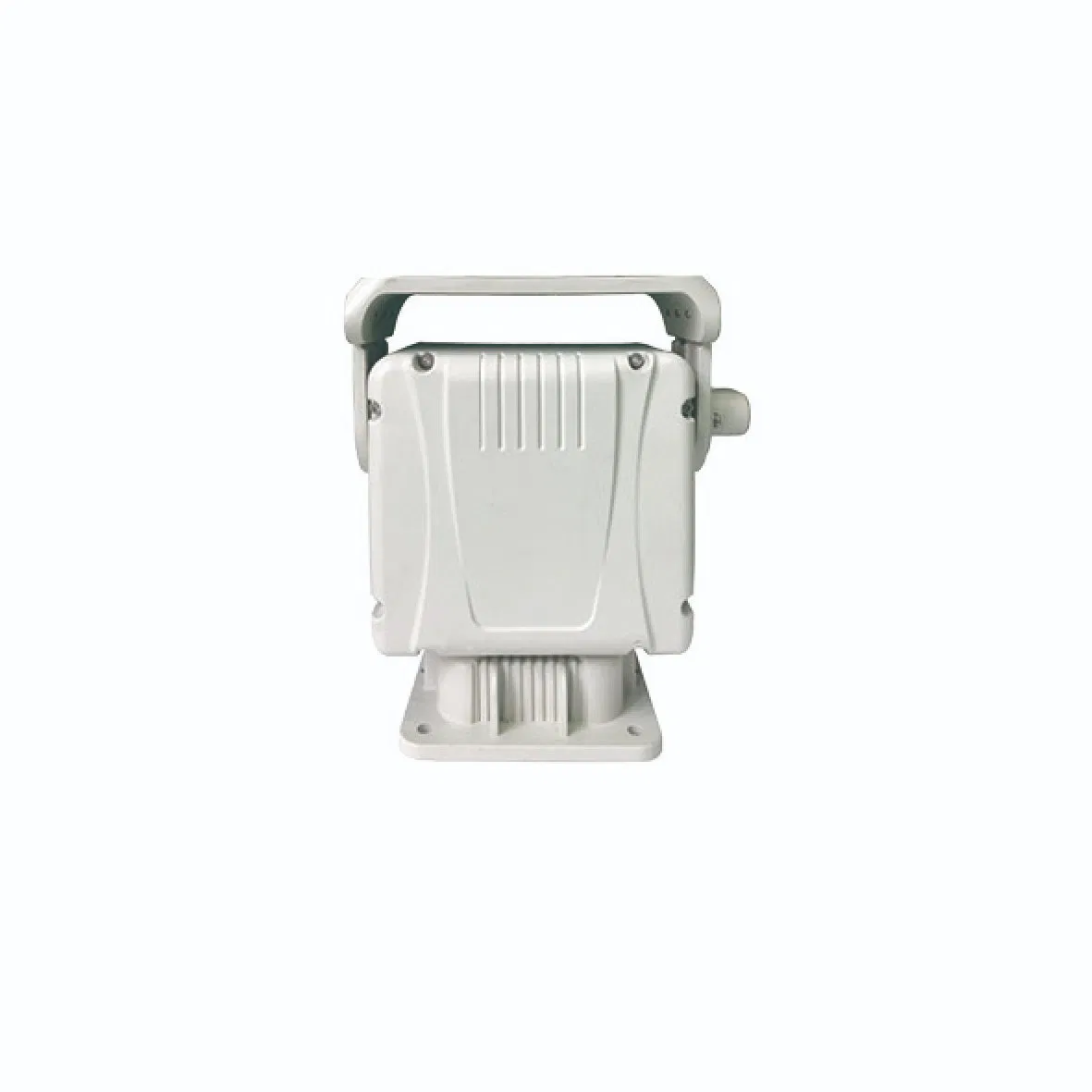

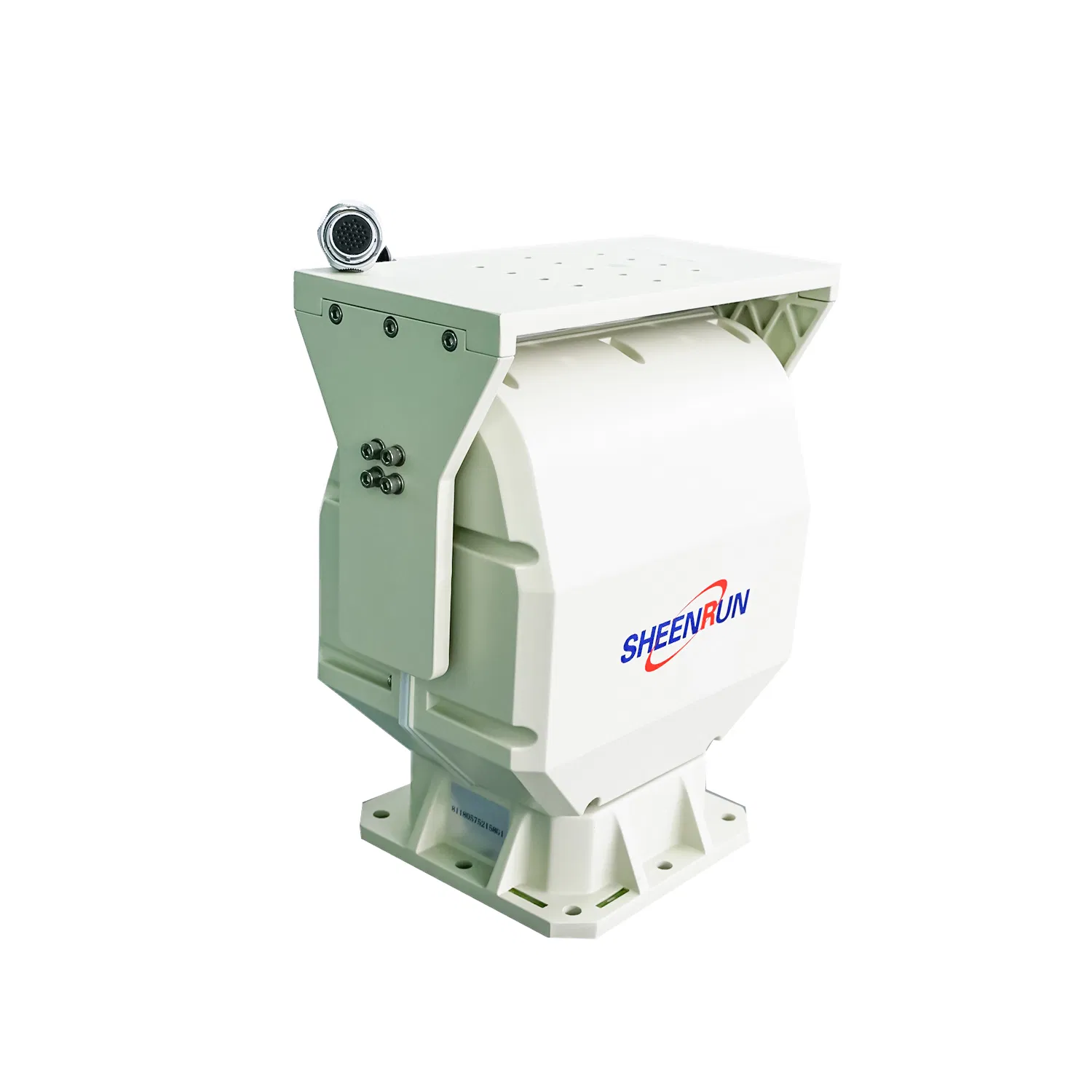

Heavy-Load Aluminum Alloy Outdoor Pantilt/Rotation Pan Tilt

1 / 5

Heavy-Load Aluminum Alloy Outdoor Pantilt/Rotation Pan Tilt

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Info

Model NO.

SHR-PT15 pantilt

Type

CCTV Camera

Sensor

CCD

HDMI Format

1080P

Horizontal Resolution

520tvl

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001: 2000

Feature

Waterproof / Weatherproof, Mini Size

Effective Distance

≧30m

Sensor Size

1/3 inch

Remote Control

With Remote Control

Presetting Bits

255

Transport Package

Wooden Case/Carton

Specification

11.5 kg

Production Capacity

5000

Packaging & Delivery

Package Size

37.00cm * 38.00cm * 25.00cm

Package Gross Weight

10.000kg

Product Features

Max Load: 5kg/10kg

Support kinds of lens preset with self-adaptive function

High resetting accuracy, up to ±0.1º

Adopt die-cast aluminum alloy material

Adopt high-strength worm-gear driven, self-locked when power is off

Pan: 0º~360º continuous

Protection Class: IP66

OSD menu, Network (optional)

Optional function: returning data of pan tilt position, focal length, focus etc.

Specifications

Rotating Speed	Pan: 0.01º~30º/s, Tilt: 0.01º~15º/s
Rotation Angle	Pan: 0º~360º continuous, Tilt: +60º~-60º
Number of Presets	200
Preset Positioning Accuracy	±0.1º
Auxiliary Switch	2 groups
Lens Preset	Support, with self-adaptive function
Auto Cruising	8 tracks (each with 10 presets)
Homing time	Can be set within 1~60 min
Auto Scan	1 path
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps

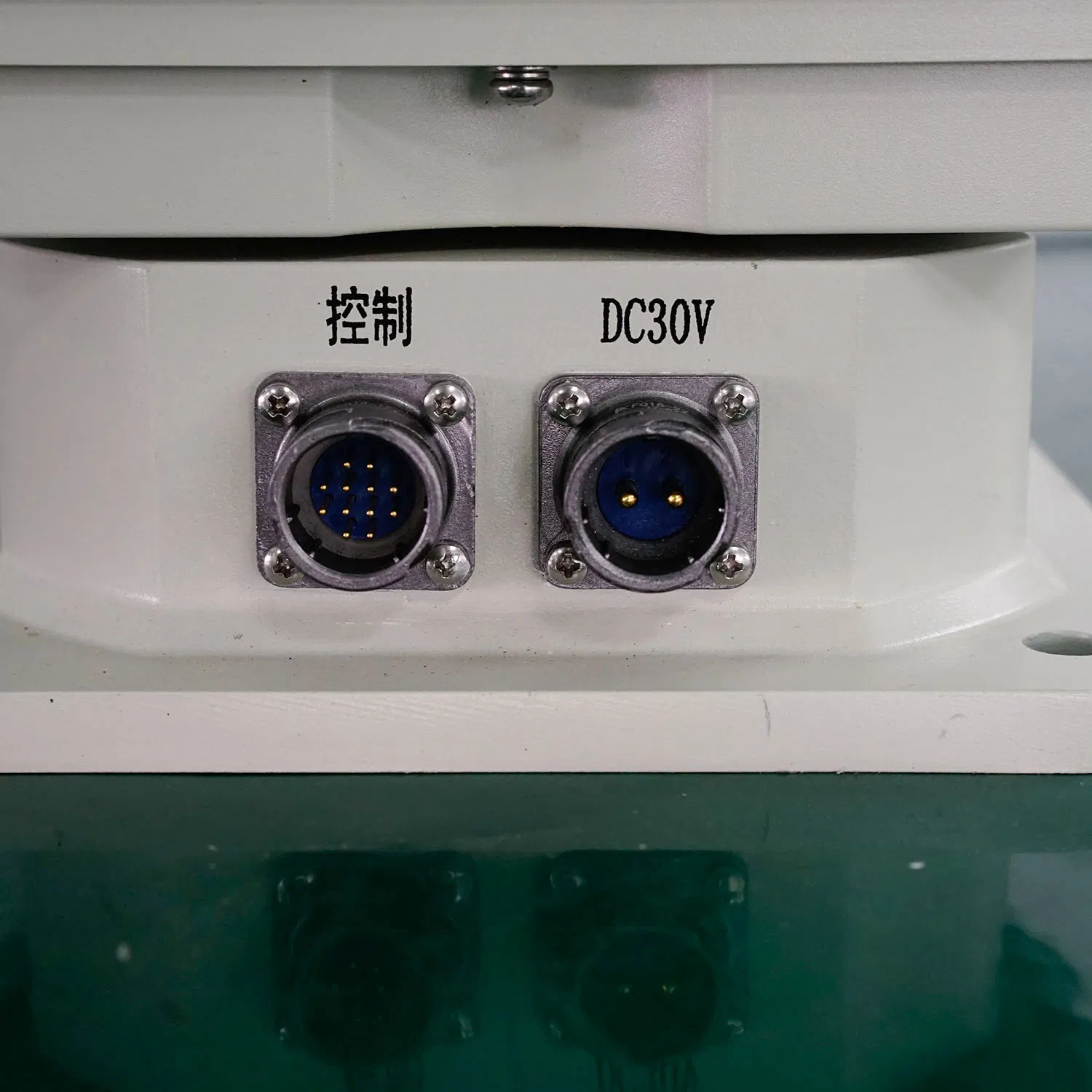

Interface	RS485 (RS422 optional)
Input Voltage	AC24V±20%, 50/60HZ; DC28V±20%
Power Consumption	≤50W
Operation Temp	-25ºC~+65ºC, humidity: 90%±3% RH
Max Load	5 kg/10kg
Driven Way	Worm-gear
Protection Class	IP66

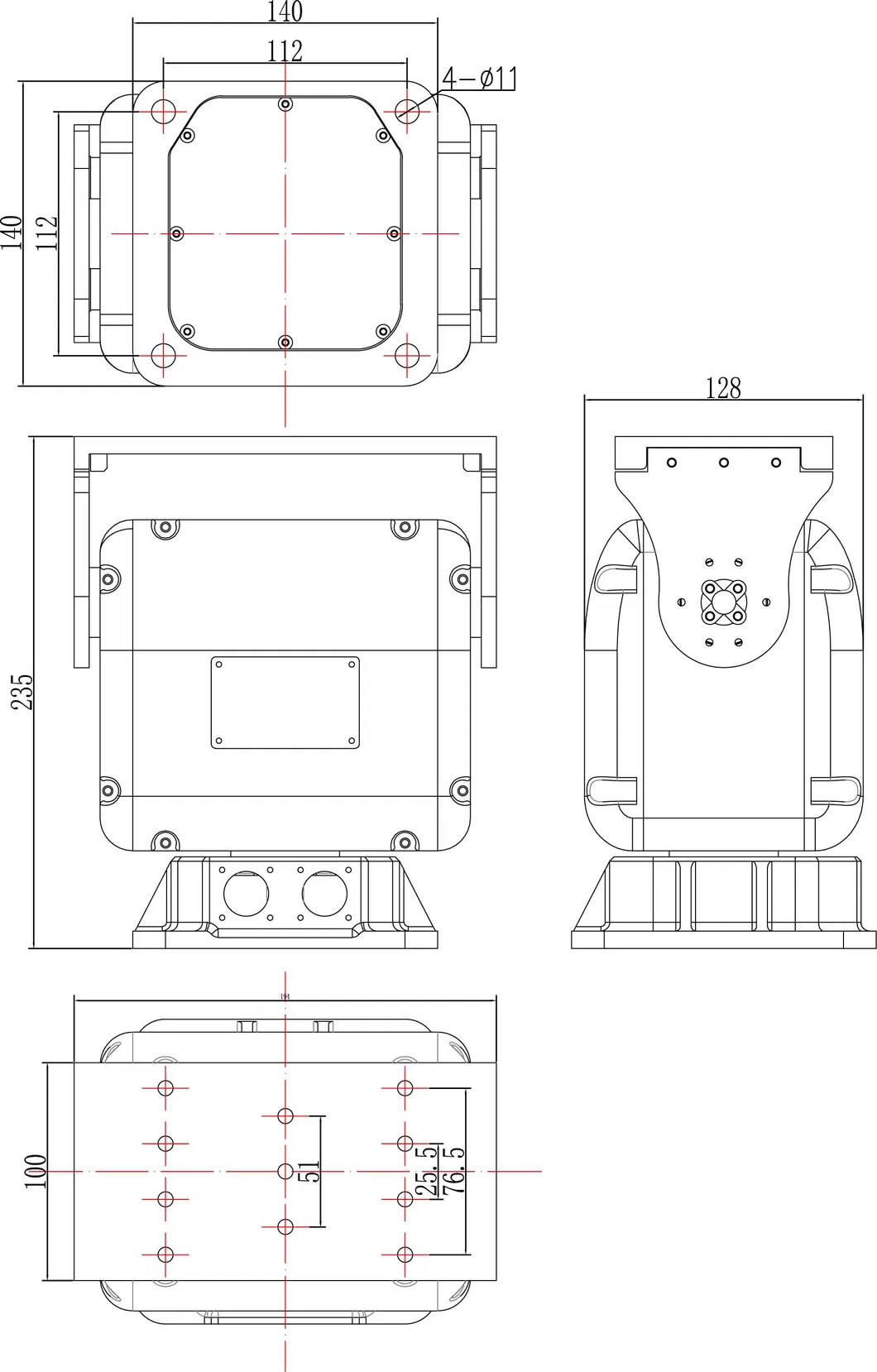

Dimensions	265mm180mm315mm (LWH)
