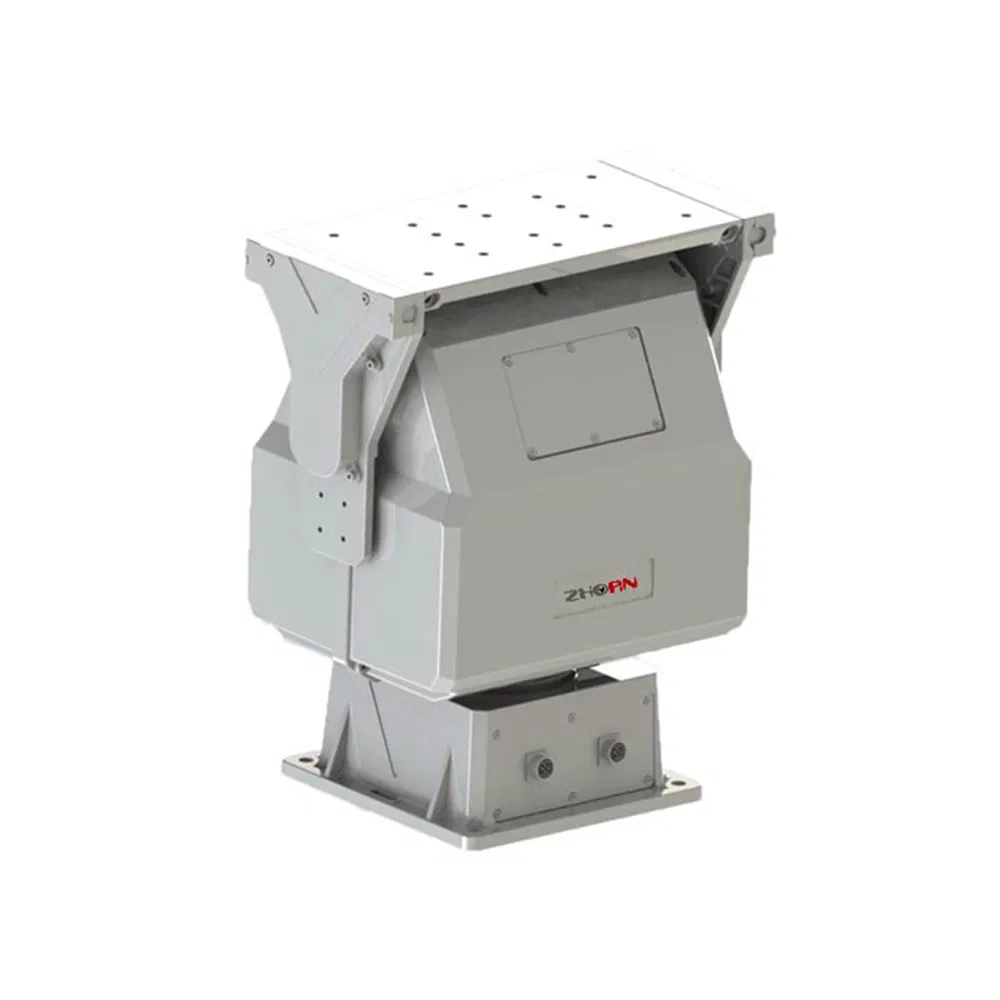

Heavy-Load Rotation Pan Tilt Aluminum Alloy Outdoor Pan Tilt

1 / 1

Heavy-Load Rotation Pan Tilt Aluminum Alloy Outdoor Pan Tilt

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Specifications

Model NO.

SOAR-PT890

Type

CCTV Camera

Certification

CE, FCC, CCC, RoHS, ISO9001

Feature

Waterproof / Weatherproof

Max. Load

80kg

Pan Rotation

360° Continuous

Tilt Rotation

-45°~+45°

Waterproof

IP66

Material

Aluminum Alloy

Capacity

500/Month

Technical Specifications

Model: SOAR-PT890 Details
Max. load	80kg
Load Mode	Top load
Driving	Worm and gear driving
Pan Speed	0.005°/s~15°/s
Tilt Speed	0.005°/s~7°/s
Preset Position	200
Presetting Precision	±0.1°
Communication	RS485/ RS422 optional
Protocol	Pelco D
Input Voltage	DC48V±10%
Consumption Power	≤200W
Working Temperature	-35°C~+65°C
Anti-lighting	Power: 4000V; Video signal: 2000V
Salt fog resistance	PH 6.5 ~7.2, 48 hours continuous

Key Features

✓ High-precision worm gear drive mode, self-locking when power off, strong wind resistance.

✓ Support a variety of lens preset function and zoom adaptive function.

✓ 360° continuous horizontal rotation and +45° to -45° vertical tilt.

✓ High repeat positioning accuracy up to ±0.1°.

✓ All-weather protection design with IP66 protection level.

✓ Maximum heavy-duty load capacity of 80KG.

Packing & Profile

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Products are packed in secure cartons for international transport.

As a professional video surveillance products provider, we have been devoted to front-end surveillance product design, manufacture, and sales for more than 15 years. Our R&D team consists of 60+ members including Masters and senior engineers specialized in industrial design, FPGA, ISP, video analysis, and AI algorithms. Our main products include various PTZ and Zoom camera modules, all passing ISO9001 quality certification.

Our Services

Payment

T/T

Delivery

Stock: 2-5 days
Bulk: 7-20 days

OEM/ODM

Available for all clients

Warranty

1-year hardware warranty

Frequently Asked Questions

Q1: What is the maximum load capacity of the SOAR-PT890? A: The SOAR-PT890 supports a maximum top load of up to 80kg.

Q2: Is the PTZ unit suitable for extreme weather conditions? A: Yes, it features an IP66 waterproof rating and can operate in temperatures ranging from -35°C to +65°C.

Q3: How accurate is the positioning of the camera? A: The unit provides high repeat positioning accuracy of up to ±0.1°.

Q4: Does the device support 360-degree rotation? A: Yes, it supports 360° continuous rotation in the horizontal direction.

Q5: What kind of communication interfaces does it support? A: It supports RS485 and RS422 (optional) communication interfaces using the Pelco D protocol.

Q6: What is the power requirement for this model? A: The system operates on DC48V±10% with a power consumption of ≤200W.
