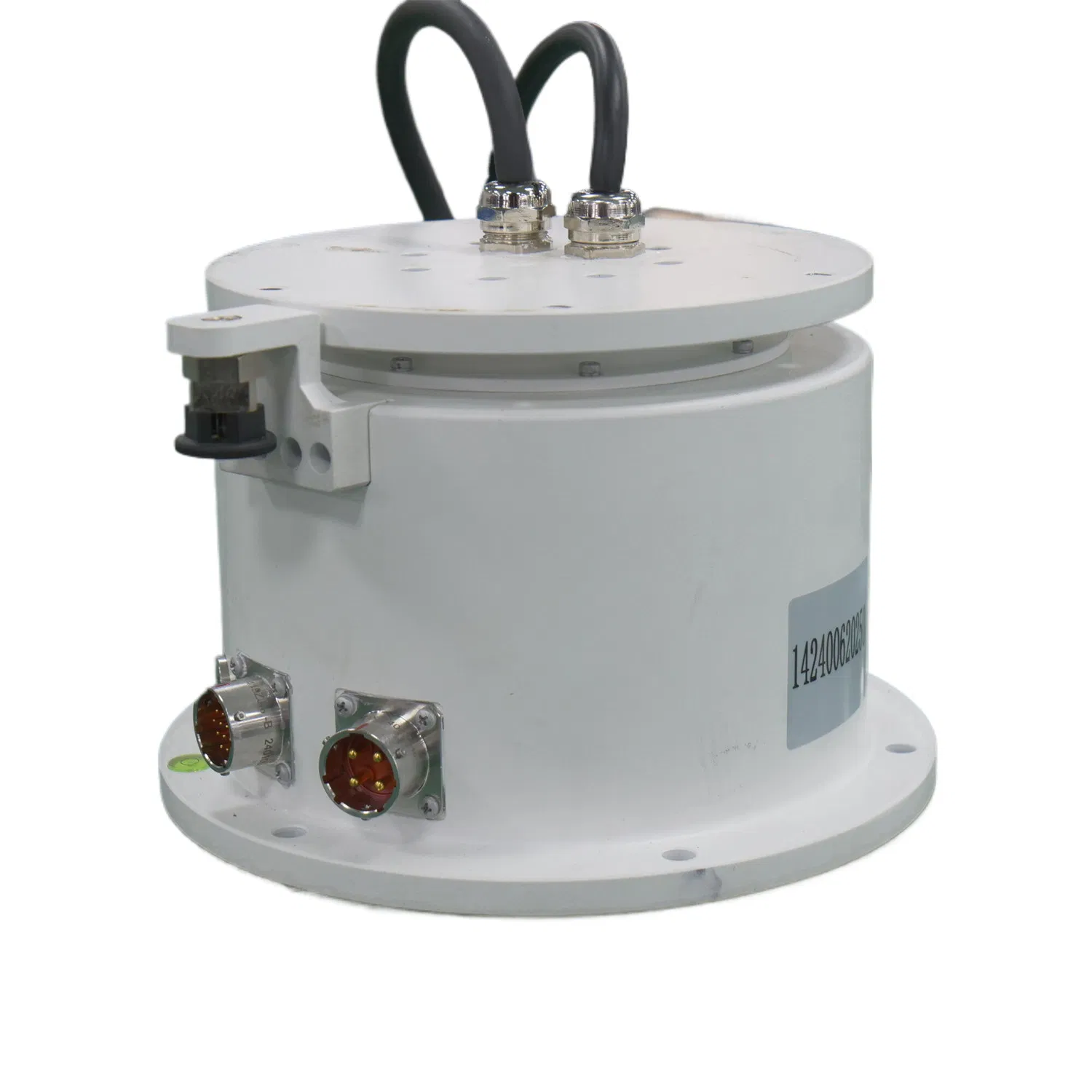

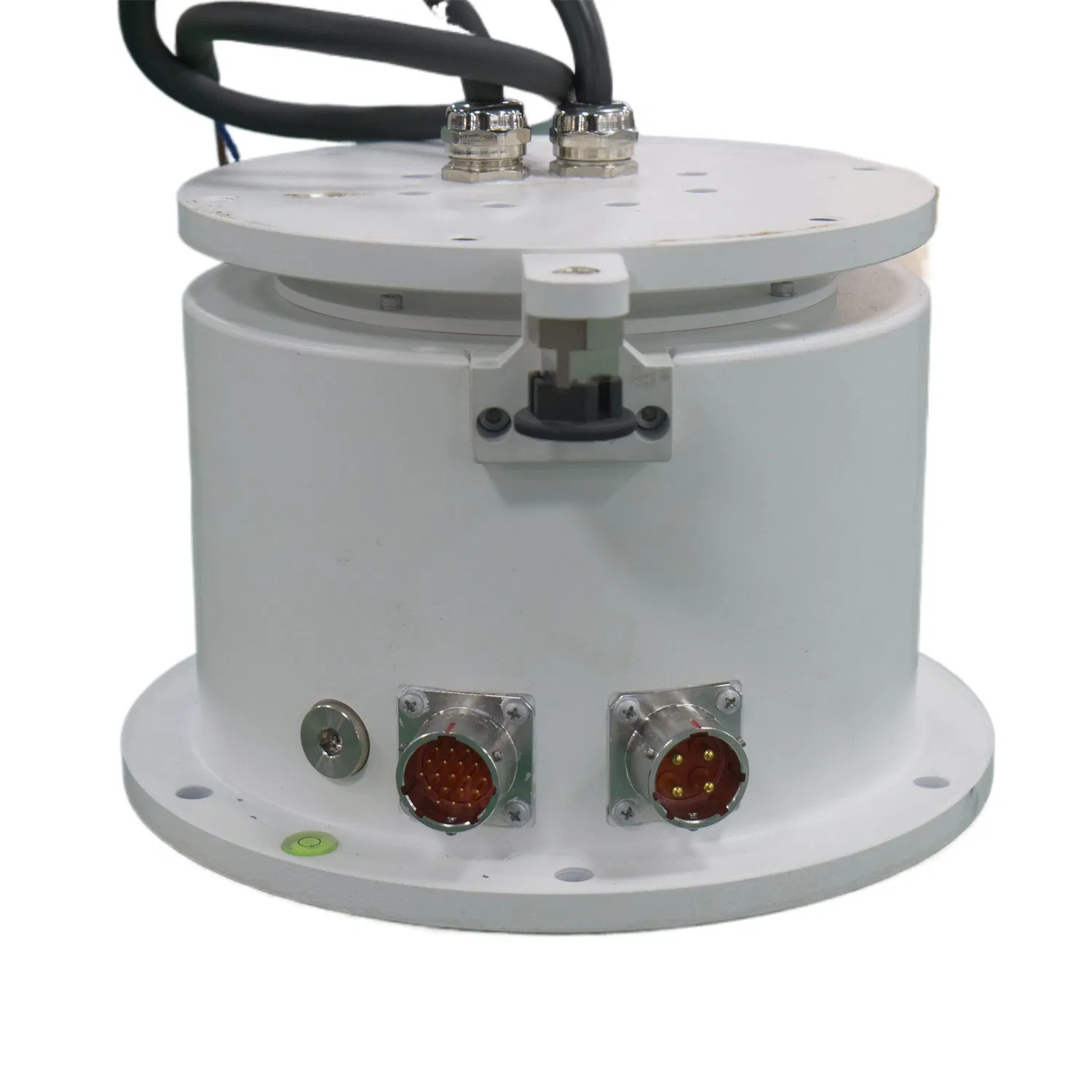

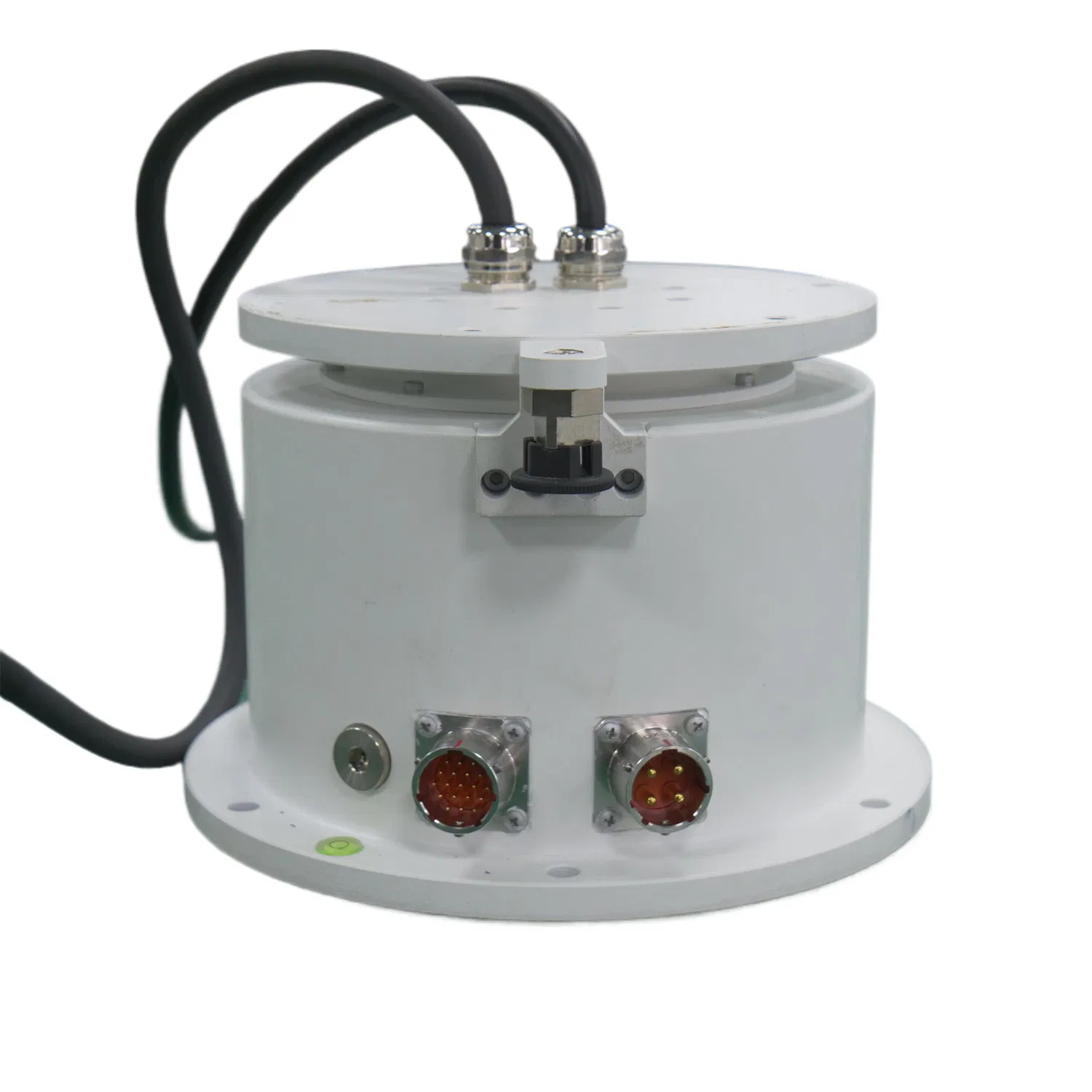

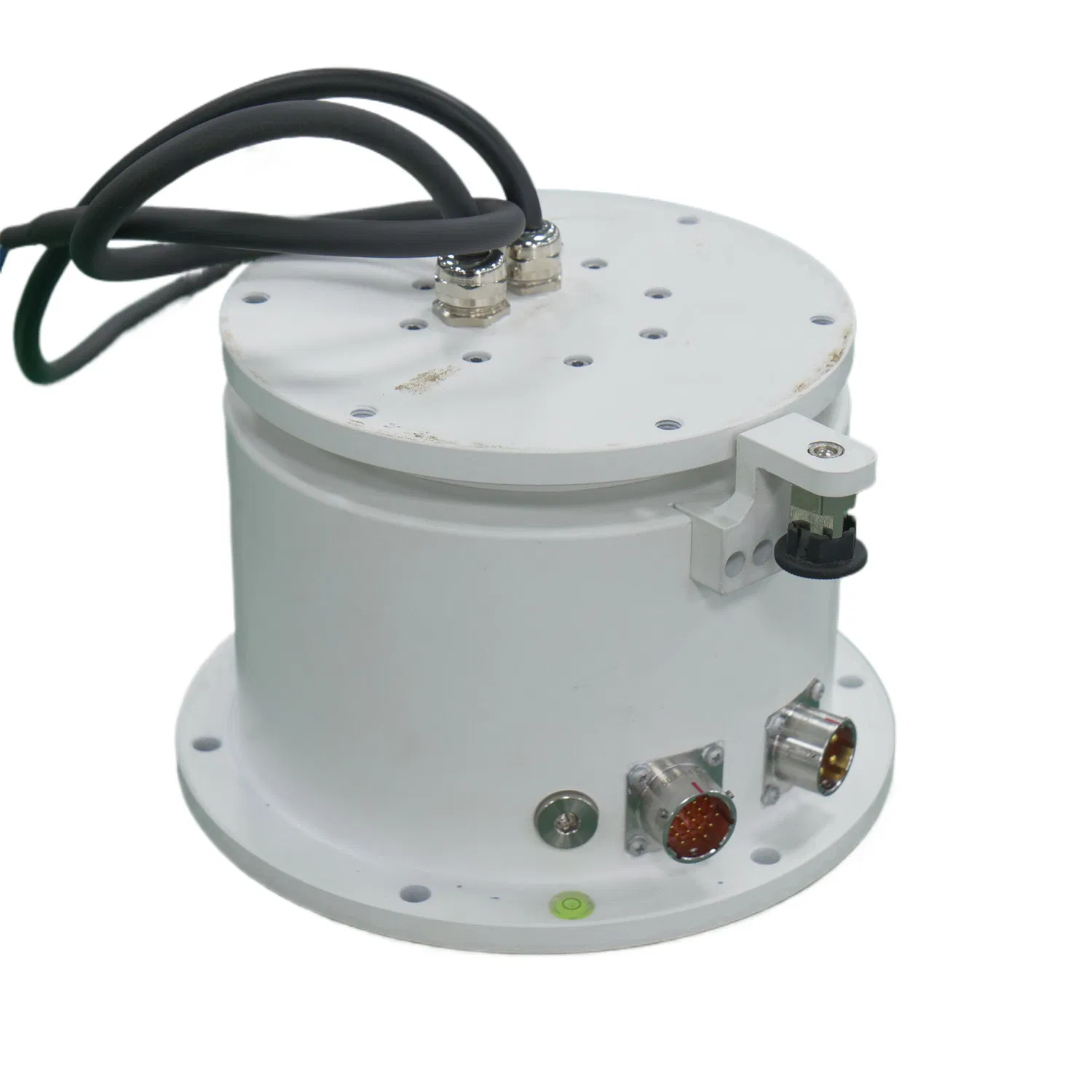

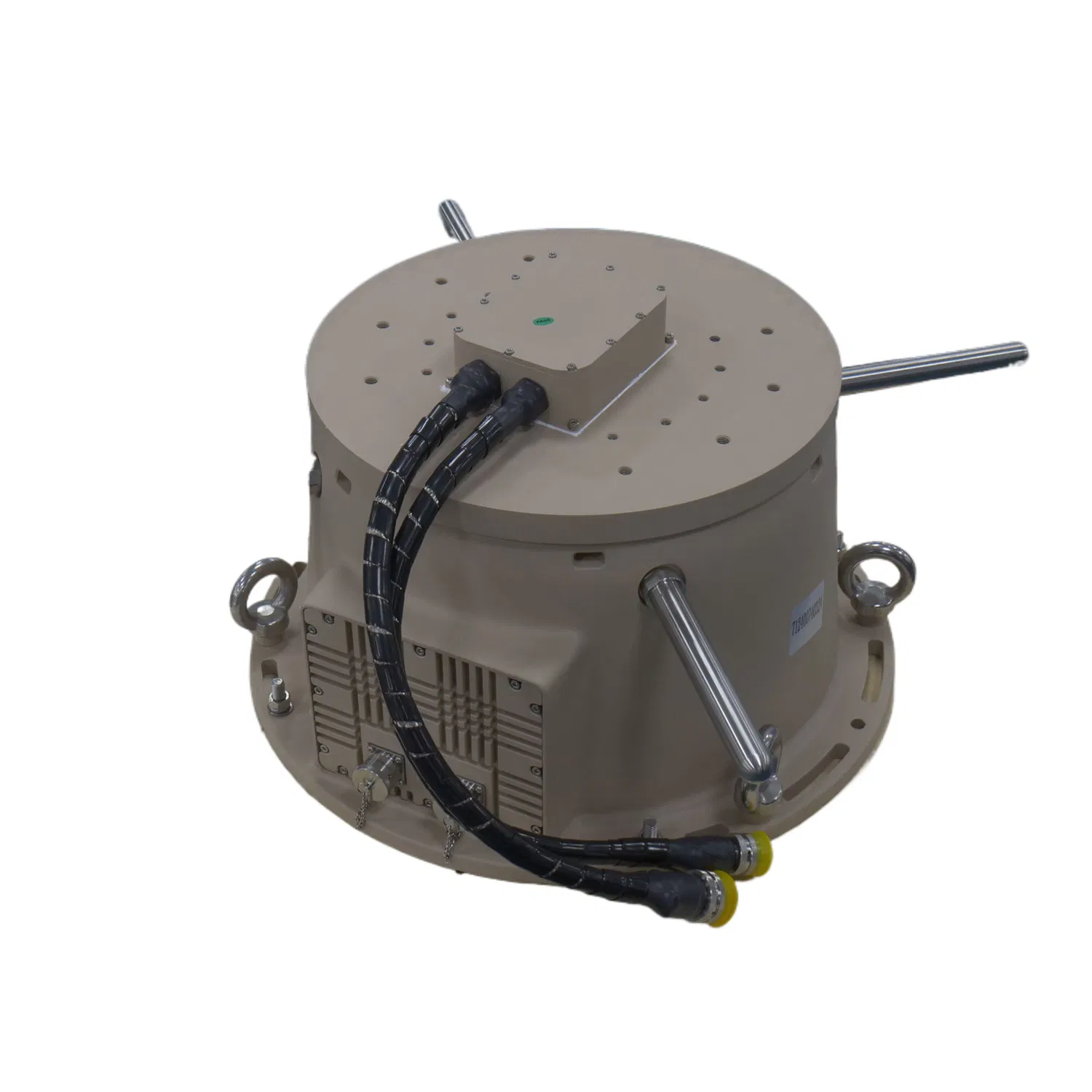

Radar 30kg Single Axis Heavy Duty PTZ Pan Tilt Motor Head Unit

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Specifications

Model NO.

SPT22

Type

Rotation Positioner

Certification

CE, FCC, CCC, ISO9001

Feature

Waterproof / Weatherproof

Motor

Stepper Motor

Pan Rotation

0°~360° Continuous

Protection

IP66

Load Capacity

5kg-80kg

Accuracy

±0.05°

Material

Aluminum Alloy

Product Description

High Performance

Heavy Duty Pan Tilt Motor Head

Small form factor, weight as low as 3kg (base unit)
High-precision worm-gear drive with self-locking
Superior resetting accuracy up to ±0.05º
IP66 Protection for harsh environments
High-strength die-cast aluminum alloy construction

Technical Parameters

Model	SPT22	Rotating Speed	0.01°~30°/S
Presets	200 Points	Preset Accuracy	±0.1°
Auto Cruising	8 paths	Auto Scan	1 path
Protocol	Pelco-D / Pelco-P	Communication	RS485 / RS422
Power Input	DC28V±20%	Consumption	≤20W
Working Temp.	-25ºC to +65ºC	Storage Temp.	-40ºC to +70ºC
Max Load	5kg (Top Mounted)	Dimensions	204mm×204mm×135mm

Customization & Interfaces

We provide various customized services including color, interface, and wiring to meet specific project requirements.

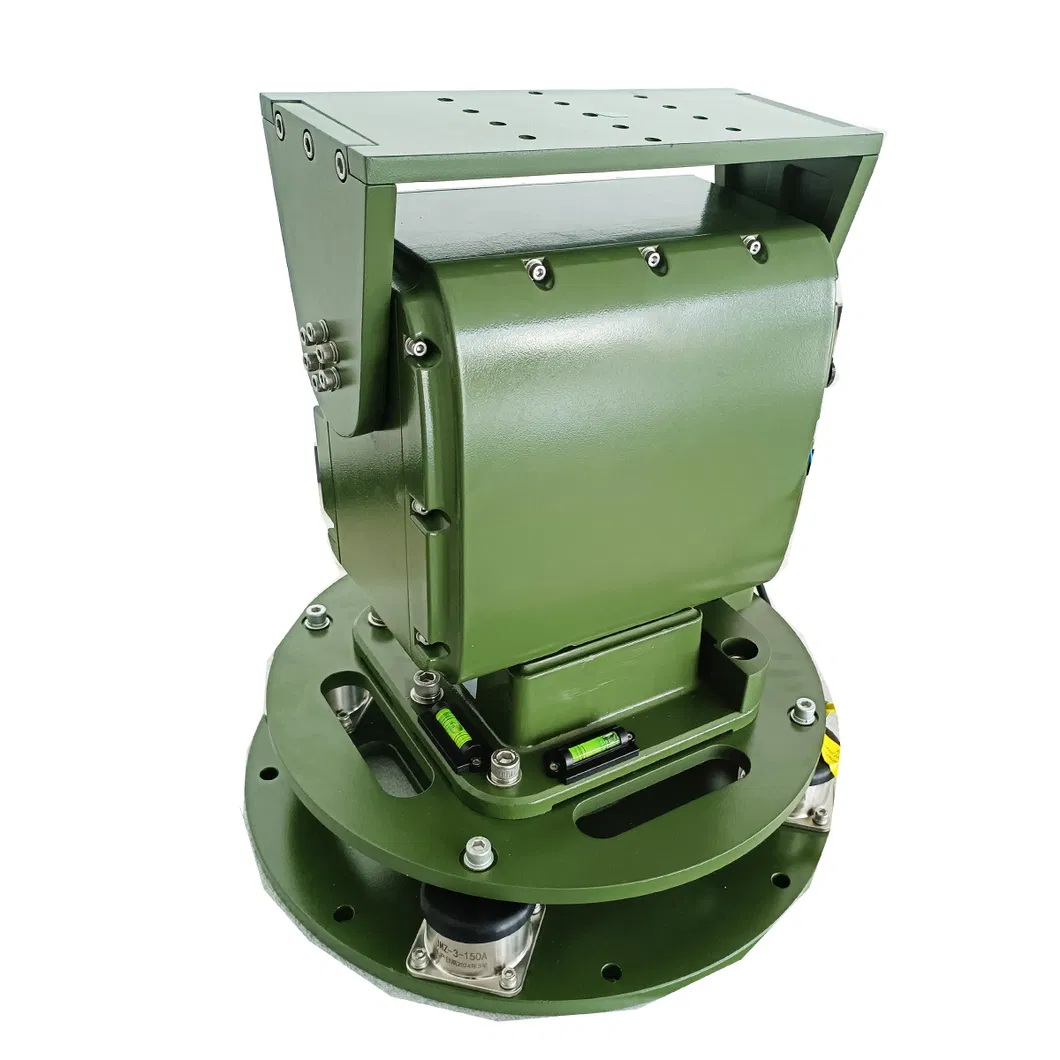

Color Customized

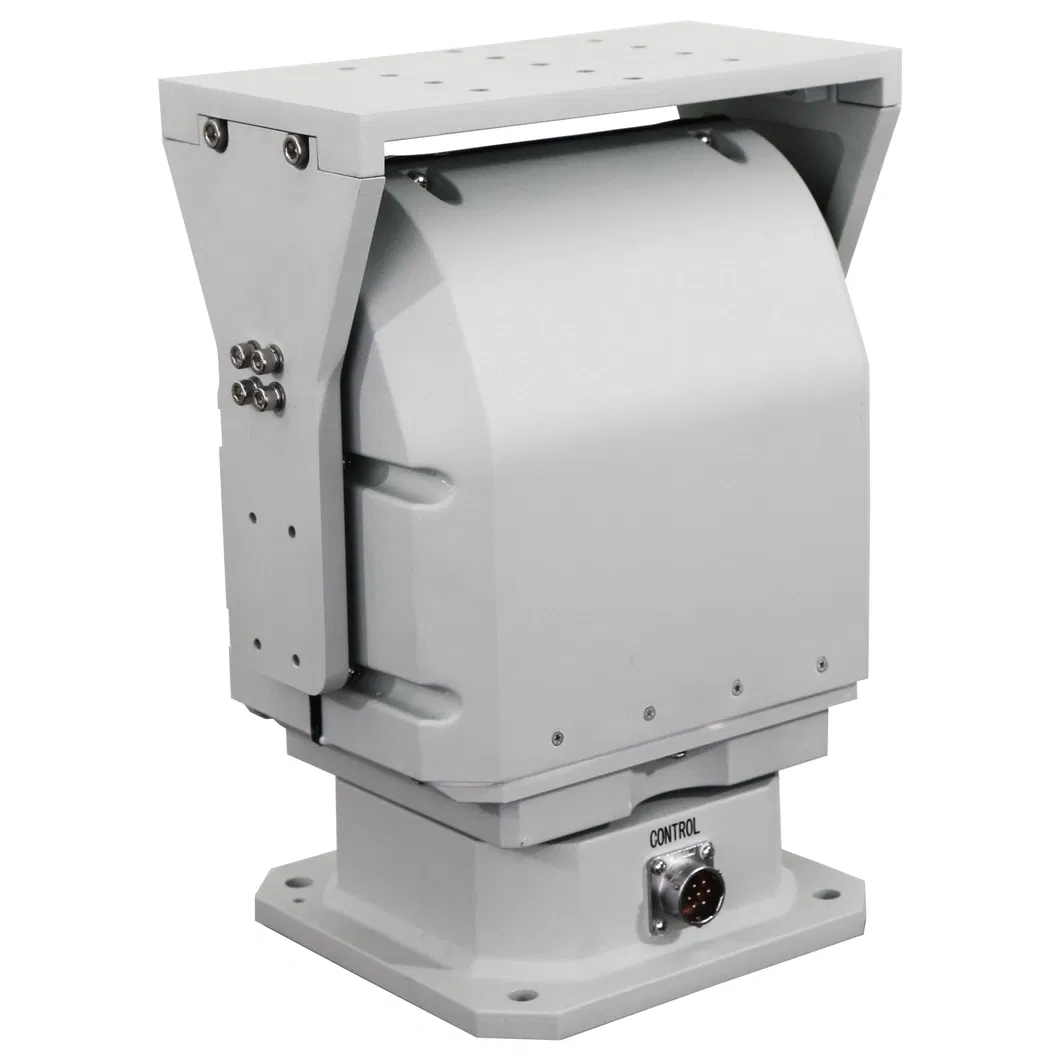

Interface Customized

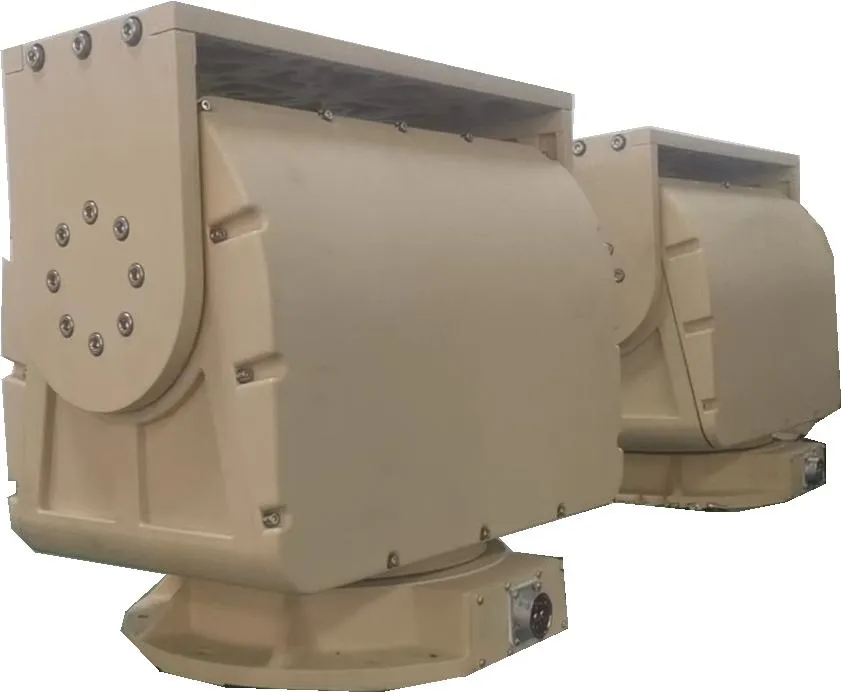

Wire Customized

Packaging & Shipping

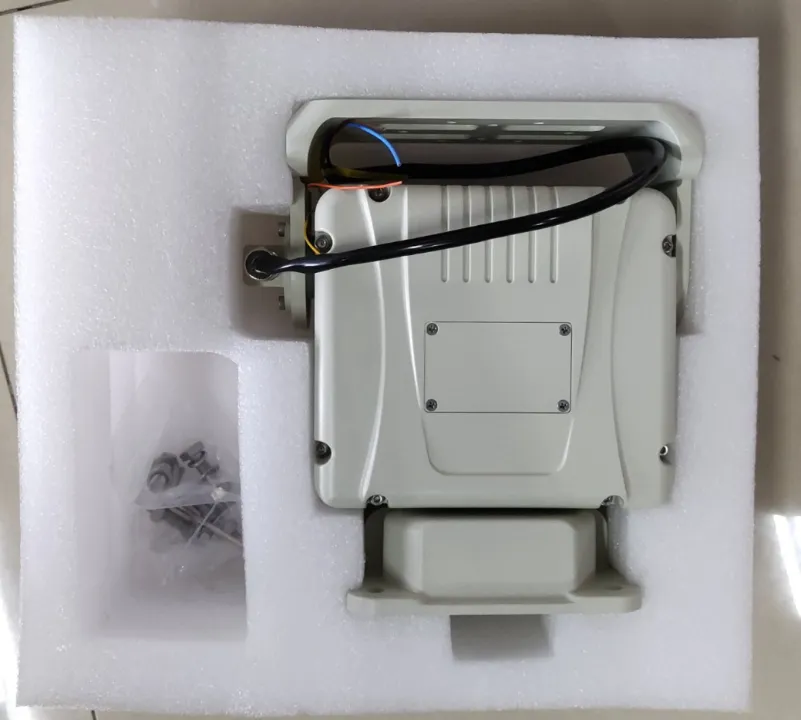

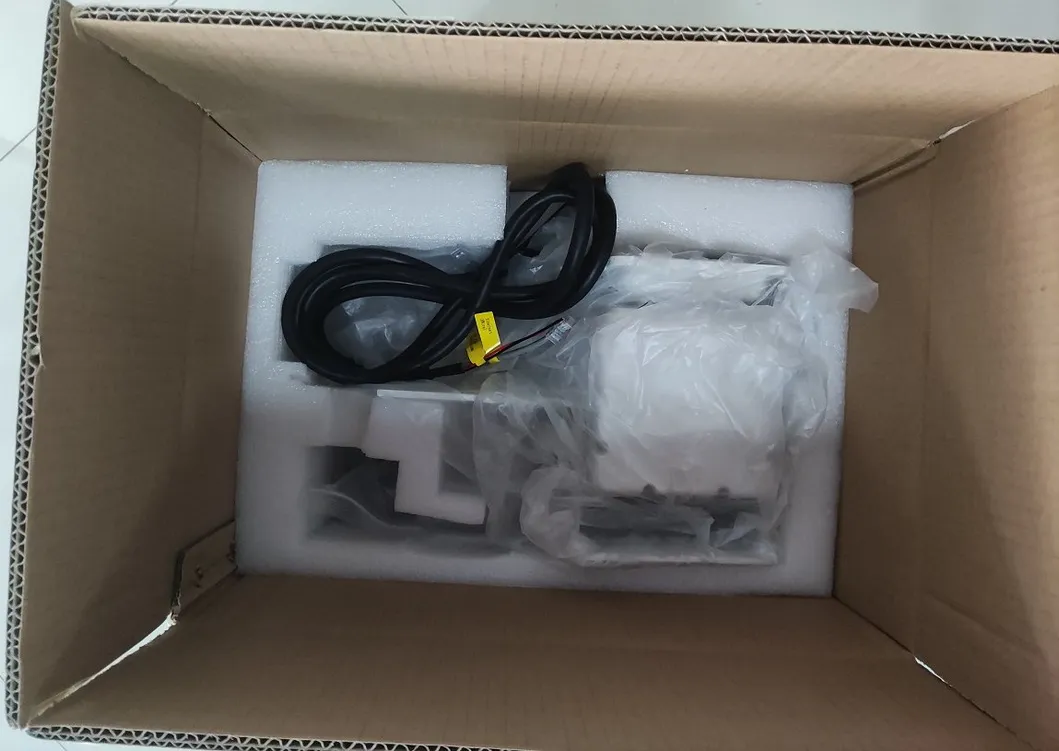

Package Method: Standard cartons with protective film for small units. Wooden crates are utilized for larger, heavy-duty positioners to ensure safety during transit.

Delivery: Worldwide shipping via FedEx, UPS, DHL, or air/sea transportation.

Expertise and Certification

With a foundation dating back to 2004, our technical center specializes in long-range thermal imaging and laser night vision technology. We are committed to independent innovation, having developed advanced continuous zoom infrared technologies used globally in defense, transportation, and forest fire prevention.

Frequently Asked Questions

Are you a direct manufacturer?

Yes, we have been a dedicated manufacturer of thermal and laser camera systems since 2004, providing professional-grade surveillance solutions.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM services to tailor our products to your specific technical and branding requirements.

What is the standard lead time for orders?

Lead times are determined by the specific order quantity and customization requirements. Please contact us for a detailed schedule.

What kind of warranty do you provide?

Our products generally come with a 1-year standard warranty. Extended warranty options are also available upon request.

How are the products shipped internationally?

Sample orders are typically shipped via express couriers like DHL, FEDEX, or UPS. Bulk orders can be arranged via air or sea freight as per your preference.

What kind of after-sales support do you offer?

Our team provides full technical support for any product-related issues. You can reach out to our technical department at any time for assistance.
