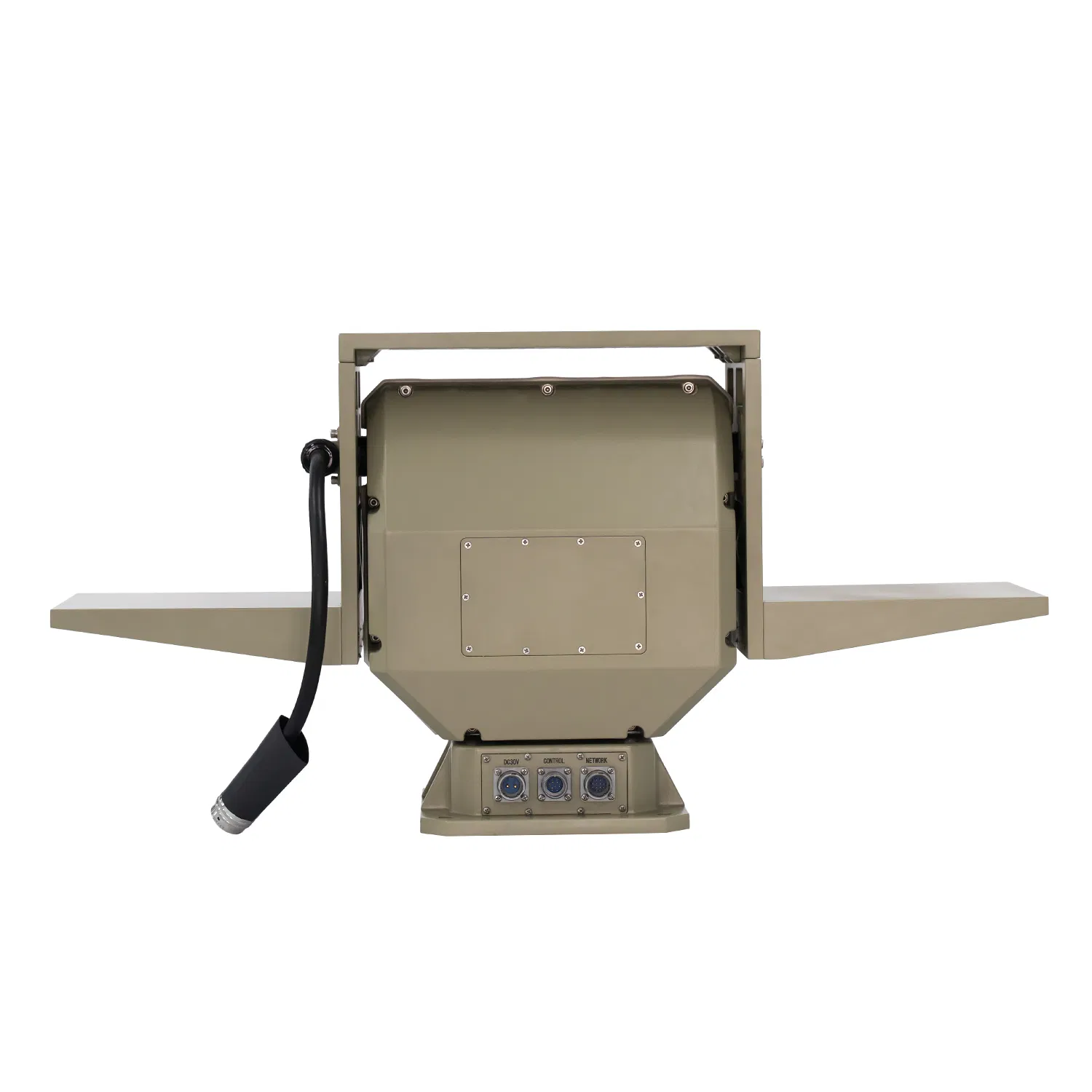

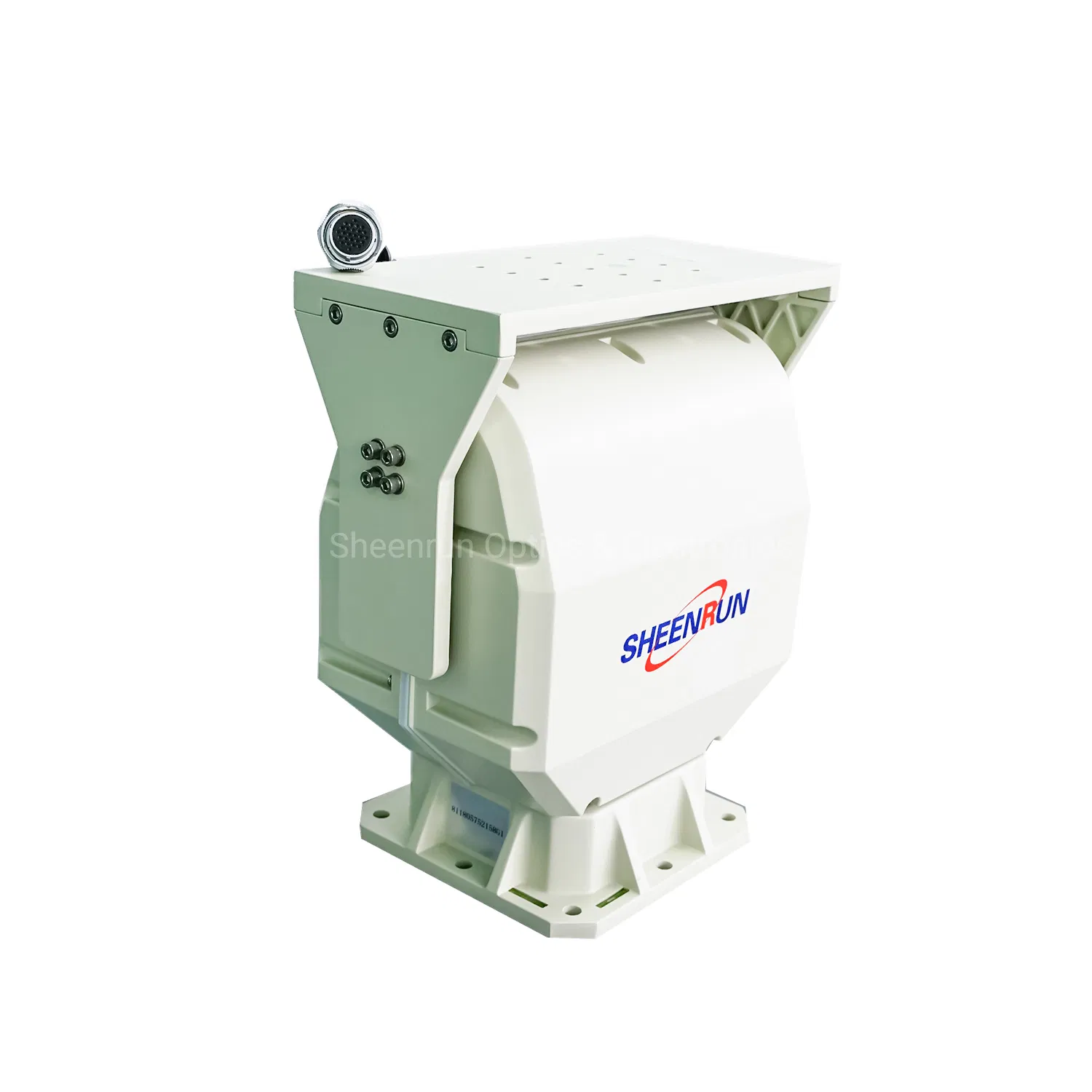

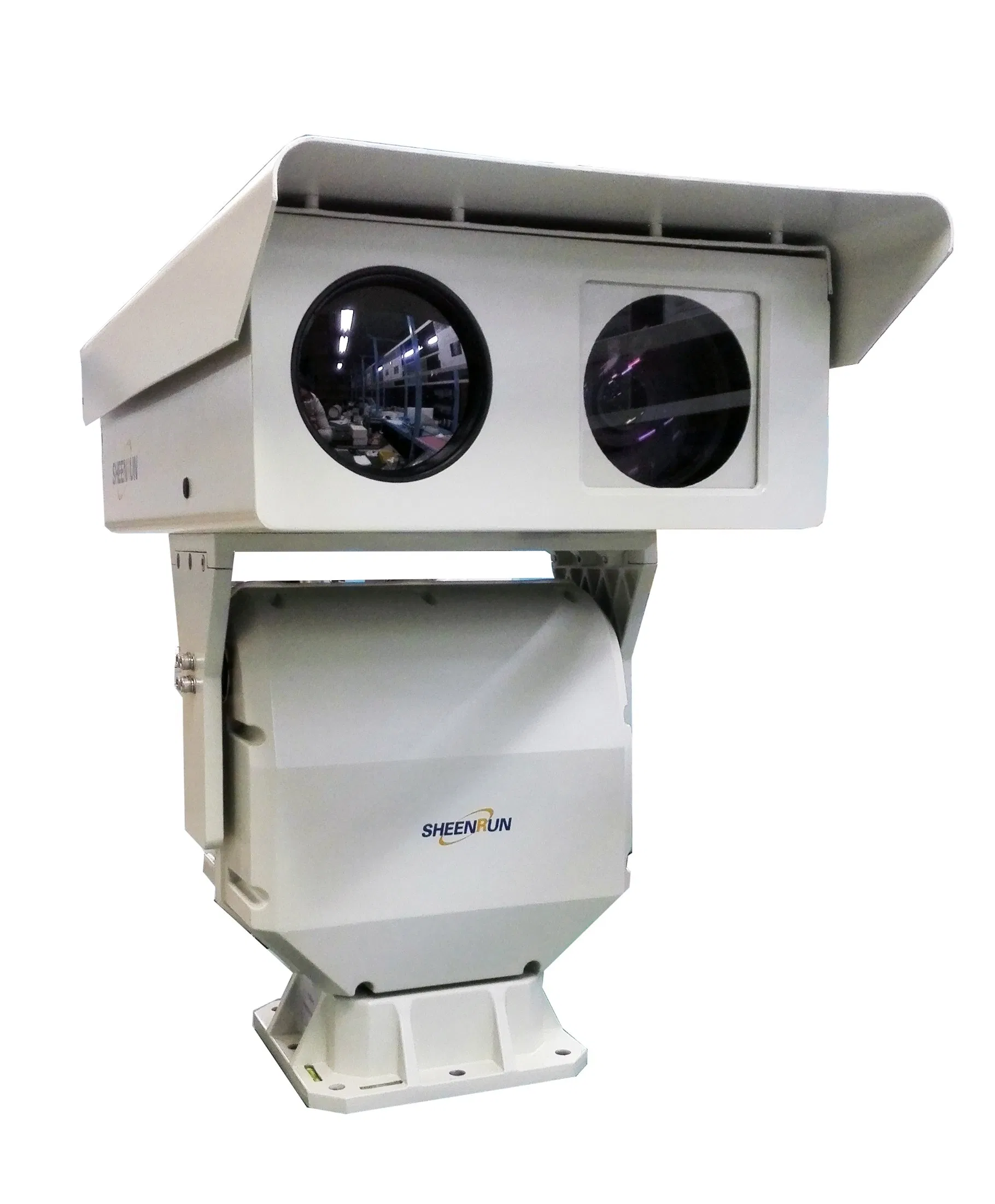

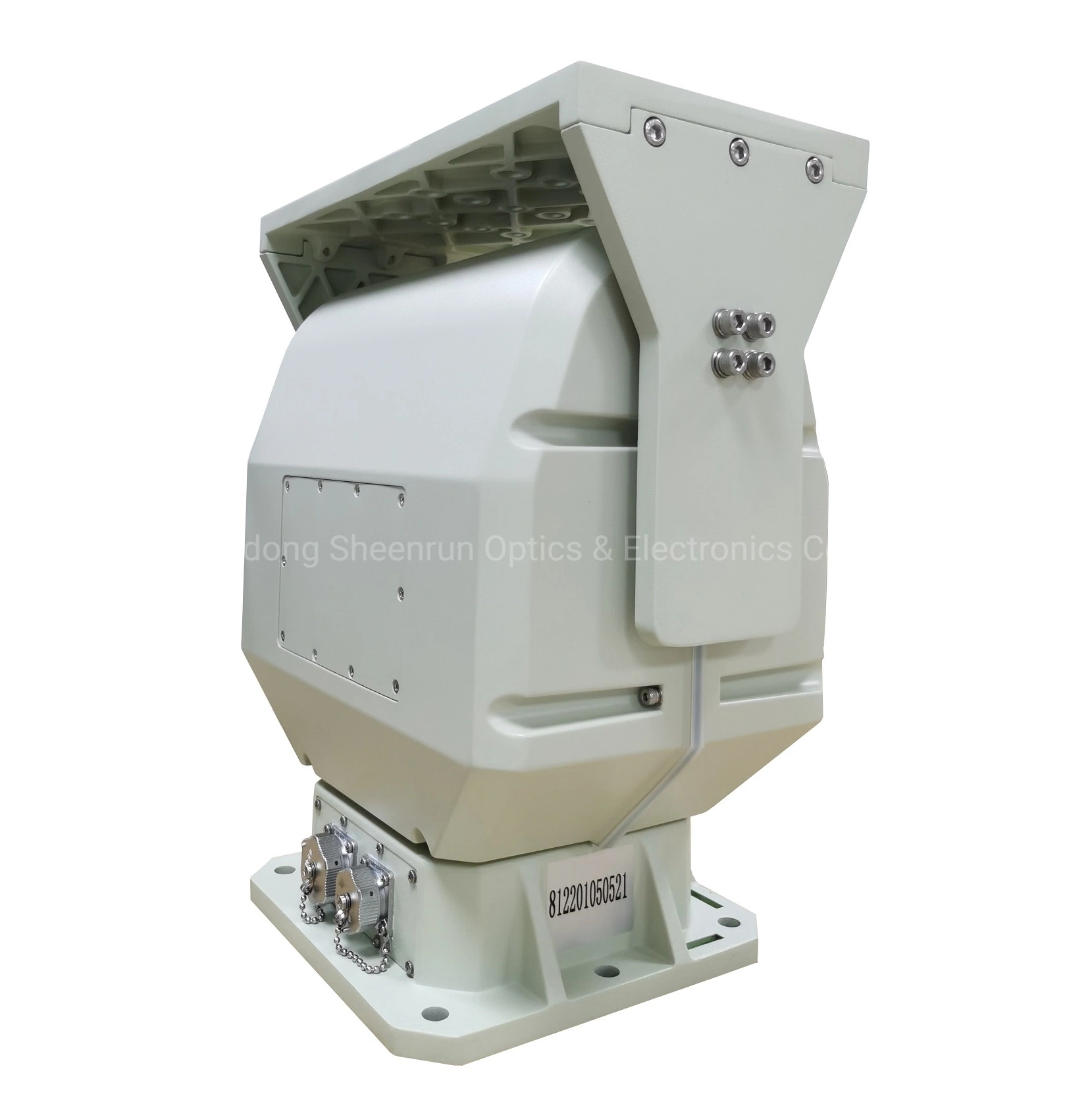

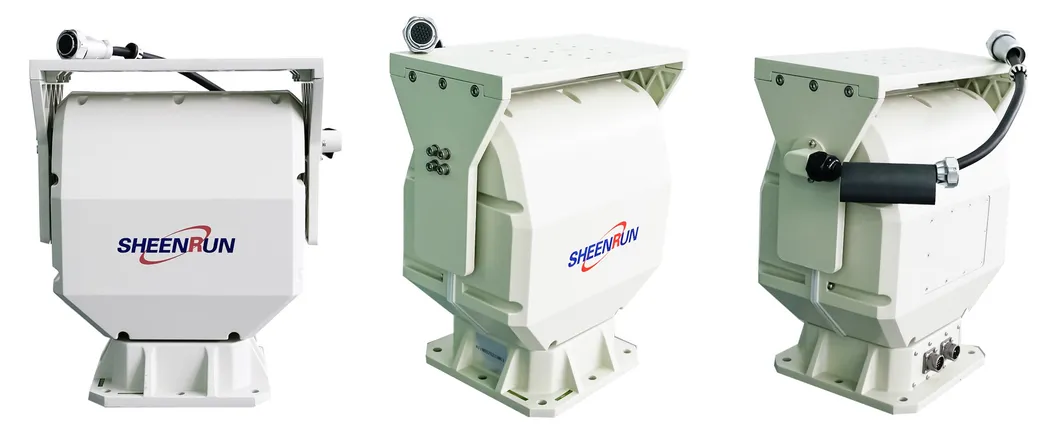

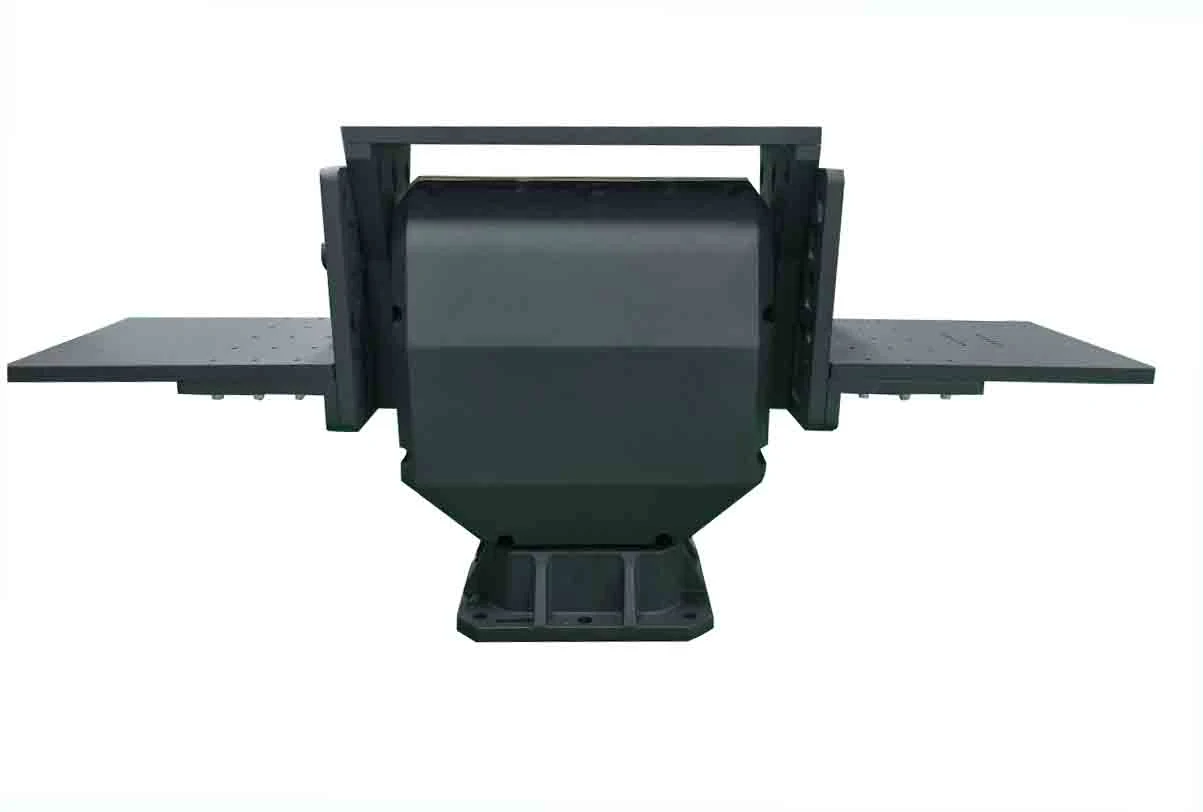

35kg Rotary IP Camera Pelco Heavy Duty Electric Pan Tilt Positioner/PTZ Gimbal Motor Head RS485
| Model | SP50 |
| Pan/tilt Speed | Pan: 0.01º~12º/s, Tilt: 0.01º~8º/s |
| Rotation Angle | Pan: 360º continuous, Tilt: +45º~-45º |
| Presets | 200 Presets, Accuracy ±0.1º |
| Input Voltage | AC24V±20% or DC28V±20% |
| Baud Rate | 2400/4800/9600/19200bps |
| Interface | RS485 or RS422 |
| Operating Temp | -25ºC to +65ºC (Optional -40ºC available) |
| Protection Class | IP66 |

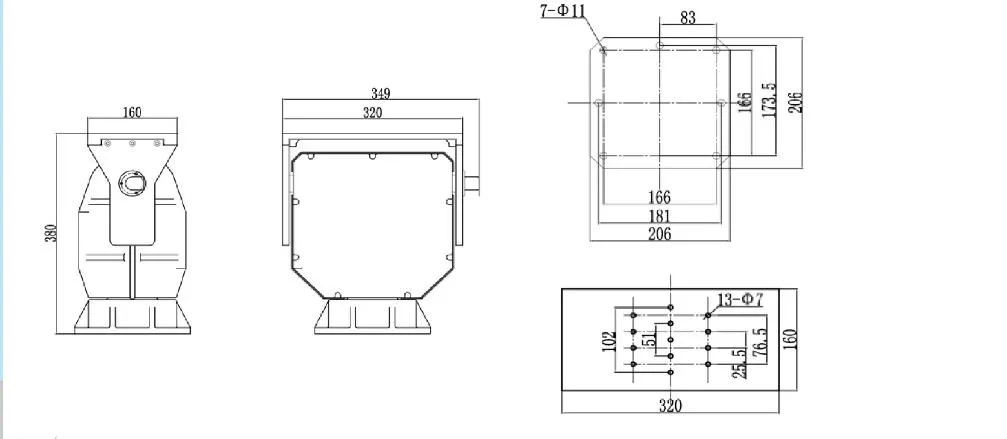

| Dimensions | 350mm * 206mm * 380mm |
| Weight | 23KG |
Founded in 2004, our company is one of the largest manufacturers of long-range thermal imaging cameras and laser night vision systems. We operate a leading Engineering Technology Research Center and maintain international standards in continuous zoom infrared technology.
Our independent innovations have been widely utilized in national defense, railway safety, forest fire prevention, and oil field surveillance, providing all-weather security solutions globally.
