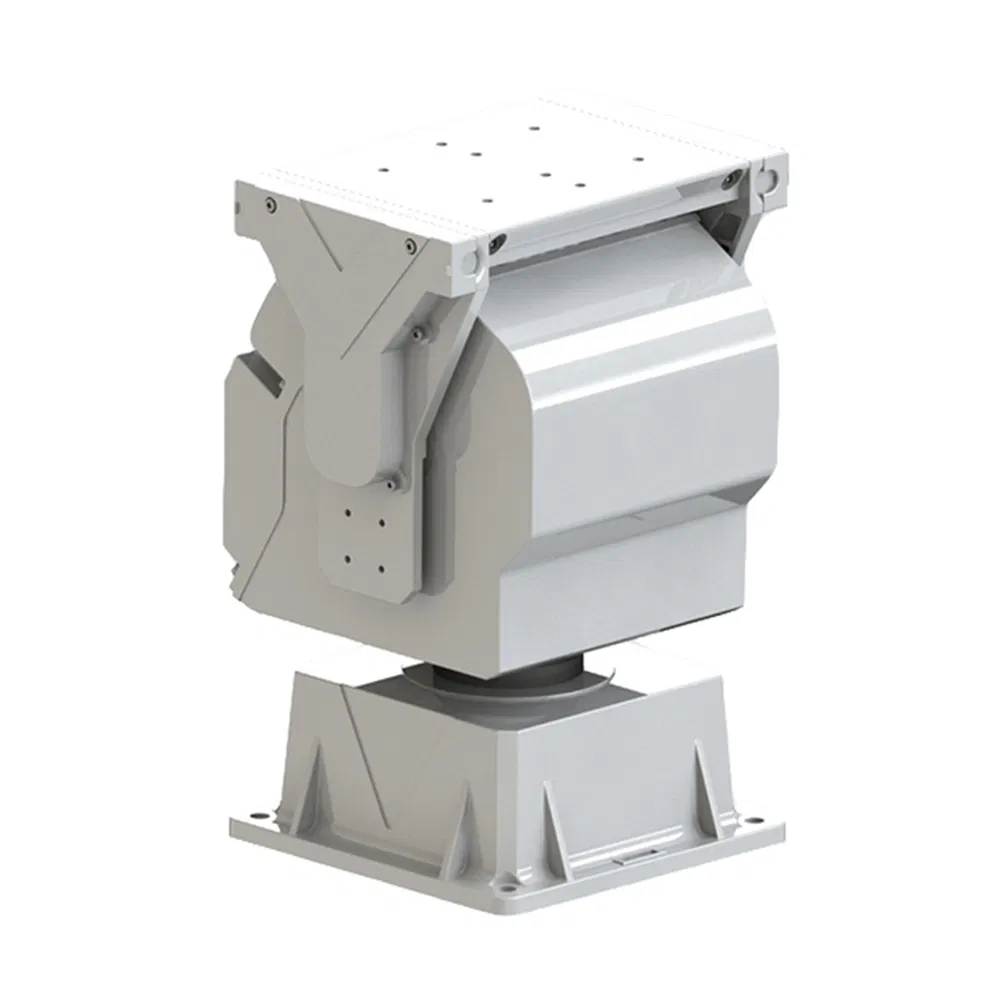

Soar-PT520 Outdoor Aluminum Alloy Waterproof 15kg Payload Medium Duty Variable Speed Pan Tilt
1 / 1
Soar-PT520 Outdoor Aluminum Alloy Waterproof 15kg Payload Medium Duty Variable Speed Pan Tilt

Soar-PT520 Outdoor Aluminum Alloy Waterproof 15kg Payload Medium Duty Variable Speed Pan Tilt

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Information
Model NO.
SOAR-PT520
Type
CCTV Camera
Certification
CE, FCC, CCC, RoHS
Feature
Waterproof / Weatherproof
Max. Load
15kg
Pan Rotation
360° Continuous
Tilt Rotation
-75°~+40°
Waterproof Rate
IP66
Material
Aluminum Alloy
Consumption
≤90W
Technical Specifications
Model: SOAR-PT520
Max. load15kg
Load ModeTop load
DrivingWorm and gear driving
Pan Rotation Angle360° continuous
Tilt Rotation Angle-75°~+40°
Pan Speed0.1°/s~60°/s
Tilt Speed0.1°/s~30°/s
Preset Position200
Presetting Precision±0.1°
Lens PresetSupport, adaptive to variety of lenses
Communication InterfaceRS485
ProtocolPelco D
Baud Rate2400/4800/9600/19200 bps optional
System & Environment
Input VoltageAC24V±15% 50/60HZ ; DC24V±10%
Working Temperature-35°C~+65°C
WaterproofIP66
MaterialAluminum alloy
Weight13kg
Application Field

The SOAR-PT520 is designed for professional video surveillance in demanding environments.

Packing & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Services
Payment Way: T/T
Delivery Time: Goods in Stock needs 2-5 working days; bulk orders 7-20 working days.
OEM Service: We offer OEM and ODM services for our clients.
Quality Warranty: 1 years hardware warranty, whole life technical service.
Frequently Asked Questions
What is the maximum load capacity of the SOAR-PT520?
The SOAR-PT520 can handle a maximum top load of up to 15kg, making it suitable for heavy-duty CCTV cameras and thermal imaging systems.
Does the device support continuous 360-degree rotation?
Yes, it supports 360° continuous pan rotation and a tilt range of -75° to +40°, ensuring complete area coverage.
Is the PTZ camera housing waterproof for outdoor use?
Absolutely. It features an IP66 waterproof rating and is constructed from high-quality aluminum alloy to withstand harsh weather conditions.
What communication protocols are supported?
It primarily uses the RS485 communication interface and supports the standard Pelco D protocol for seamless integration.
What is the operating temperature range?
The device is designed to operate reliably in extreme environments, with a working temperature range of -35°C to +65°C.
Does it include a power failure memory function?
Yes, the system supports power failure memory, allowing it to resume its previous state or positions after power is restored.
