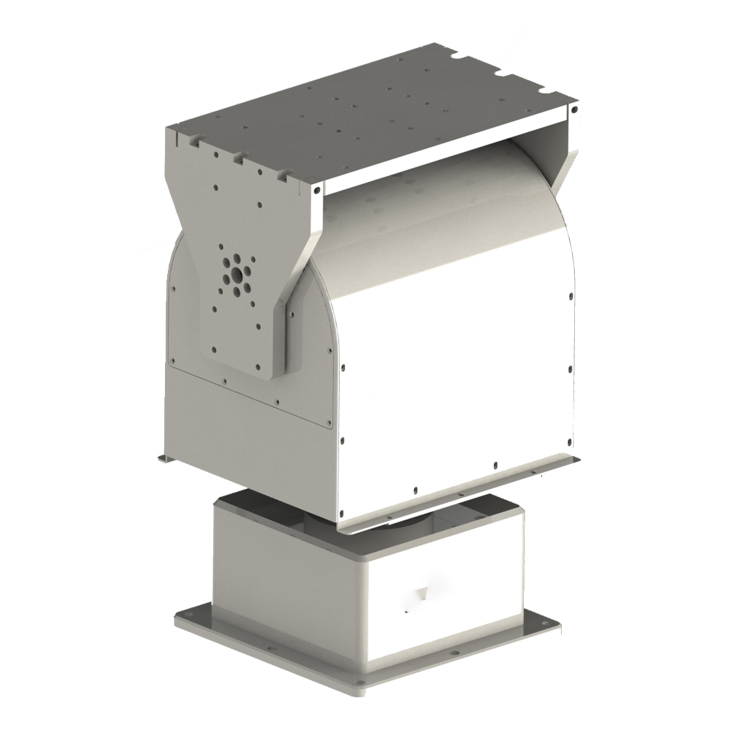

Soar-PT8120 Waterproof IP66 Top Load 360 Degree DC48V Heavy Duty Variable Speed Pan Tilt with Max 120kg Payload

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Info

Model NO.

SOAR-PT8120

Type

CCTV Camera

Certification

CE, FCC, CCC, RoHS, ISO9001

Feature

Waterproof / Weatherproof

Max. Load

120kg

Pan Rotation

360° Continuous

Tilt Rotation

-45°~+40°

Waterproof

IP66

Material

Aluminum Alloy

Consumption

≤200W

Product Specifications

Technical Parameters
Model	SOAR-PT8120
Max. Load	120kg
Load Mode	Top load
Driving	Worm and gear driving
Pan Speed	0.005°/s~15°/s
Tilt Speed	0.005°/s~7°/s
Preset Position	200
Presetting Precision	±0.1°
Lens Control	Zoom, focus speed continuously adjustable
Auto Functions	Auto Scan, Auto Cruise, Keep Watch
Communication	RS485/ RS422 optional (Pelco D)
Input Voltage	DC48V±10%
Working Temp	-35°C~+65°C
Anti-lighting	Power: 4000V; Video signal: 2000V
Salt fog resistance	PH 6.5 ~7.2, continuous spraying 48 hours

Key Features

High-precision worm gear drive mode, self-locking when power off, strong wind resistance and high stability.

Support a variety of lens preset function and zoom adaptive function.

360° continuous rotation in the horizontal direction, vertical +45°~-45°.

High repeat positioning accuracy, up to ±0.1°.

All-weather protection design with IP66 protection level.

Heavy-duty construction with a maximum load capacity of 120KG.

Service & Logistics

Packing: Professional, environmentally friendly, and efficient packaging services provided to ensure the safety of your goods.

Payment Way: T/T

Delivery Time: 2-5 working days for stock items; 7-20 working days for bulk or custom orders.

Warranty: 1-year hardware warranty with life-time technical service support.

Manufacturing Excellence

A professional video surveillance products provider with over 15 years of experience in front-end surveillance product design and manufacture. The R&D team consists of over 60 masters and senior engineers specializing in industrial design, FPGA, ISP, video analysis, and AI algorithms.

Main products include various PTZ and Zoom camera modules for vertical and niche markets, all certified under ISO9001 quality standards. OEM and ODM services are available to create value through product innovation.

Frequently Asked Questions

What is the maximum weight the SOAR-PT8120 can support?

The system is designed for heavy-duty applications with a maximum load capacity of 120kg.

How does the device perform during a power failure?

It utilizes a high-precision worm gear drive mode which provides a self-locking mechanism when power is disconnected, ensuring the position is maintained.

Is this camera system suitable for maritime or coastal environments?

Yes, it features an IP66 waterproof rating and has been tested for salt fog resistance (PH 6.5-7.2) for 48 hours of continuous spraying.

What is the positioning accuracy of the PTZ?

The SOAR-PT8120 offers high repeat positioning accuracy of up to ±0.1°.

What communication protocols does the system support?

It supports the Pelco D protocol via RS485 or RS422 interfaces, with adjustable baud rates from 2400 to 19200 bps.

What are the power requirements for installation?

The device operates on DC48V±10% with a maximum power consumption of ≤200W.
