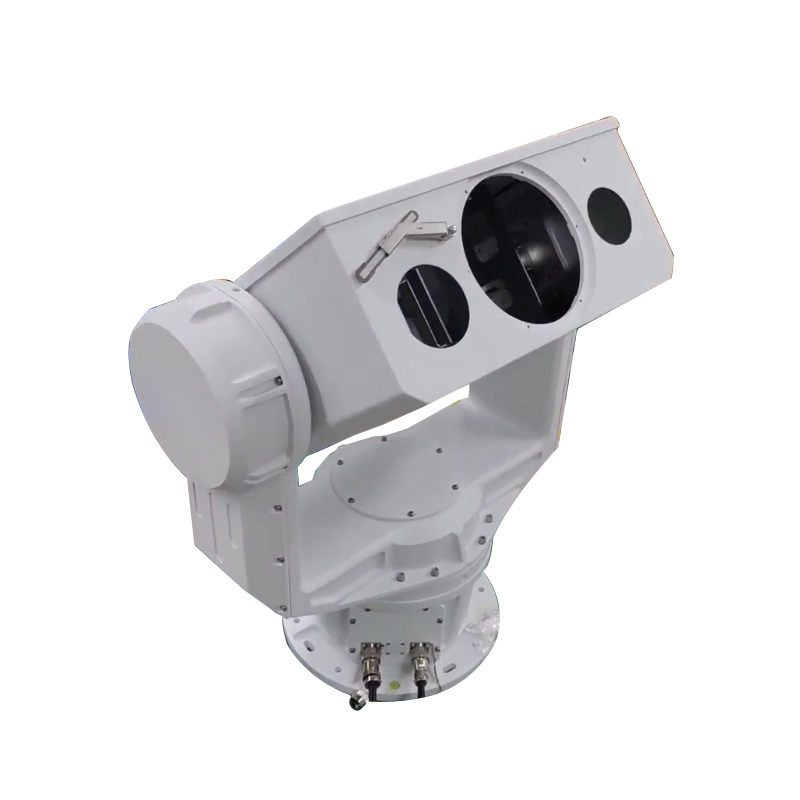

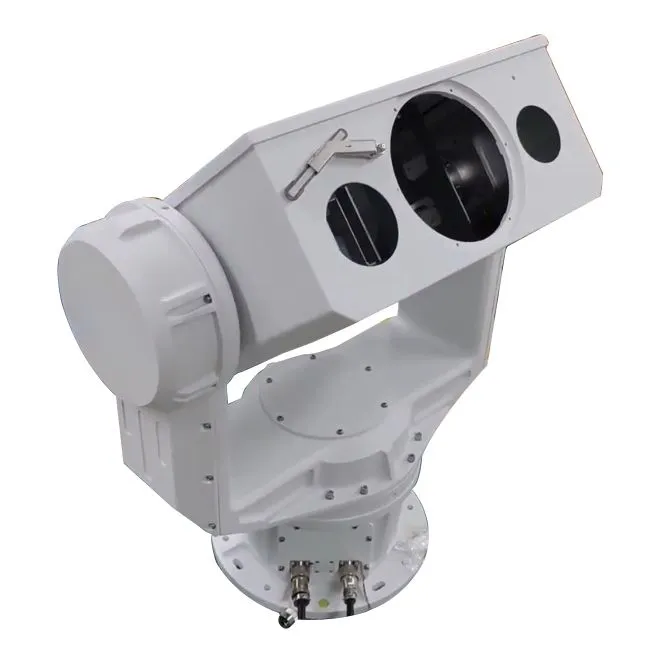

U Shaped Servo Motor Drone Tracking Thermal Camera Platform PTZ Gimbal Pan Tilt

Send Inquiry

Product Description

Model NO.

CQ-UT500

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

600tvl

Kind

Autofocus Lens

Certification

CE, FCC

Feature

Waterproof / Weatherproof, High Definition

Effective Distance

≧30m

Sensor Size

1/3 inch

Remote Control

With Remote Control

Angle of Rotation

0-360 Degree

Communication Protocols

Pelco_D

Load

40kg

Weight

85kg

Carrying Method

Top Load

Transmission

Servo Motor

Protection

IP66

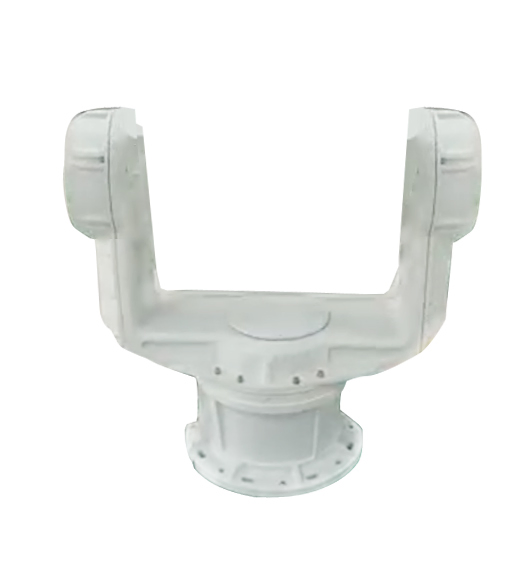

Resistant to harsh environments: high-strength aluminum alloy, sprayed conformal coating, anti-seawater corrosion, U-shaped shell.
0.005° Pulse precision motor with digital angle measurement sensor servo.
High load capacity: Can carry visible light, thermal imager, laser illuminator, and long-distance ranging tools.
Multi-band imaging integration: Long-wave/mid-wave infrared, near-infrared laser, and visible light suitable for all-weather observation.
Real-time data feedback: Azimuth, pitch angle, focal length, focus value, and target accuracy positioning.
IP66 Protection: Rainproof and dustproof aluminum alloy shell adapted for various harsh environments.
Network integration: Built-in serial server and optional slip rings for 100/1000M network transmission.
Electric servo tracking: Manual, automatic, and radar linkage tracking functions.

Model Number	CQ-UT500
Rotation Speed	Horizontal 0.01° to 120°/S; Pitch 0.01°~90°/S
Angle of Rotation	Horizontal 0~360° continuous; Pitch +90° to -90°
Preset Position	200 (expandable)
Positioning Accuracy	0.005°
Automatic Homing	1 to 60 minutes adjustable
Anti-salt Spray	PH 6.5-7.2, 48 hours continuous spraying resistant
Communication Interface	RJ45 (RS485 / RS422 / RS232 optional)
Operating Temperature	-25°C to +55°C
Load Capacity	≥40Kg
Protection Class	IP66
