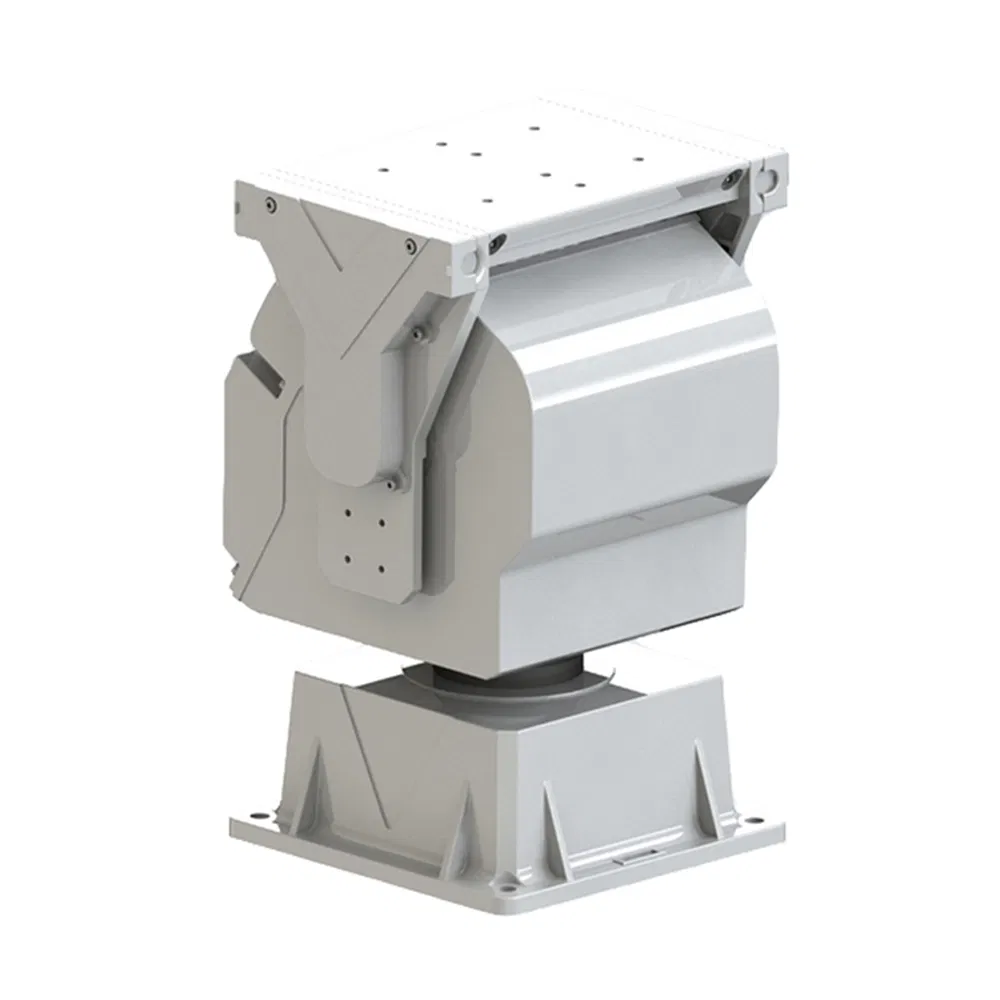

Waterproof Variable Speed Pan Tilt

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

ℹ️

Basic Information

Model NO.SOAR-PT540

TypeCCTV Camera

CertificationCE, FCC, CCC, RoHS, ISO9001

FeatureWaterproof / Weatherproof

Max. Load30kg

Pan Rotation360° Continuous

Tilt Rotation-45°~+40°

MaterialAluminum Alloy

WaterproofIP66

📋

Technical Specifications

Parameter Specification (Model: SOAR-PT540)
Max. Load	30kg
Load Mode	Top load
Driving	Worm and gear driving
Pan Speed	0.1°/s ~ 20°/s
Tilt Speed	0.1°/s ~ 10°/s
Preset Position	200 Positions
Presetting Precision	±0.1°
Communication Interface	RS485 / RS422 Optional
Protocol	Pelco D
Baud Rate	2400/4800/9600/19200 bps optional
Input Voltage	AC24V±15% 50/60HZ ; DC24V±10%
Consumption Power	≤100W
Working Temperature	-35°C ~ +65°C
Salt Fog Resistance	PH 6.5 - 7.2, continuous spraying 48 hours

🚀

Key Features

The combination of high-precision worm gear and stepper motor rotation, self-locking when power off, strong wind resistance and high stability.

Support a variety of lens preset functions, zoom adaptive function, and rotation speed adjusted automatically according to lens zoom.

High repeat positioning accuracy up to ±0.1°.

Heavy-duty design with a maximum load capacity of 30KG.

All-weather protection design with IP66 protection level.

Aluminum alloy construction for superior durability in harsh environments.

📦

Packing & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

🏢

Professional Profile

We are a professional video surveillance products provider, devoted to front-end surveillance product design, manufacture, and sales for more than 15 years. Our R&D team consists of 60+ members including Masters and senior engineers majoring in industrial design, FPGA, ISP, video analysis, and AI algorithms. Our main products are various PTZ and Zoom camera modules for vertical/niche markets, having passed ISO9001 quality certification.

🛠️
