Wuhan Easysight Pipe Monitoring Robot Camera System Pan Tilt Unit

Customization:	Available
Technology:	Wireless
Style:	Pan/Tilt

Basic Specifications

Model NO.

X5-HS

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Certification

CE, FCC, RoHS, ISO9001

Waterproof

IP68 (Up to 10m)

Pipe Diameter

300-3000mm

Lens Material

Anti-Scratch Sapphire Glass

X5-HS CCTV Inspection Crawler Overview

The X5-HS pipeline CCTV Inspection robot is designed based on an industrial personal computer (IPC) system, utilizing a laptop as the controller. It captures defect images and generates testing reports immediately. It features a fish-eye lens and integrated "PipePano" analysis software for detailed panoramic inner wall mapping and quantitative crack measurement.

Technical Parameters

Component	Specifications

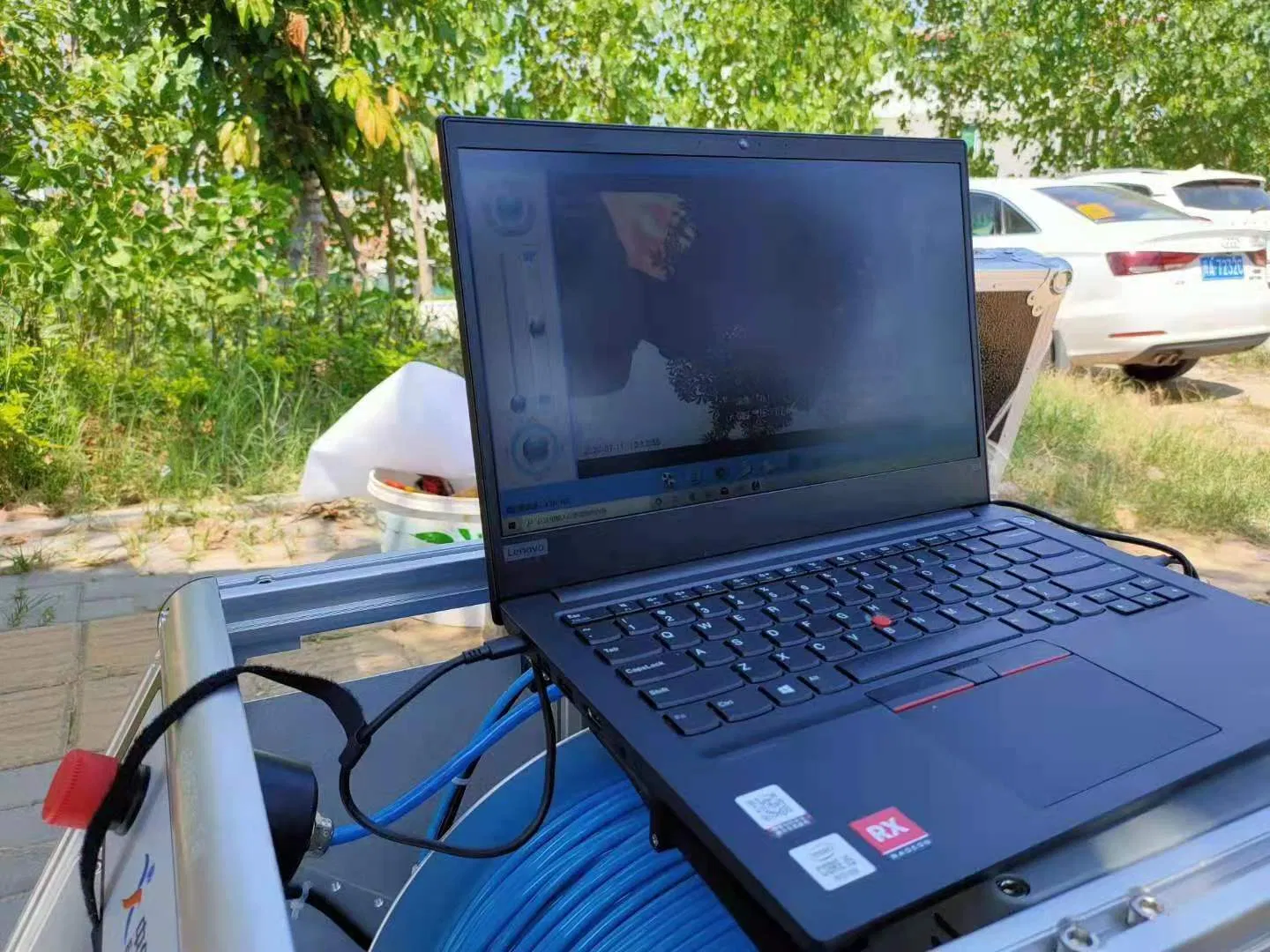

Main Controller	Laptop-based control, Wireless support, Real-time crawling attitude & font customization, Simultaneous front/rear view.
Electric Cable Reel	Standard 150m, Two-core cable, Automatic retractable system, Low failure rate.
Crawler	IP68 waterproof (10m), Fits DN300mm-DN2000mm pipes, Removable electric lift, 12 bright adjustable LED lights.
Camera	1920*1080 High Resolution, 360° radial limitless rotation, One-click reset, 0.1Lux sensitivity.

Core Advantages

1Lightweight Design
Optimized master control and crawler for easy transport.

2Fast Deployment
Quick site assembly and wireless data transmission.

3HD Clarity
High-definition camera combined with highlight light sources.

4Stability
Waterproof and explosion-proof build for harsh environments.

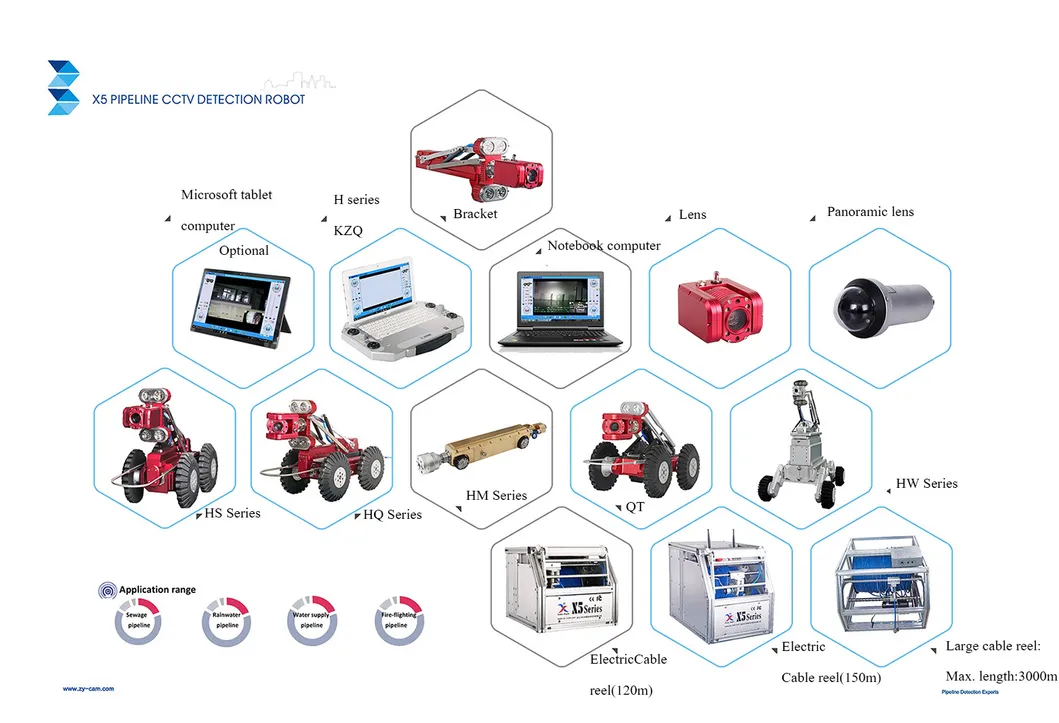

Main Parts & Components

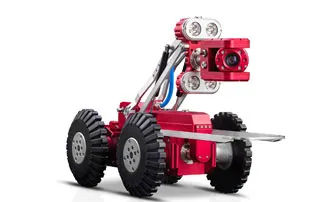

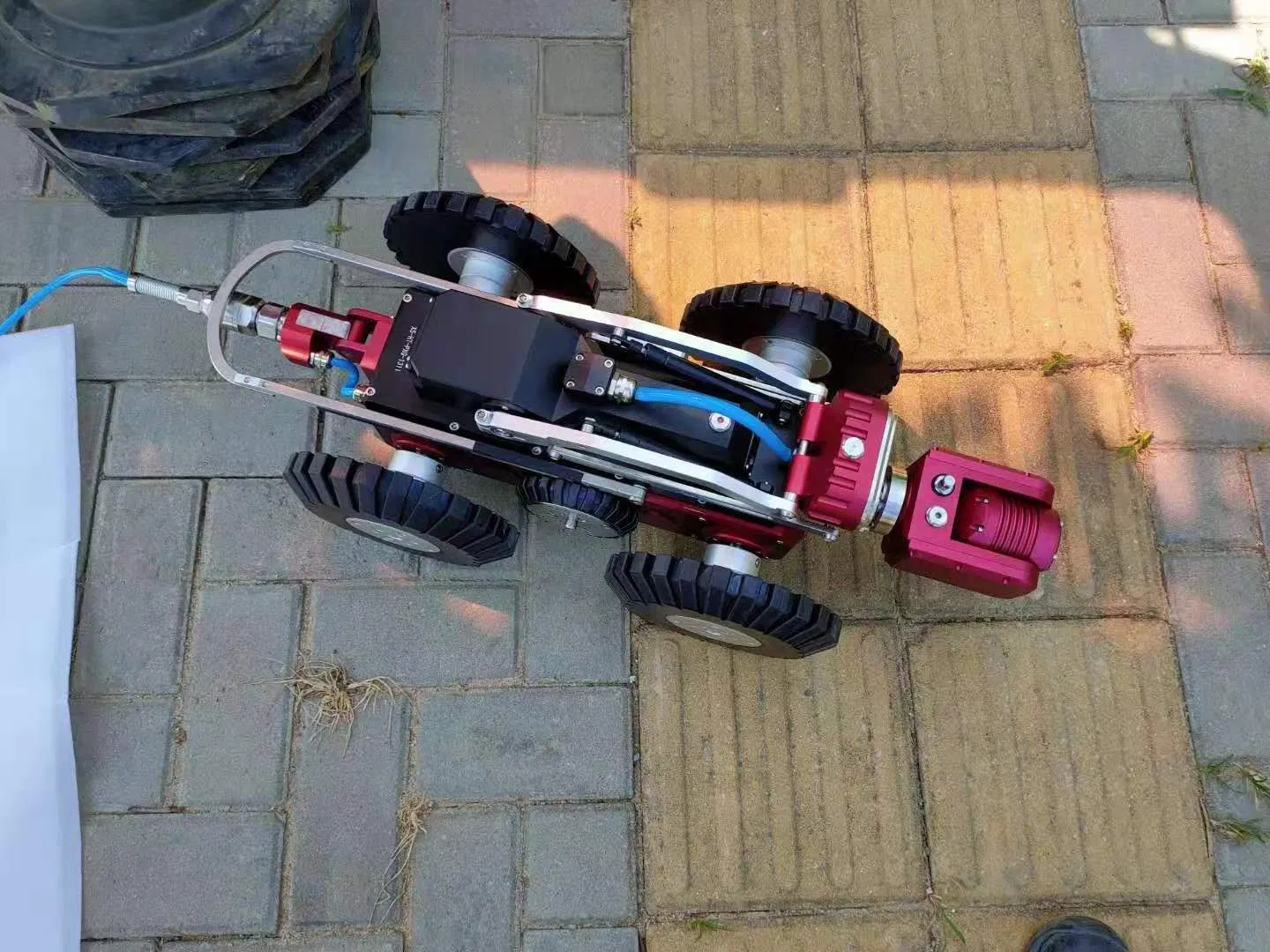

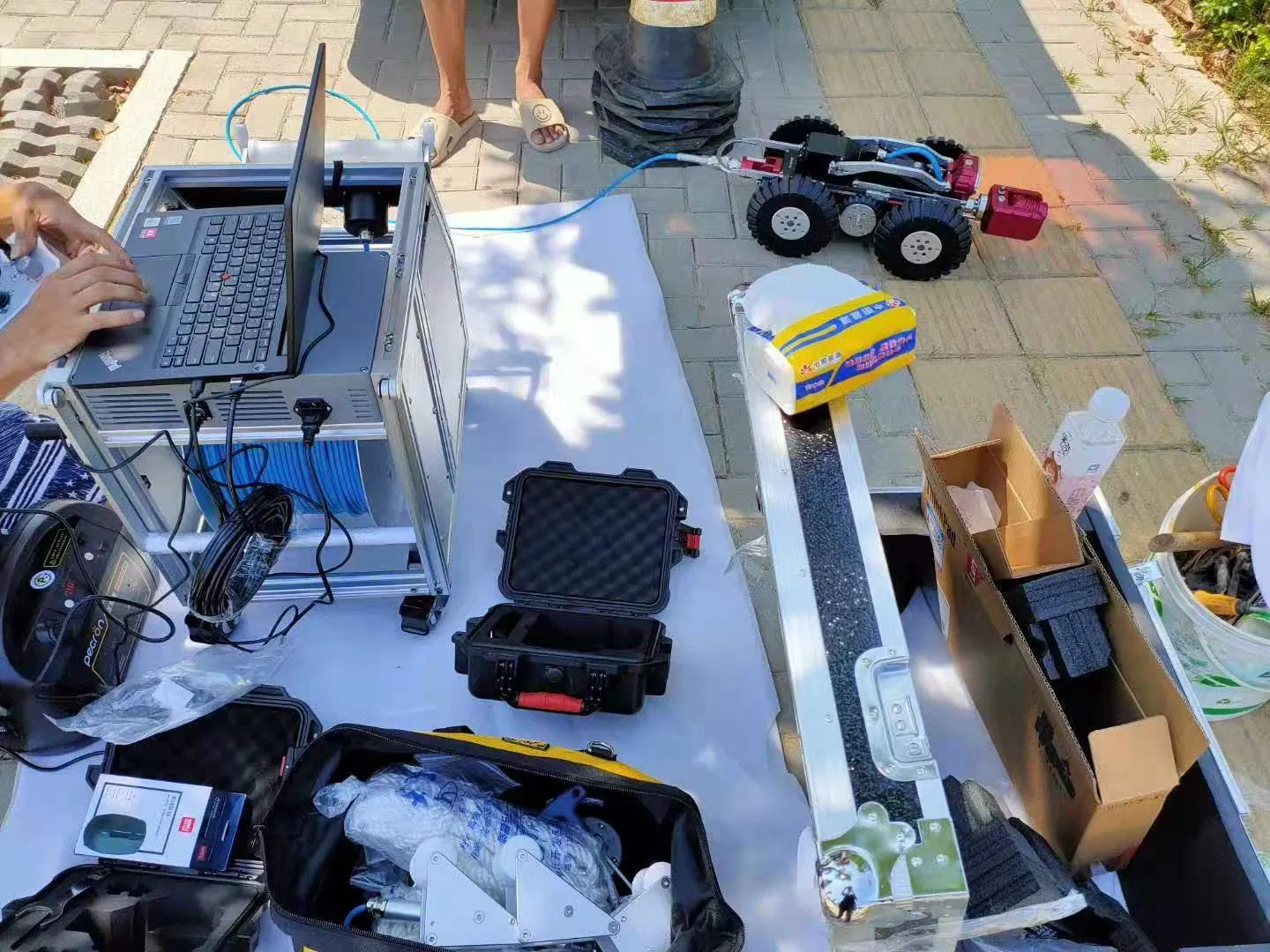

X5-HS Crawler Unit

6-wheel-drive, Max Speed 32m/min
Pressure, inclination, and roll sensors
Material: Brass nickel-plating stainless steel

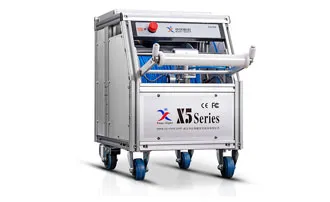

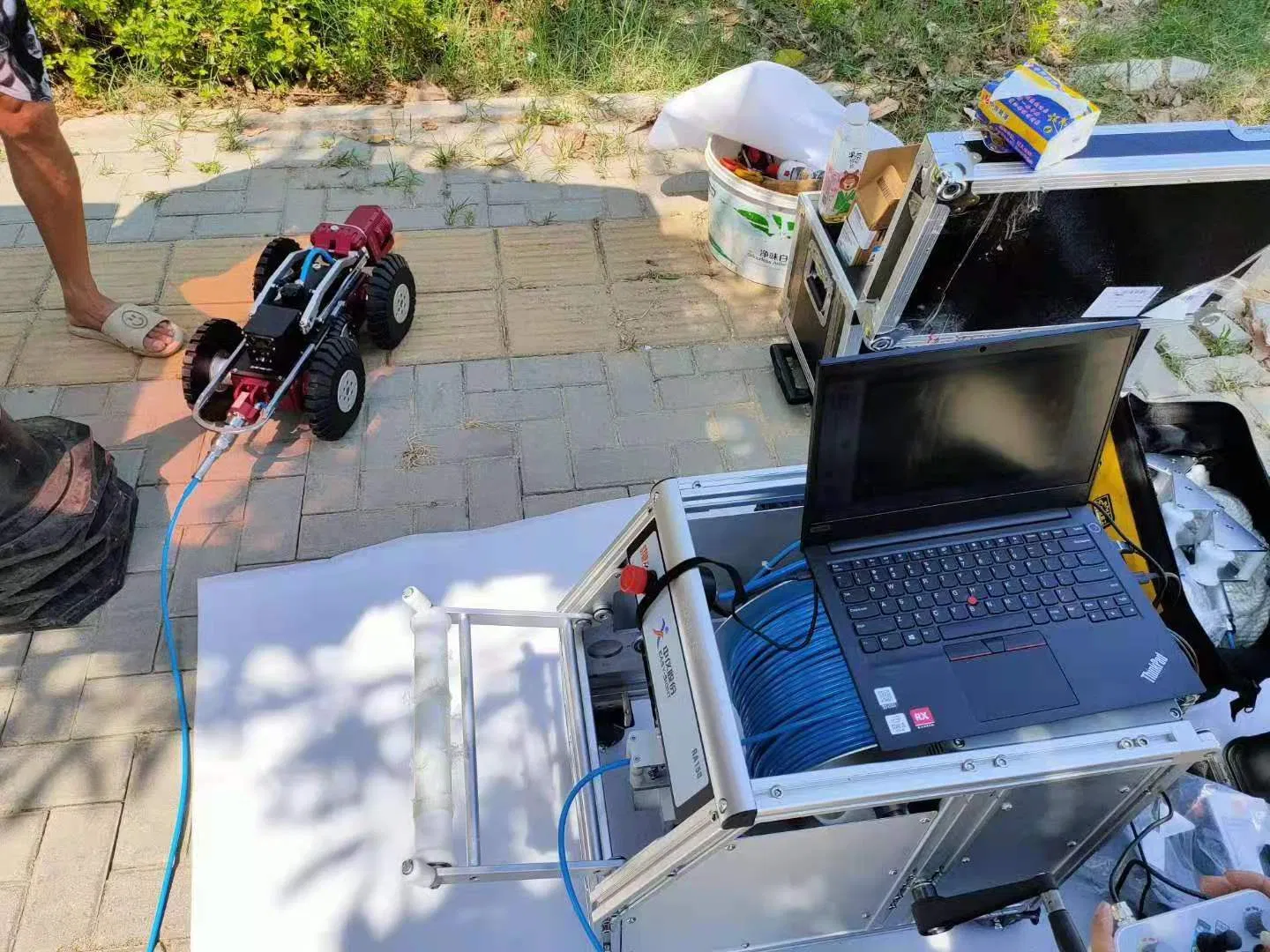

Automatic Cable Reel

150m reinforced anti-Kevlar cable
Accurate counter (1mm deviation)
IP63 Protection class

Exhibition & Application

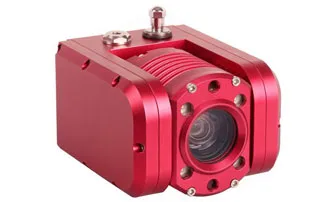

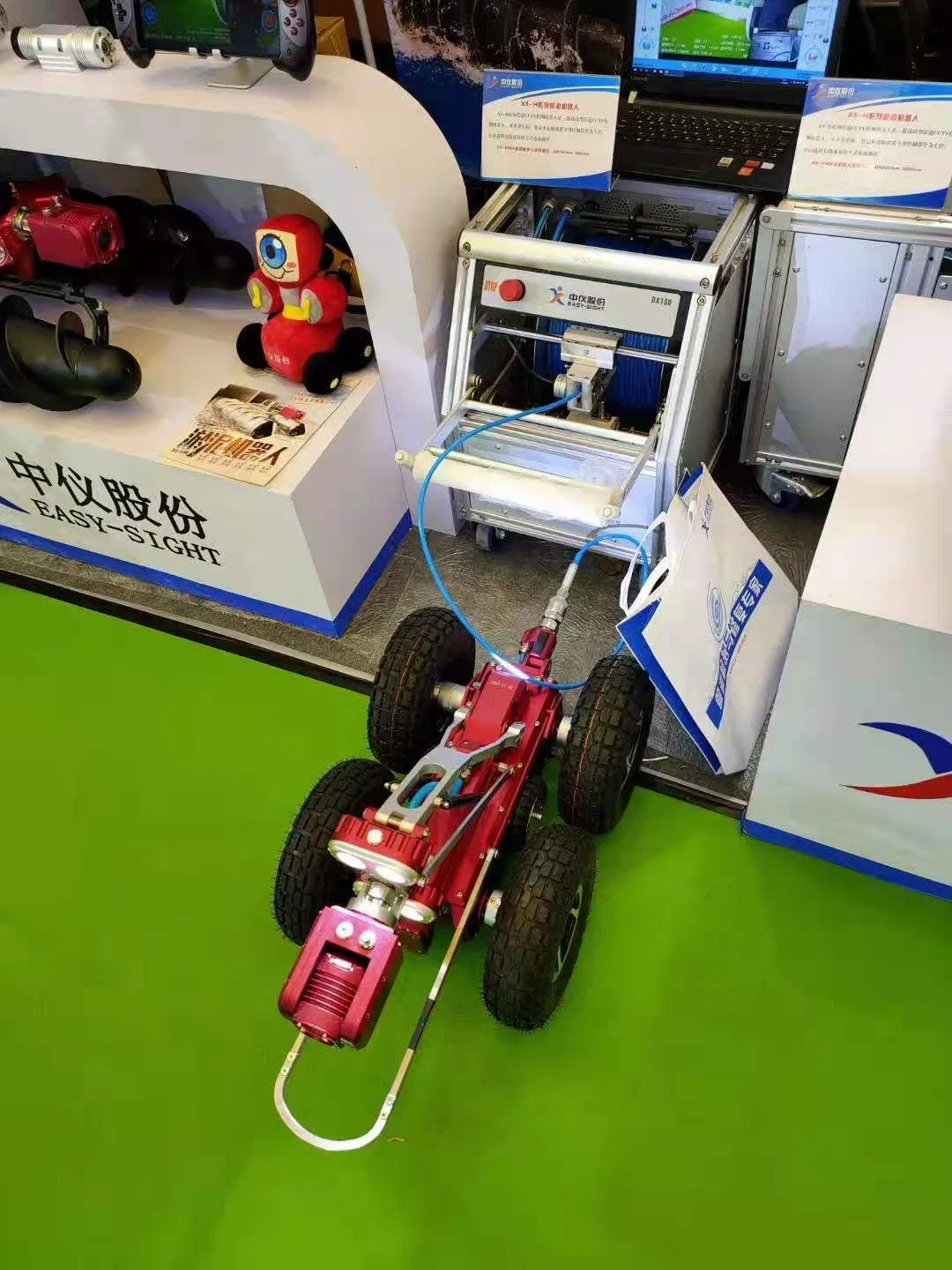

HD P&T Camera

2 Million Pixels, 10X Optical Zoom
Laser measurement for cracks
360° radial / ±135° horizontal rotation

Service & Support

Warranty: 12-month warranty from arrival date with lifelong maintenance support.

Quality Control: Every machine is strictly tested before packaging to ensure perfect operation.

Training: Detailed operational manuals and English training videos are provided.

OEM: Brand logo printing services available for custom orders.
